16bit RGB ST7701S ips 33 pin lcd bar screen

Item3.46inch 340×800 bar type LCD module
Model NoPV034601RJ33B
Resolution340×800

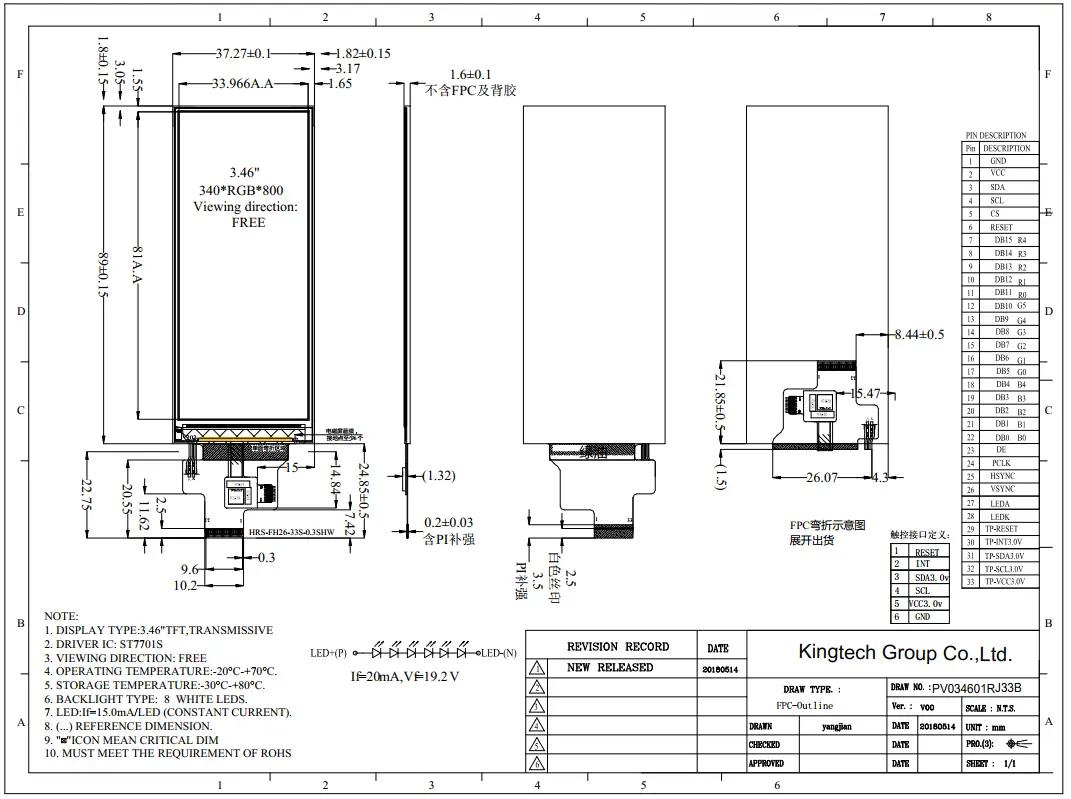

Outline Dimension37.27(H) ×89(V)×1.6(T)
Active Area(mm)33.966 (H)×81(V)
Interface16bit-RGB
Viewing AngleAll
Driver ICST7701S
Display Mode262K color TFT / IPS / Transmissive / Normally Black
Operating Temperature-20℃~70℃
Storage Temperature-30℃ to +80℃
Brightness180nits
Touch screenCan custom capacitive touch

For product pricing,customization,or other inquiries:

Share to:

3.46 inch 340×800 resolution RGB IPS bar type small LCD module

1. PV034601RJ33B mainly application  handheld device , Industrial ,medical equipment.
2. It with 340×800 resolution , ips all view angle, 16bit-RGB  interface, ST7701S driver IC , 180 nits brightness .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

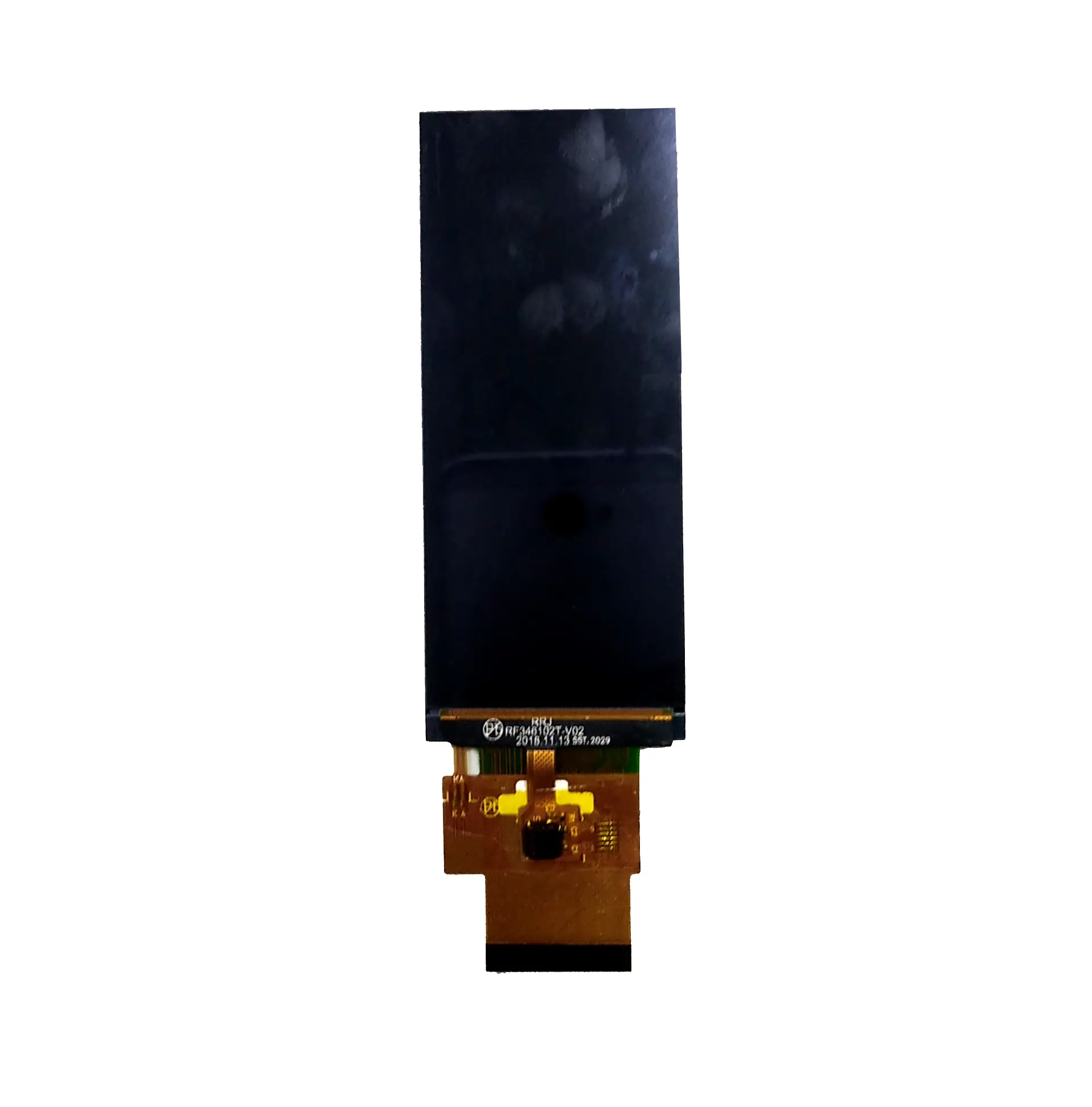

3.46” rgb interface LCD module front view

bar type screen

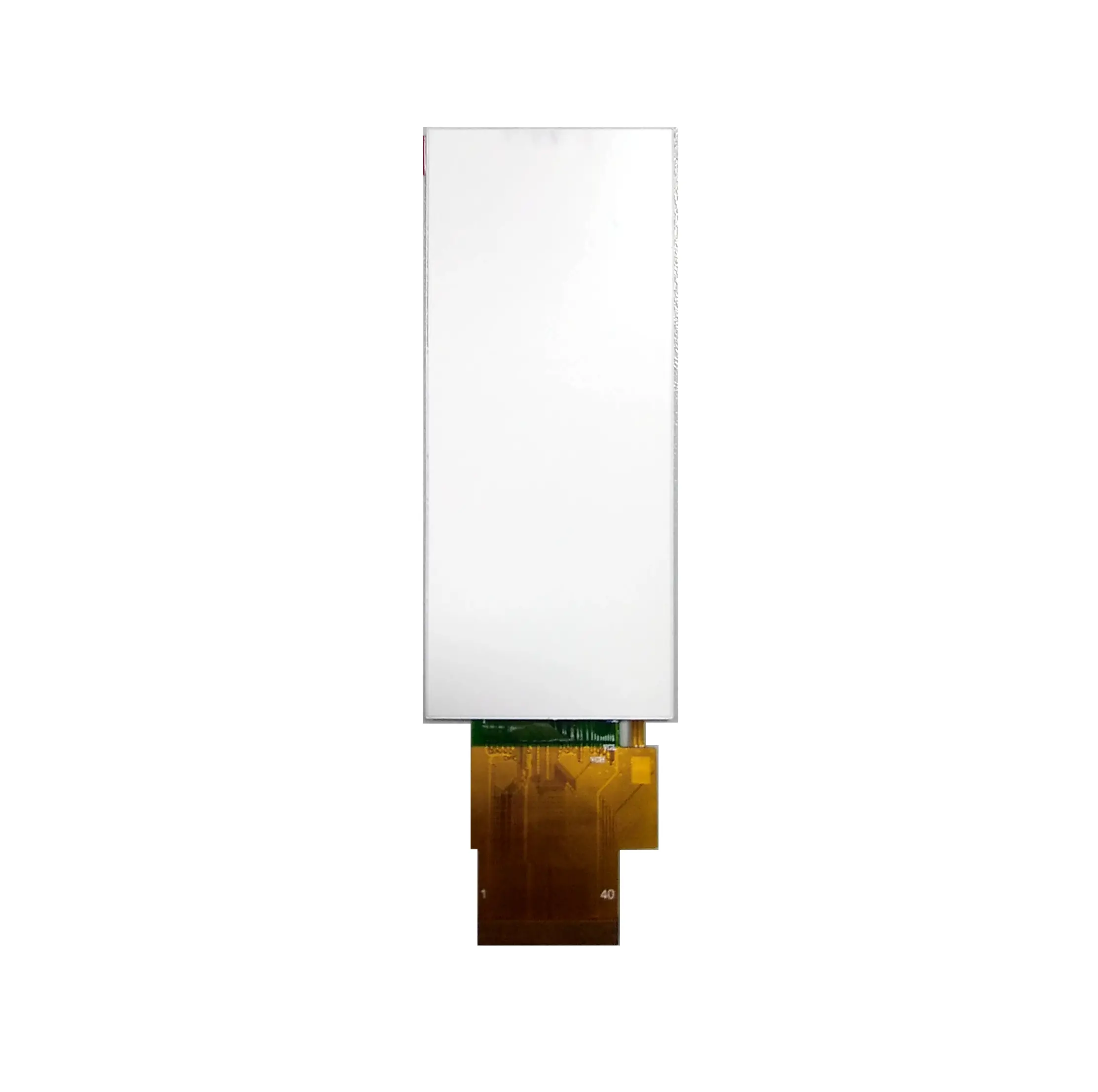

3.46 inch IPS TFT display moduel back view

bar type screen
