Item | 2.8 inch 240×320 ILI9341 IC LCD diaplay |
Model No | PV028000YX50D |
Resolution | 240×320 |
Outline Dimension | 50.0(W)×69.2(H)×3.6(T) |
Active Area(mm) | 43.2(W)×57.6(H) |
Brightness | 200nits |
Viewing Angle | 12 o’ clock |
Interface | SPI series 6-/16-/18-bit RGB |
Driving IC | ILI9341 |
PIN | 50 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | support capacitive/ resistive touch |
2.8 inch 240×320 resolution Tiny samll TFT LCD screen
1. PV028000YX50D mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ILI9341 Driver IC, 200nits and 600nits brightness, 12 o’ clock viewingd angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

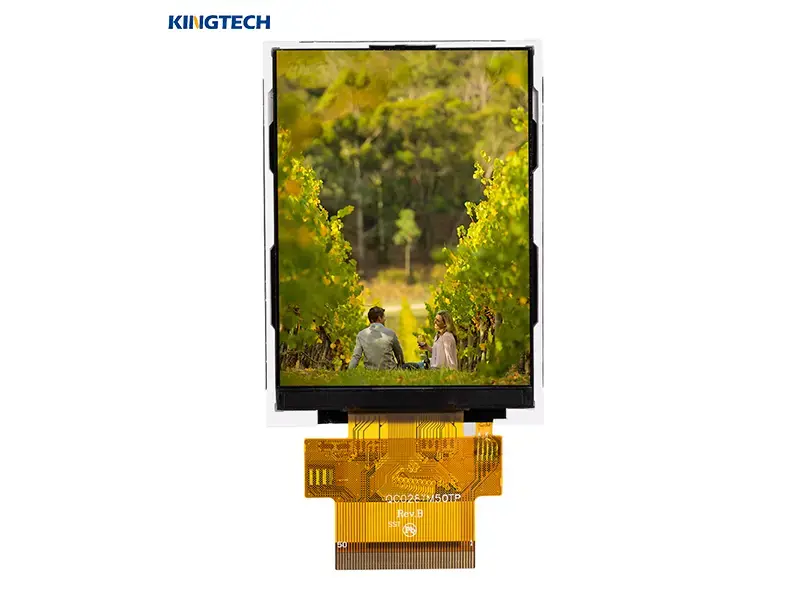

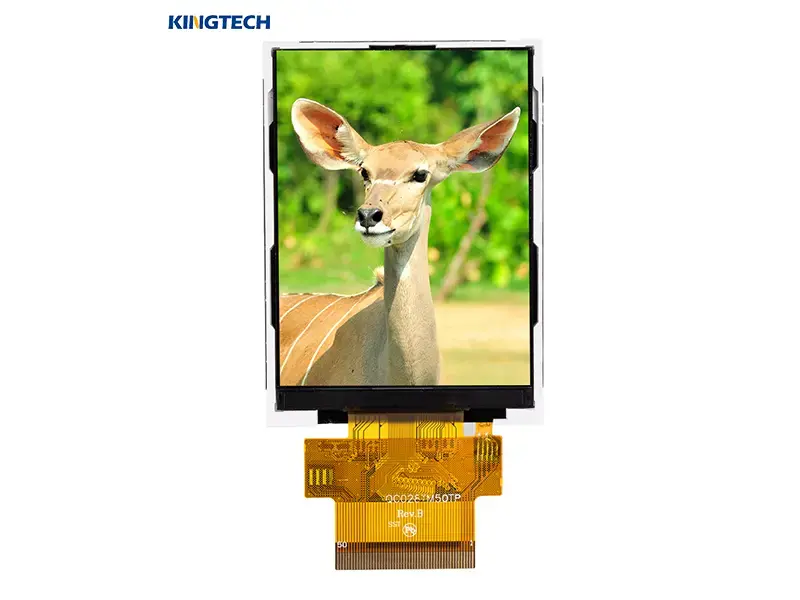

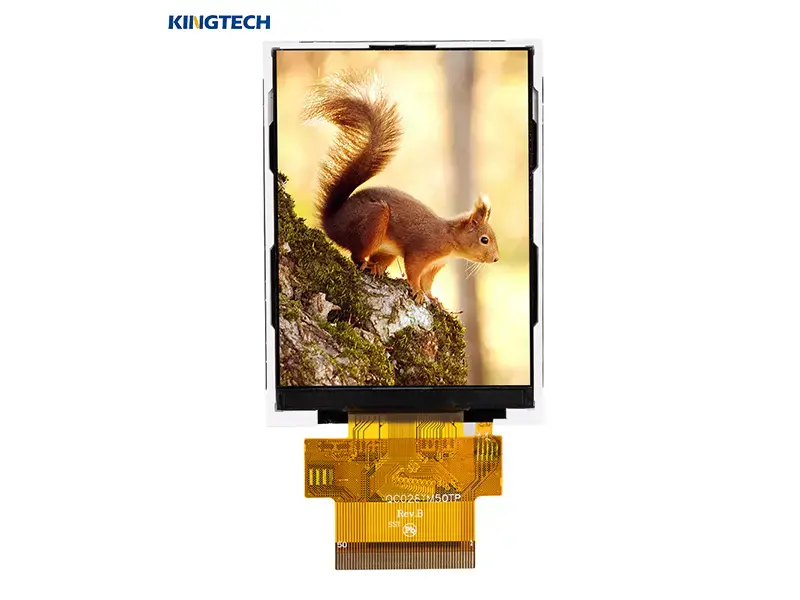

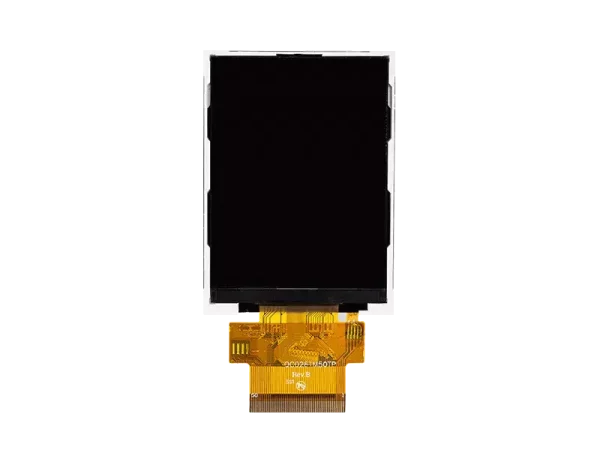

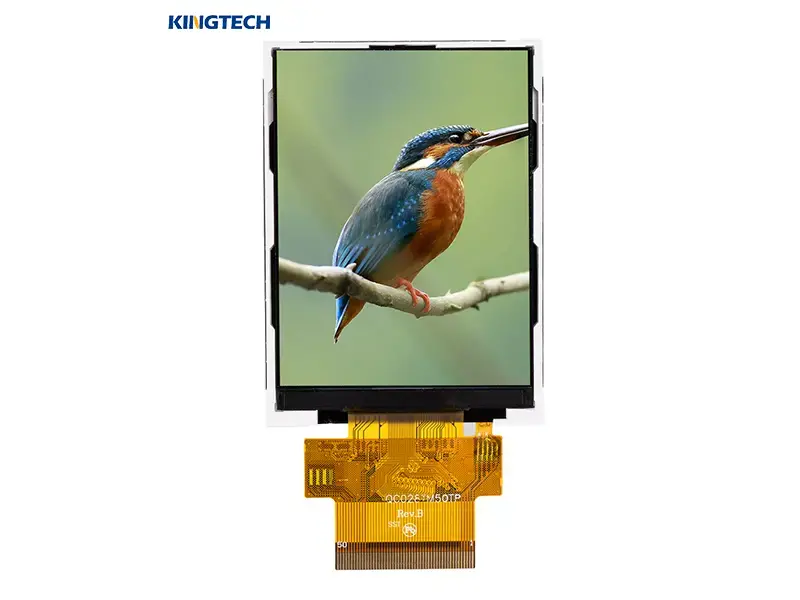

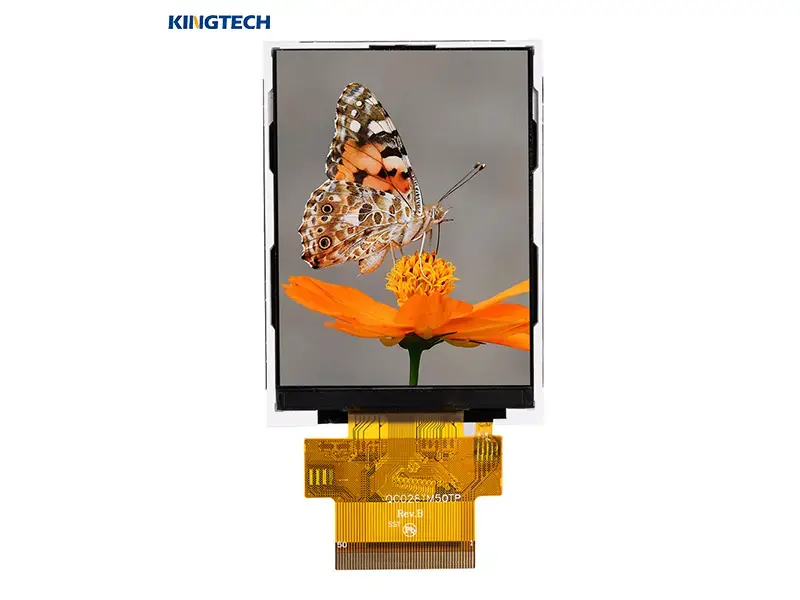

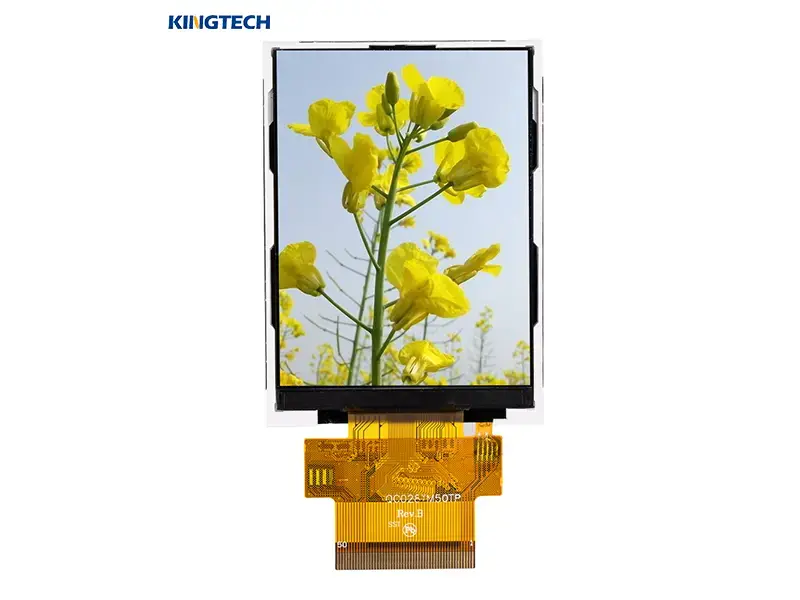

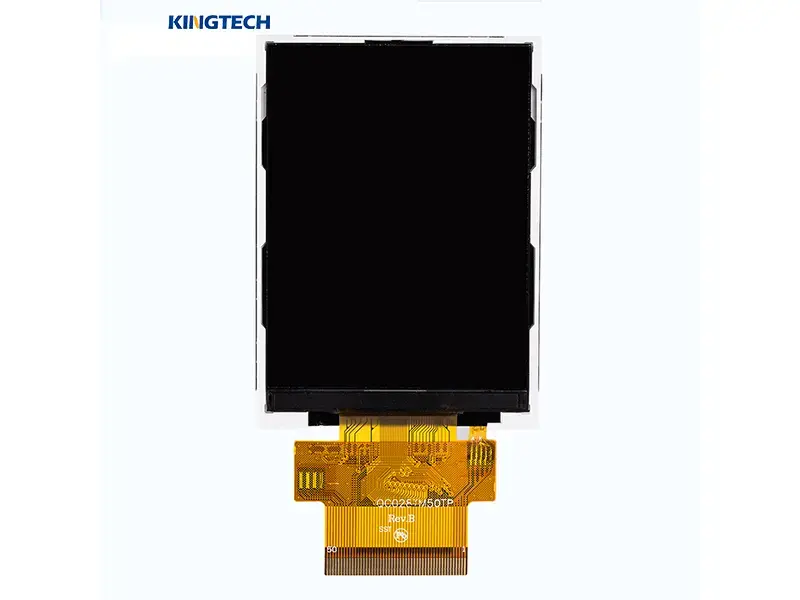

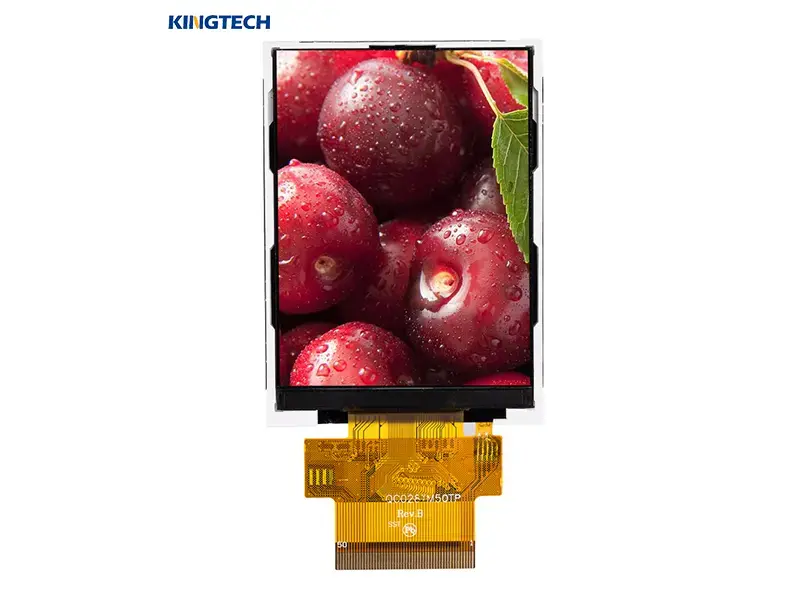

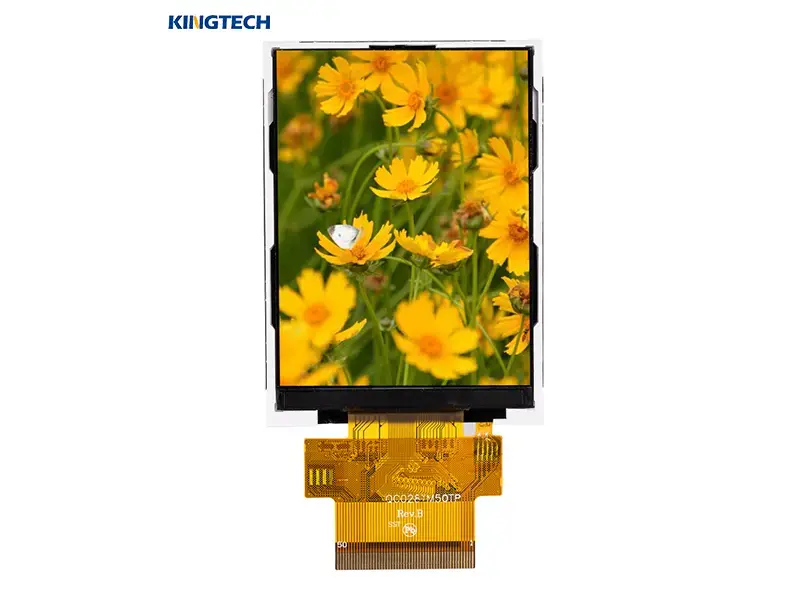

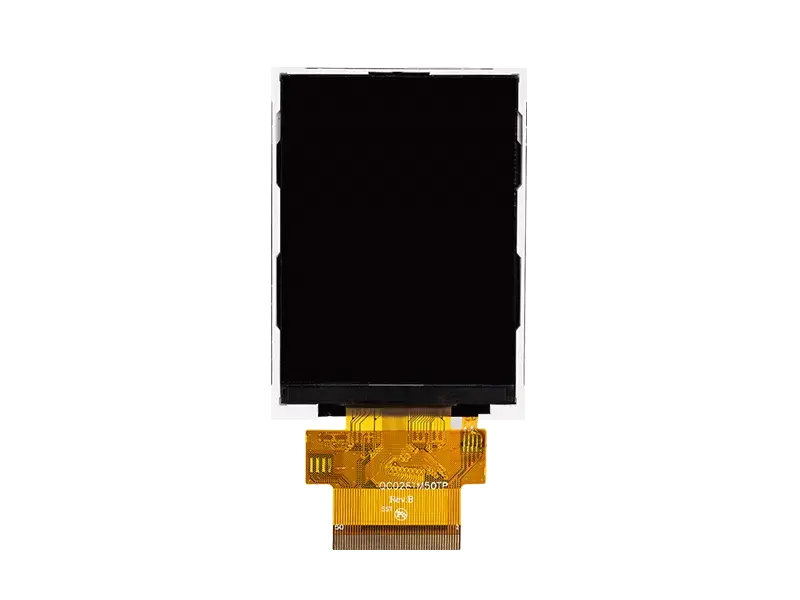

2.8 inch 240×320 QVGA LCD display front view

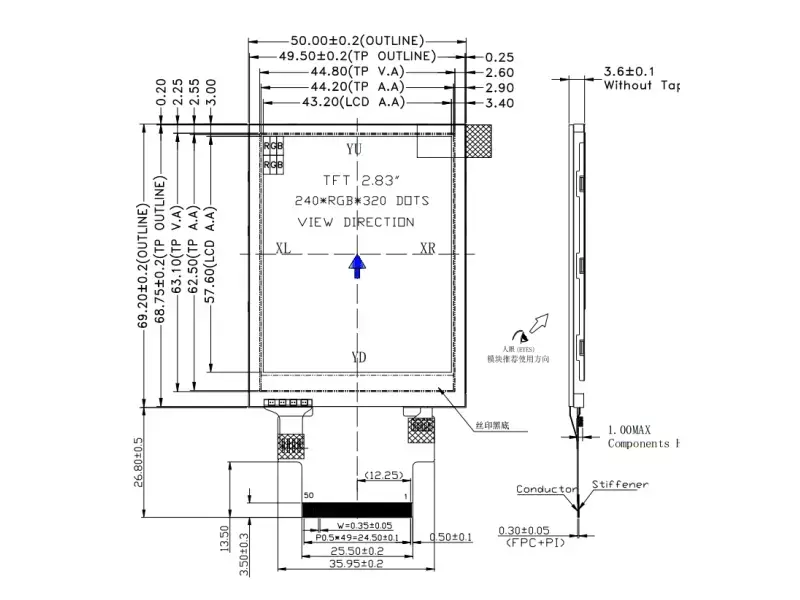

2.8 inch 240×320 QVGA LCD display Machine Drawing
