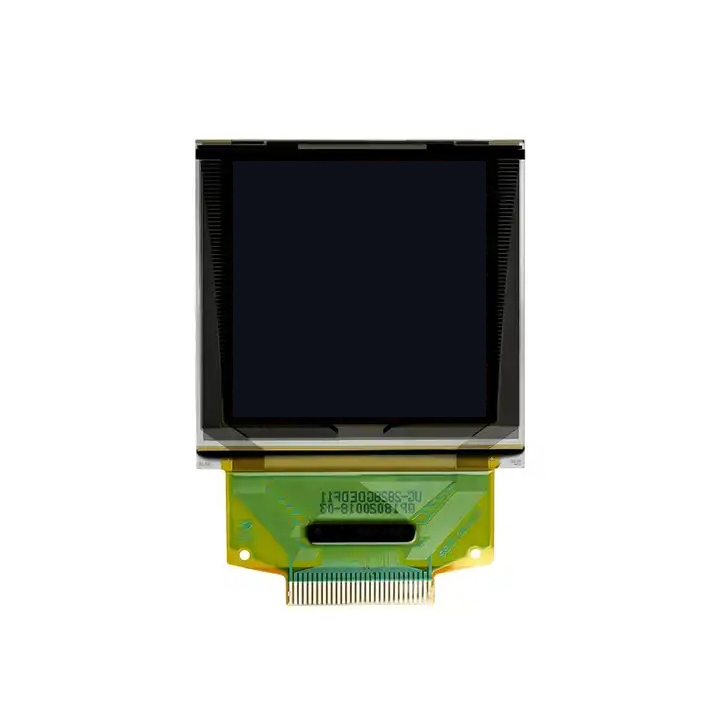

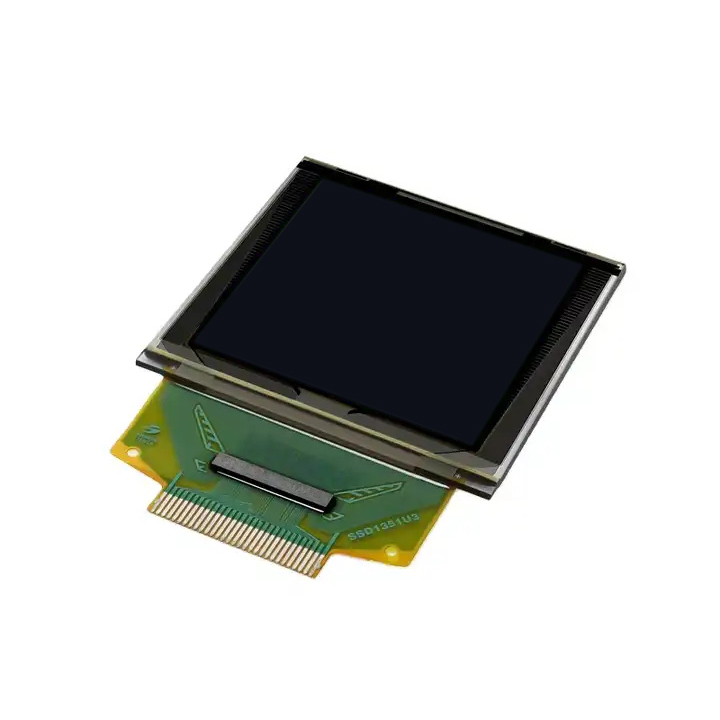

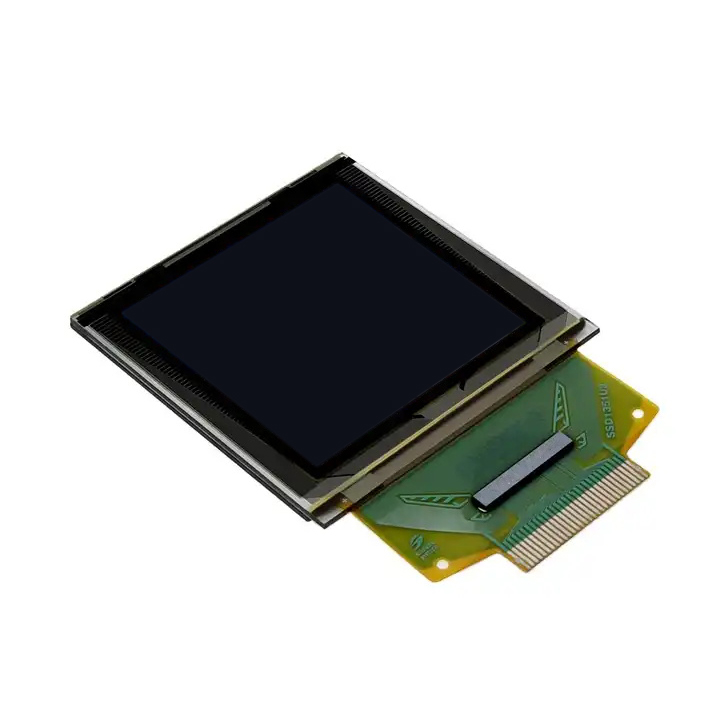

1.5 inch 128×128 resolution PMOLED display

Product Specifications:

Model No.: PV150128128GDEDF11
Display Type: PMOLED (Passive Matrix OLED)
Resolution: 128×128 pixels

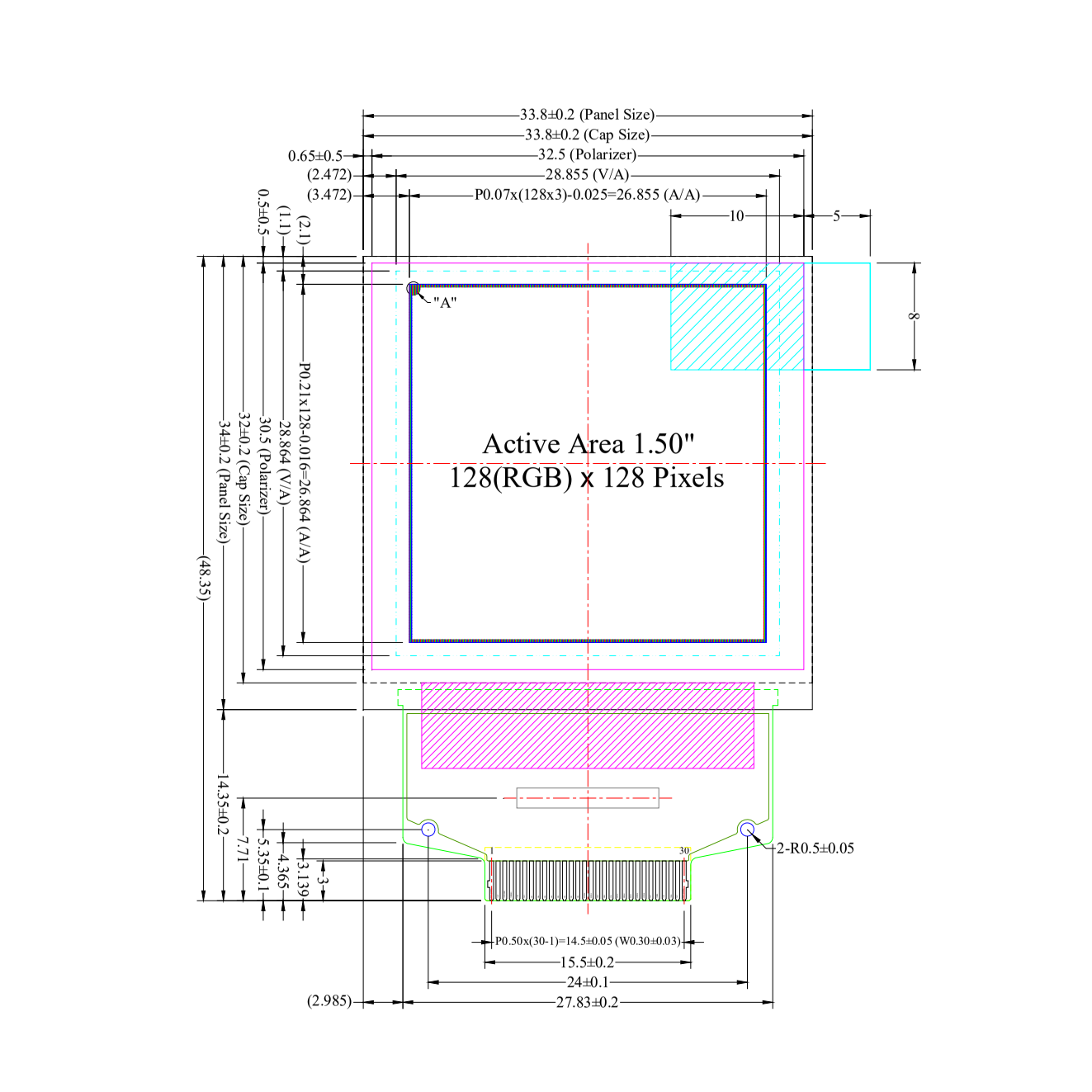

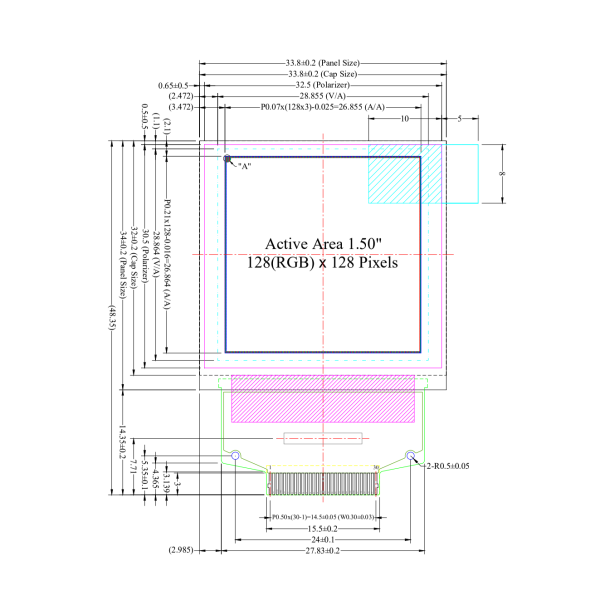

Outline Dimension: 33.80 x 34.00 x 1.60 mm
Active Area: 26.855 x 26.864 mm
Viewing Angle: IPS full viewing angle
Brightness: 110 nits
Interface: 8-bit 68XX/80XX Parallel, 3-/4-wire SPI
Backlight: Not required (self-emitting OLED technology)
Driving IC: SSD1351
PIN Number: 30 pins
Operating Temperature: -30°C to 70°C
Storage Temperature: -40°C to 80°C
Touch Screen: Optional resistive or capacitive touch screen customization

Key Features:

Sharp Visuals with Low Power Consumption: PMOLED technology provides excellent brightness and contrast while maintaining energy efficiency.
Compact and Lightweight: Ideal for applications requiring minimal size without sacrificing display quality.
Multiple Interface Support: Compatible with both Parallel and SPI interfaces for easy system integration.
Wide Viewing Angle: Ensures consistent image quality from different perspectives.
Customization Ready: Optional resistive or capacitive touch screen solutions available to meet specific project requirements.
No Backlight Needed: OLED self-emitting design simplifies system architecture and reduces overall power usage.

For product pricing,customization,or other inquiries:

Share to:

Description

Product Overview:

The 1.5 inch PMOLED Display (Model PV150128128GDEDF11) offers a 128×128 resolution with vivid image quality, excellent contrast, and low power consumption. This compact module is specifically designed for medical devices, hand-held equipment, industrial instruments, and smartwatch applications where space-saving and performance are critical.

Application Scenarios:

Smartwatches and Wearable Devices: Perfect for compact, high-performance wearable tech.
Medical Equipment: Suitable for portable health monitoring or diagnostic devices.
Industrial Instruments: Ideal for hand-held meters, sensors, and compact control systems.
Hand-held Devices: Great choice for communication and measurement devices that require slim, efficient displays.

Advantages:

Energy Efficient and Durable: Extended lifespan and lower power consumption make it a reliable choice for B2B projects.
High Contrast Ratio: OLED technology delivers deeper blacks and vivid colors, enhancing the user experience.
Flexible Customization: Touch panel options and interface configurations available to suit diverse applications.
Excellent Environmental Resistance: Wide operating and storage temperature ranges allow for versatile use.

Procurement Information:

MOQ: Flexible based on project needs
Lead Time: Depends on order size and customization
Support: Full technical consultation and support provided

Upgrade Your Devices with the High-Performance PV150128128GDEDF11 1.5 Inch PMOLED Display!
