1.39 inch ips circular oled lcd display

Item 1.39 inch round AMOLED touch display
Model No PV13904PY24G-C2
Resolution 454×454
Outline Dimension 42.6*42.6*2.227
Active Area(mm) φ35.41
Interface MIPI/SPI
Viewing Angle All
Driver IC RM69330
Display Mode AMOLED
Operating Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Brightness 350nits
Touch screen I2C / USB capacitive touch screen
Board HDMI board

For product pricing,customization,or other inquiries:

Share to:

1.39 inch 454×454 small / tiny and power saving Round / Circular shape wearable AMOLED capacitive touch display .

1. PV13904PY24G-C2  mainly application for smart watch and wearable devices
2. It with IPS free full viewing angel , 454×454 resolution , 350 nits brightness, MIPI/SPI interface ,RM69330 driver IC, existing capacitive touch panel .
3. And it can custom HDMI board to support Raspberry PI;
4. AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super power saving of … power. It can be well used for both indoor and outdoor .

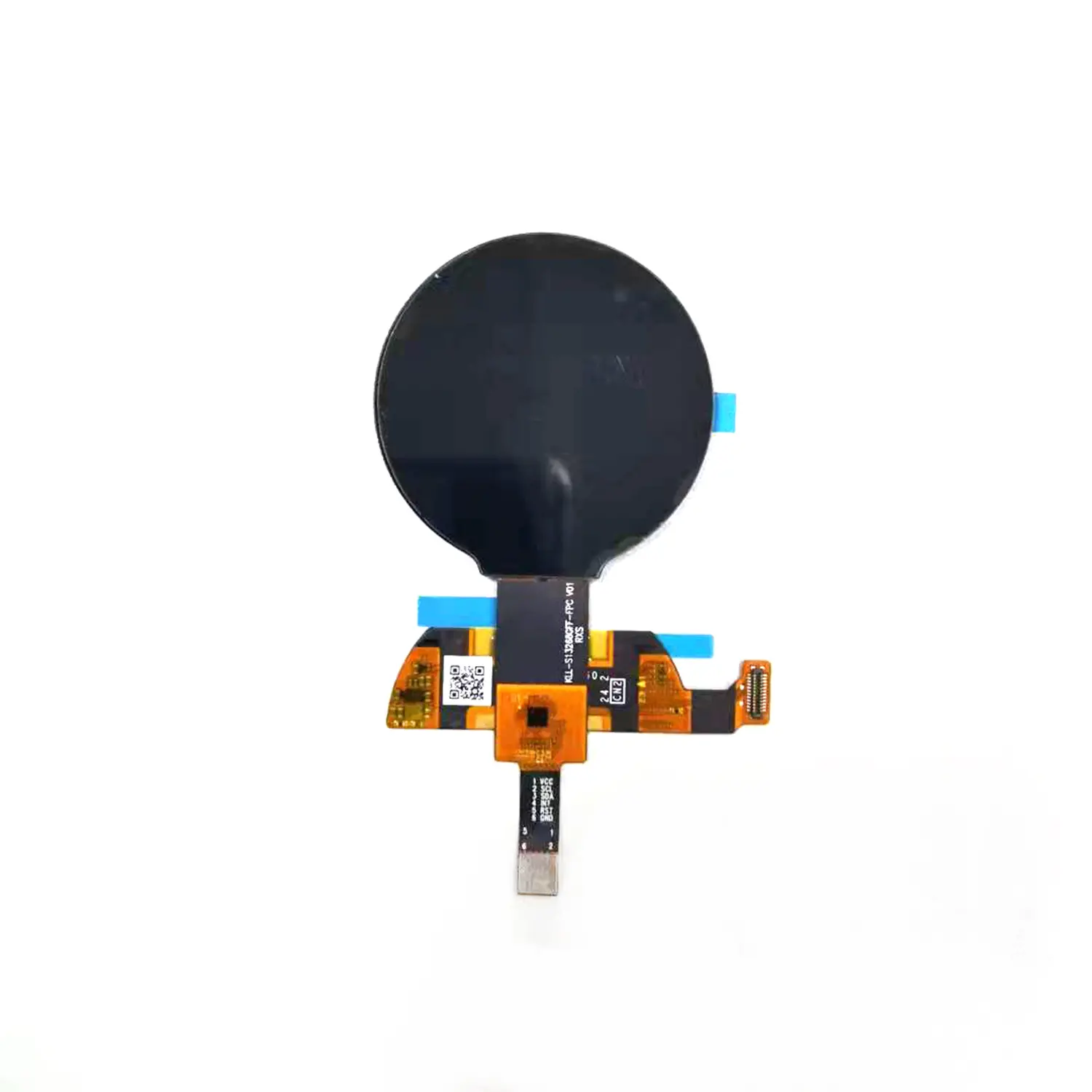

1..39 inch round AMOLED touch screen front view

PV13904PY24G-C2 front

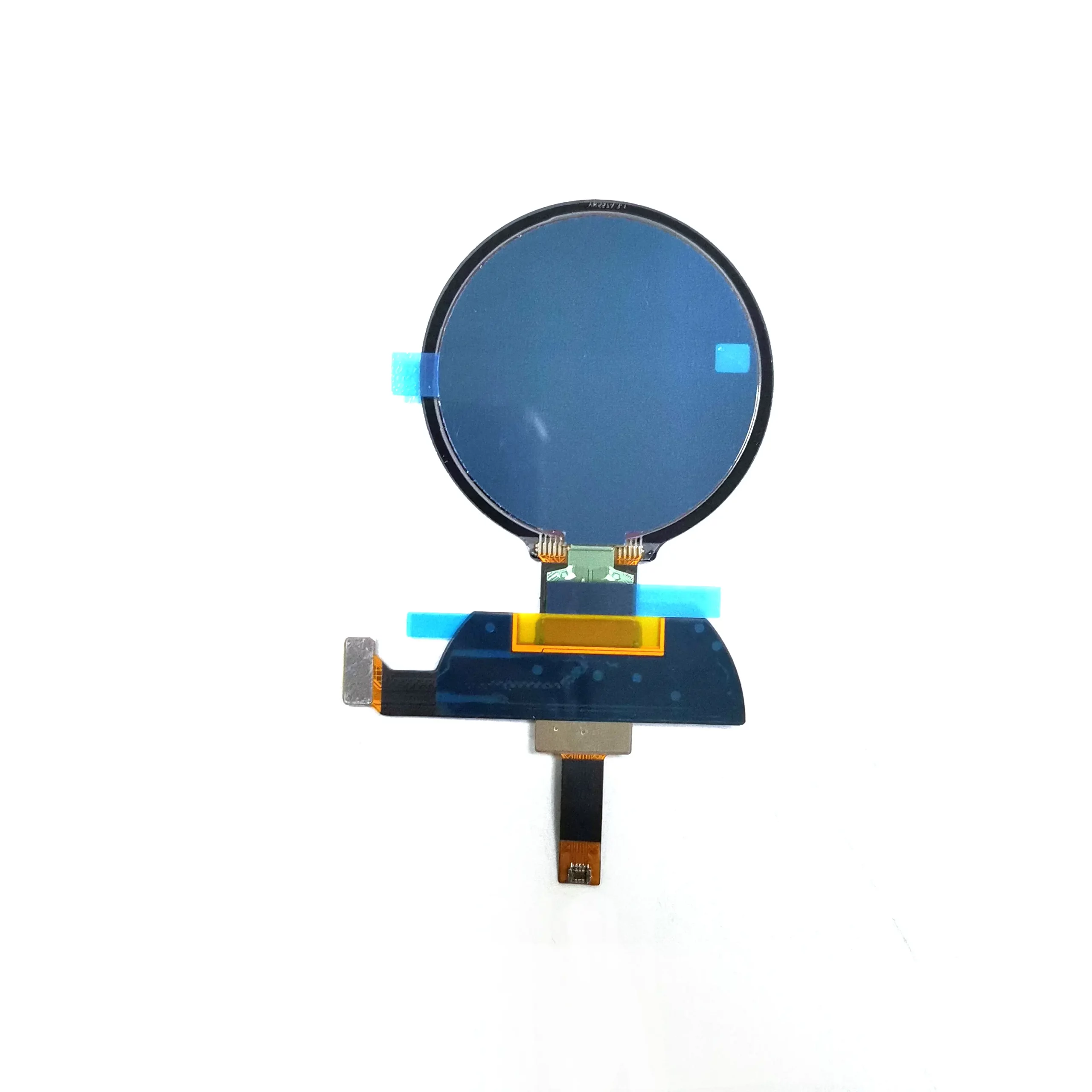

1..39” IPS AMOLED touch screen back view

PV13904PY24G-C2 back
