IPS 3.5 inch 320×480 MPU interface TFT LCD display

Item3.5 inch 320×480 IPS LCD display
Model NoPV0350B2Z10
Resolution320×480
Outline Dimension84.18*53.76*3.30
Active Area(mm)73.44*48.96
Brightness230nits
Viewing AngleAll
InterfaceMPU 16-bit
Driving ICILI9488
PIN40
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCapacitive touch

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×480 resolution MPU 16 bits IPS LCD module
1. PV0350B2Z10 mainly application  handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , all view angle , ILI 9488 driver IC , existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .cx

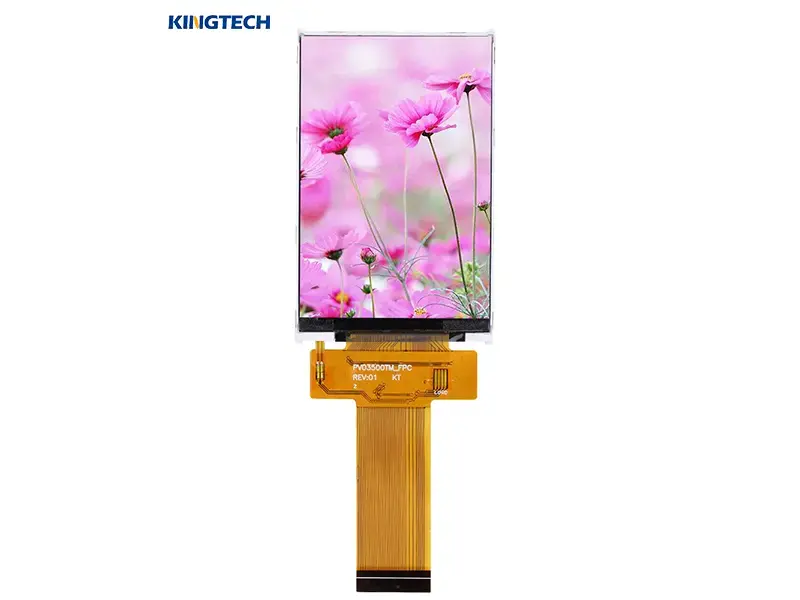

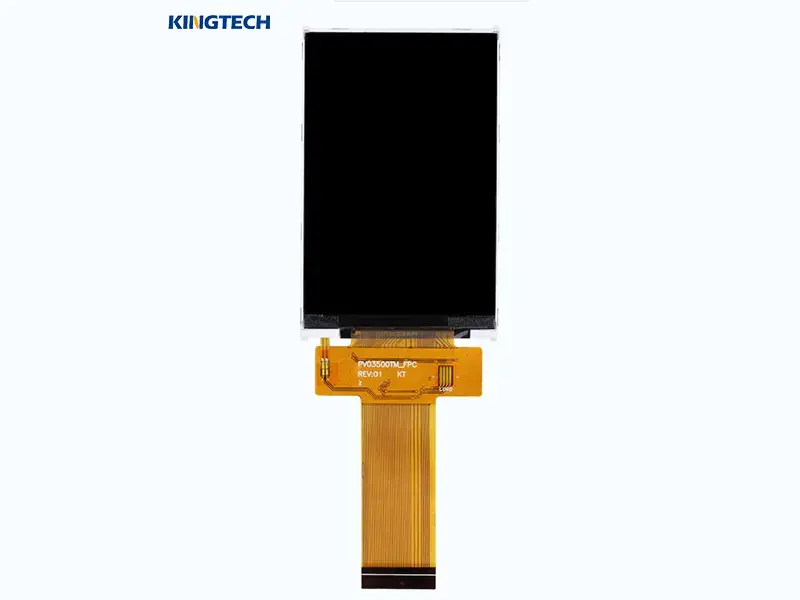

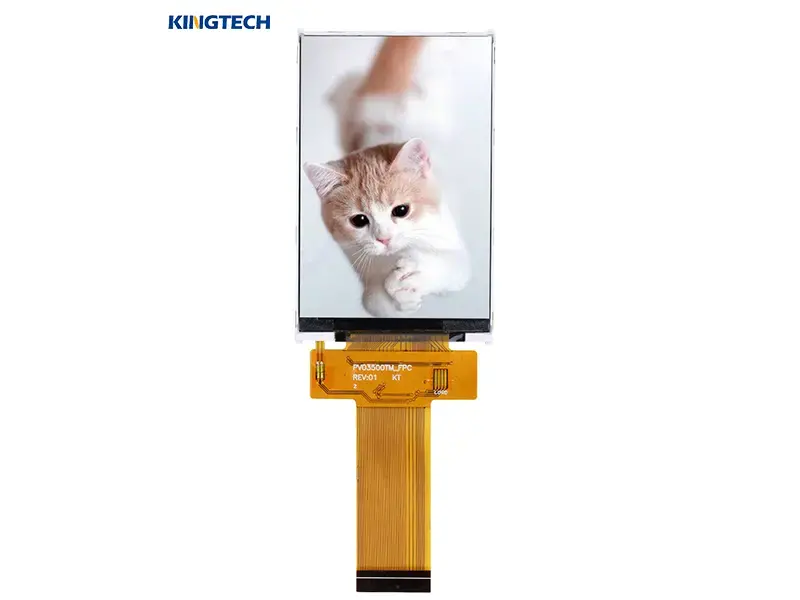

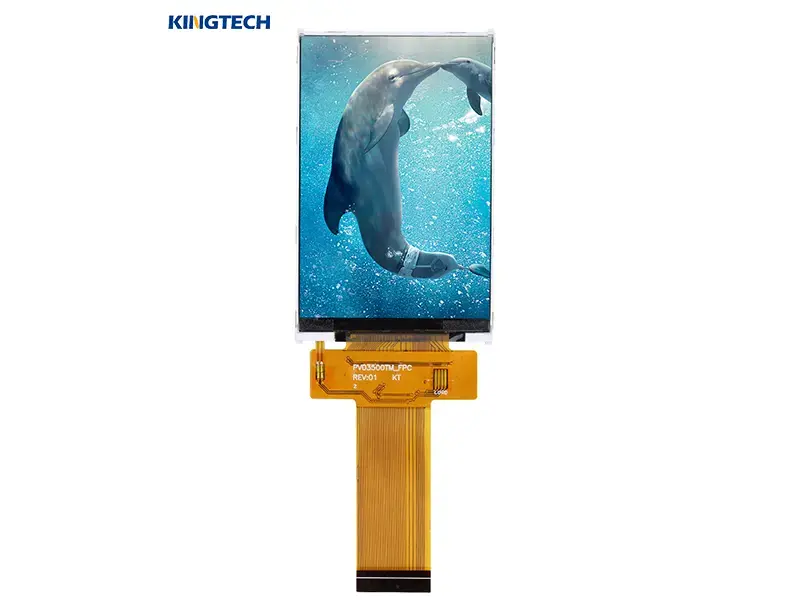

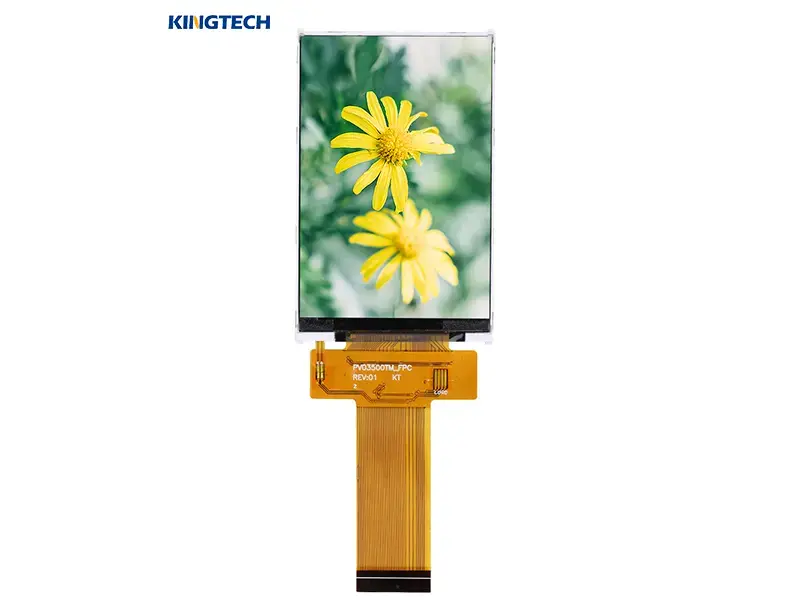

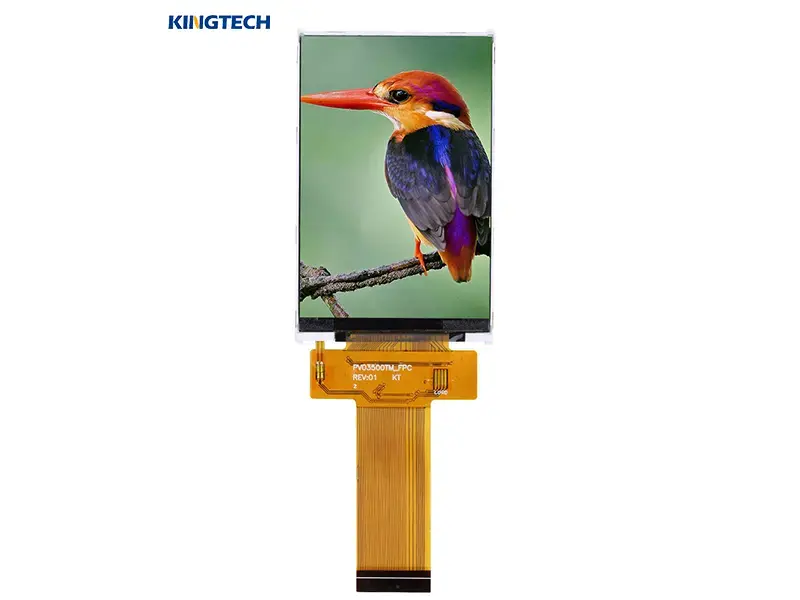

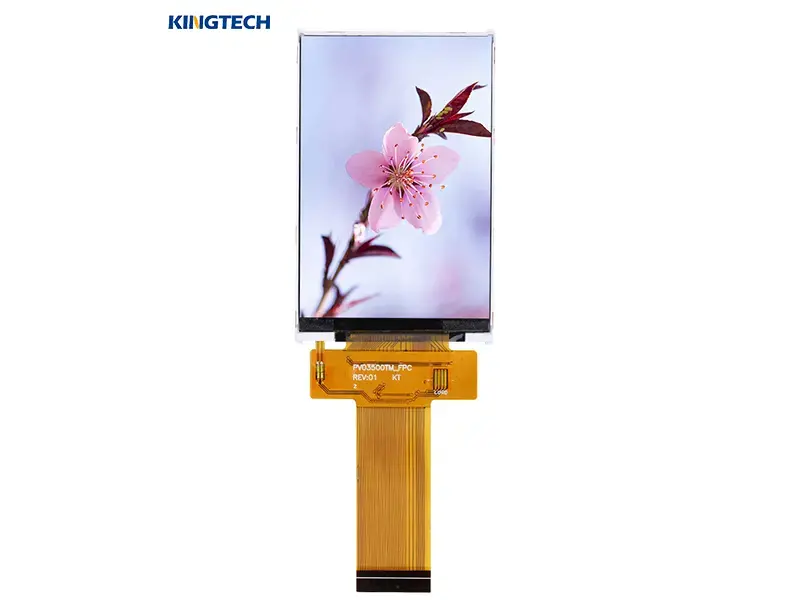

3.5 inch 320×480 MCU interface lcd display front view

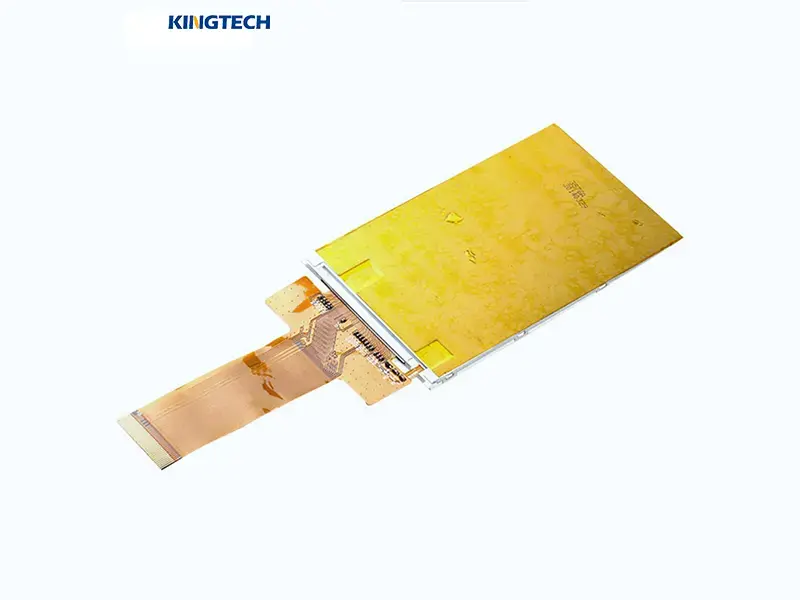

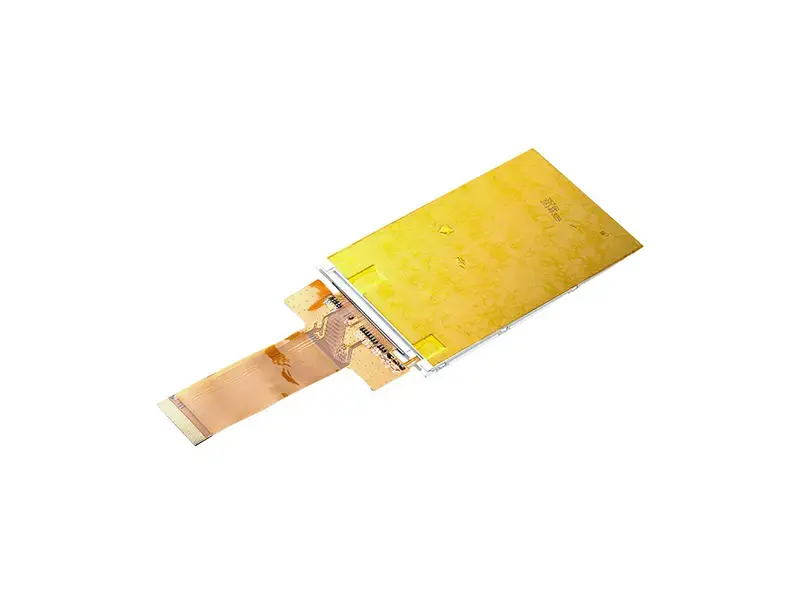

3.5 inch 320×480 MCU interface lcd display back view

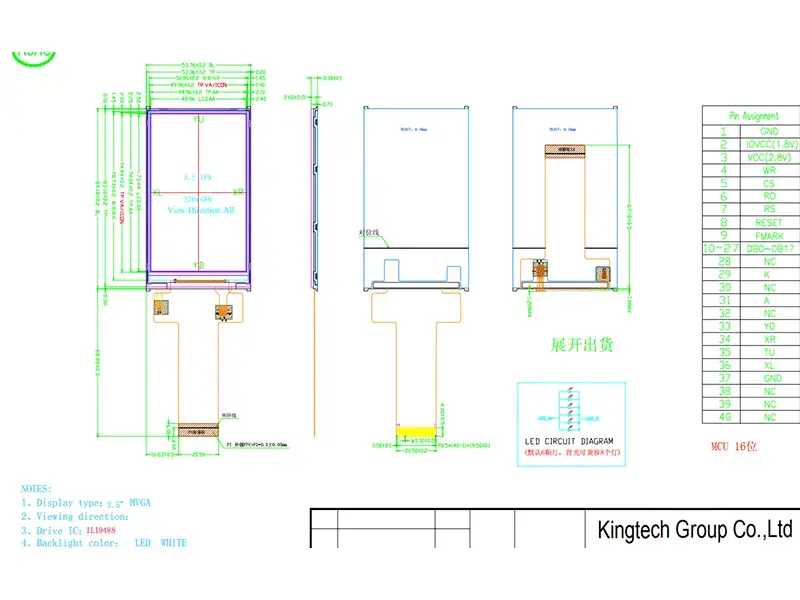

3.5 inch 320×480 MCU interface lcd display Machine DrawingIPS 3.5 inch 320x480 MPU interface TFT LCD display
