24 bit rgb sunlight readble 3.5 inch tft lcd module 320×240

Item 3.5 inch 1000nits LCD display module
Model NoPV03509LZR54J
Resolution 320×240
Outline Dimension 76.70*63.70*3.26
Active Area(mm)70.08*52.56
Interface 24-bit RGB interface
Viewing Angle12 O’clock
Brightness1000nits
Driver ICHX8238-D
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×240 QVGA 1000nits high brightness RGB/SPI /MCU interface LCD display

1. PV03509LZR54J  mainly application for handheld device
2. It with 320×240 resolution , 1000nits high brightness/ sunlight readable/ outdoor, RGB interface , HX8238-D Driver IC, TN/12 O’clock view angle.
3. And it can custom capacitive and  resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ,medical application .

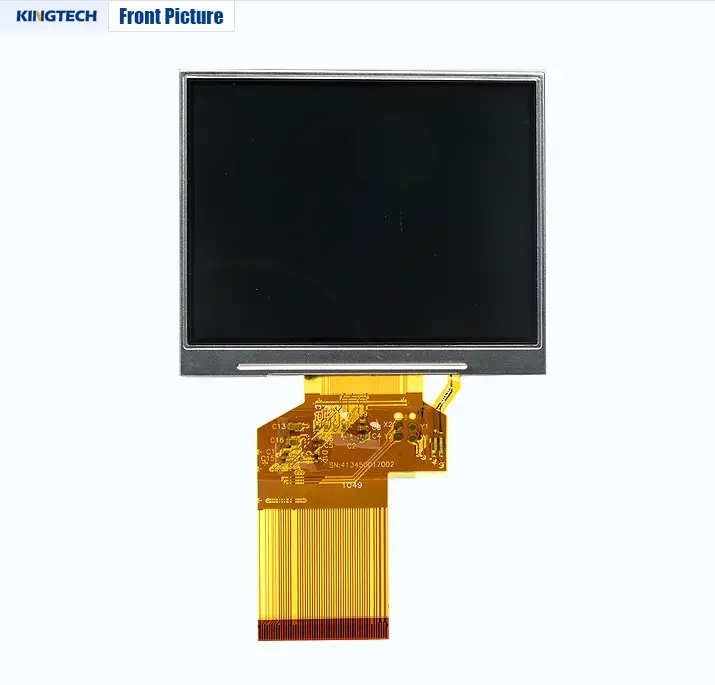

PV03509LZR54J front

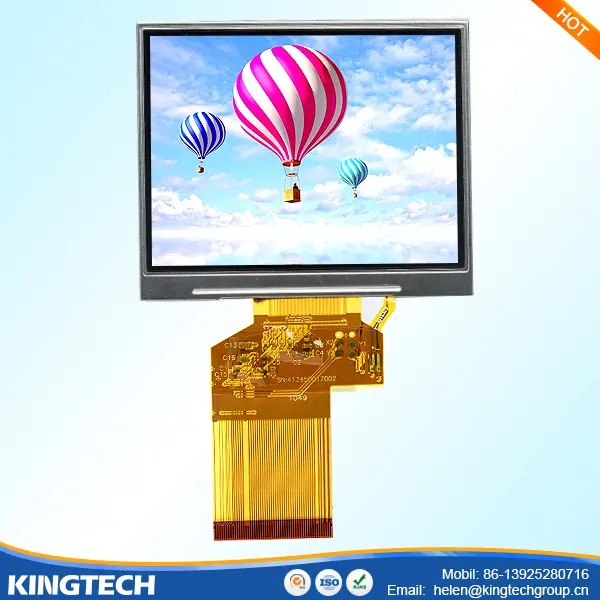

3.5” sunlight readable display front view

3.5 inch tft lcd module

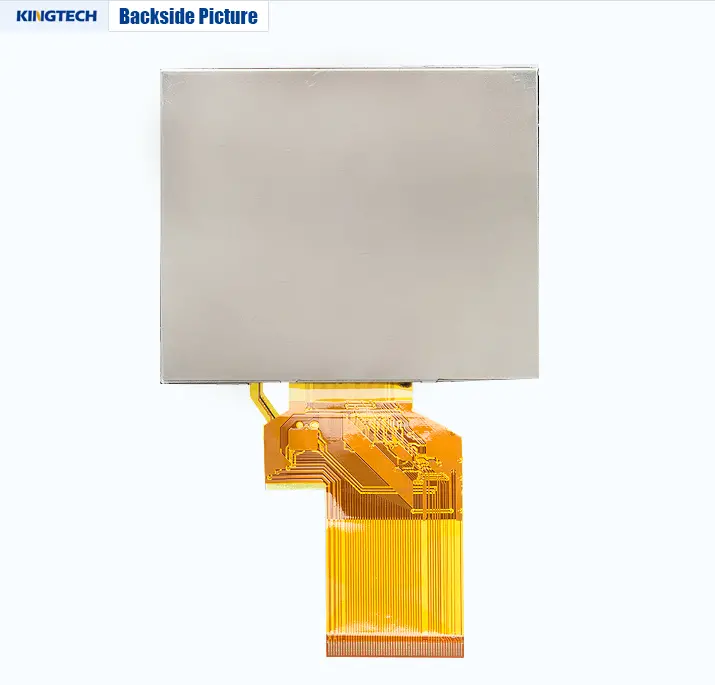

3.5” 1000nits LCD module back view

PV03509LZR54J back
