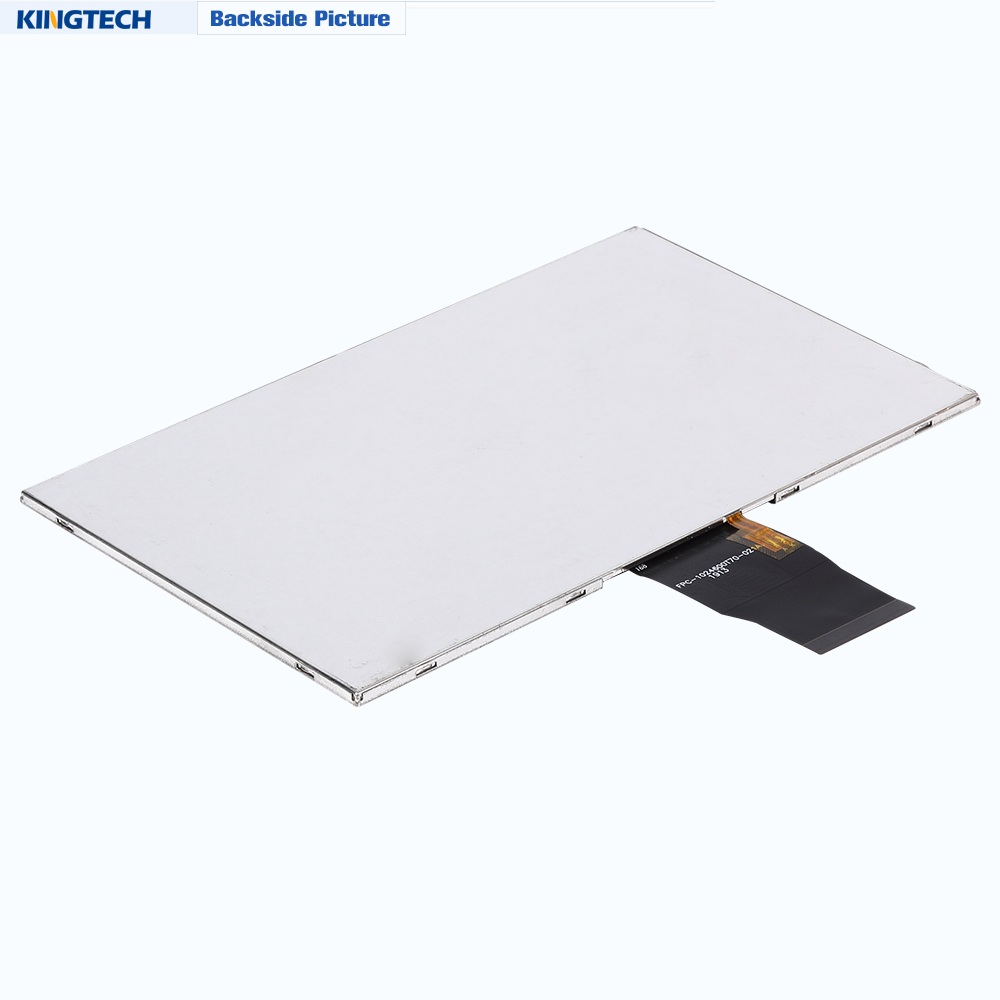

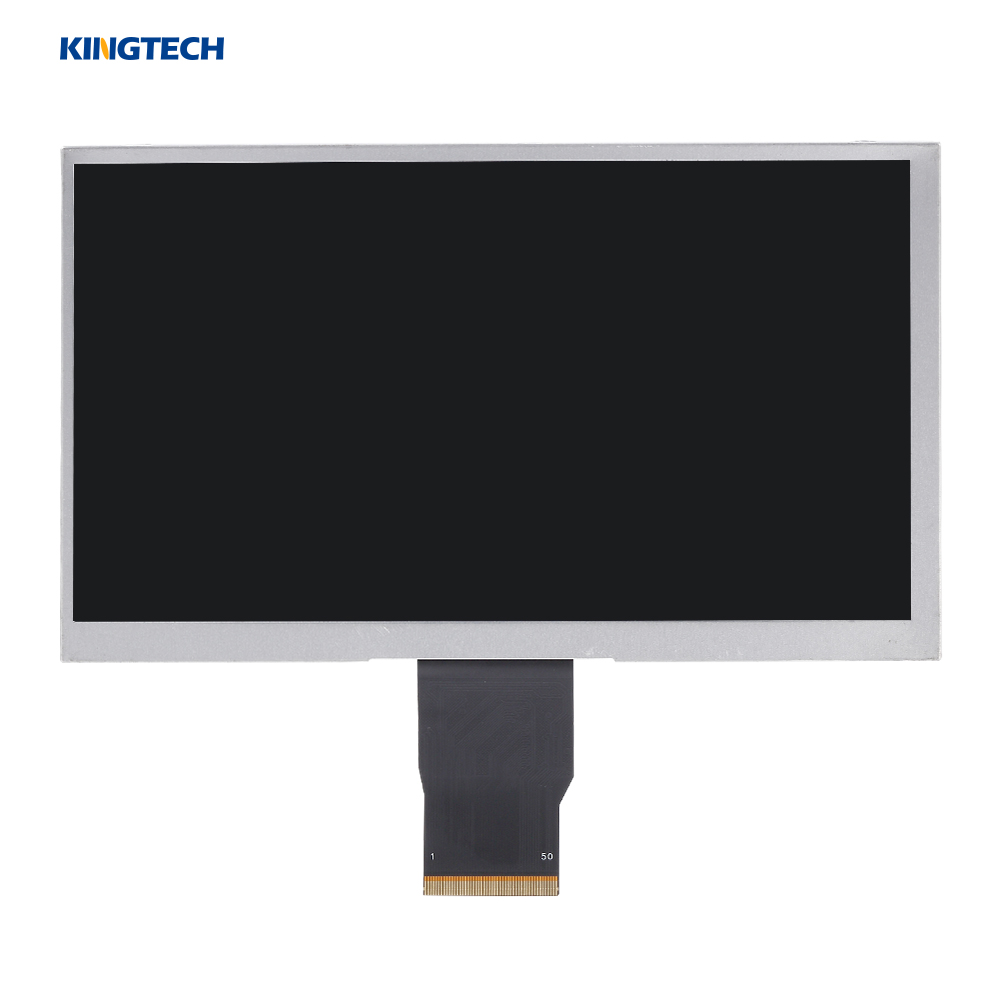

Kingtech 7.0inch colorful transmissive TFT LCD module IPS LCD panel 1024×600 pixel

Key Features:

  • High Resolution: 1024×600 pixels for clear and detailed visuals.
  • IPS Technology: Ensures wide viewing angles and consistent color reproduction.
  • High Brightness: 550 nits for enhanced visibility in bright environments.
  • Robust Build: Operating temperature range of -20-70°C and storage temperature of -30-80°C for reliability in demanding conditions.
  • RGB Interface: Ensures seamless integration with various industrial and commercial applications.
  • Backlight System: 4*8 LEDs providing uniform illumination.
  • Optional Touchscreen: Customizable to meet specific application requirements.

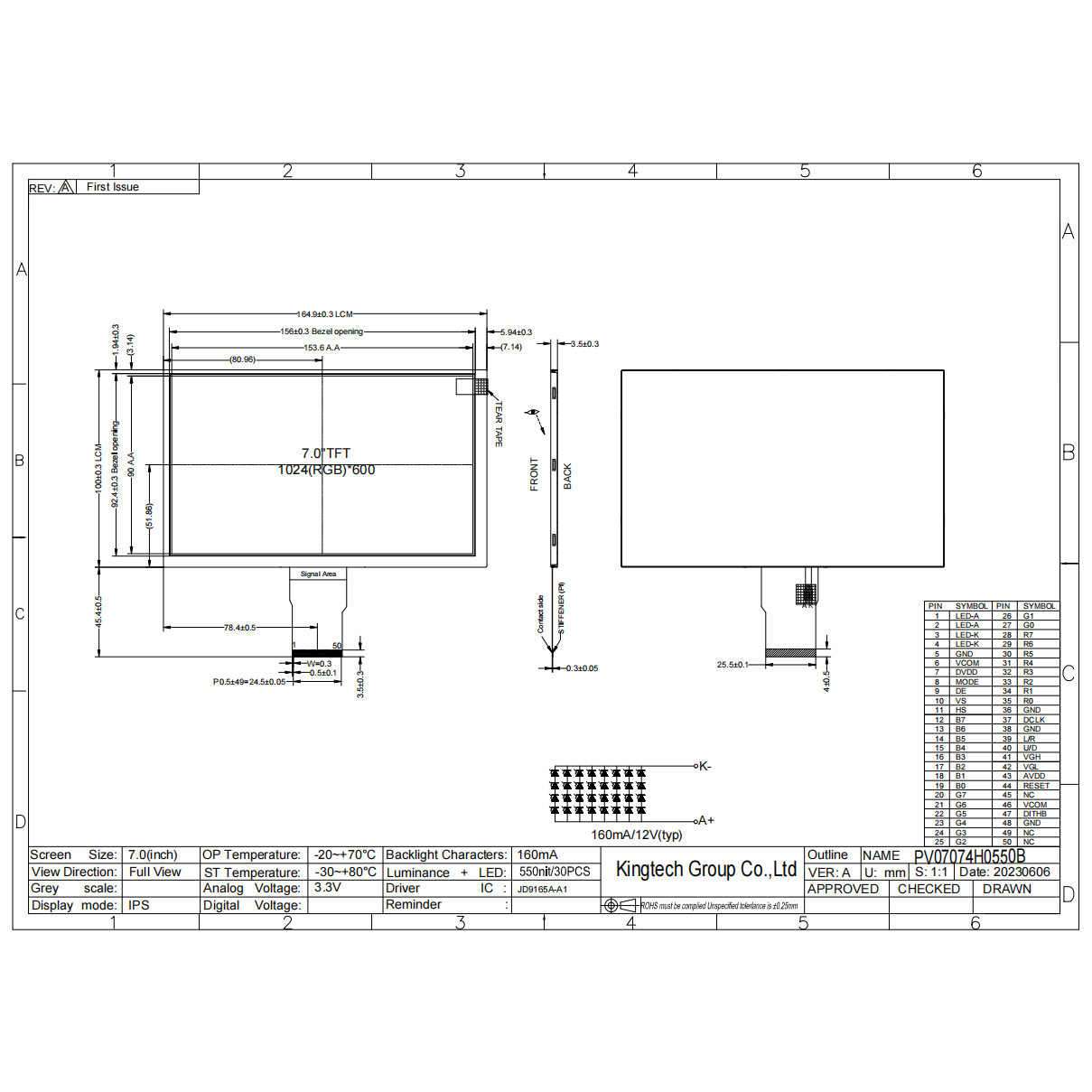

Technical Specifications:

  • Model No.: PV07074H0550B
  • Resolution: 1024*600

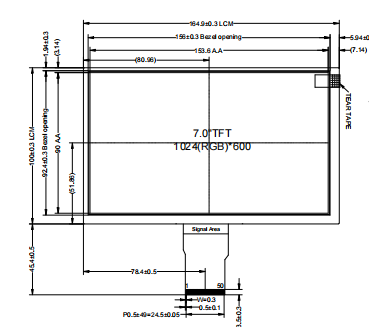

  • Outline Dimension: 164.91003.5mm
  • Active Area: 153.6*90mm
  • Viewing Angle: All direction
  • Brightness: 550 nits
  • Interface: RGB
  • Backlight: 4*8 LEDs
  • Driving IC: JD9165A-A1
  • PIN No.: 50
  • Operating Temperature: -20~70°C
  • Storage Temperature: -30~80°C
  • Touchscreen: Optional

For product pricing,customization,or other inquiries:

Share to:

Product Overview: The Kingtech 7.0-inch IPS TFT LCD module (Model No. PV07074H0550B) is a high-quality display solution designed for industrial, medical, handheld devices, smart home applications, and various instruments. With a resolution of 1024×600 pixels, wide viewing angles, and a brightness of 550 nits, this display delivers sharp visuals and excellent readability in diverse lighting conditions.

Applications:

  • Industrial control systems
  • Medical equipment
  • Handheld devices
  • Smart home interfaces
  • Measuring instruments
  • Embedded systems

Why Choose Kingtech? Kingtech is a trusted manufacturer of high-quality LCD modules, offering reliable and customizable display solutions for a wide range of industries. Our 7.0-inch IPS TFT LCD module is built with durability, clarity, and efficiency in mind, making it an ideal choice for B2B clients seeking premium display solutions.

Ordering Information: For bulk orders, customization requests, or technical inquiries, please contact us directly. We offer competitive pricing, reliable supply chains, and excellent customer support to meet your business needs
