800×480 RGB interface 7 inch tft lcd display

Item	7 inch 800×480 TFT module display
Model No	PV0705YX50E
Resolution	800×480

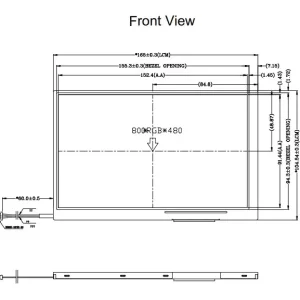

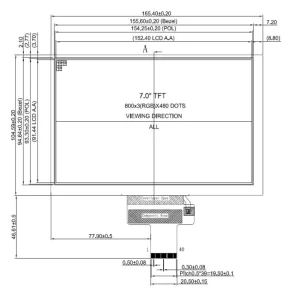

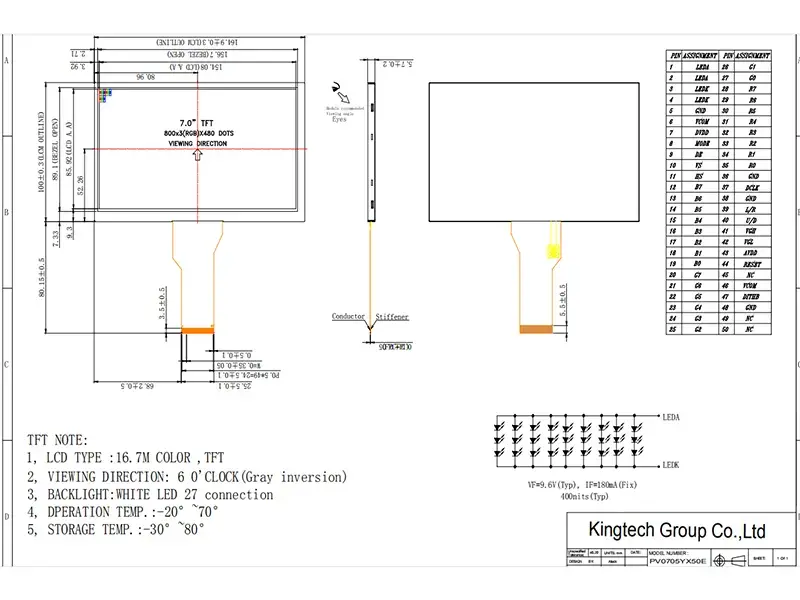

Outline Dimension	164.9(W)100(H)5.7(T)
Active Area(mm)	154.08(W)*85.92(H)
Interface	24-bit Parallel RGB Interface
Viewing Angle	12 O’clock
Driving IC	50000h
Display Mode	TN / Transmissive / Normally white
PIN	50
Operating Temperature	-20 to +70℃
Storage Temperature	-30℃~80℃
Response time	40ms
Brightness	400nits / 1000nits
Touch screen	Resistive / capacitive touchscreen
Board	HDMI board

For product pricing,customization,or other inquiries:

7 inch 800×480 resolution RGB interface TFT LCD display

1. mainly application for Industrial ，medical equipment .
2. It with 800×480 resolution , 400nits and 1000nits high brightness sunlight readable, 24-bit Parallel RGBinterface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application.

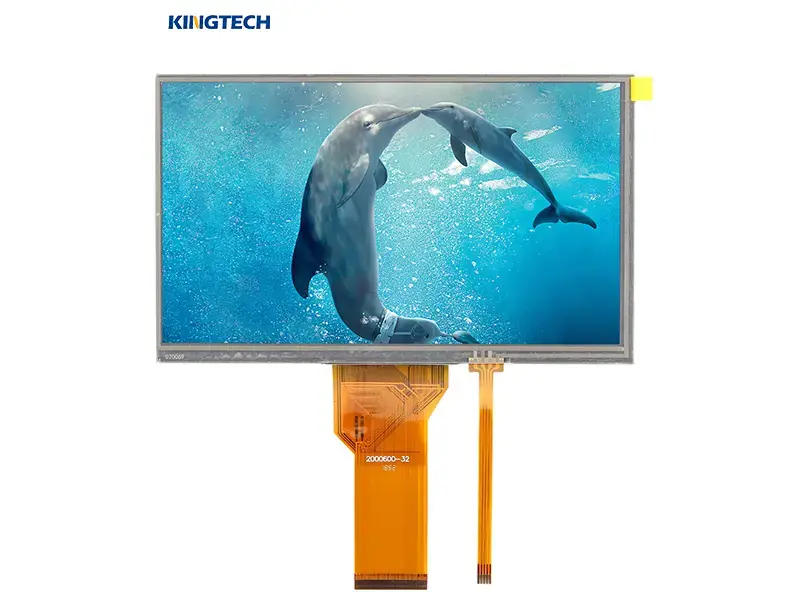

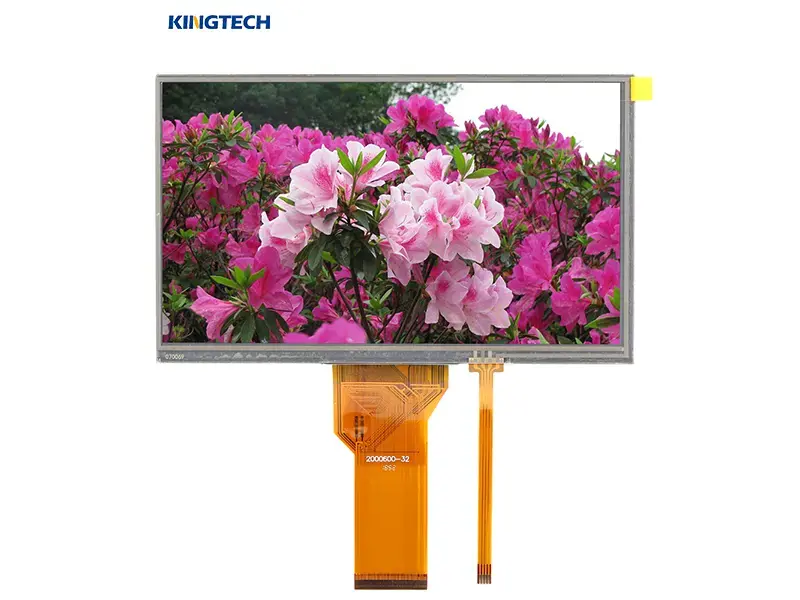

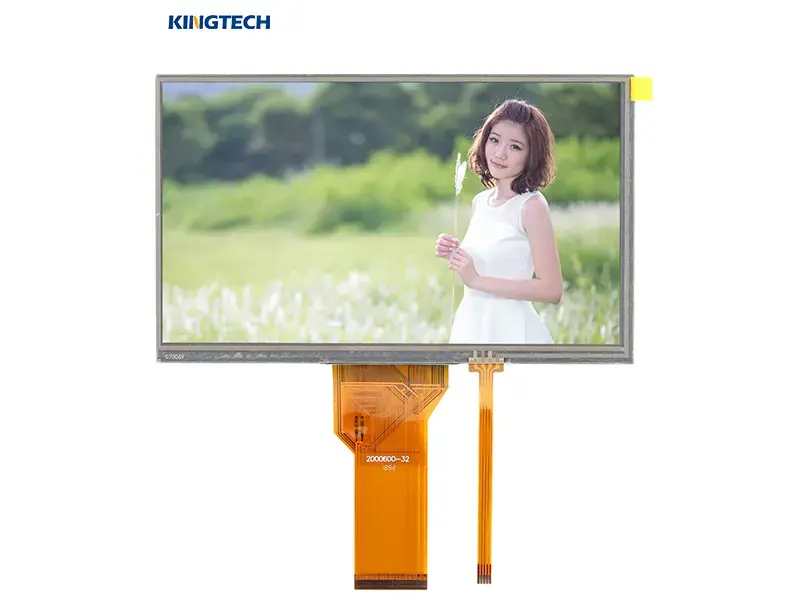

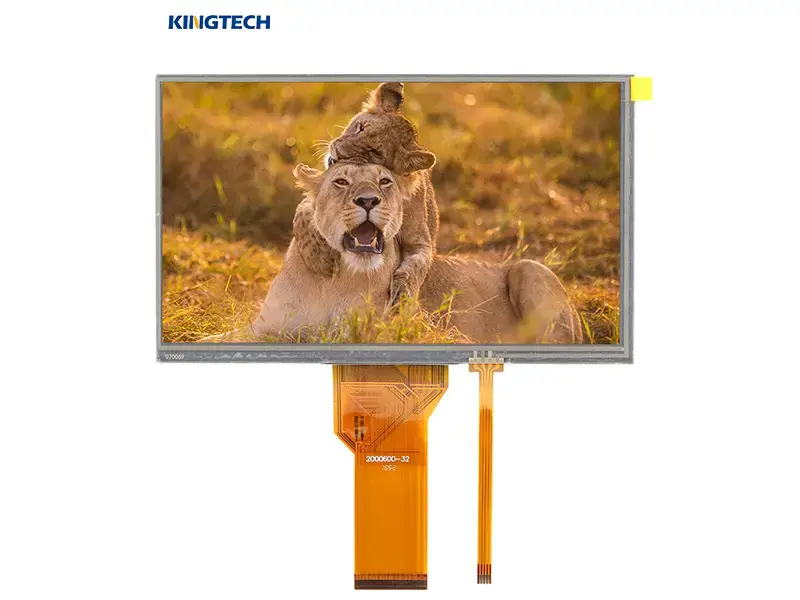

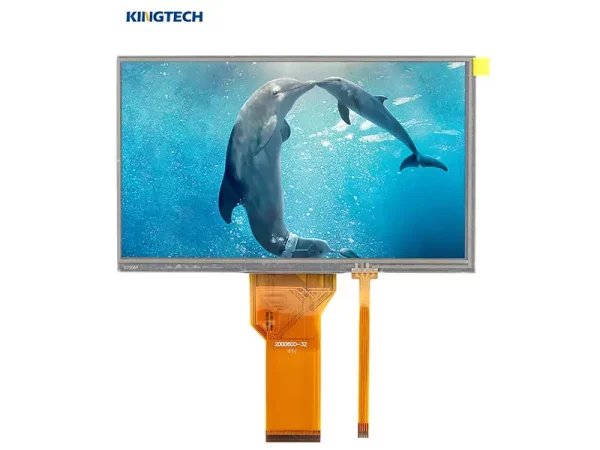

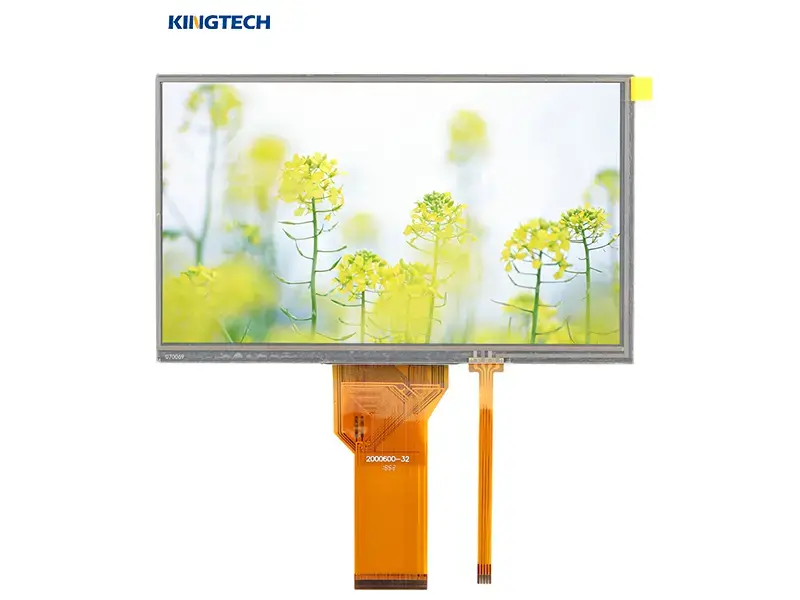

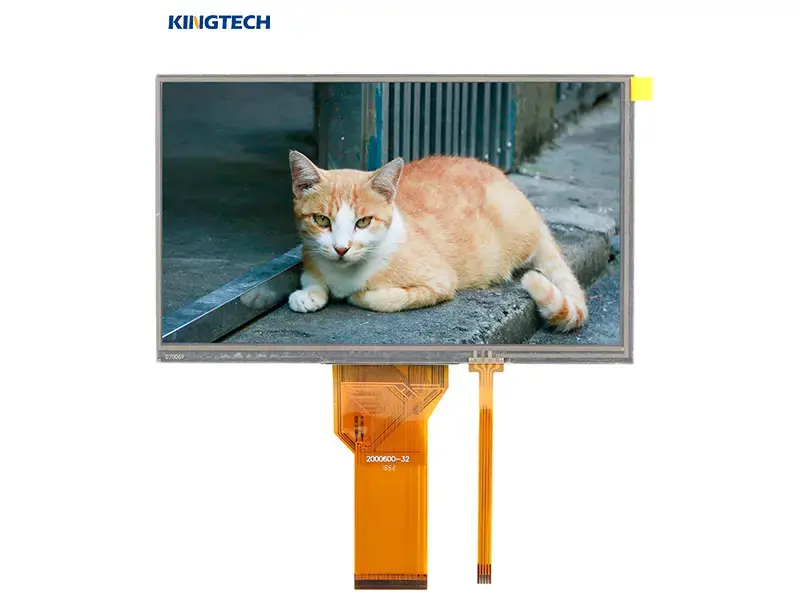

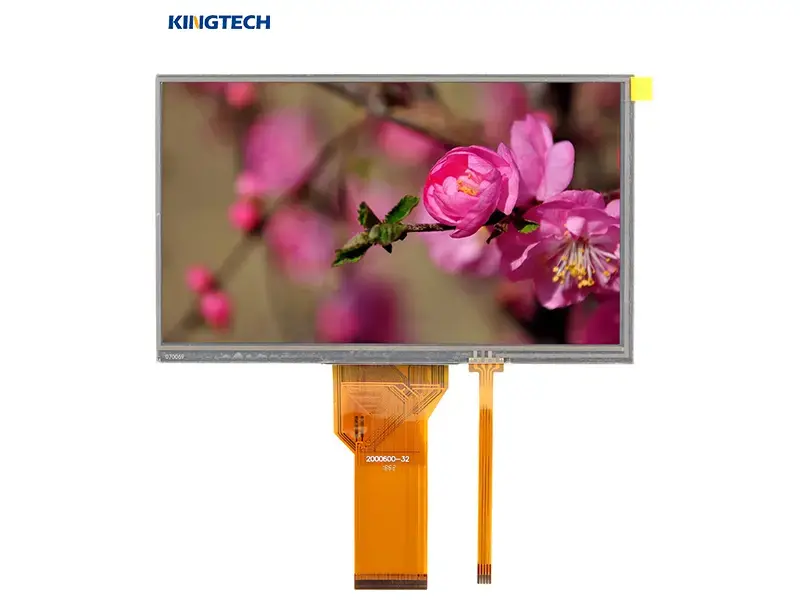

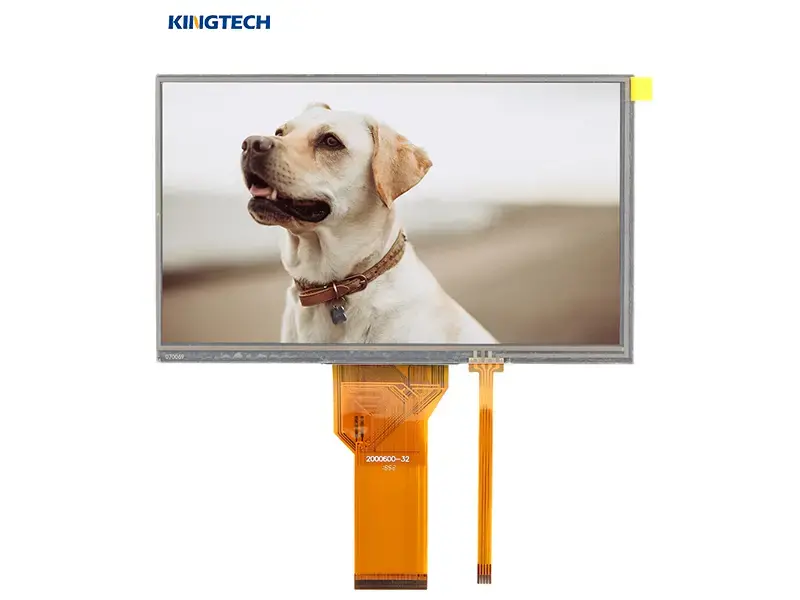

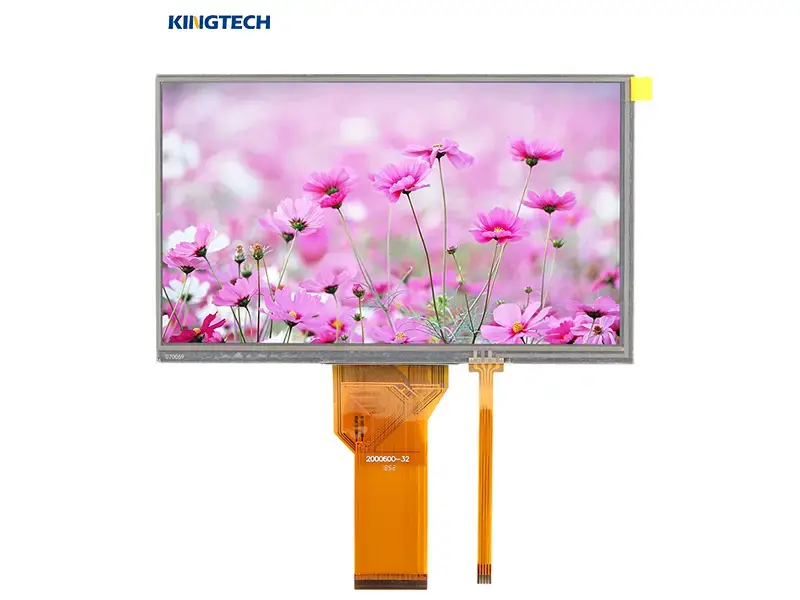

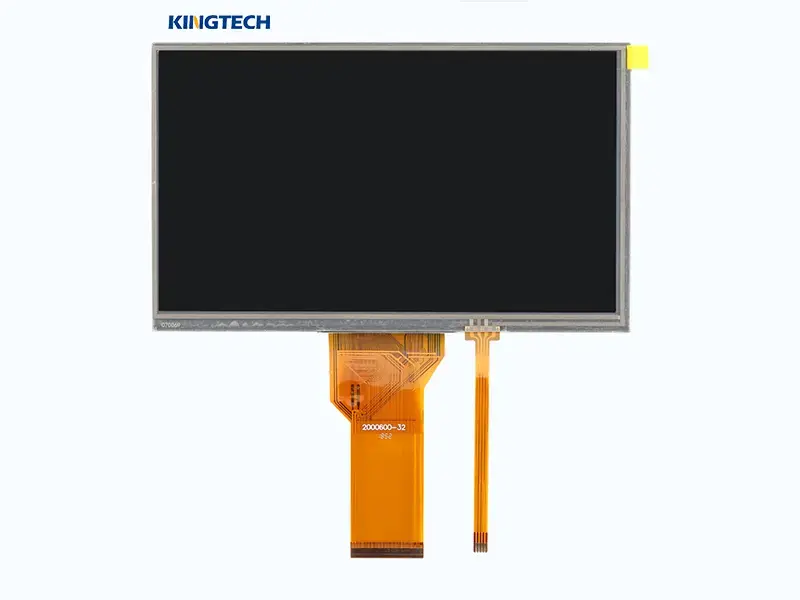

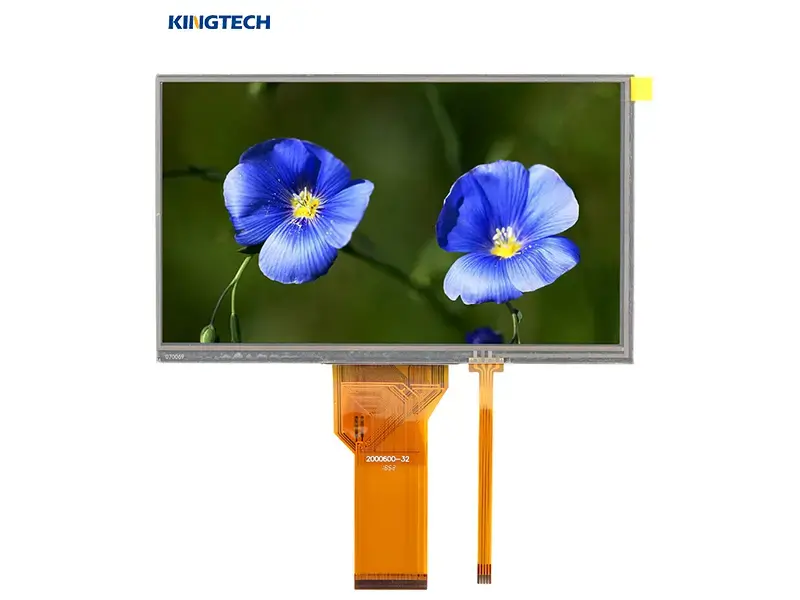

7 inch RGB interface TFT LCD display front view
