7 inch 800×480 RGB interface 400nits with capacitive touch optical bonding

Item  7inch 800×480 50pin capacitive touch screen
Model No PV0705YX50E-CO
Resolution  800×480

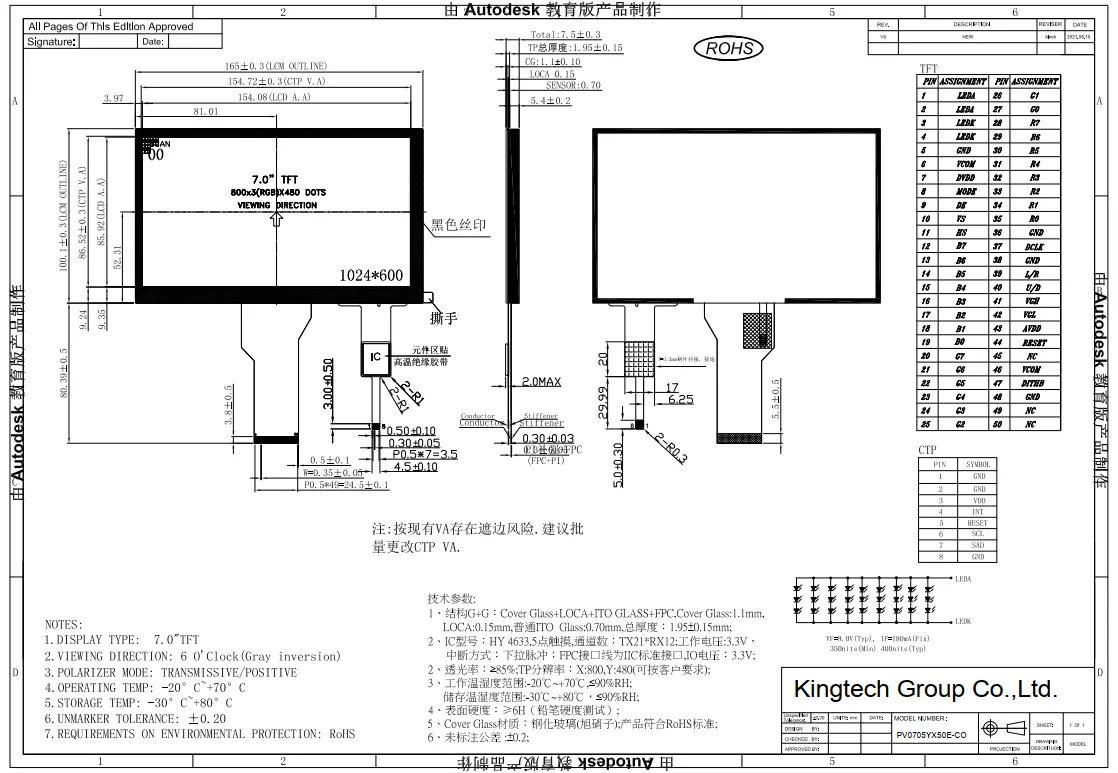

Outline Dimension  165*100.1*7.5 mm
Active Area(mm) 154.08*85.92 mm
Interface  RGB Interface
Viewing Angle All
LED life 30000h
Display Mode  TN / Transmissive / Normally white
Operating Temperature  -20℃~70℃
Storage Temperature  -30℃ to +80℃
Brightness 400nits
Touch screen Can custom capacitive touchscreen
Board Convert Board

For product pricing,customization,or other inquiries:

Share to:

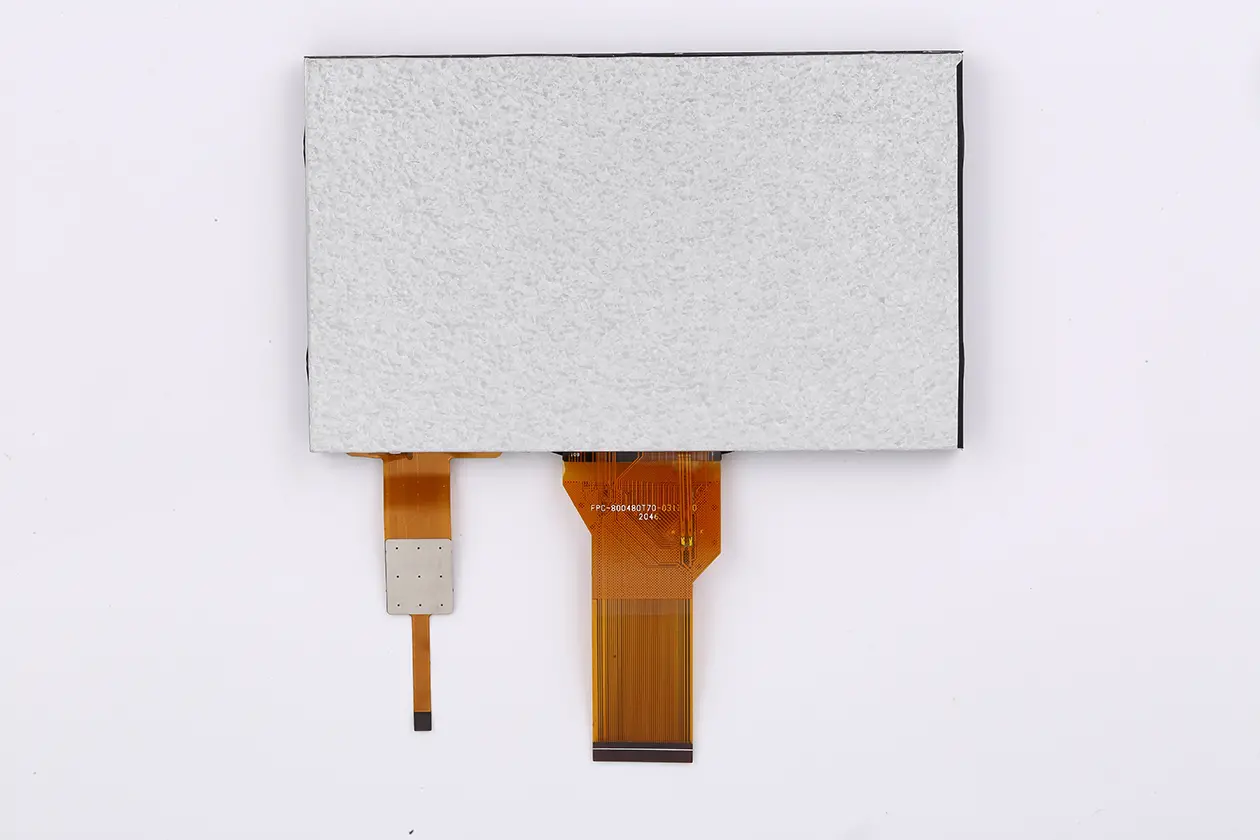

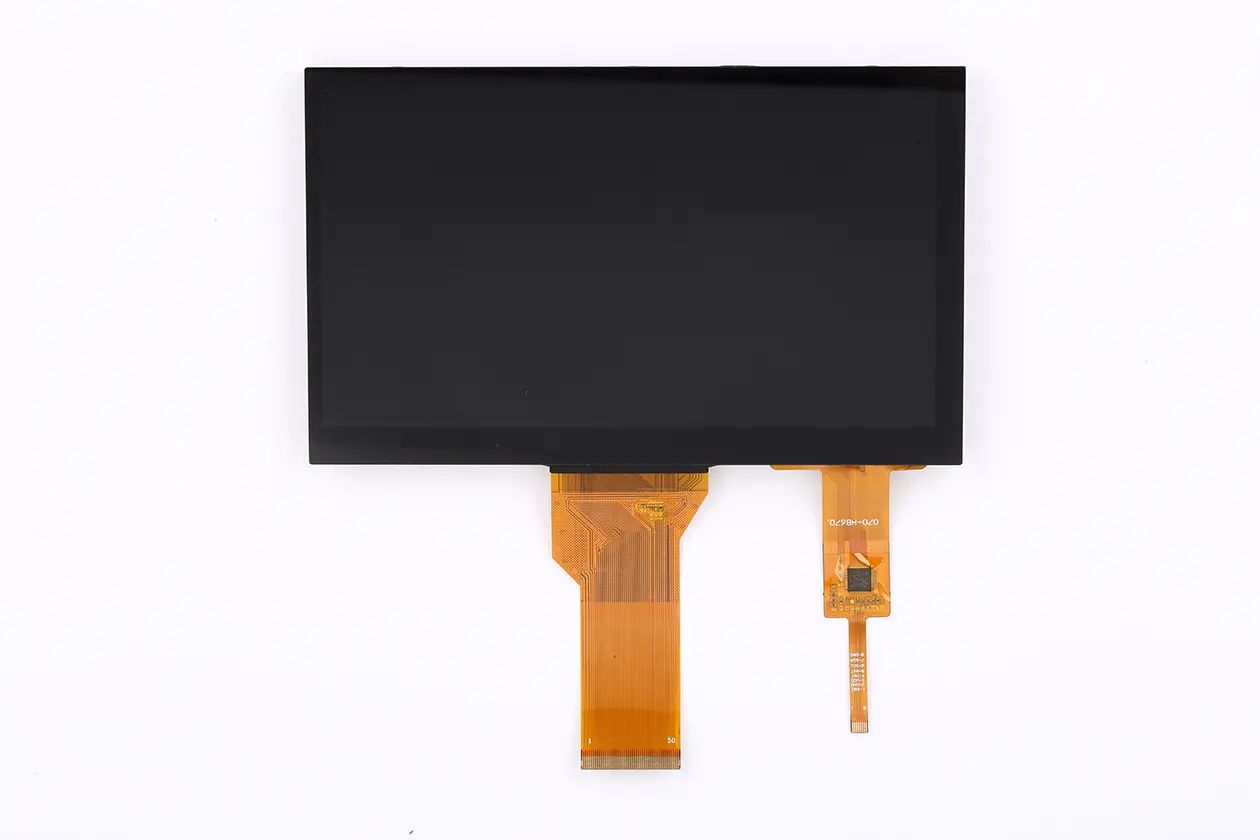

7 inch 800×480 resolution RGB interface TFT LCD display with capacitive touch

1. PV0705YX50E-CO mainly application for Industrial ,medical equipment .
2. It with 800×480 resolution , 400nits brightness, RGB interface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.
