Item | 0.91 inch 128×32 PMOLED display |
Model No | PV091OL9924803000 |
Resolution | 128×32 |
Outline Dimension | 40 *11.5*1.21 |
Active Area(mm) | 22.38*5.58 |
Interface | Serial Peripheral Interface |
Viewing Angle | All |
Display Mode | PMOLED |
Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ |
Brightness | 300nits |
Touch screen | I2C |
0.91 inch 128×32 all viewing angle wide temperature PMOLED display
1. PV091OL9924803000 mainly application instruments and equipment, Medical devices,
2. It with IPS all viewing angle , wide work temperature , SSD1307 driver IC ,Serial Peripheral Interface, I2C Interface
3. And it can custom touch panel as customer ‘s requirement .
4. This model without backlight , super thin of thickness, super power saving of power.

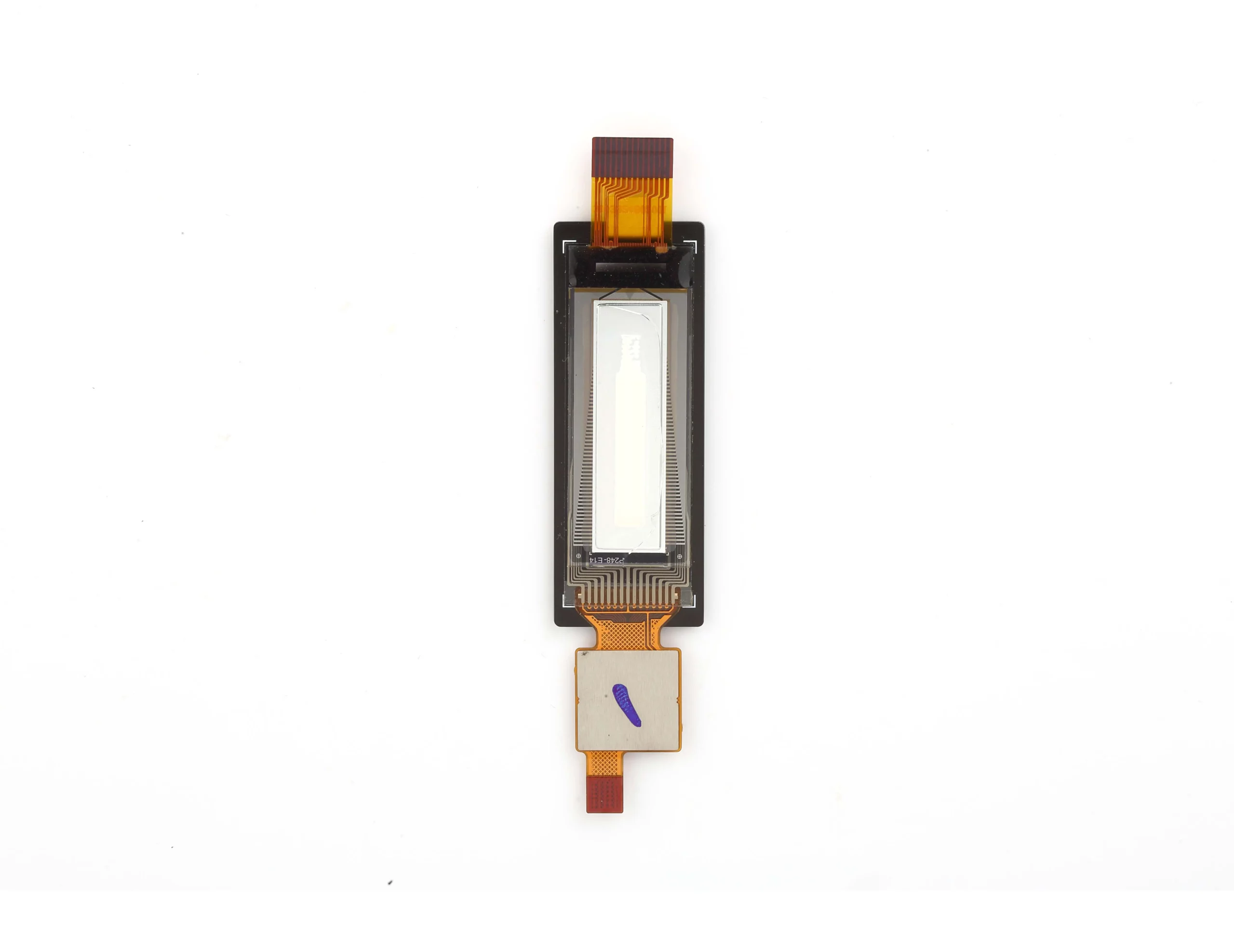

0.91 inch wide work temp PMOLED display front view

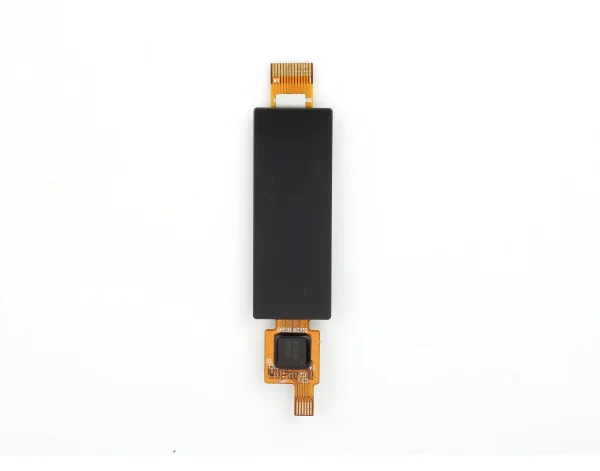

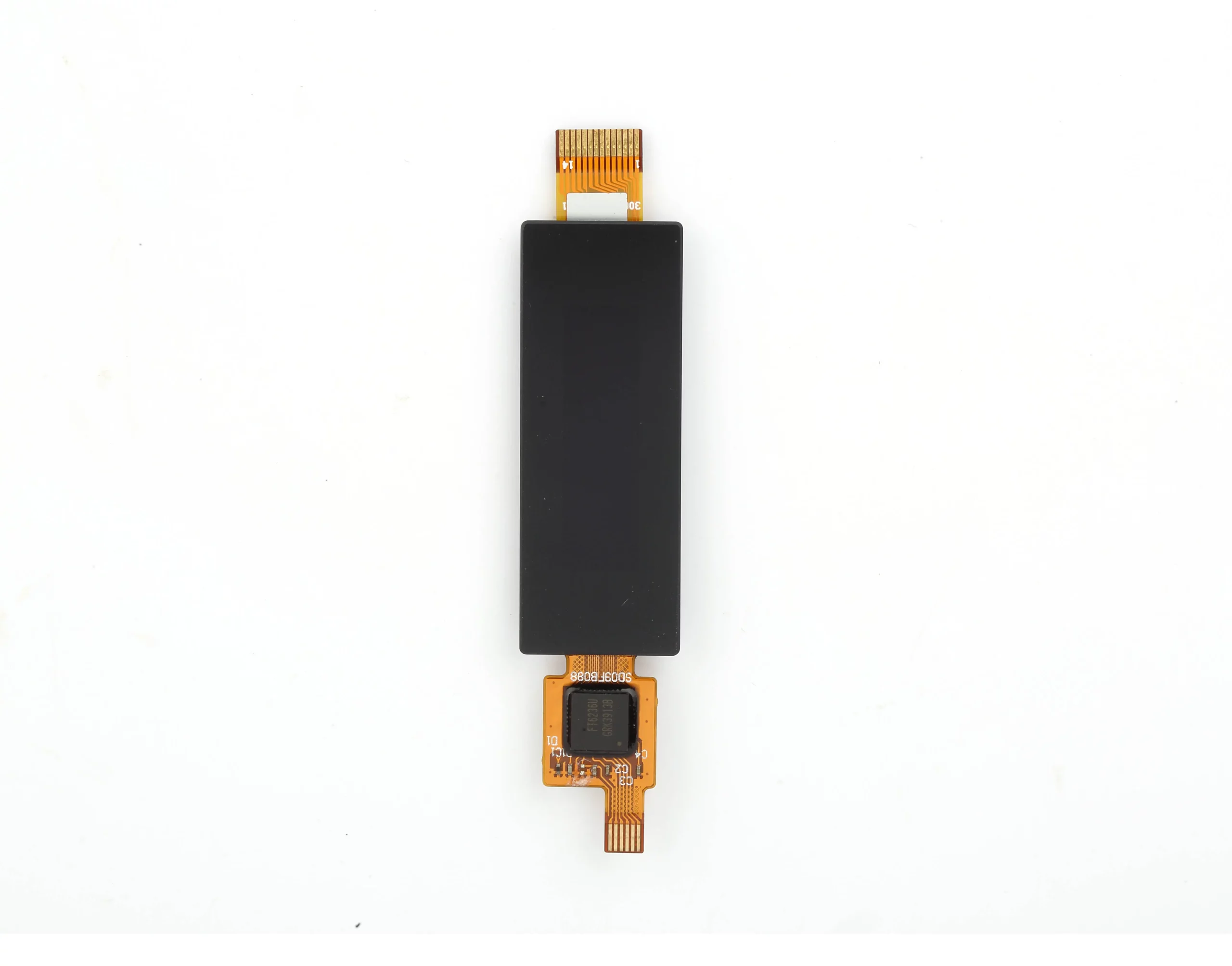

0.91 inch wide work temp PMOLED display back view

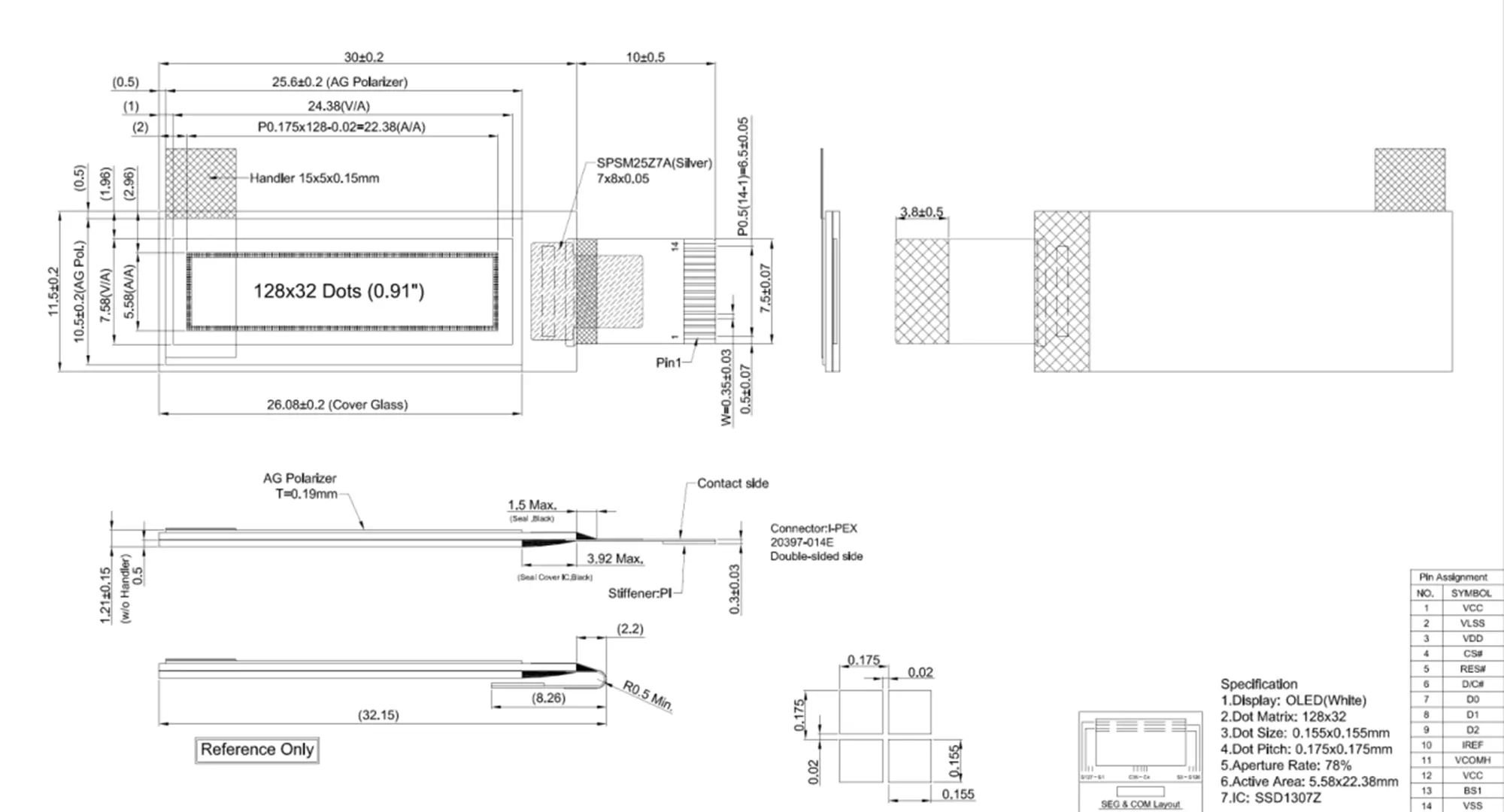

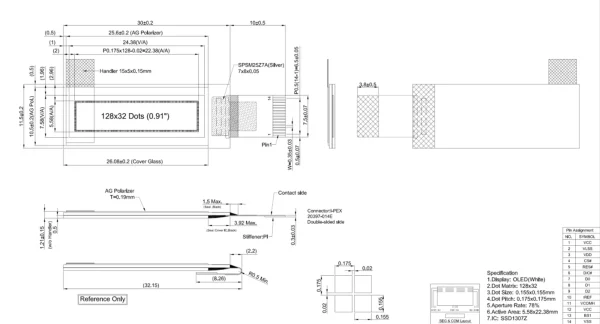

0.91 inch 128×32 PMOLED display Machine Drawing
