Kingtech 7.0inch TFT colorful IPS LCD display module

Item High brightness 7inch 800×480 TFT LCD module
Model No. PV07081D0150F-CT
Resolution 800*480

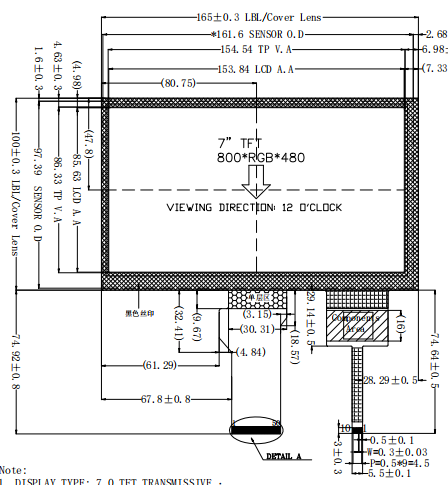

Outline Dimension (mm) 165*100*7.45
Active Area (mm) 153.84*85.63
Viewing Angle All
Brightness 800nits
Interface RGB interface
Backlight 3*10LEDs
Driving IC EK73002&EK9716
PIN No. 50
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Capacitive touch with I2C,ILI2130
Application Outdoor application, handheld device, E-bike, industrial,Gas euipment

For product pricing,customization,or other inquiries:

Share to:

  1. 7.0inch IPS LCD
  2. High brightness /800nits/ Outdoor/Sunlight readable
  3. Compatible Capacitive Touch
  4. Industrial Grade

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
