Kingtech 5.7 inch TFT colorful LCD module all viewing angle IPS panel technology

Item 5.7inch 640x480dots LCD with capacitive touch
Model No. PV05711D0160M-CT
Resolution 640*480

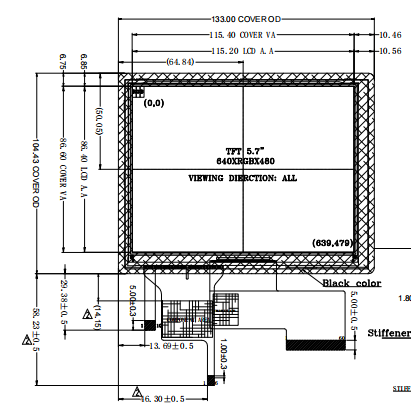

Outline Dimension (mm) 133*104.43*2.55
Active Area (mm) 115.20*86.40
Viewing Angle All
Brightness 500nits
Interface RGB, LVDS
Backlight 3*7 LEDs
Driving IC JD9168S
PIN No. 60
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Capacitive touch with ILI2511, I2C interface
Application Industrial, Medical, Consumer electronics, charging piles/engineering vehicles/ships.

For product pricing,customization,or other inquiries:

Share to:

  1. 5.7英寸IPS液晶屏
  2. 640×480,大约正方形
  3. LVDS接口和RGB接口
  4. 电容式触控、OCA贴合

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
