Kingtech 7.0inch TFT colorful LCD module

Item High brightness 7inch IPS 1024*600 LCD with Capacitive touch
Model No. PV07078Y0150C-CT
Resolution 1024*600

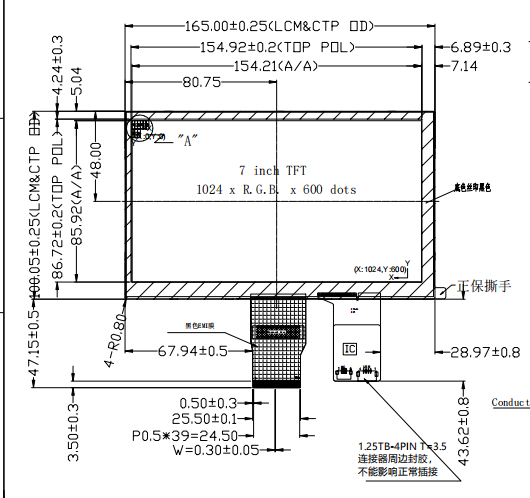

Outline Dimension (mm) 165.0*100.5*7.63
Active Area (mm) 154.21*85.92
Viewing Angle All
Brightness 1000nits
Interface RGB
Backlight 9*3LED
Pin nums 50pins
Driving IC
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen Capacitive touch
Application Outdoor application,handheld device, E-bike,industrial,Medical

For product pricing,customization,or other inquiries:

Share to:

  1. Sunlight Readable / 1000nits/ Outdoor/High brightness
  2. 0inch IPS LCD
  3. RGB interface 50pins
  4. Capacitive Touch optional and resistive touch for optional

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
