1.12 inch 96×96 resolution RGB+SPI interface small PMOLED display

Item1.12 inch square PMOLED display
Model NoPV112096096PMMFX-1
Display modePMOLED
Resolution96×96
Outline Dimension25.90*30.10*1.30
Active Area(mm)19.852*19.852
Brightness100nits
Viewing angleAll
Interface8-bit 68xx/80xx parallel, 4-wire SPI
Driving ICSEPS1114A
Operating Temperature-40 to +70℃
Storage Temperature-40 to +85℃

For product pricing,customization,or other inquiries:

Share to:

1.12 inch 96×96 resolution RGB+SPI interface small PMOLED display

1. PV112096096PMMFX-1 mainly application instruments and equipment,  Medical devices,
2. It with IPS  viewing angle , wide work temperature , SEPS1114A driver IC ,RGB and SPI Interface.
3. And it can custom the touch panel as customer ‘s requirement .
4. This model without backlight , super thin of thickness, super power saving of power.

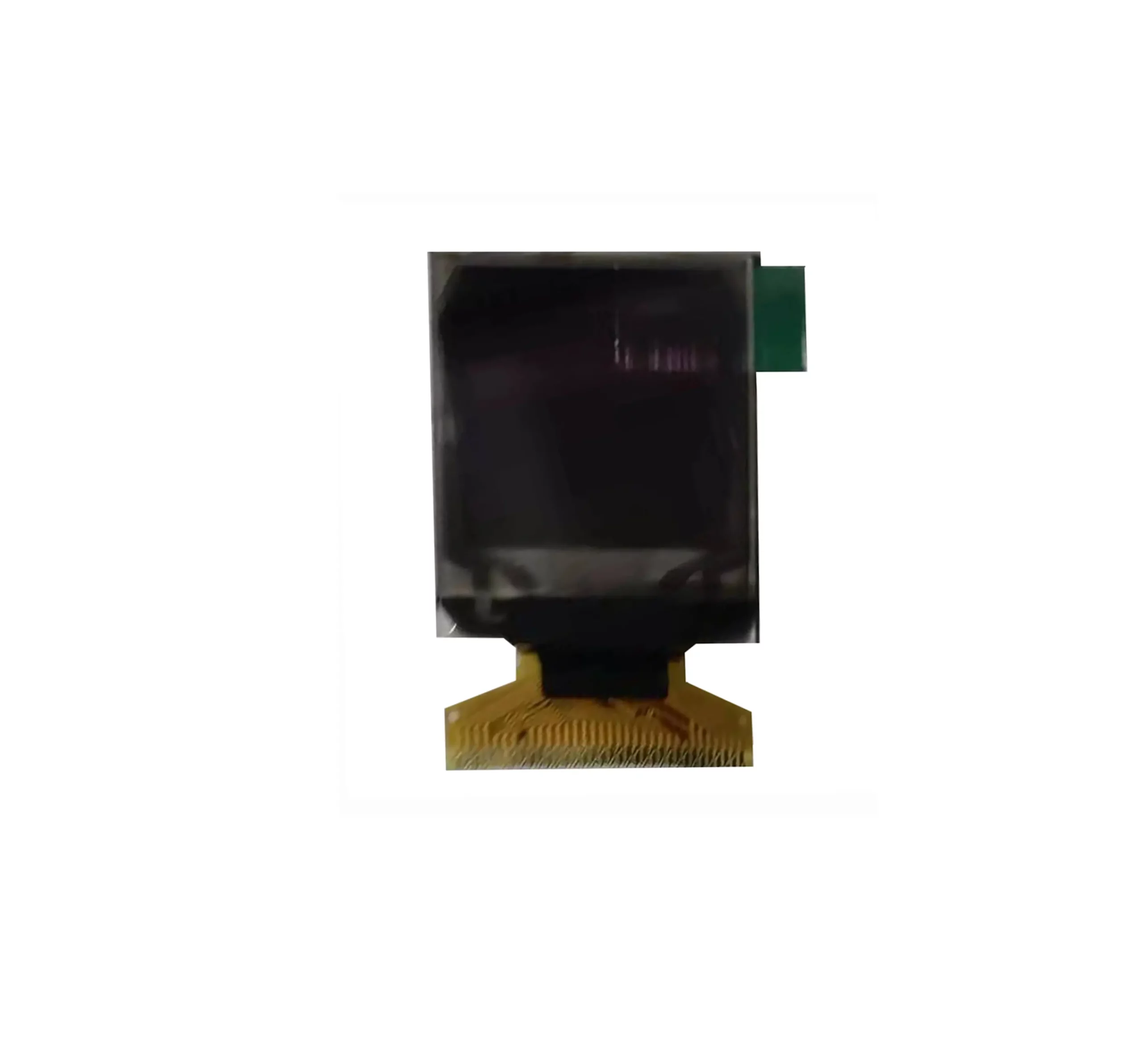

1.12 inch square PMOLED display front view

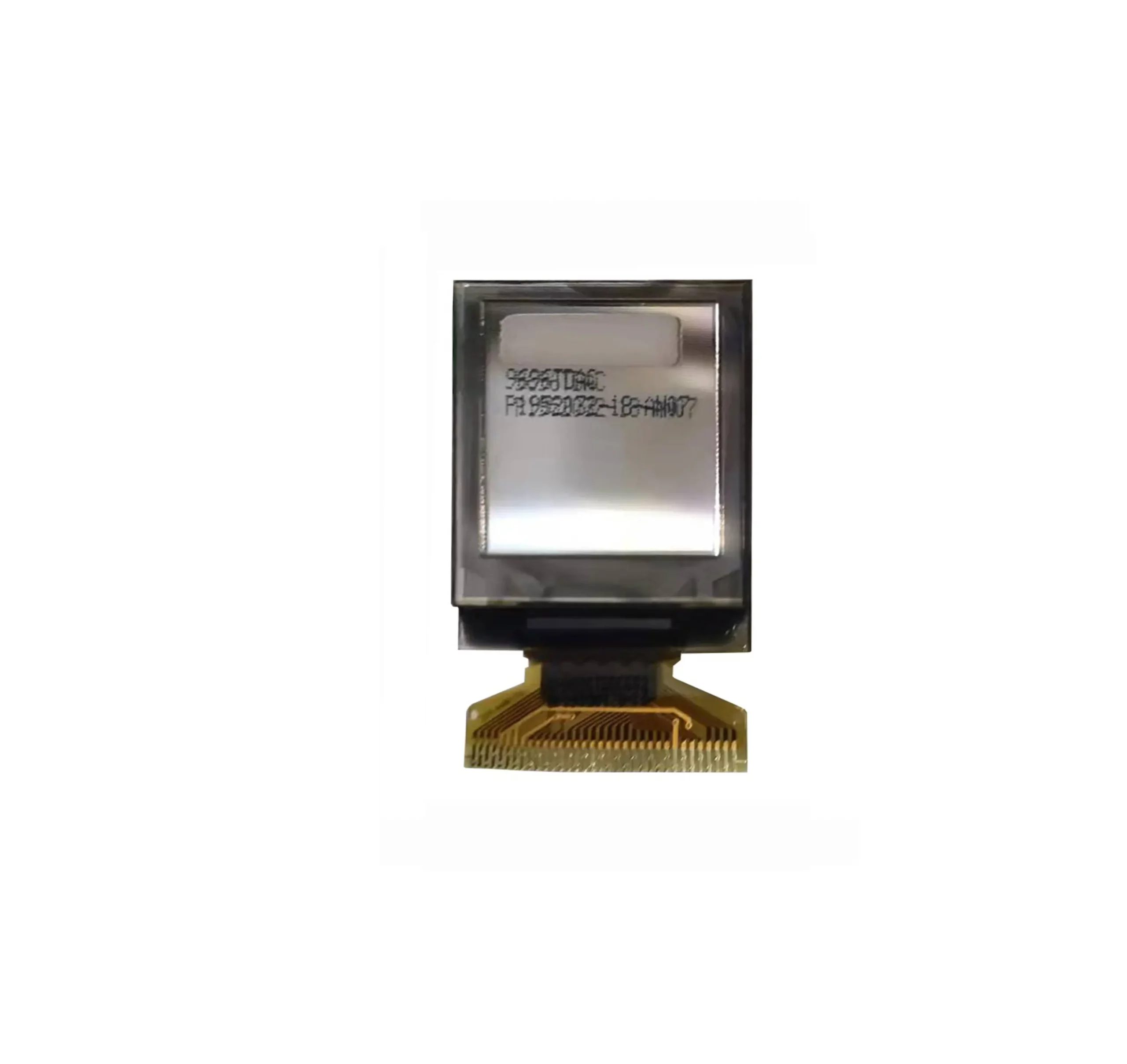

1.12 inch square PMOLED display back view

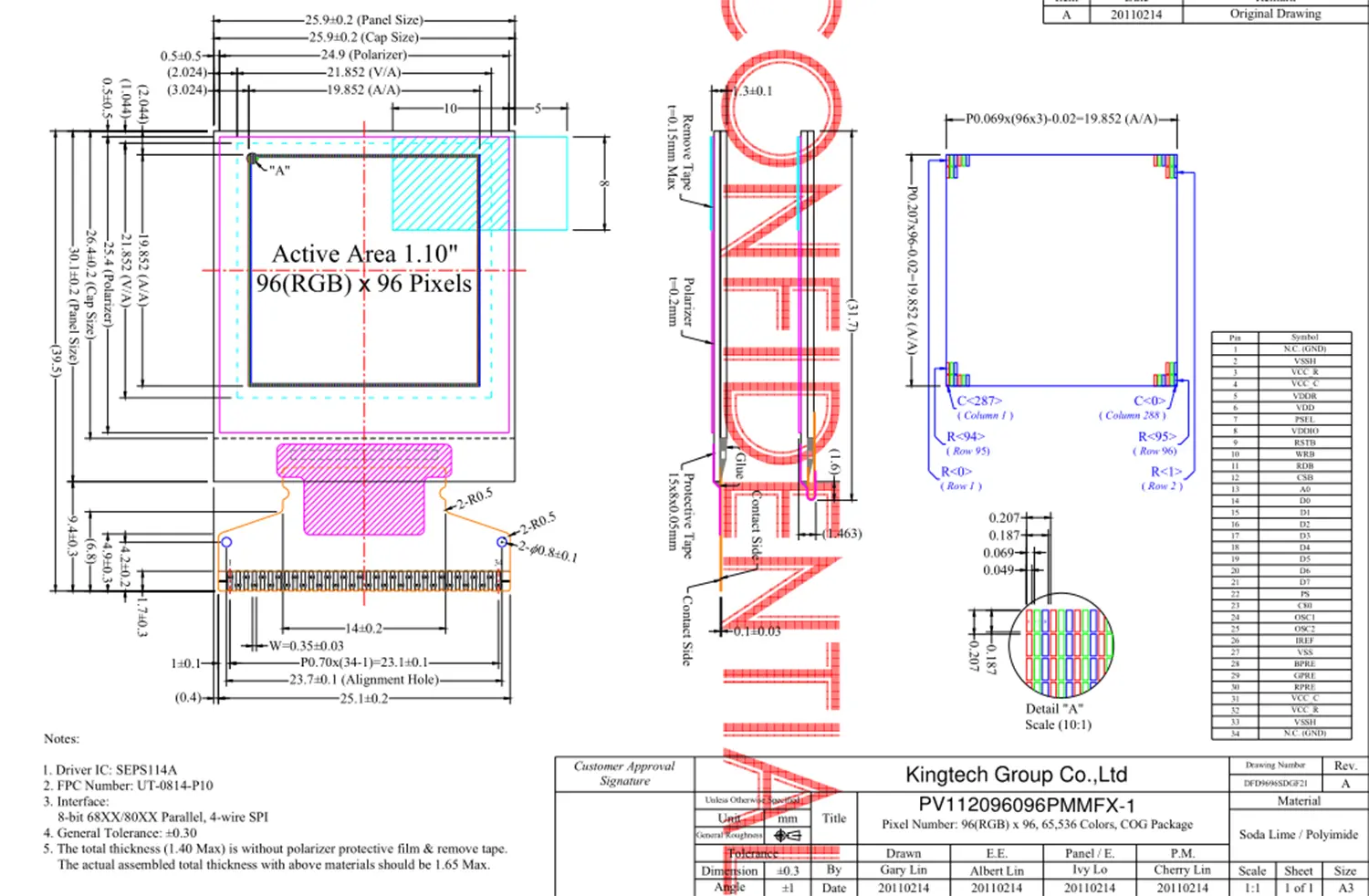

1.12 inch wide work temp PMOLED display Machine Drawing
