Item | 1.3inch IPS square TFT display |
Model No | PV013004AR24E |
Resolution | 240×240 |
Outline Dimension | 26.16(W)x29.22(H)x1.6(T) |
Active Area(mm) | 23.40(W)x23.40(H) |
Interface | 8bit parallel & SPI |
Viewing Angle | IPS |
Driving IC | ST7789 |
Display Mode | Transmission/Normally Black |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 350nits |
Touch screen | Resistive and capacitive touch screen |
1.3 inch 240×240 IPS square wearable Super thiner TFT LCD display
1. PV013004AR24E mainly application for smart watch and wearable devices
2. It with IPS free full viewing angel , 240×240 resolution , 8bit parallel & SPI interface , ST7789 Driver IC, 350 nits brightness .
3. And it can custom HDMI board to support Raspberry PI;
4. It is super thin. The small size popular for smart watch market.

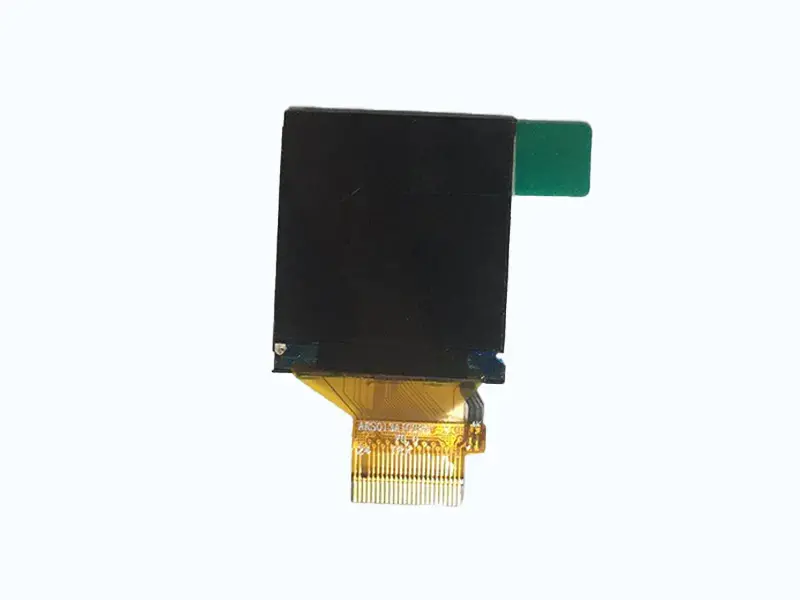

1.3 inch IPS square LCD display front view

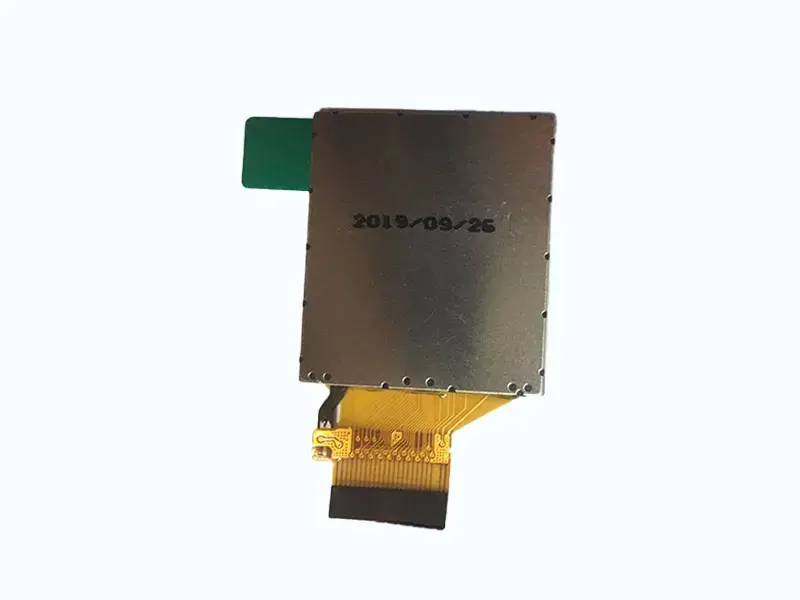

1.3 inch IPS square LCD display back view

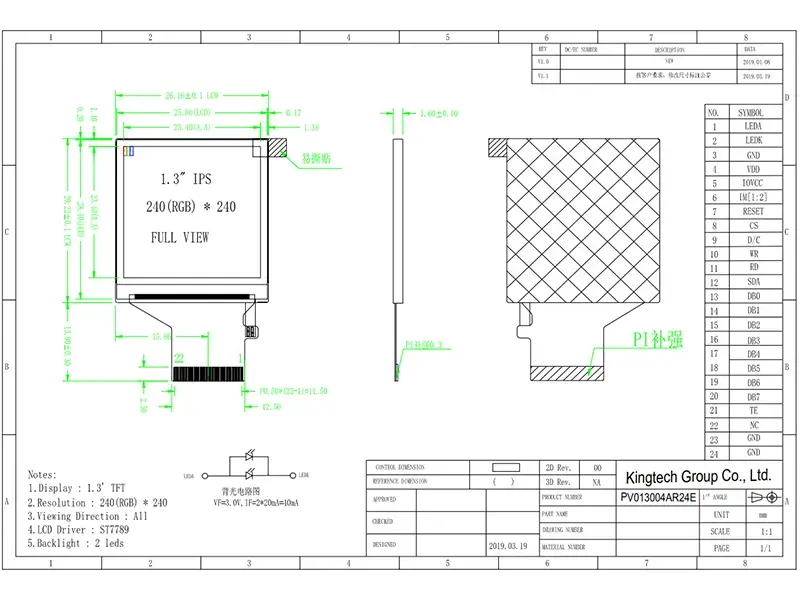

1.3 inch 240×240 square LCD display Machine Drawing
