1.39 inch 454×454 resolution MIPI /SPI interface IPS AMOLED display

Item1.39 inch round AMOLED display
Model NoPV13904PY24G
Outline Dimension38.83*38.21*0.68
Active Area(mm)φ35.41
Viewing AngleMIPI / SPI
Driving ICRM69330
CTP Controller/DriverTMA525B
Operating Temperature-20 to +60℃
Storage Temperature-30 to +70℃
BoardCan custom HDMI board
Touch screenExisting capacitive touch

For product pricing,customization,or other inquiries:

Share to:

1.39 inch 454×454 small / tiny and power saving Round / Circular shape wearable AMOLED display .
1. PV13904PY24G mainly application for smart watch and wearable devices
2. It with IPS free full viewing angel , 454×454 resolution , MIPI/SPI interface , existing capacitive touch panel .
3. And it can custom HDMI board to support Raspberry PI;
4. AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super power saving of … power. It can be well used for both indoor and outdoor .

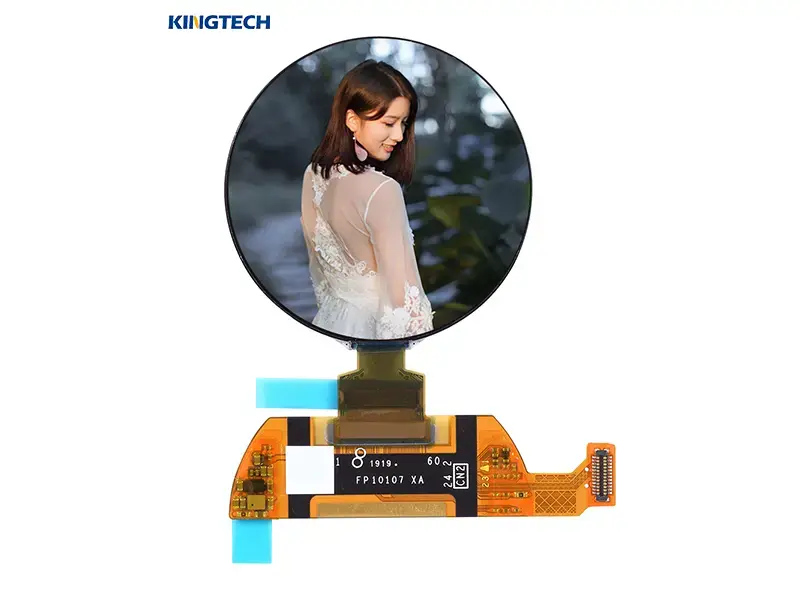

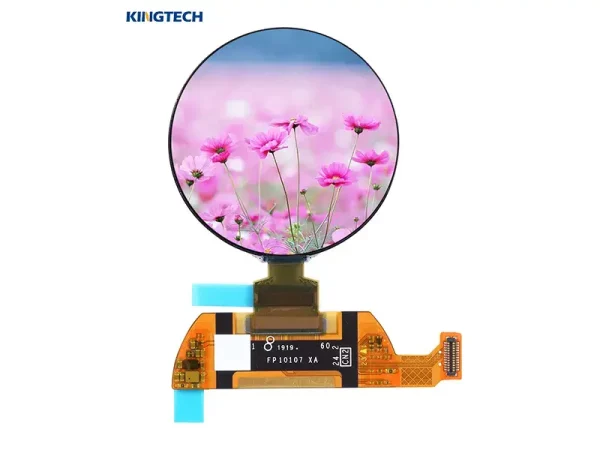

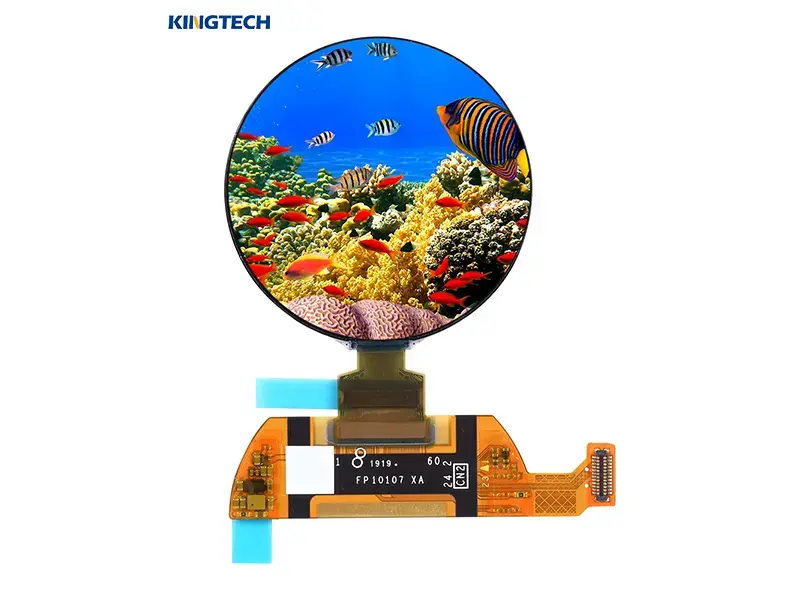

1.39 inch 454×454 AMOLED display front view

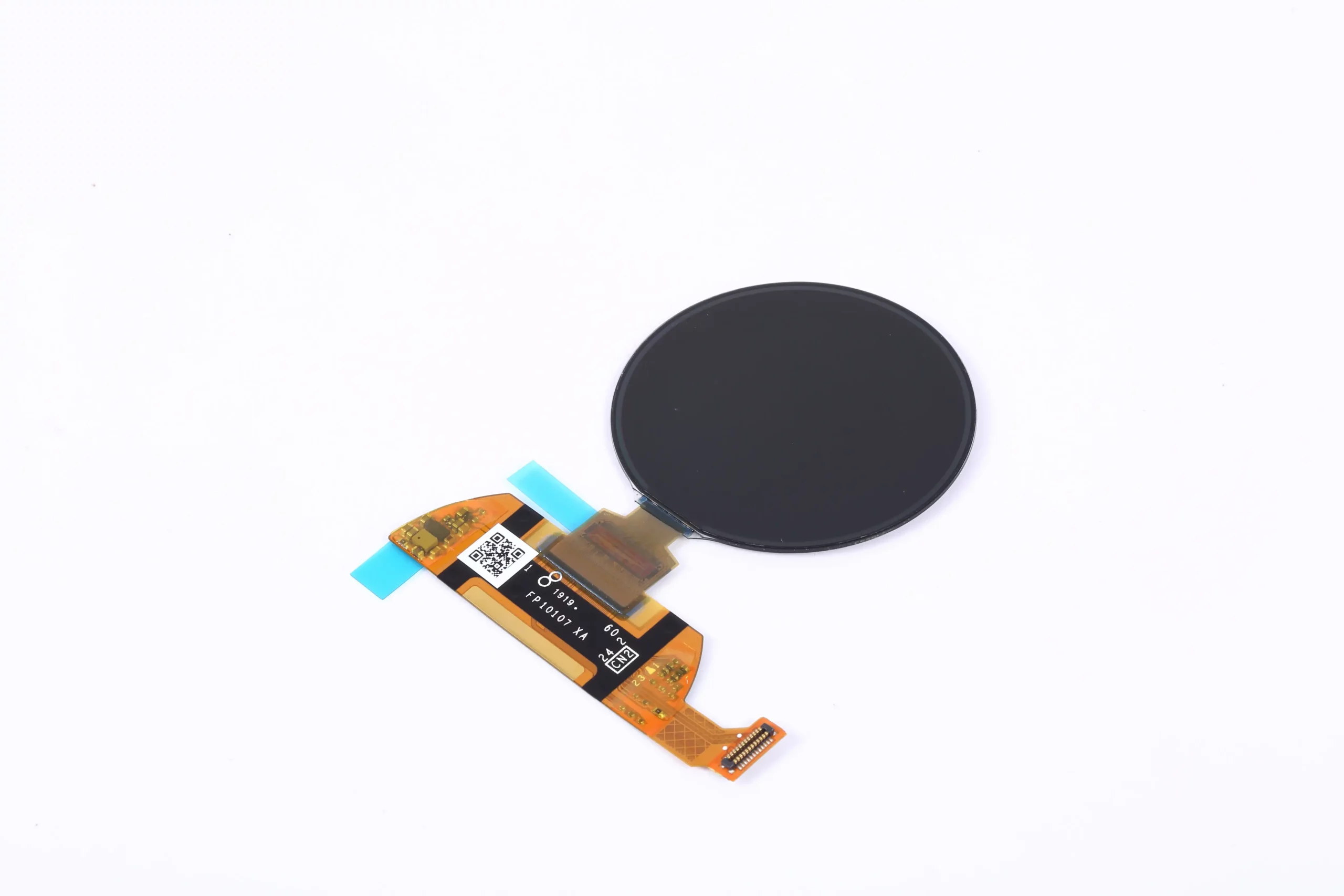

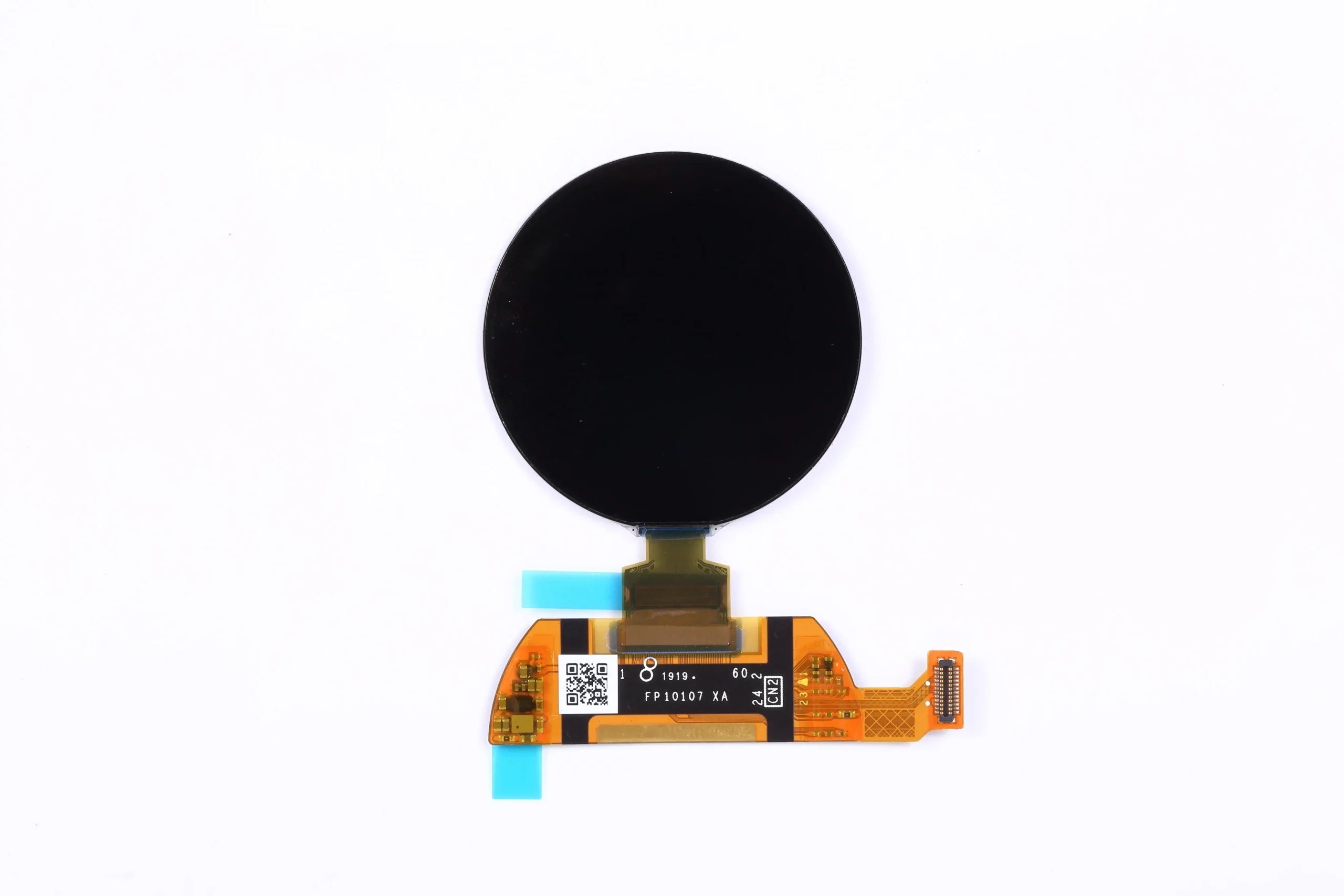

 1.39 inch 454×454 AMOLED back view

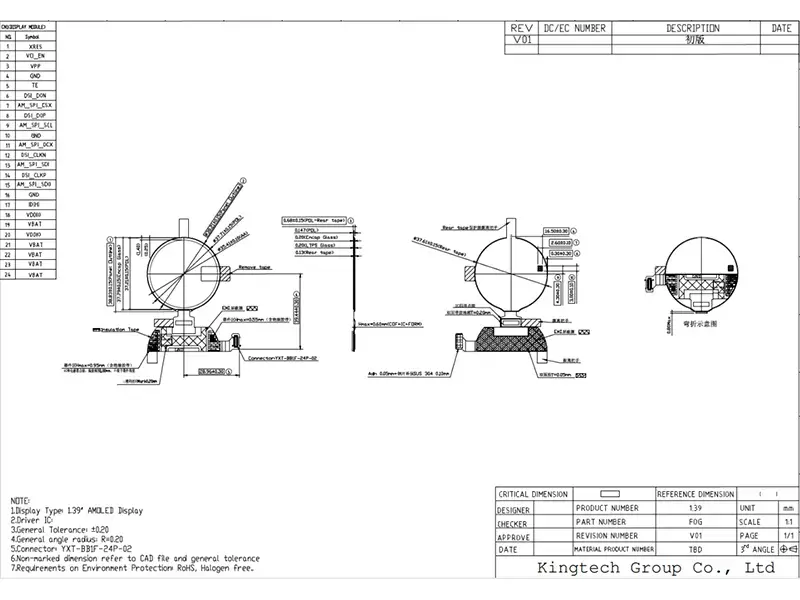

1.39 inch 454×454 AMOLED display Machine Drawing
