Item | Kingtech 1.44inch 128×128 lcd display |
Model No | PV144000YP10B |
Resolution | 128×128 |
Outline Dimension | 32.6(W)×38.00(H)×2.6(T) |
Active Area(mm) | 25.50(W)×26.50(H) |
Interface | 3-wire SPI / 4-wire SPI |
Viewing Angle | 6 o’ clock |
Driving IC | ST7735S |
Display Mode | Normally White,Transmissive |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 240nits |
Touch screen | Resistive and capacitive touch screen |
1.44 inch 128×128 SPI square wearable TFT LCD display .
1. PV144000YP10B mainly application for smart watch and wearable devices
2. It with TN/ 6 o’ clock viewing angel , 128×128 resolution , 3-wire SPI / 4-wire SPI interface , ST7735S Driver IC, 240 nits brightness .
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. It is super thin. The small size popular for smart watch market.

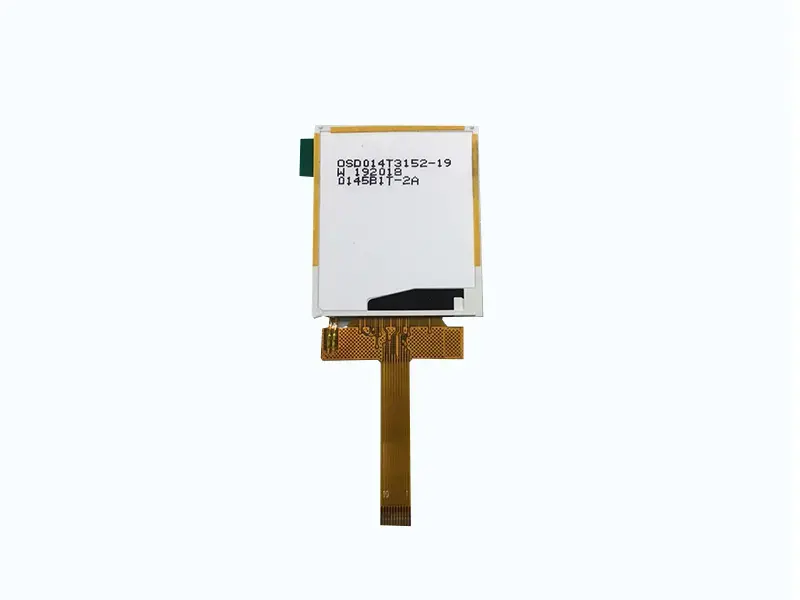

1.44 inch SPI interface LCD display front view

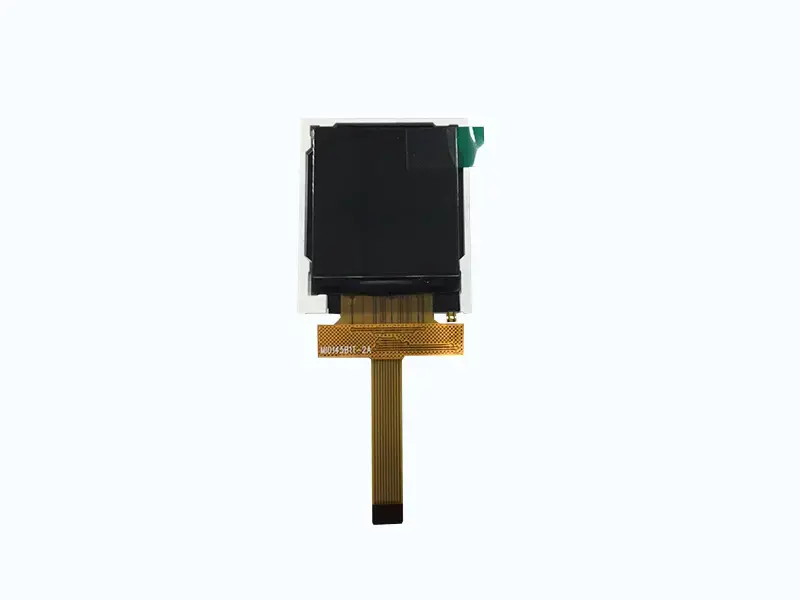

1.44 inch SPI interface LCD display back view

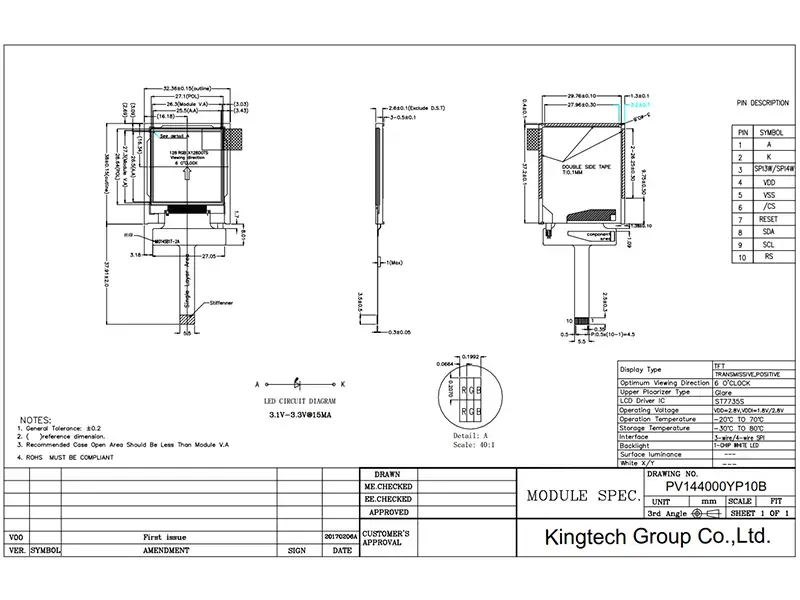

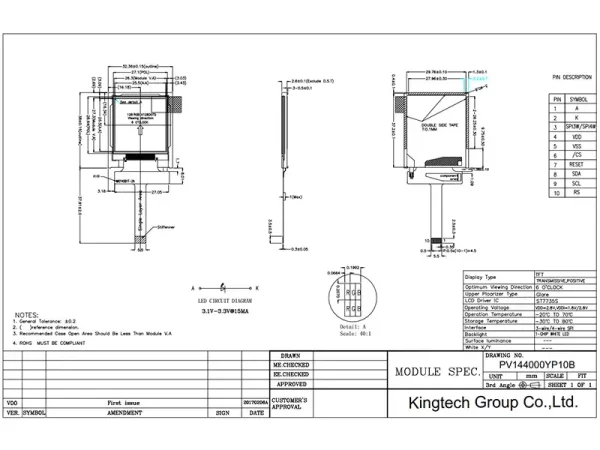

1.44 inch 128×128 wearable TFT LCD display Machine Drawing
