1.5 inch 128×128 all viewing angle wide temperature PMOLED display

Item1.5 inch small PMOLED display
Model NoPV150128128PMYX-1
Display modePMOLED
Resolution128*128
Outline Dimension33.80*34.00*1.60
Active Area(mm)26.855*26.864
Brightness90nits
Viewing angleAll
Interface8-bit 68xx/80xx parallel, 4-wire SPI
Driving ICSSD1351
Operating Temperature-30 to +70℃
Storage Temperature-40 to +80℃

For product pricing,customization,or other inquiries:

Share to:

1.5 inch 128×128 all viewing angle wide temperature PMOLED display

1. PV150128128PMYX-1 mainly application forsmart watch and wearable devices .
2. It with IPS full viewing angle , wide work temperature , SSD1351 driver IC . SPI and RGB interface
3. And it can custom touch panel as customer ‘s requirement .
4. This model without backlight , super thin of thickness, super power saving of power.

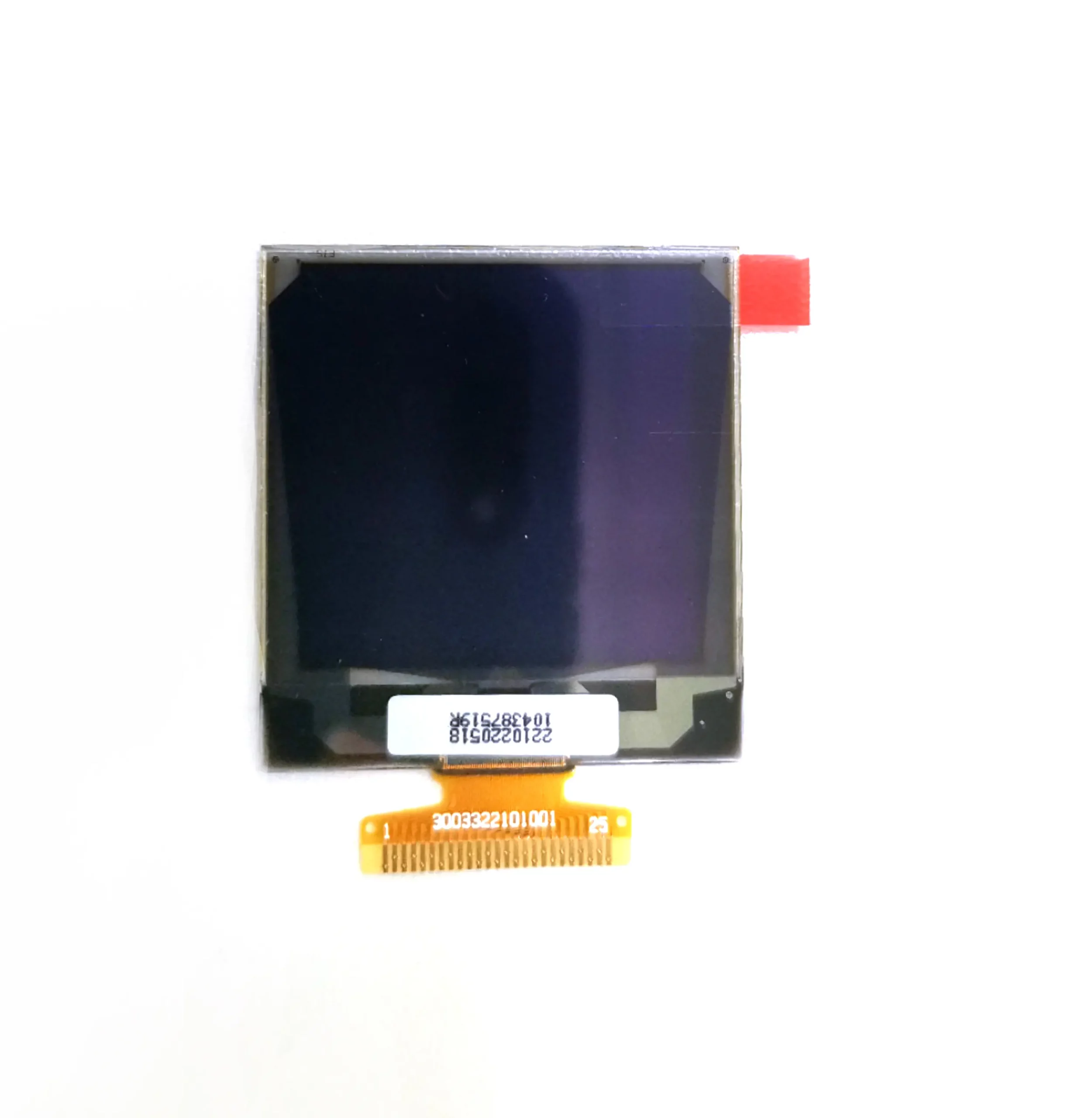

1.5 inch IPS PMOLED display front view

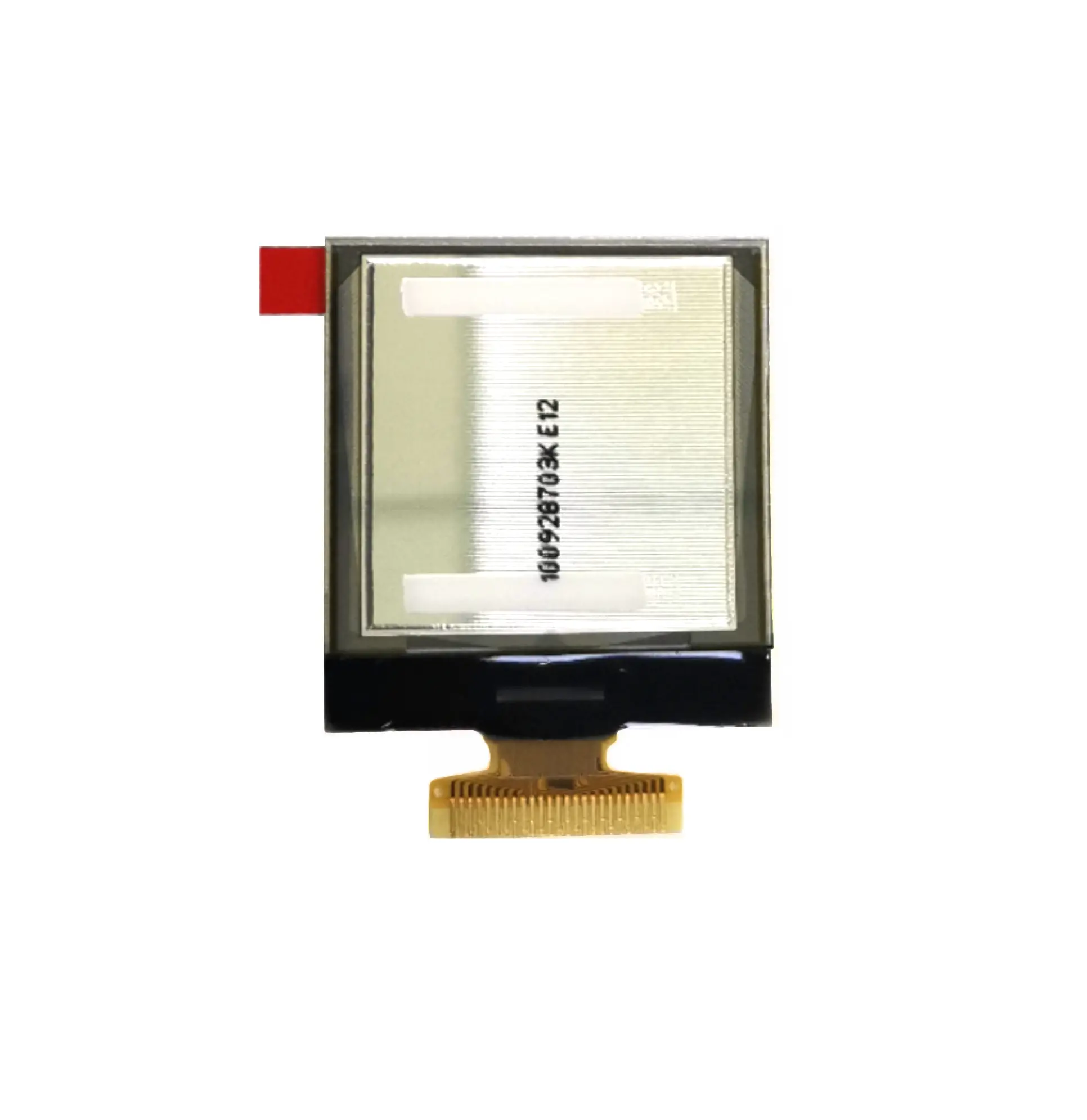

1.5 inch IPS PMOLED display back view

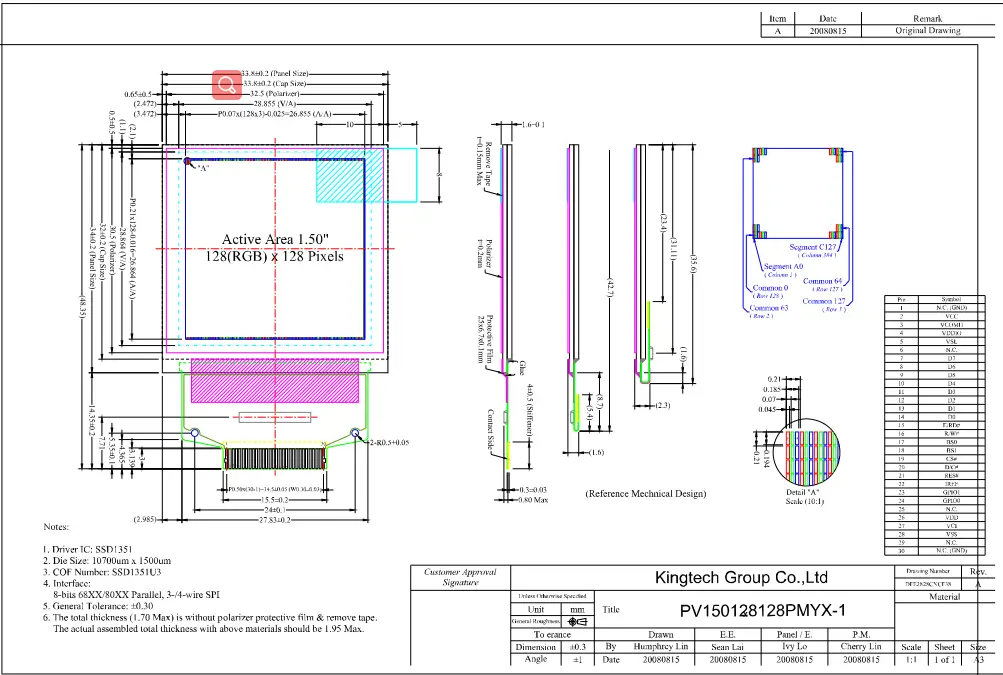

1.5 inch wide work temp PMOLED display Machine Drawing
