1.54 inch 240×240 IPS MCU square small / Tiny TFT LCD display

Item1.54inch square TFT LCD display
Model NoPV015400KLD24C_V03
Resolution240×240
Outline Dimension33.72(H)x31.52(W)x1.85(T)
Active Area(mm)27.72(H)x27.72(W)
Interface8/9-bits MPU
Viewing AngleAll
Driving ICST7789V
Display ModeTransmissive / Normally Black
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness200nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

1.54 inch 240×240 IPS MCU square small / Tiny TFT LCD display .

1. PV015400KLD24C mainly application for smart watch, smart home,Industrial device and wearable devices
2. It with IPS Full viewing angel , 240×240 resolution , 8/9-bits MPU interface , ST7789V Driver IC, 200 nits brightness . Interface and brightness can be custom made
3. And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4. The small size popular for smart watch market.

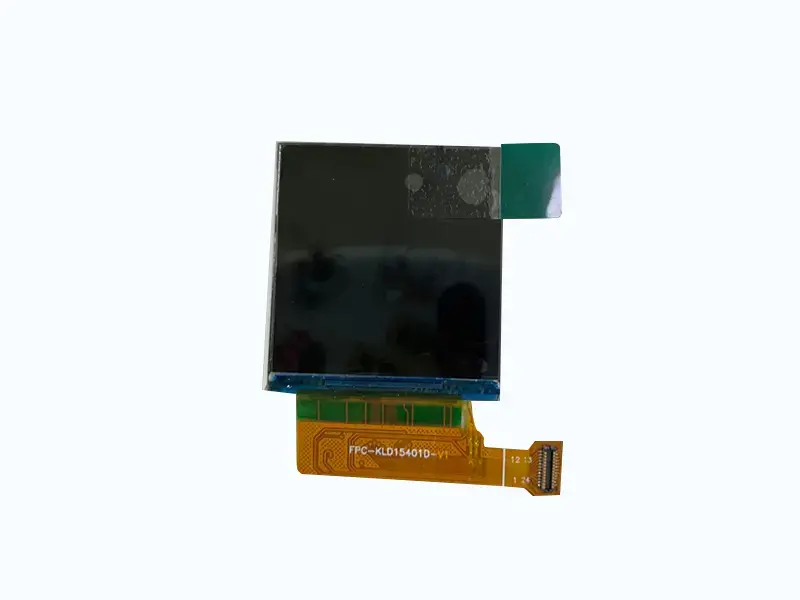

1.54 inch 240×240 square LCD display front view

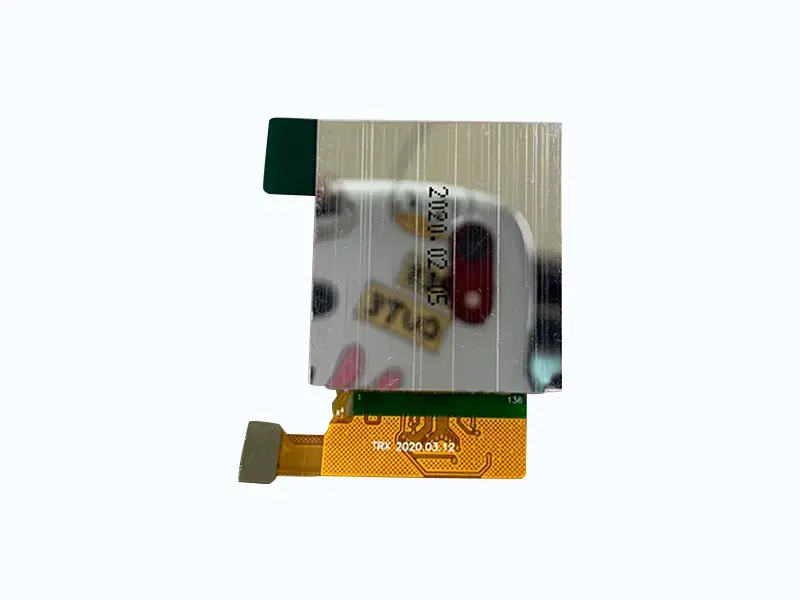

1.54 inch 240×240 square LCD display back view

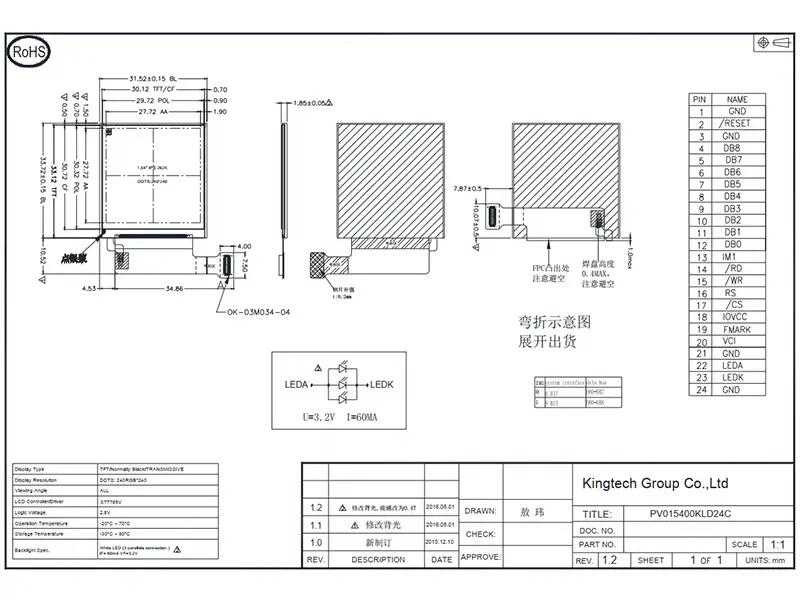

1.54 inch MCU interface TFT LCD display Machine Drawing
