1.78 inch 368×448 ips smartwatch oled display screen

Item1.78 inch 368×448 QSPI AMOLED display
Model NoPV017802T45C
Resolution368×448
Outline Dimension165*104.54*5.2  MM
Active Area(mm)34.90*28.7
InterfaceQSPI
Viewing AngleALL
Driving ICILI8688N4AE4
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness550nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

1.78 inch 368×448 IPS QSPI interface small AMOLED display
1.PV017802T45C  smart watch and wearable devices
2.It with IPS free viewing angel ,368*448 resolution , QSPI interface , existing capacitive touch panel .
3.And it can custom touch panel as customer ‘s requirement;
4.AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super 5.power saving of … power. It can be well used for both indoor and outdoor .

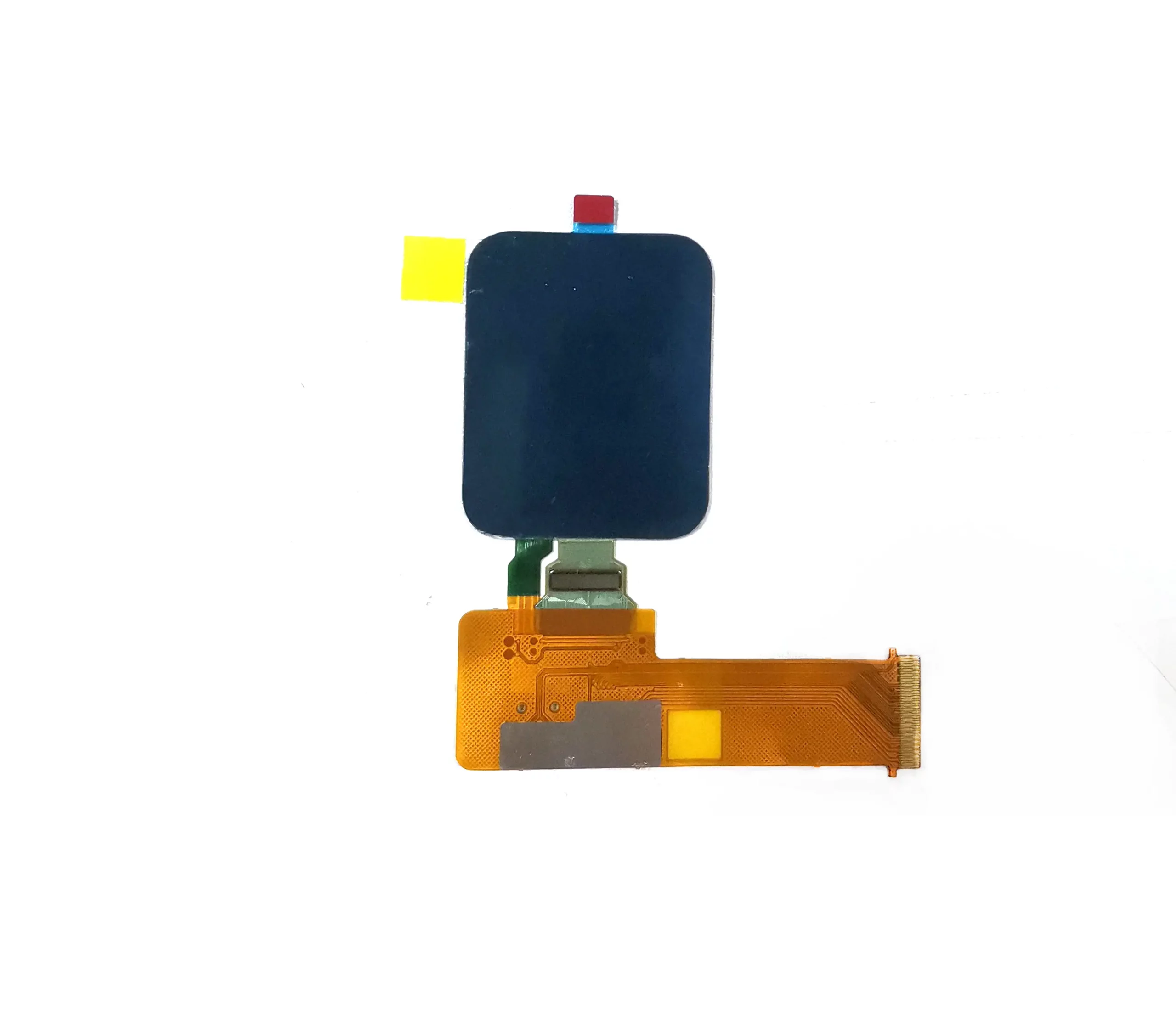

1.78 inch QSPI display Infront View



PV017802T45C front

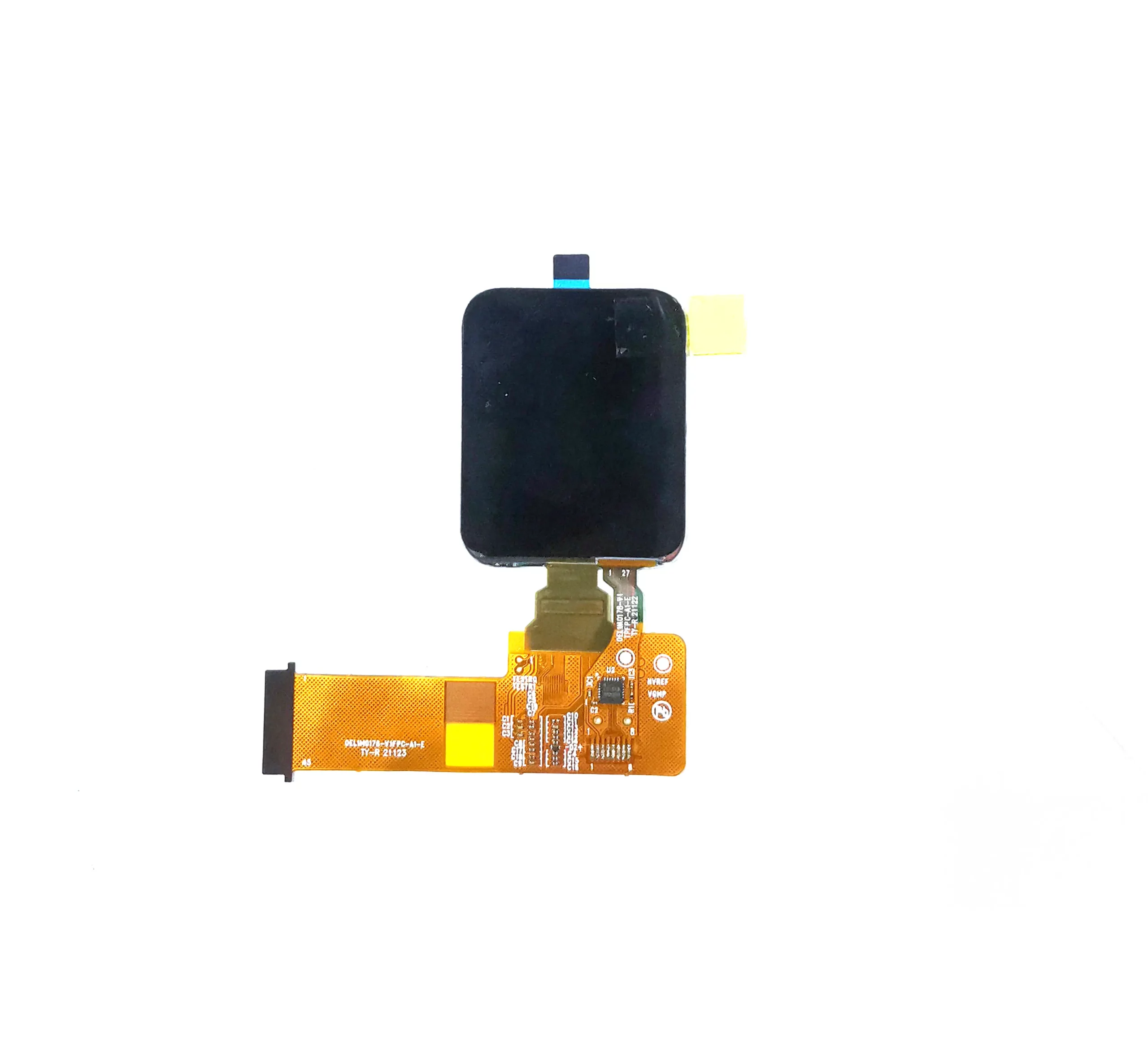

1.78 inch QSPI display Back View

PV017802T45C back

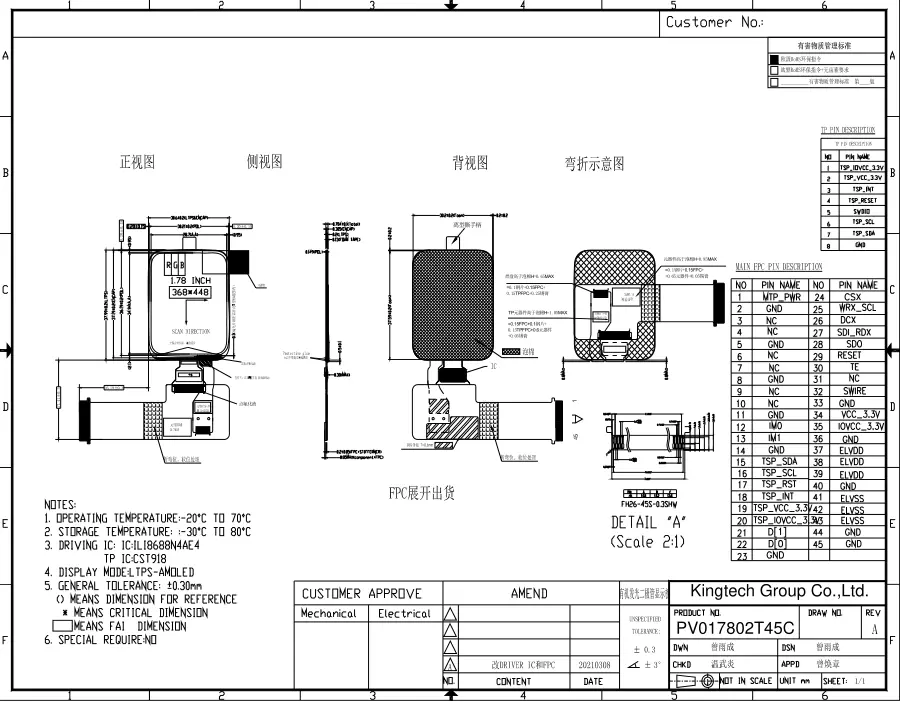

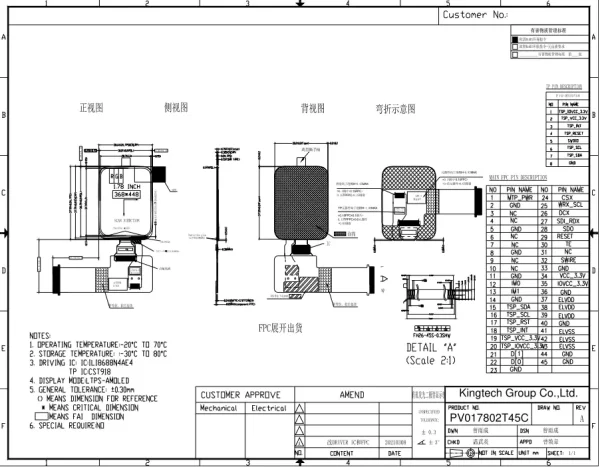

1.78 inch AMOLED display Machine Drawing

机械图
