10.1 inch 1200×1920 TFT LCD module

ItemTFT LCD module 10.1 inch
Model NoPV101018TX40R
Resolution1200*1920
Outline Dimension143X228.6X2.5
Active Area(mm)135.36*216.58
InterfaceMIPI
Viewing AngleALL
Driving ICHX8678
Display ModeTFT/TRANSMISSIVE
Operating Temperature-0 to +50℃
Storage Temperature-10 to +60℃
Brightness260nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

10.1 inch IPS 1200×1920 resolution MIPI interface high brightness lcd display
1.PV101018TX40R mainly application industrial equipment .
2.It with 1200×1920 resolution,  IPS view angle , mipi interface , 800nits high brightness .
3.And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4.The high brightness and resolution , it well use for out door .

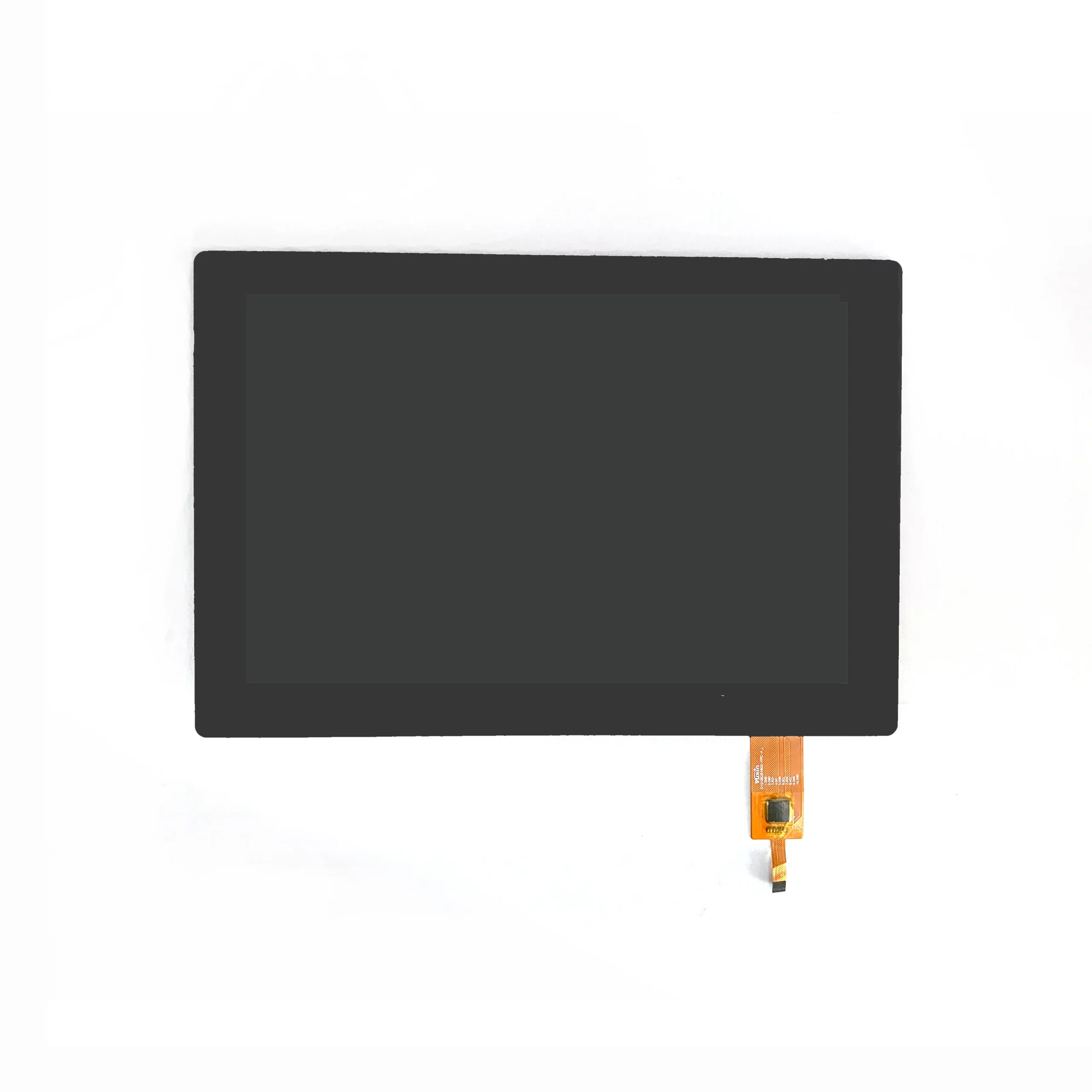

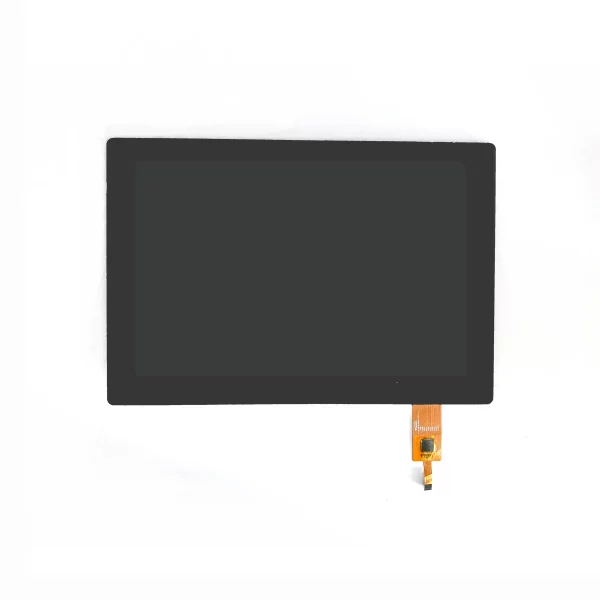

10.1 inch IPS 1200×1920  module Front View

10.1 inch 1200x1920 TFT LCD module

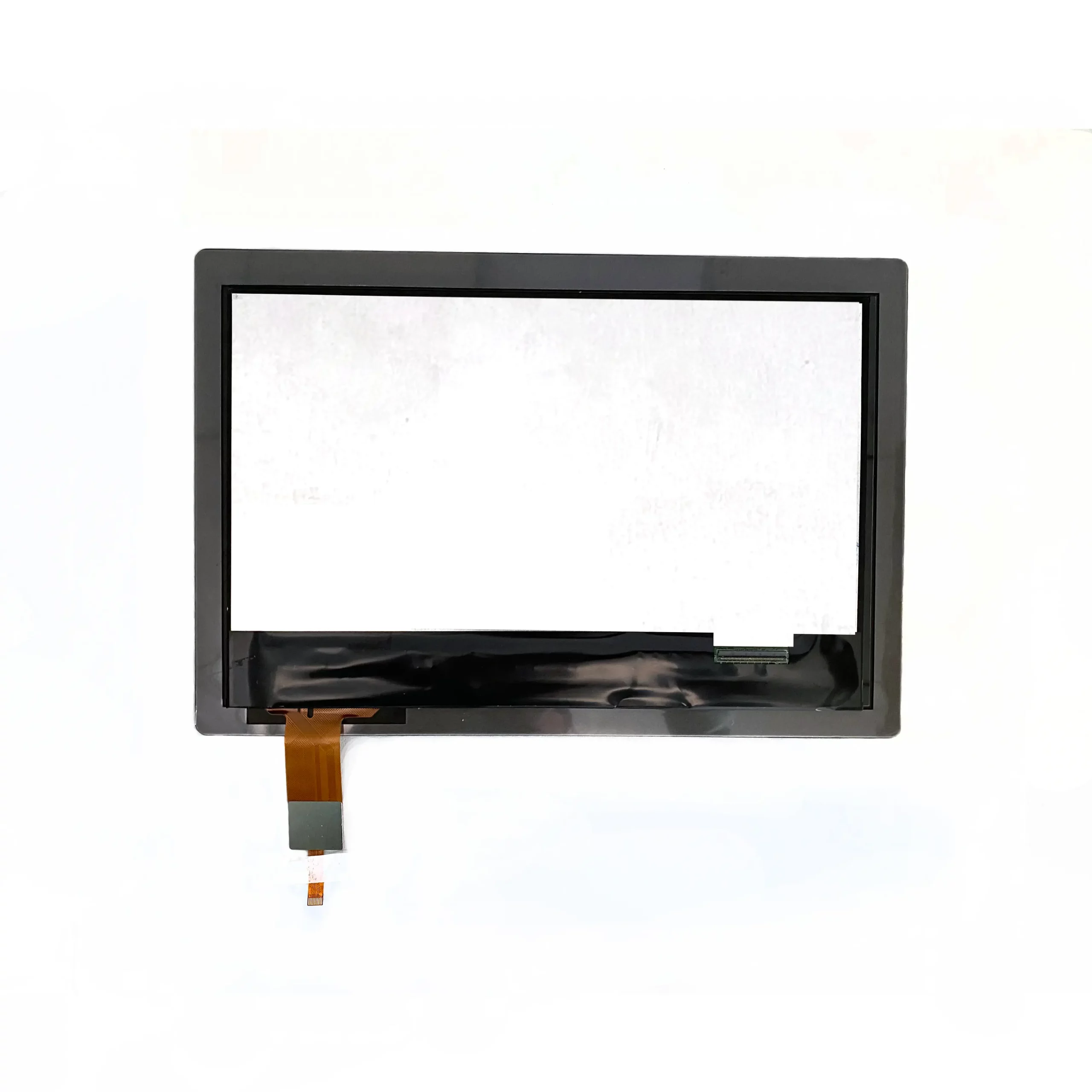

10.1 inch IPS 1200×1920  module Back View

10.1 inch 1200x1920 TFT LCD module

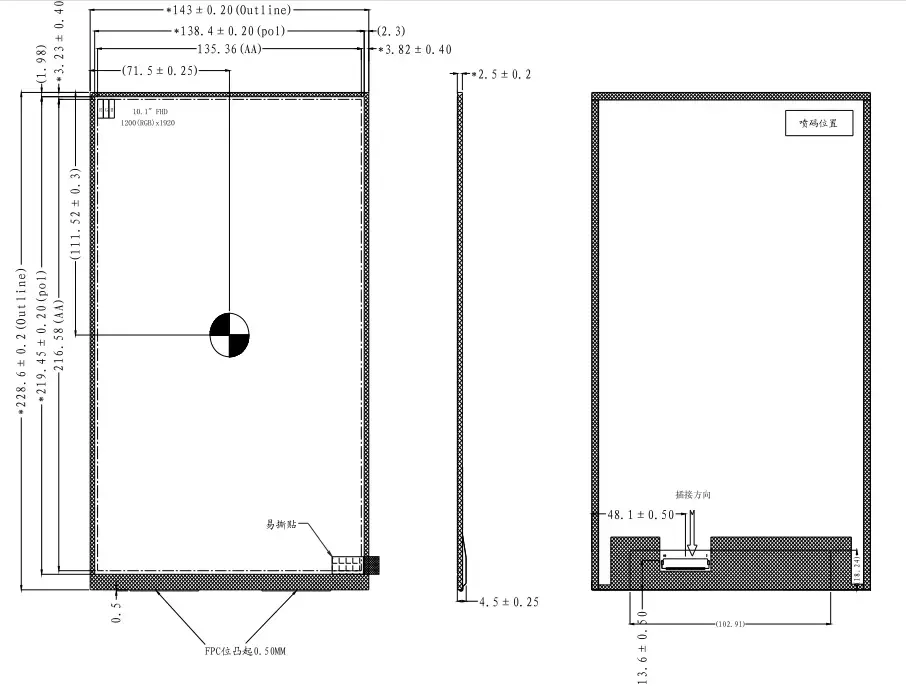

10.1 inch high resolution LCD display Machine Drawing



10.1 inch 1200x1920 TFT LCD module
