40 PIN WXGA 10.1 inch tft lcd module

Item10.1inch 1280×800 TFT LCD module
Model NoPV101033Y0140W
Resolution 1280 x 800

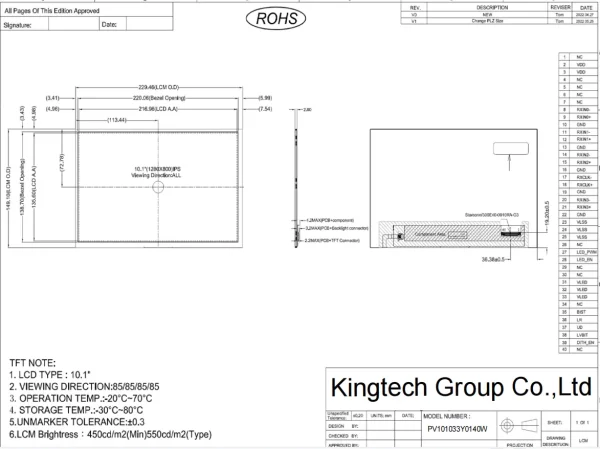

Outline Dimension 229.46*149.10*2.8
Active Area(mm)216.96 *135.36
Interface LVDS 8bit or 6bit Interface
Viewing AngleAll
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
Brightness550nits
Touch screenSupport capacitive touch
PIN40

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 1280×800 LVDS 8bit or 6bit Interface IPS TFT LCD display module

1.PV101033Y0140W mainly application  handheld device , Industrial ,medical equipment.
2. It with 1280×800 resolution , IPS all view angle , LVDS 8bit or 6bit  interface, 550nits high brightness/ sunlight readable,
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

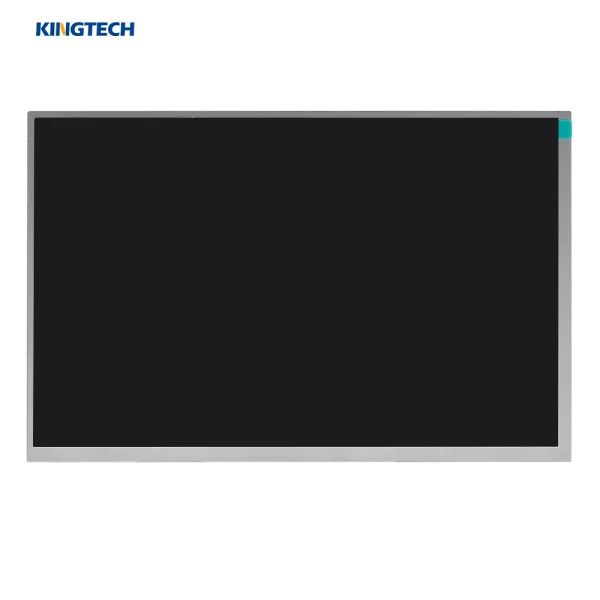

10.1 inch IPS lcd display front view

PV101033Y0140W front

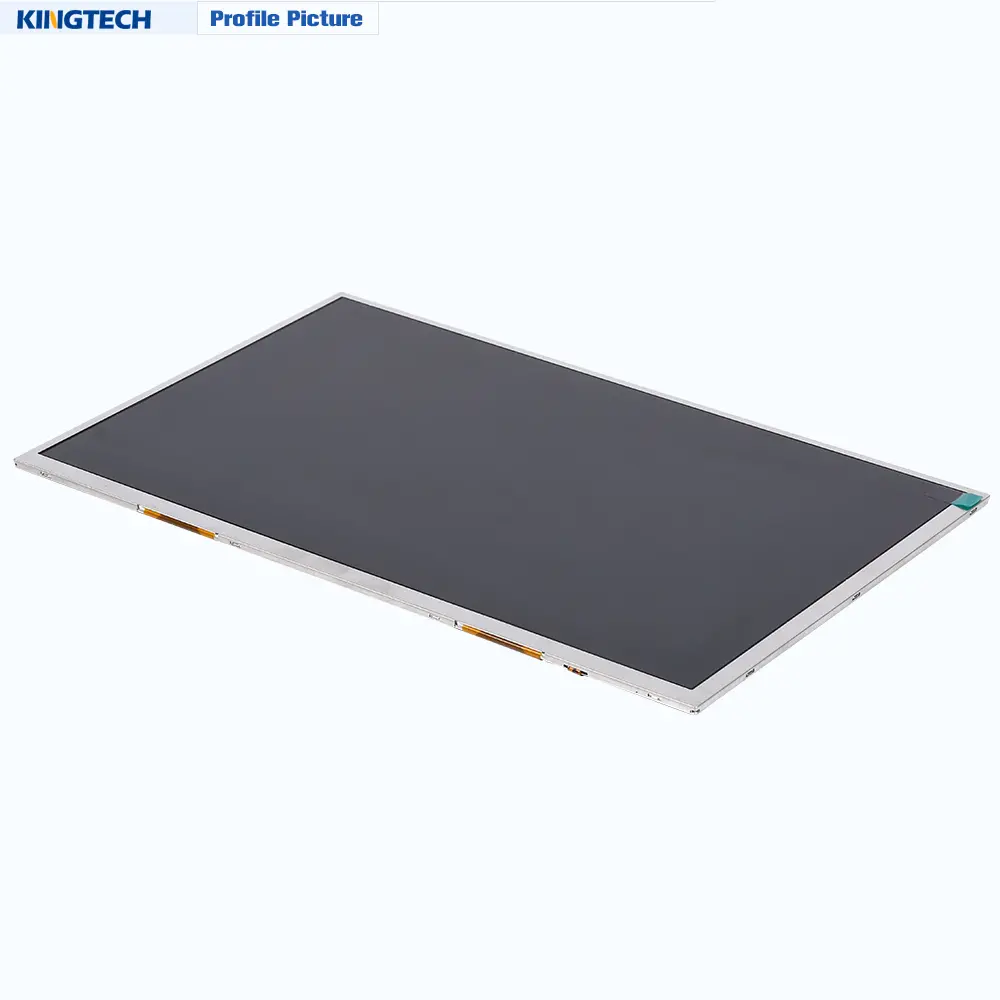

PV101033Y0140W profile

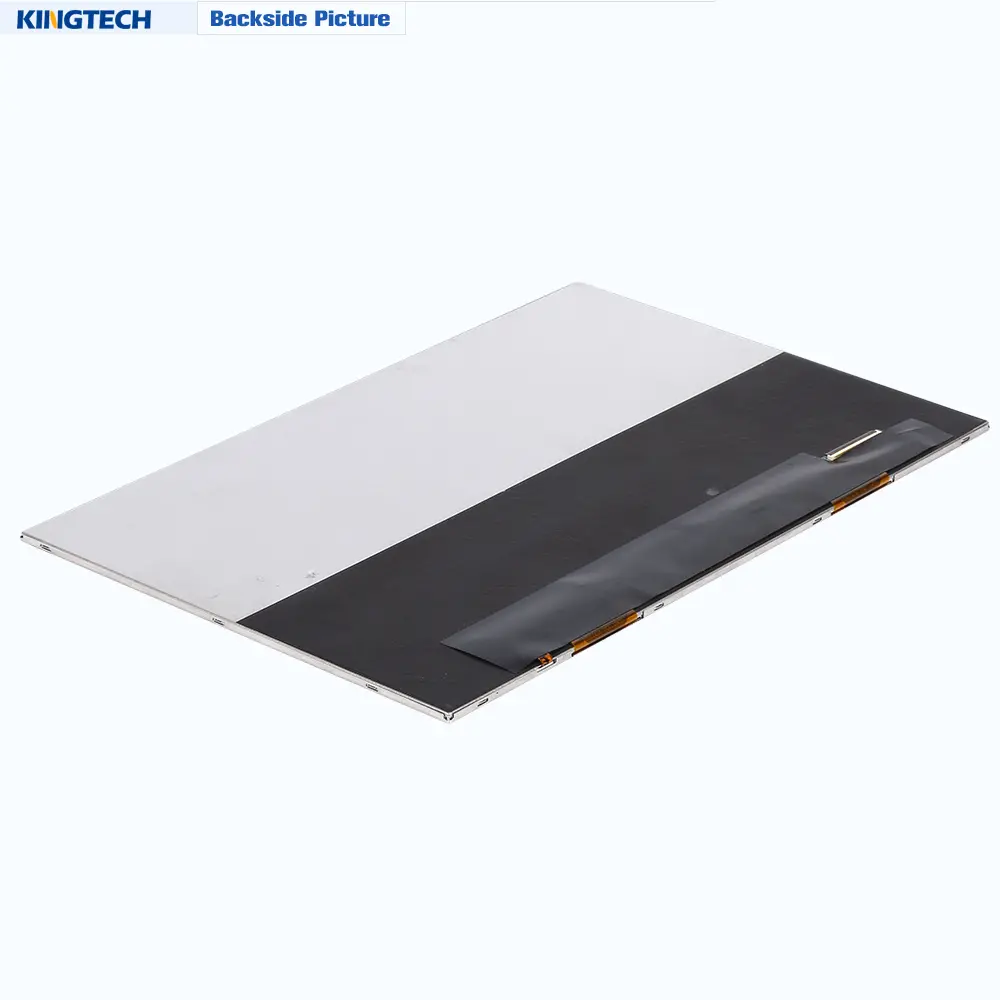

10.1” IPS LCD display back view

PV101033Y0140W back
