Item | 10.4 inch ips 800×600 display |
Model No | PV104000S20A |
Resolution | 800×600 |

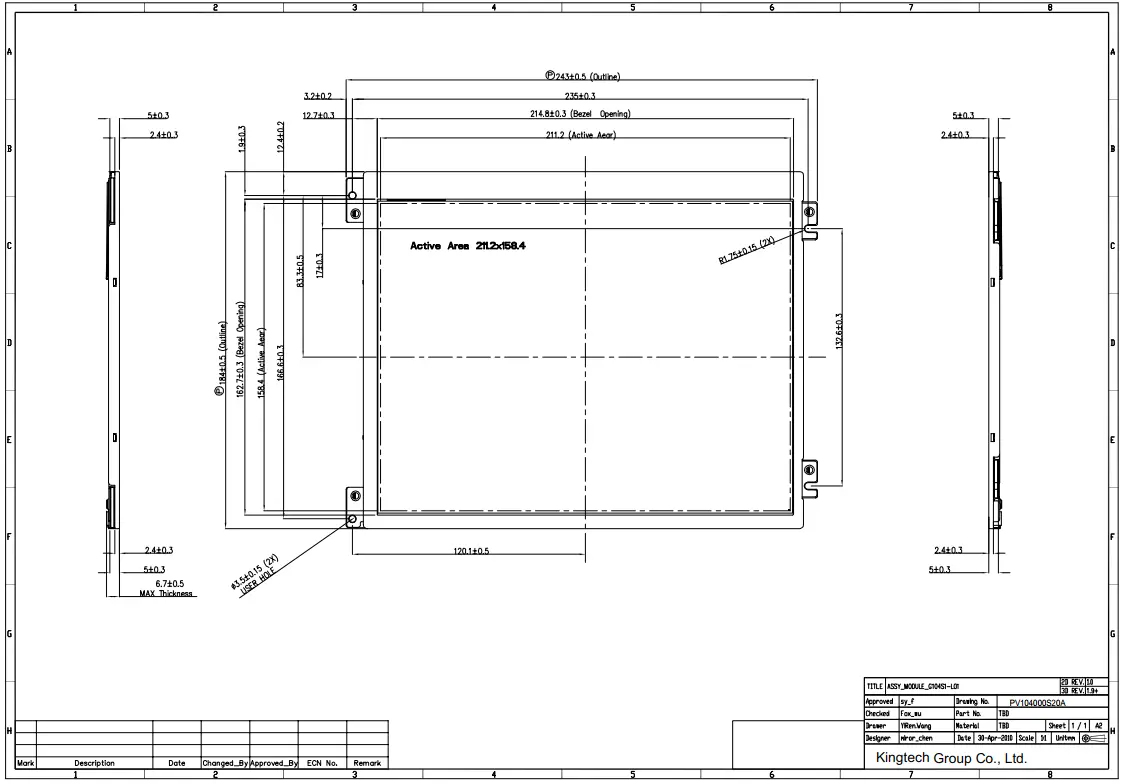

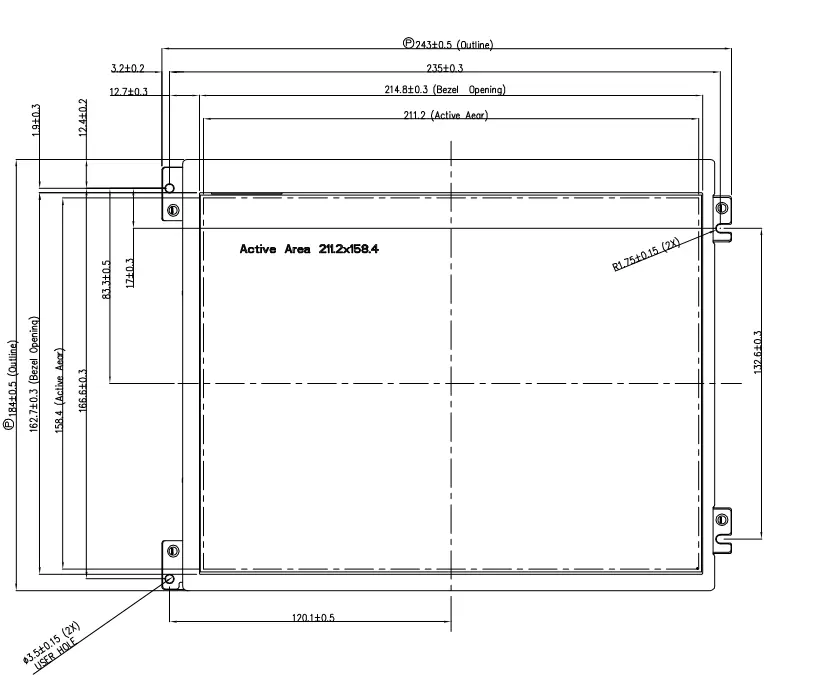

Outline Dimension | 243*184*6.7 |
Active Area(mm) | 211.2*158.4 |
Interface | LVDS |
Viewing Angle | All |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -30℃ to +80℃ |
Storage Temperature | -40℃ to +80℃ |
Brightness | 350nits |
Board | HDMI board |
10.4 inch 800×600 wide temperature LVDS IPS lcd display
PV104000S20A mainly application for Industrial medical equipment.
It with 800×600 resolution , LVDS interface , IPS full viewing angle , 350nits high brightness , -30℃~85℃wide work temperature, it with existing capacitive touch panel and HDMI board to support Raspberry PI .
And it can custom the capacitive resistive touch panel as customer ‘s requirement .
It is wide work temperature, it can be well used for both indoor and outdoor.
10.4 inch 800×600 IPS display screen front view
10.4 inch 800×600 IPS display screen back view
