1024×600 WSVGA hdmi to 50 pin ttl tft lcd display 10.1

Item10.1inch IPS 1024×600 LCD display
Model NoPV101017LZR50Q
Resolution1024×600
Outline Dimension235(W)× 143(H)× 4.5(T)
Active Area(mm)222.72(W)× 125.28(H)
InterfaceTTL
Viewing AngleALL
Driving ICHX8238D
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Response time40ms
Brightness350nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 1024×600 TTL/RGB interface lcd display .
1.PV101017LZR50Q mainly application for industrial device.
2.It with TTL/RGB interface , 1024×600 resolution , all view angle.
3.And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4.It is the A grade product , with good quality for the industrial application

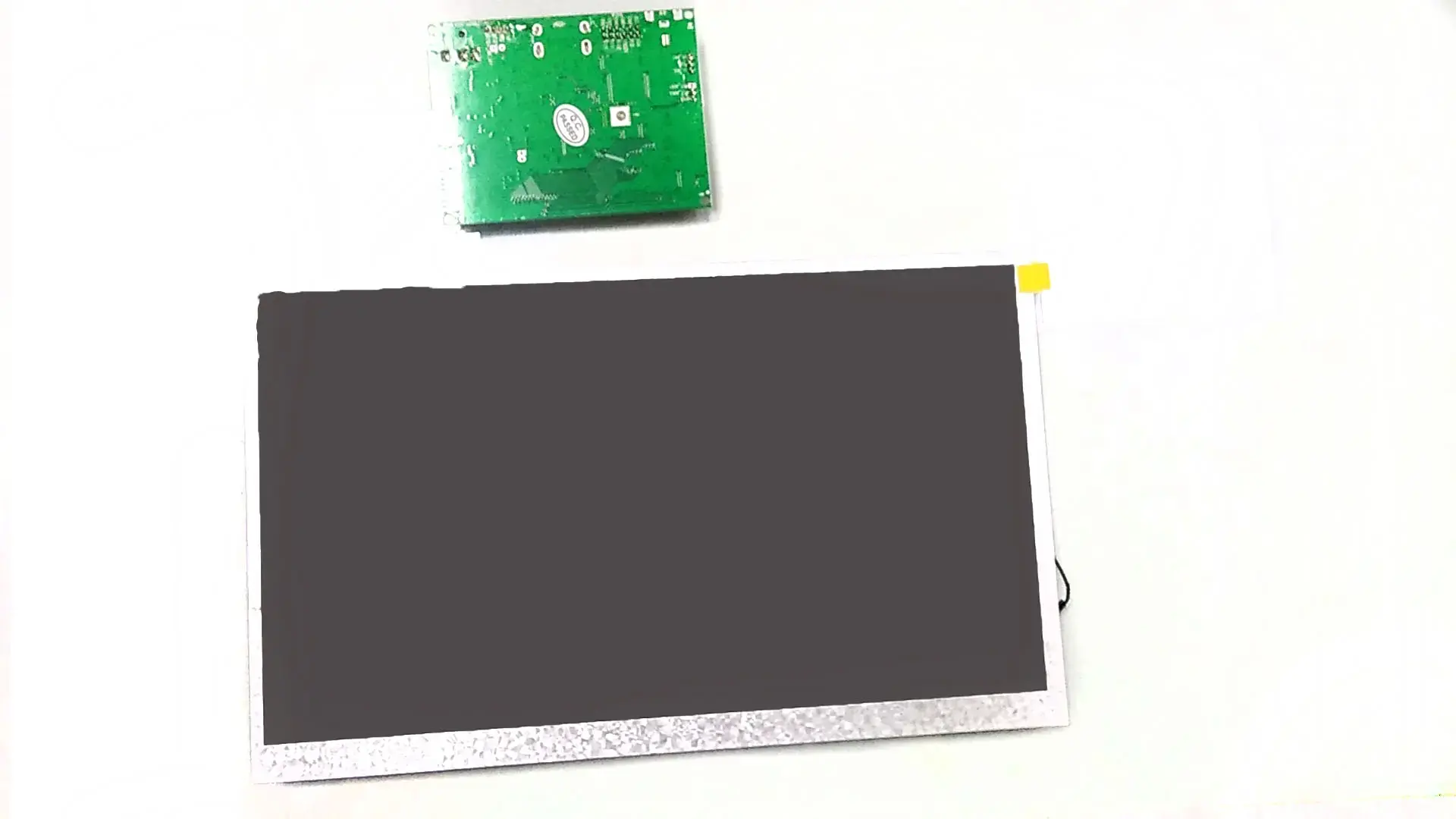

10.1inch IPS 1024×600 LCD display Front View



All view angle 10.1 inch 1024x600 resolution lcd display

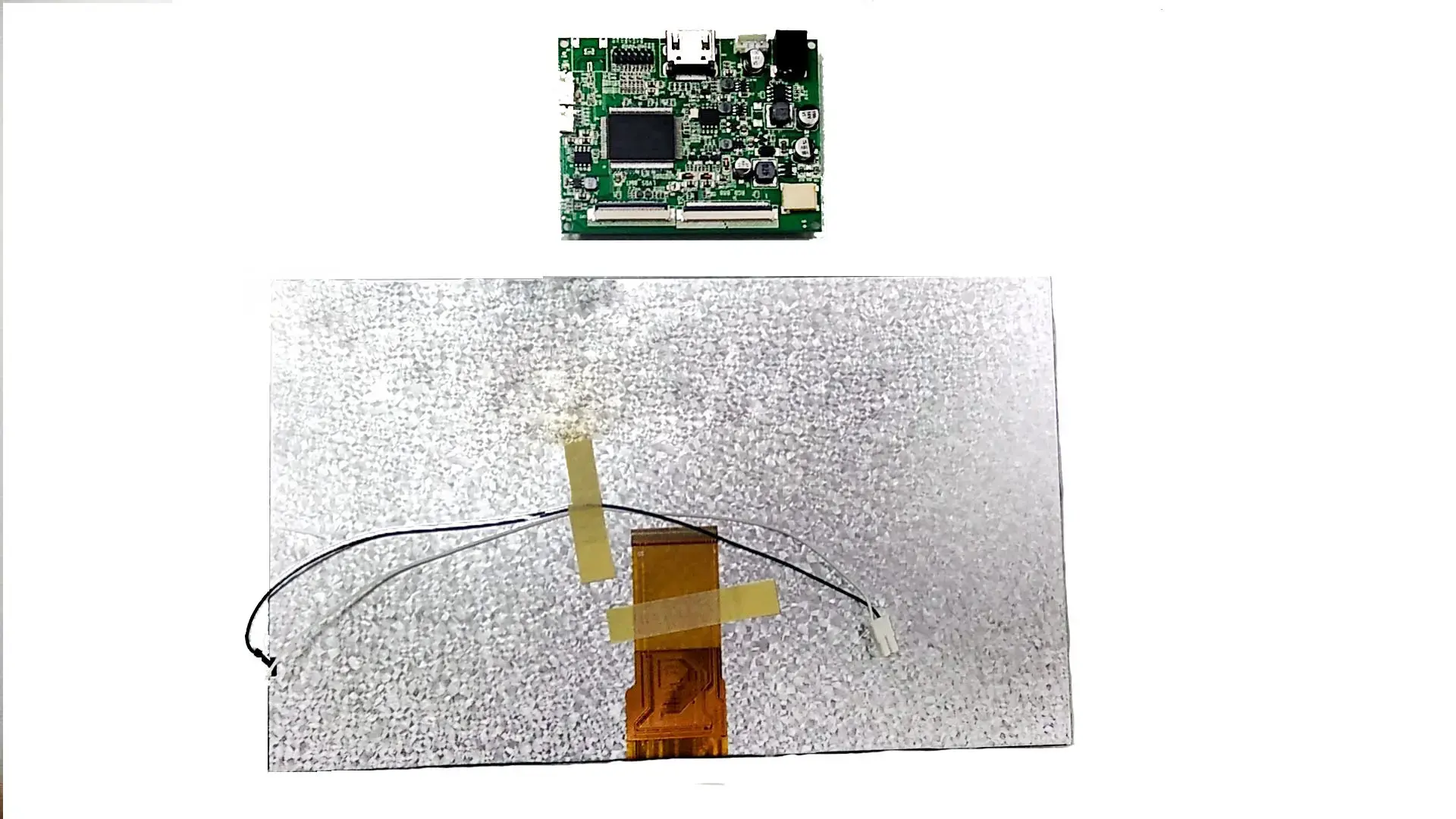

10.1inch IPS 1024×600 LCD display Back View

All view angle 10.1 inch 1024x600 resolution lcd display

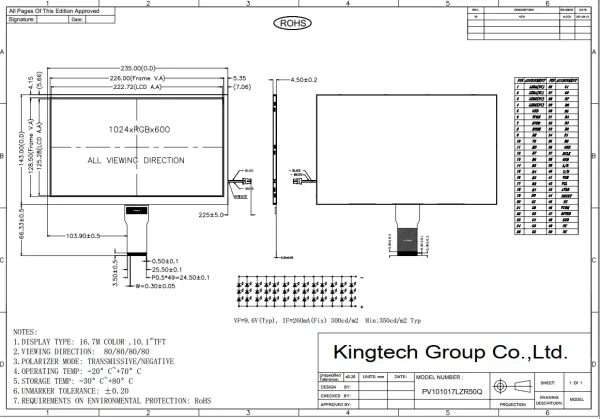

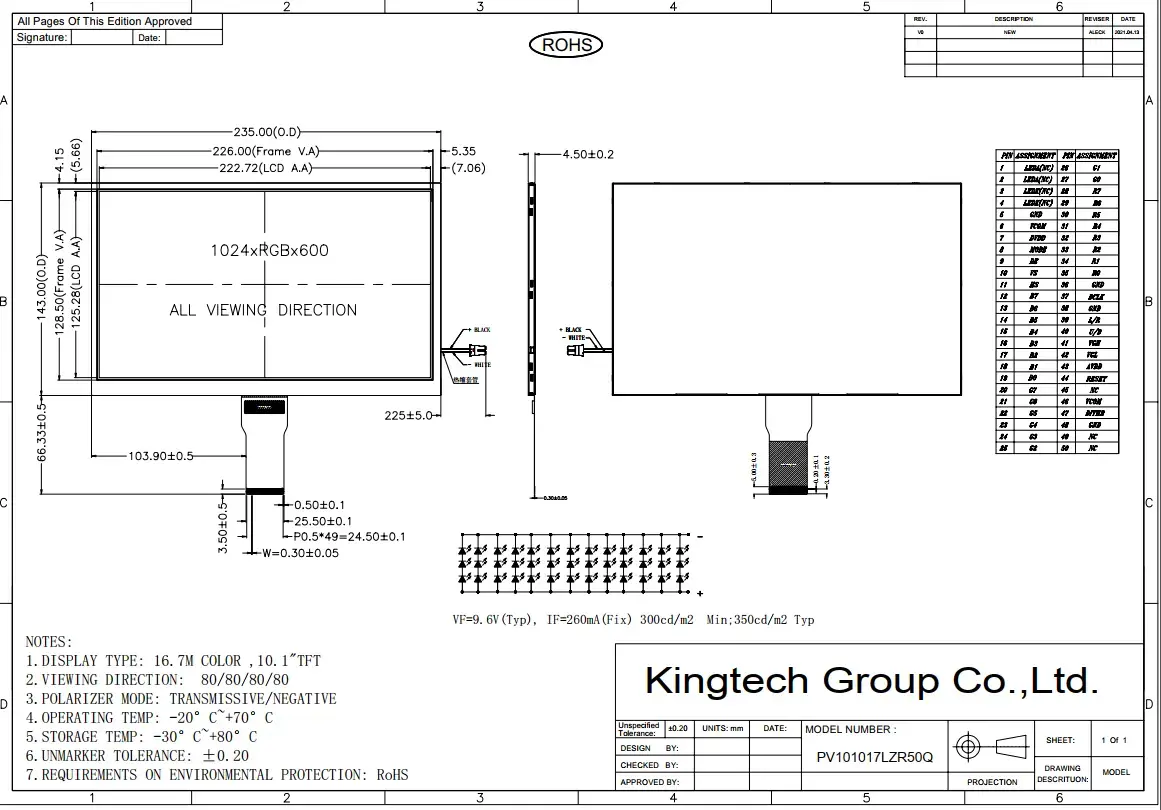

10.1inch RGB interface 1024×600 LCD display Machine Drawing

All view angle 10.1 inch 1024x600 resolution lcd display
