1000 nits outdoor 3.5 inch tft lcd screen display module

Item 3.5 inch IPS LCD display with CTP
Model No PV035HV-CIC50011
Resolution 320×480
Outline Dimension 54.66*84.18*3.65
Active Area(mm) 48.96*73.44
Interface MCU/SPI+RGB interface
Viewing Angle All
Driver IC ILI9488
Brightness 1000nits
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Display Mode Transmissive / Normally Black

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×480 resolution IPS SPI+RGB interface 1000nits sunlight readable LCD module

1. PV035HV-CIC50011 mainly application  handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , IPS/ Wide/ Free/ All view angle, 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB, ILI 9488 driver IC , 1000 nits high brightness.
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

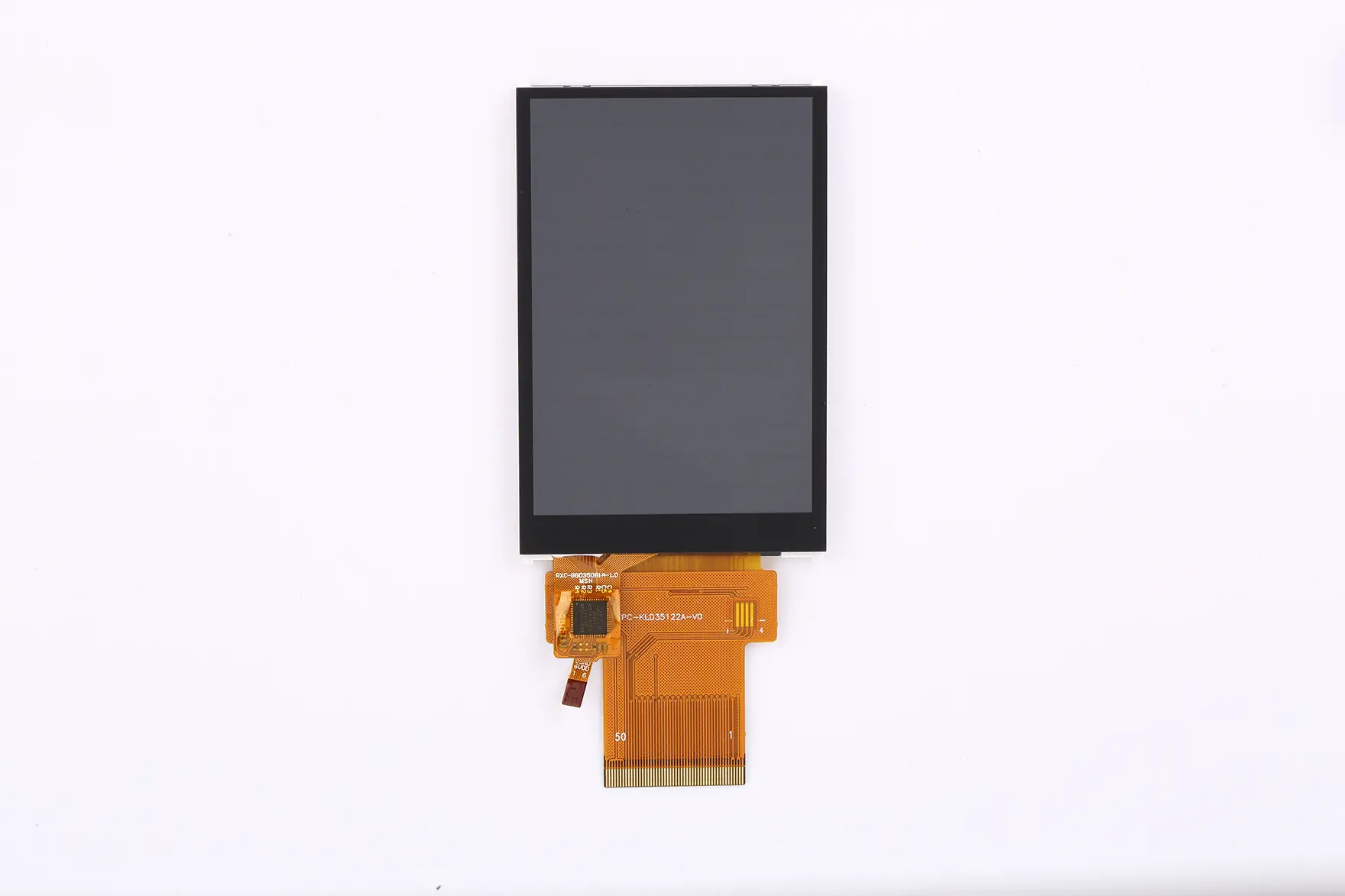

3.5” 320×480 IPS touch screen front view

RGB interface 1000nits TFT LCD display module front

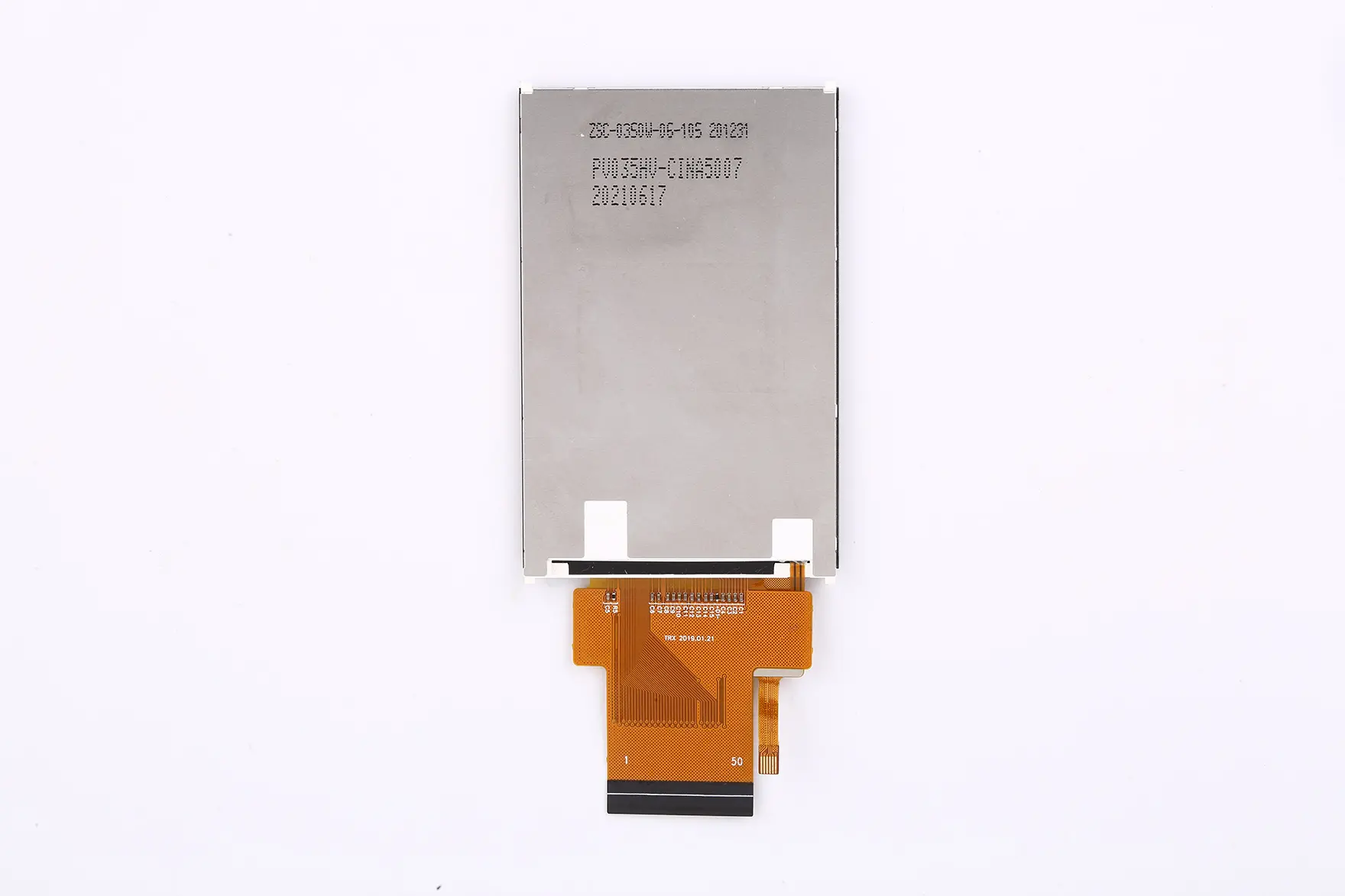

3.5” 320×480 IPS display with capacitie back view

RGB interface 1000nits TFT LCD display module back
