11.6 inch 1920×1080 eDP interface  IPS TFT LCD display

Item11.6 inch 1920×1080 TFT LCD display
Model NoPV116000H0330A
Resolution1280 x 800
Outline Dimension263.4*157.22*2.55
Active Area(mm)256.32*144.18
InterfaceeDP
Viewing AngleAll
Display ModeTransmissive / Normally Black
Operating Temperature0~50℃
Storage Temperature-10℃ to +60℃
Brightness220nits

For product pricing,customization,or other inquiries:

Share to:

11.6 inch 1920×1080 eDP interface  IPS TFT LCD display

1. PV116000H0330A mainly application for Industrial medical equipment.
2. It with 1920×1080 high resolution , eDP interface , IPS full viewing angle , 220nits high brightness .
3. And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

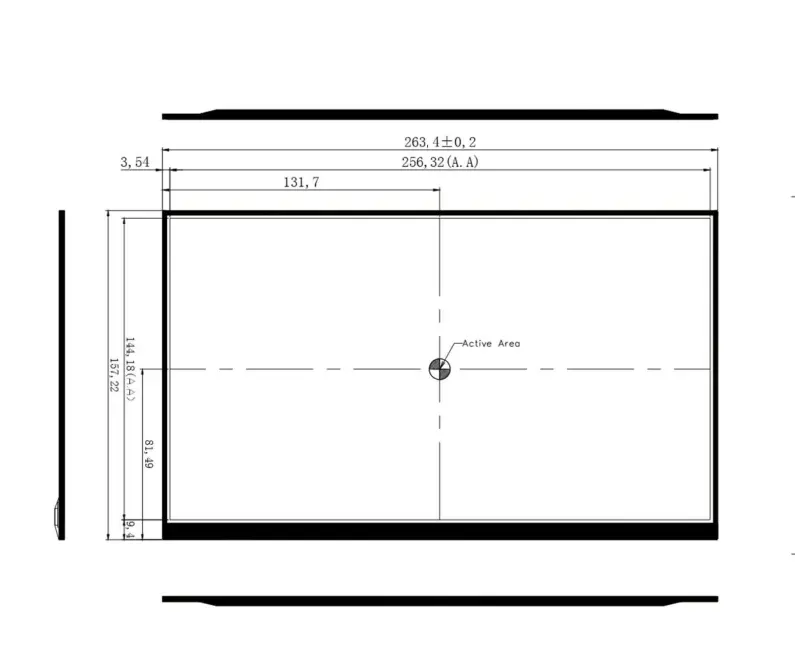

11.6 inch IPS tft display front view

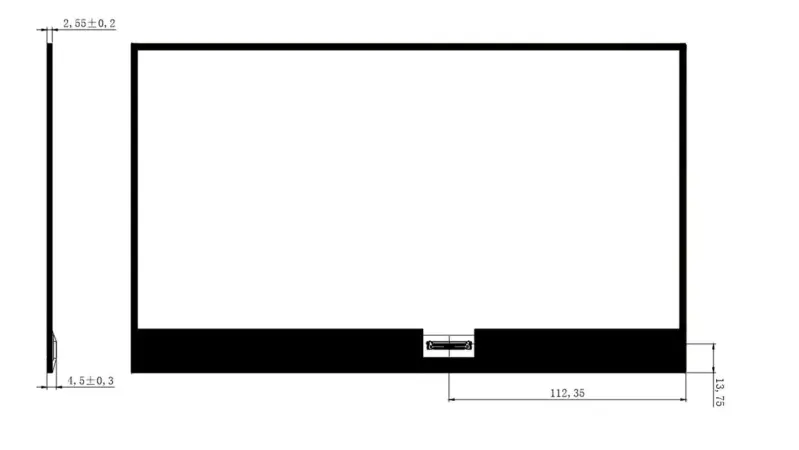

11.6 inch IPS tft display back view
