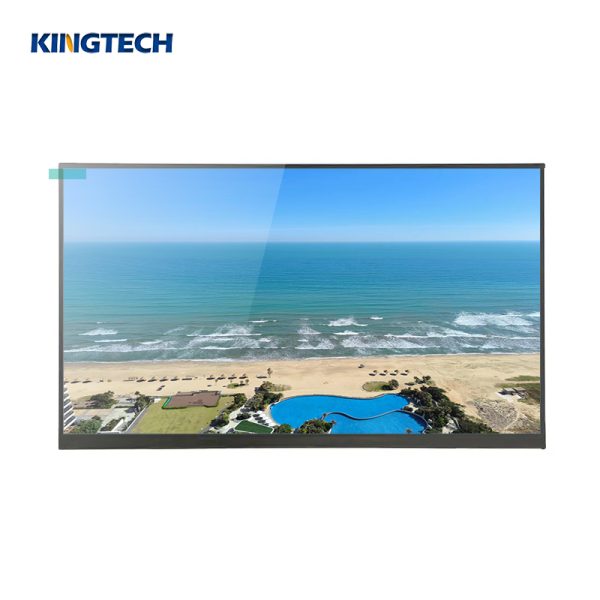

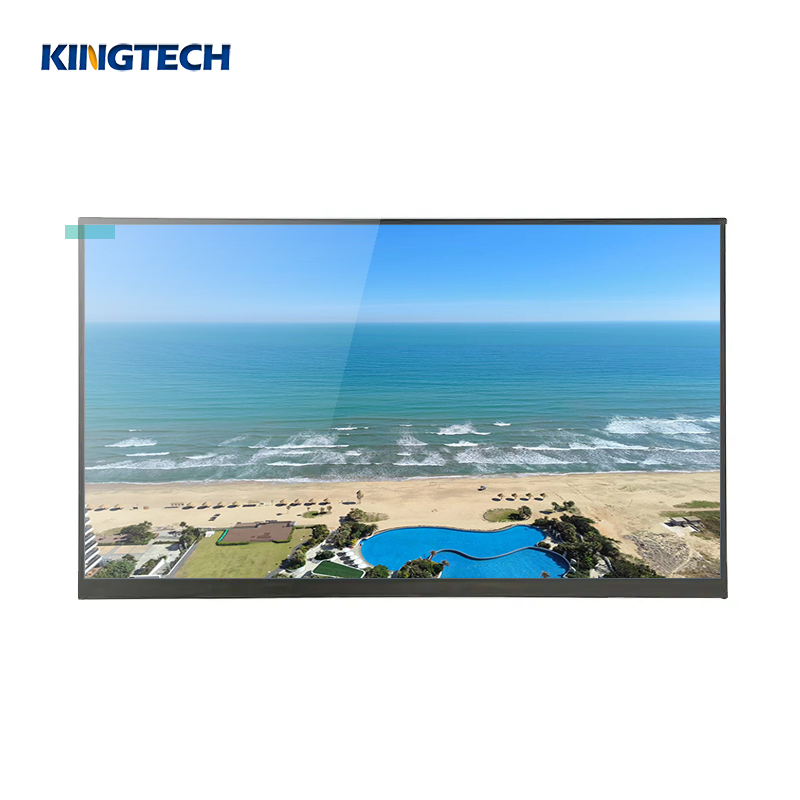

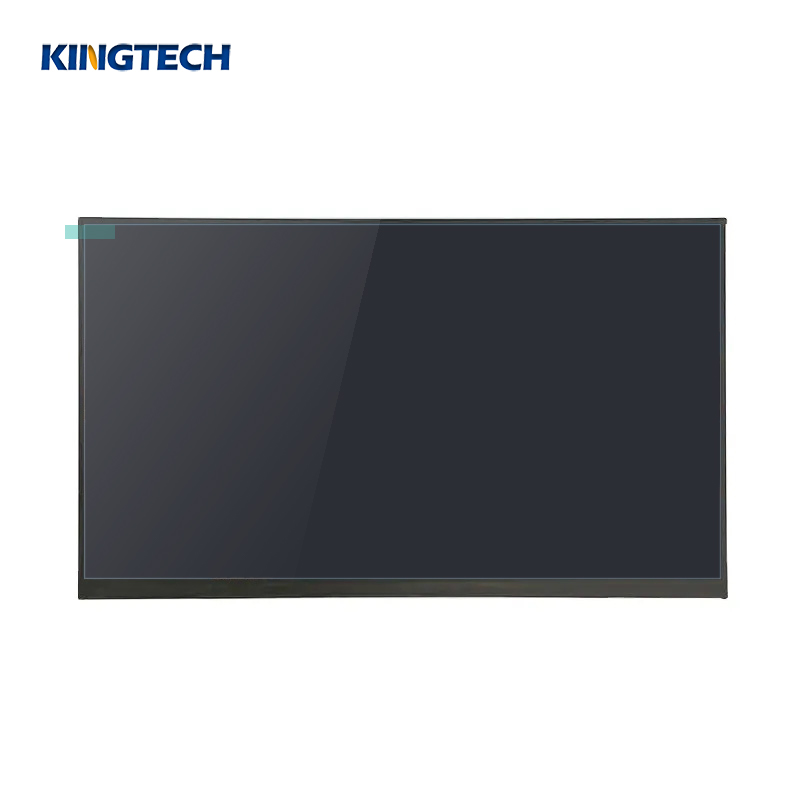

Item | 11.6inch IPS 1920*1080TFT display |
Model No. | PV116004S0730E |
Resolution | 1920*1080 |
Outline Dimension (mm) | 267.72*164.42*6.1 |
Active Area (mm) | 256.320*144.180 |
Viewing Angle | All |
Brightness | 1000nits |
Interface | eDP |
Backlight | 4*10LED |
Driving IC | / |
PIN No. | 30 |
Operating Temperature | -20~70C |
Storage Temperature | -30~80C |
Touch screen | Can custom resistive and capacitive touch screen |
Application | Medical, hand-held device, industrial or outdoor, advertisement and thermostat, automotive |
