500 nits IPS 1920X1080 display 13.3

Item  13.3 inch 1920×1080 IPS TFT display
Model No PV013309H0330K
Resolution  1920×1080
Outline Dimension  300.26*177.39*2.45
Active Area(mm) 293.76*165.24
Interface  2 lane eDP interface
Viewing Angle All
LED life 16.7M color depth, color gamut 72%
Display Color Transmissive / Normally Black
Operating Temperature  0℃~50℃
Storage Temperature  -10℃~60℃
Brightness 280nits
Touch screen Can custom resistive and capacitive touch

For product pricing,customization,or other inquiries:

Share to:

13.3 inch 1920×1080 eDP interface IPS TFT LCD display

1. PV013309H0330K mainly application for  Industrial ,medical equipment
2. It with IPS/ All/ Wide viewing angle, 1920×1080 resolution/Full HD , 280 nit brightness ,2 lane eDP interface, 16.7M color depth, color gamut 72%.
3. It also can support resisitve / capacitive touch screen or custom touch panel as customer ‘s requirement .
I4. t is A grade product , the good quality well use for Industrial ,medical application. And it have EMI protection.

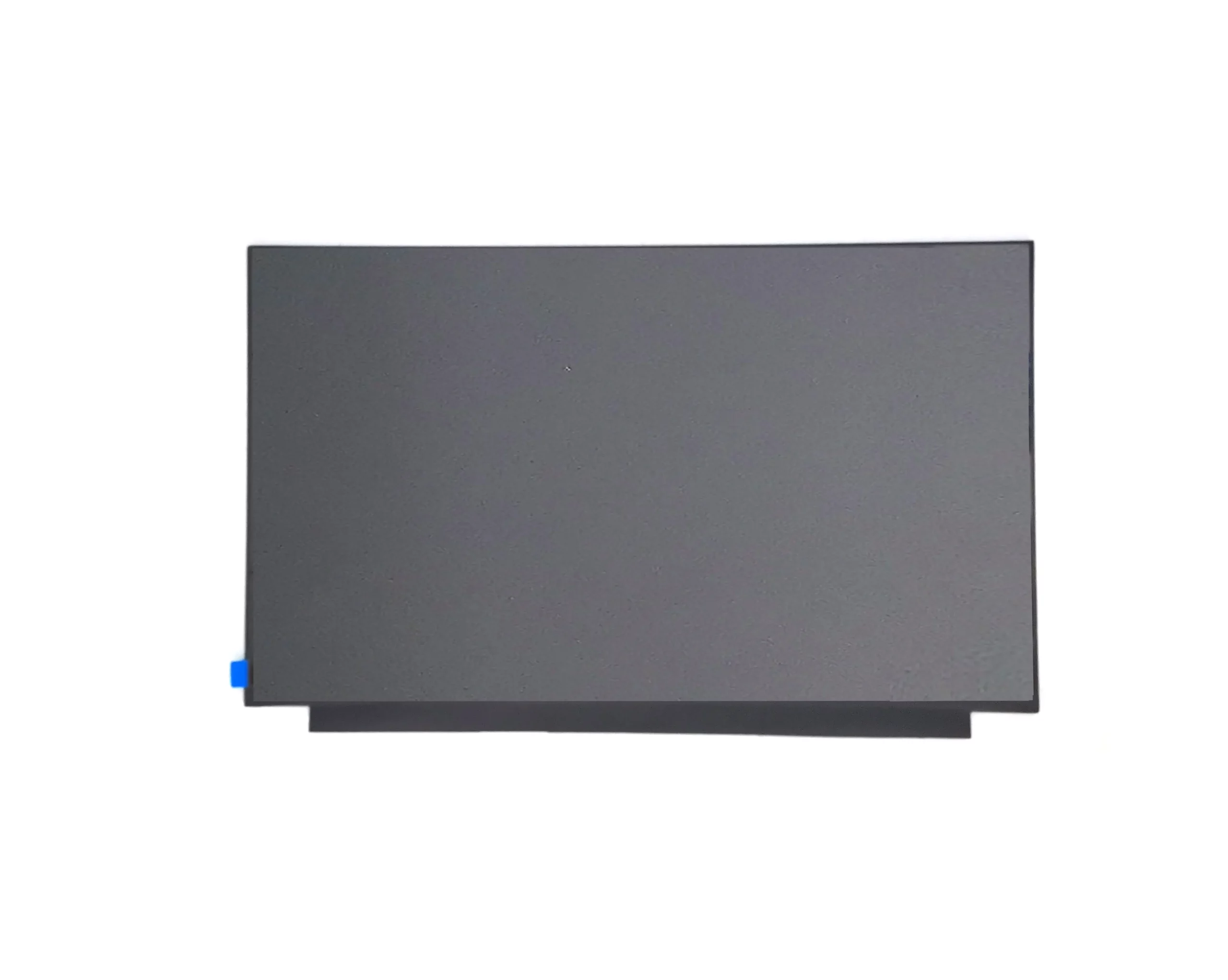

13.3 inch eDP interface LCD display front view

display 13.3

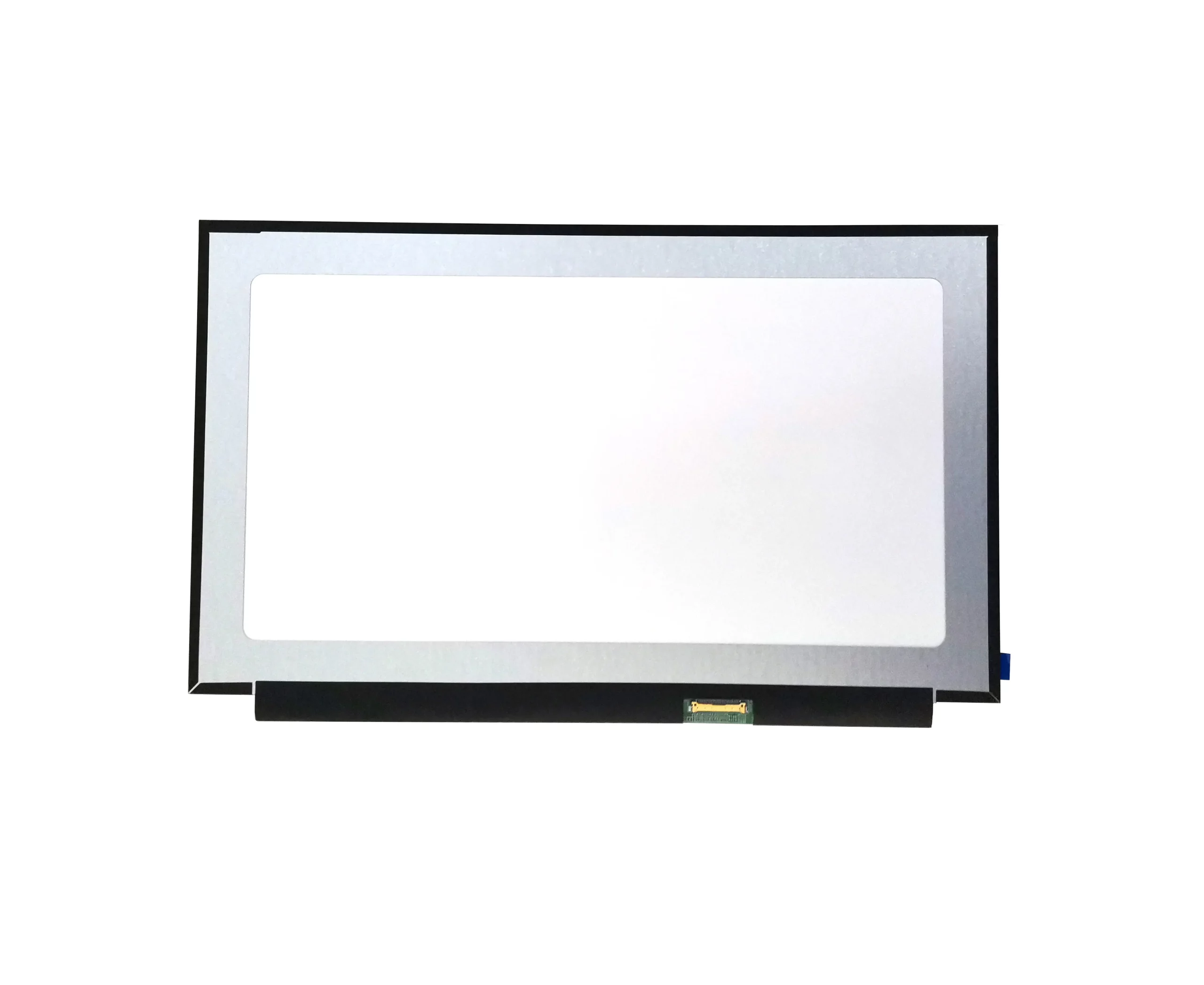

13.3” 1920×1080 LCD screen back view

display 13.3
