920X1080 IPS 13.3 touch screen display

Item13.3inch 1920*1080 LCD display
Model NoPV013305KSG30F
Resolution1920*1080
Outline Dimension307.6*183.05*5.5 MM
Active Area(mm)293.76*165.24
InterfaceeDP
Viewing AngleAll
Display ModeTFT/TRANSMISSIVE
Operating Temperature‘0℃~50℃
Storage Temperature‘-20℃~60℃
Brightness500nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

13.3 inch 1920×1080 resolution eDP interface IPS display
1.PV013305KSG30F mainly application for Industrial ,medical equipment .
2.It with 1820×1080 resolution , eDP interface , all view angle , 500nits brightness .
3.And it can custom capacitive and  resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ,medical application .

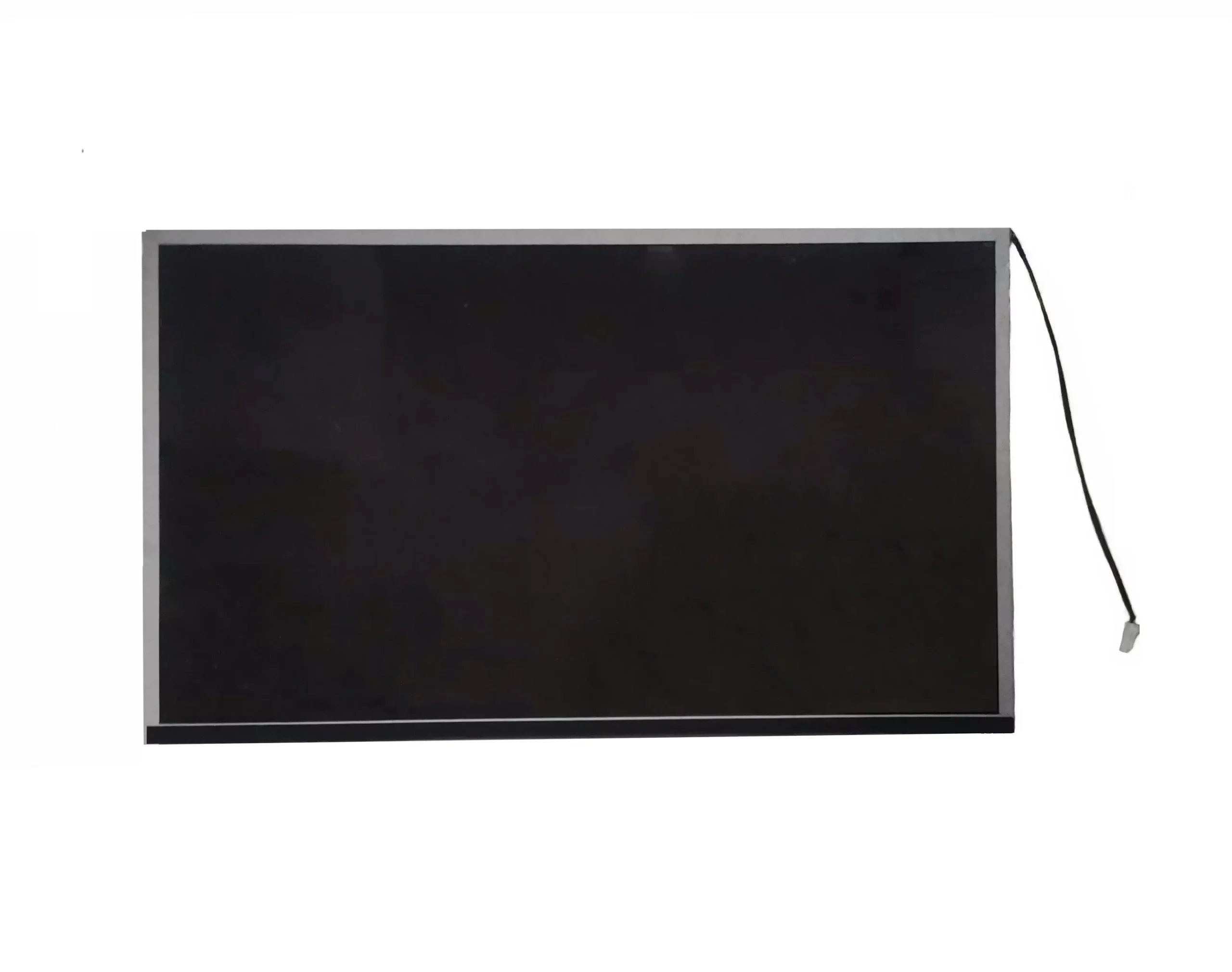

13.3 inch lcd display Front View



13.3 inch 40 pin lcd display

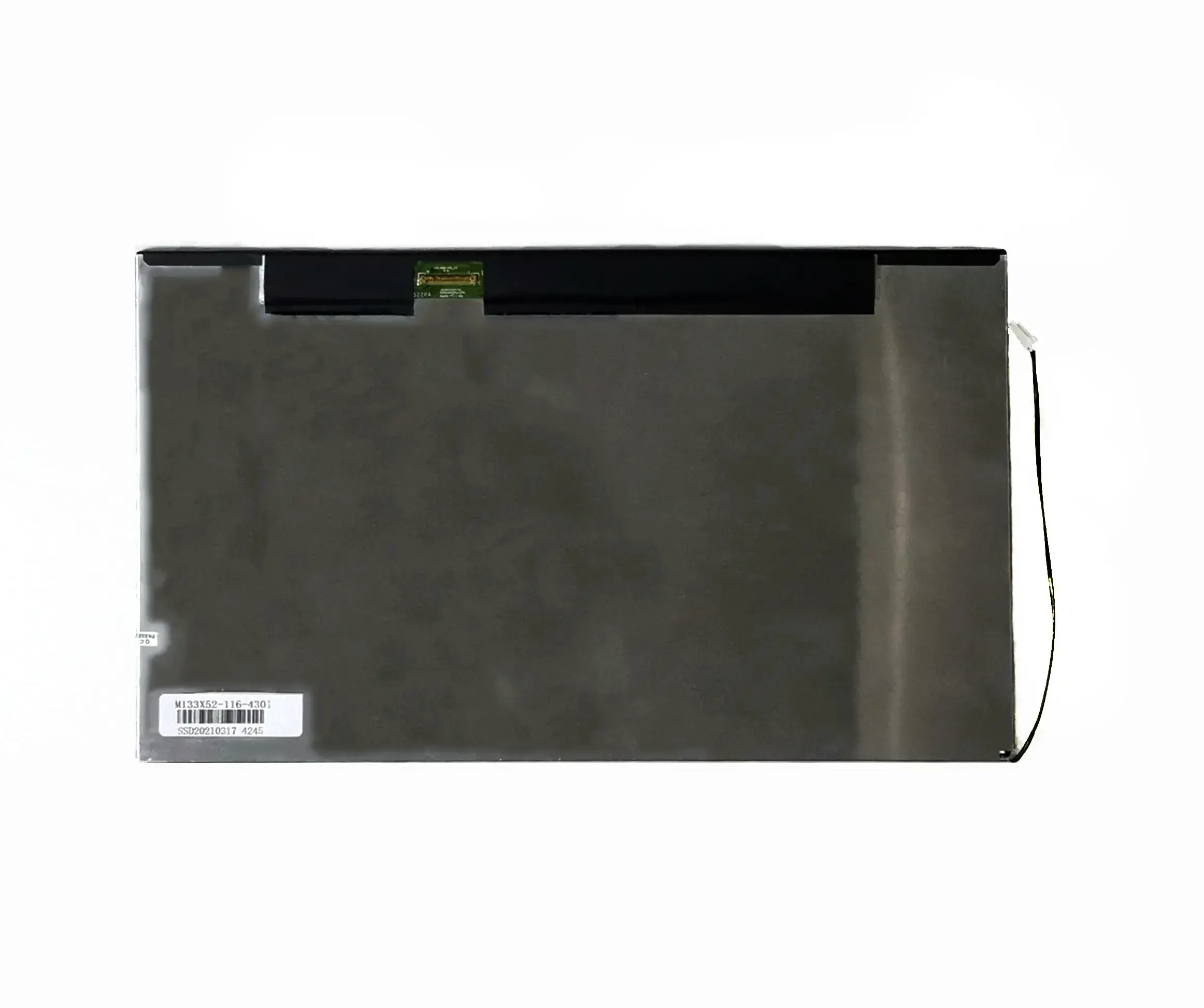

13.3 inch lcd display Back view

13.3 inch 40 pin lcd display
