15 inch 1024×768 resolution LVDS interface lcd display

Item15 inch TN lcd display
Model NoPV15001AR20B
Resolution1024×768
Outline Dimension326.5(H)×253.5(V)×11.8(D)
Active Area(mm)304.128(W)x228.096 (V)
InterfaceLVDS 1 port
Display ModeTN with Normally White
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

15 inch 1024×768 resolution LVDS interface lcd display
1.PV15001AR20B mainly application for  Industrial  device .
2.It with 1024×768 resolution , LVDS interface , 20PINS .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

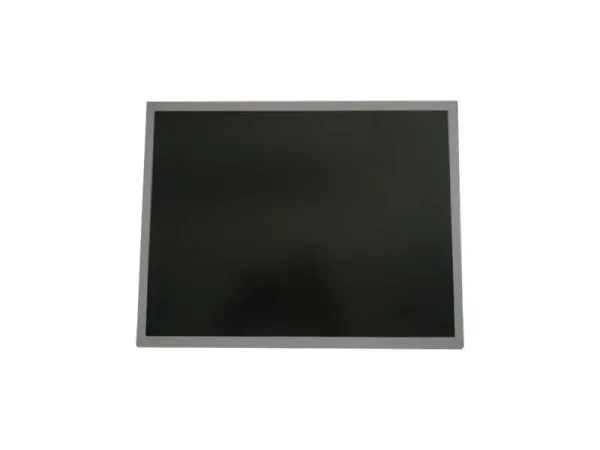

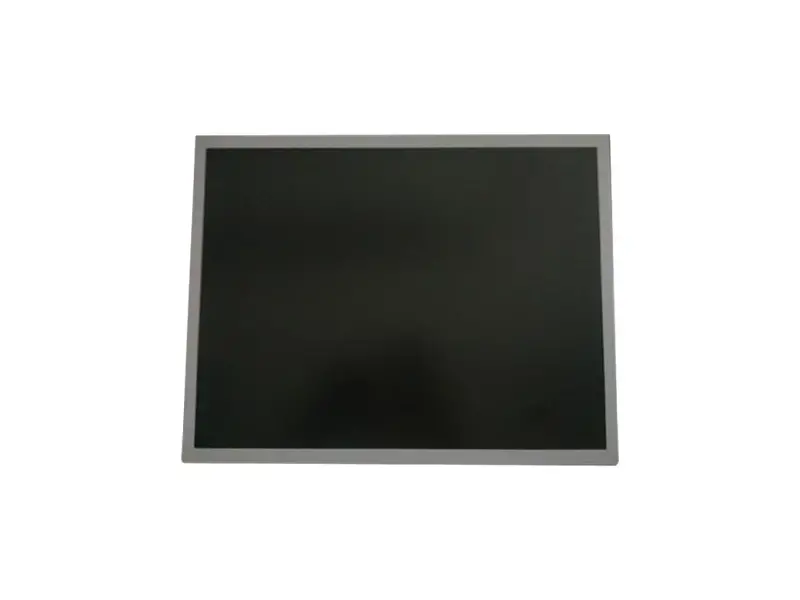

1024×768 resolution 15 inch TFT LCD display Front view



PV15001AR20B

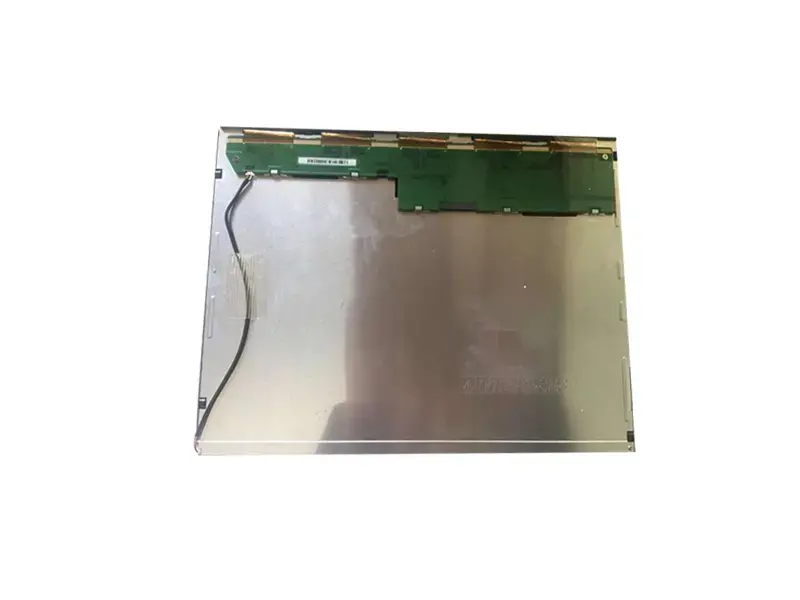

1024×768 resolution 15 inch TFT LCD display Back View

PV15001AR20B
