Item | 2.4 inch 240×320 QVGA LCD display |
Model No | DW0240A2BZ |
Resolution | 240×320 |
Outline Dimension | 60.26*42.72*2.5 |
Active Area(mm) | 48.96*36.72 |
Brightness | 180 NITS |
Viewing Angle | 6 O’clock |
Interface | 8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4 Wire SPI. |
Driving IC | ILI9341 |
PIN | 20 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | Can custom capacitive/resistive |
2.4 inch 240×320 QVGA RGB/SPI/MCU interface portrait LCD display
1. DW0240A2BZ mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X320 resolution QVGA , MPU/RGB/SPI interface , 6 O’clock viewing angle ,ILI9341 driver IC, support 200 nitsand 1000nits brightness .
3. It also can custom touch panel as customer ‘s requirement .
4. It is high brightness can be sunlight readable , it can be well used for both indoor and outdoo

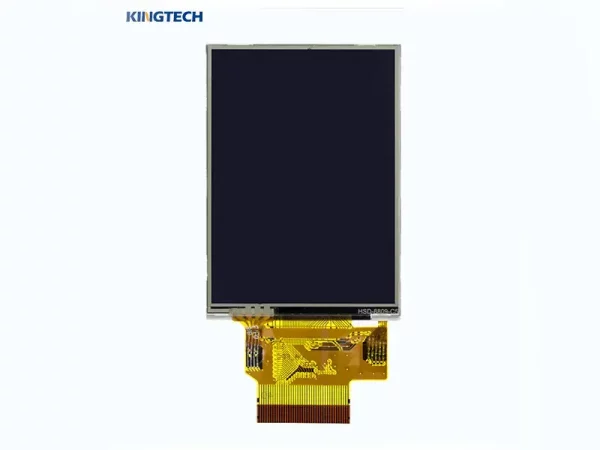

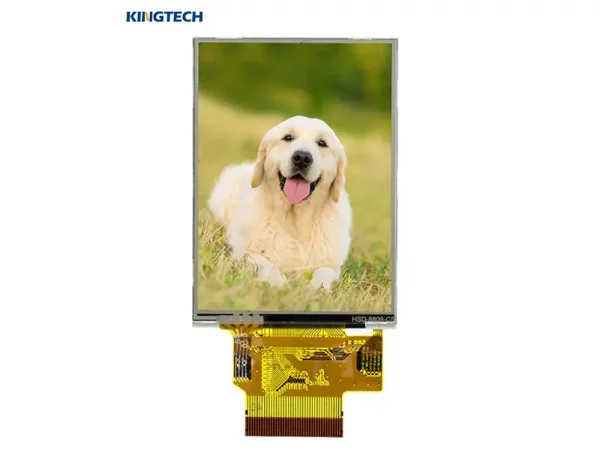

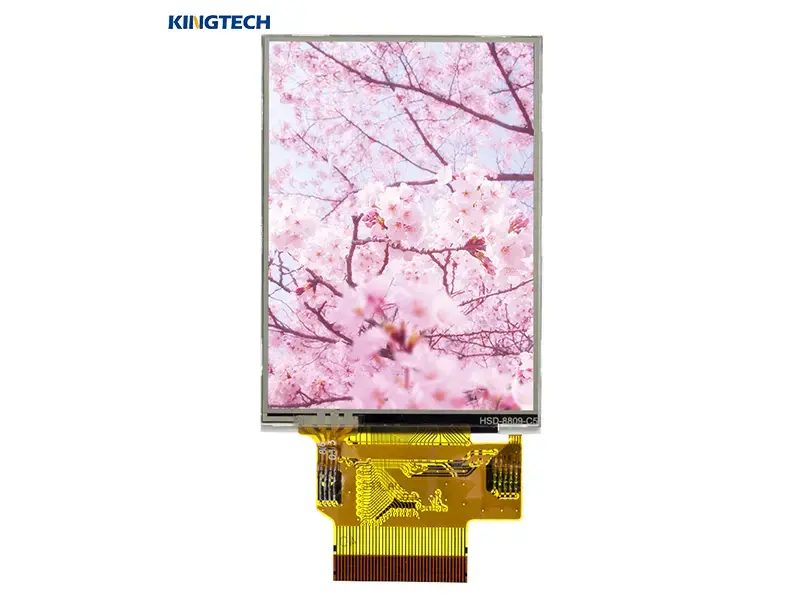

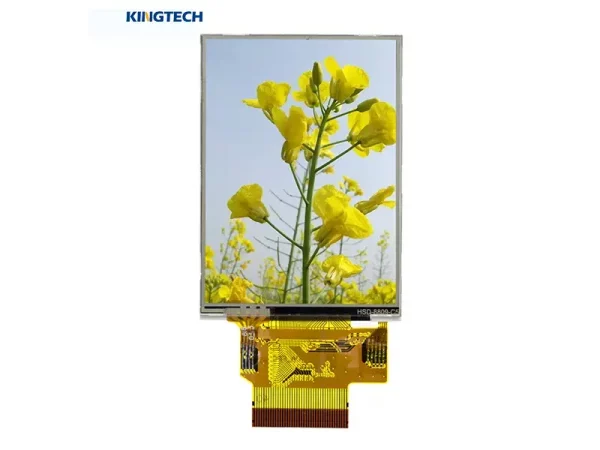

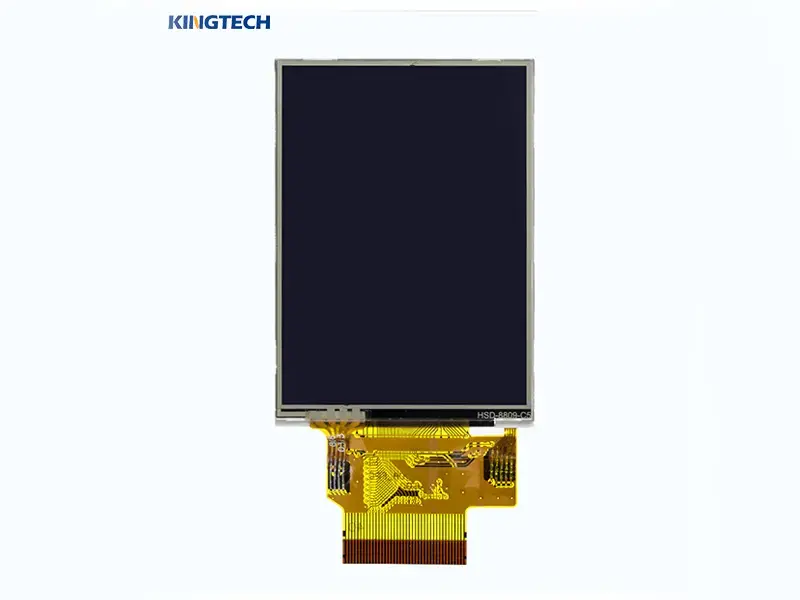

2.4 inch RGB/SPI/MCU interface LCD display front view

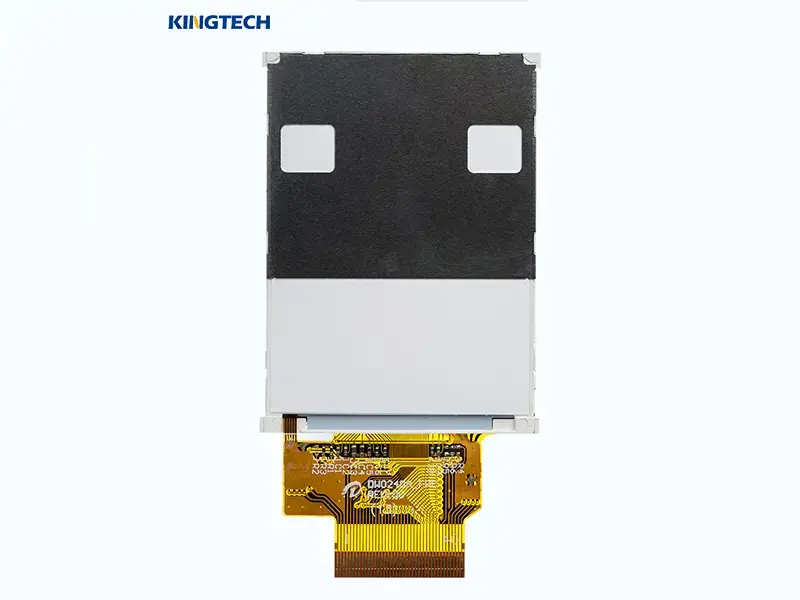

2.4 inch RGB/SPI/MCU interface LCD display back view

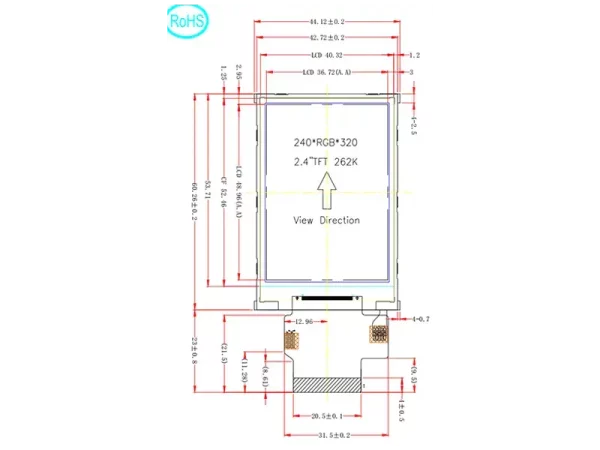

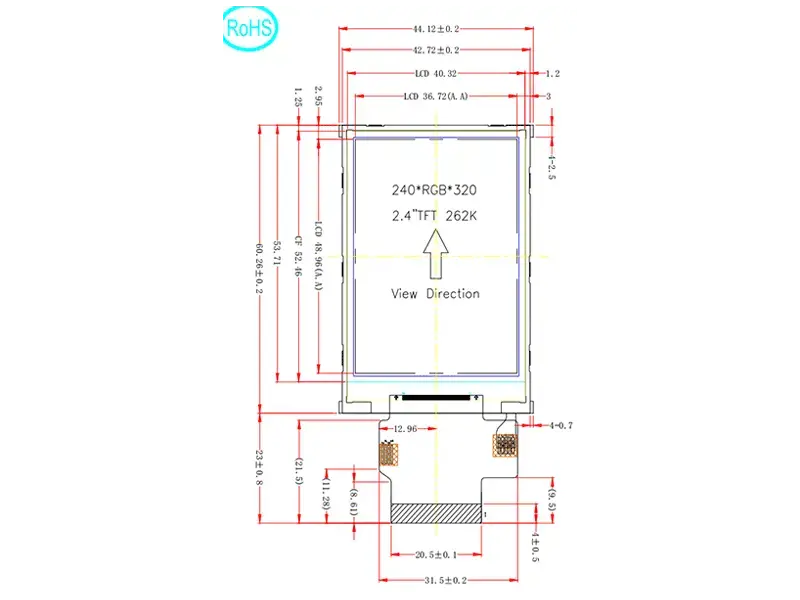

2.4 inch RGB/SPI/MCU interface LCD display Machine Drawing
