180 nits 240×320 2.8 inch touch screen

Item2.8 inch 240×320 IPS touch screen
Model NoPV02808LZR50H-R
Resolution240×320
Outline Dimension50.0*69.2*2.5
Active Area(mm)57.6*43.2
Brightness250nits
Viewing AngleAll
InterfaceSPI / RGB / MCU
Driving ICST7789V
PIN50
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touchsupport capacitive touch and resistive touch

For product pricing,customization,or other inquiries:

Share to:

2.8 inch 240×320 IPS TFT resistive touch screen

1. PV02808LZR50H-R mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ST7789V Driver IC,  250nits brightness, IPS/All/Full/Free viewing angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

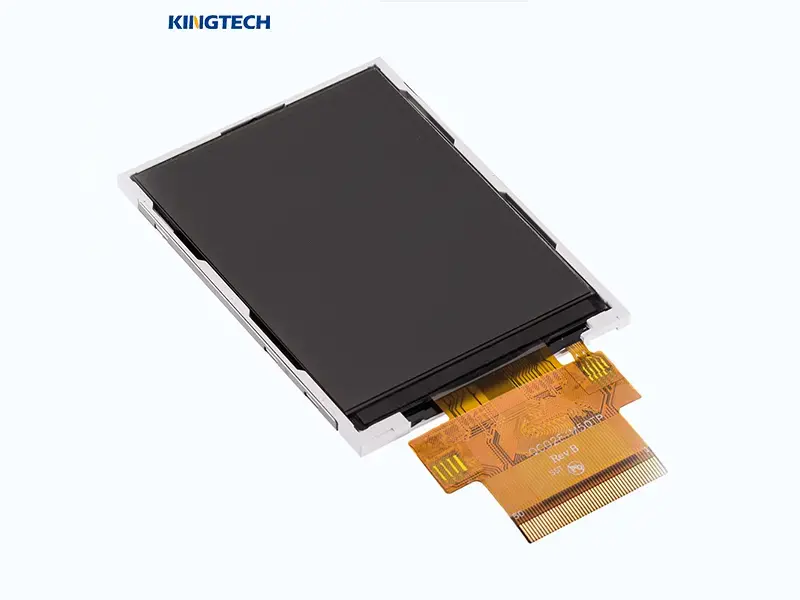

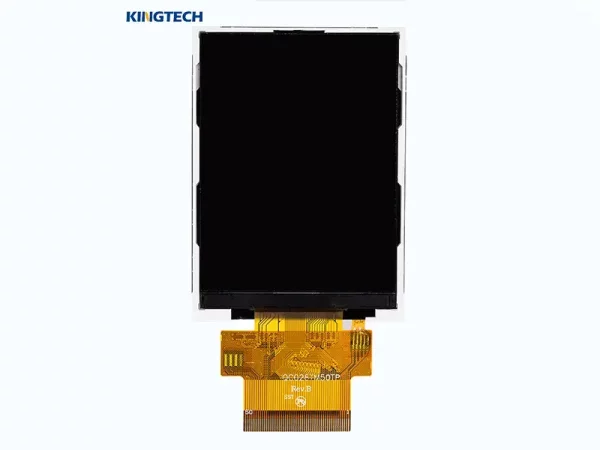

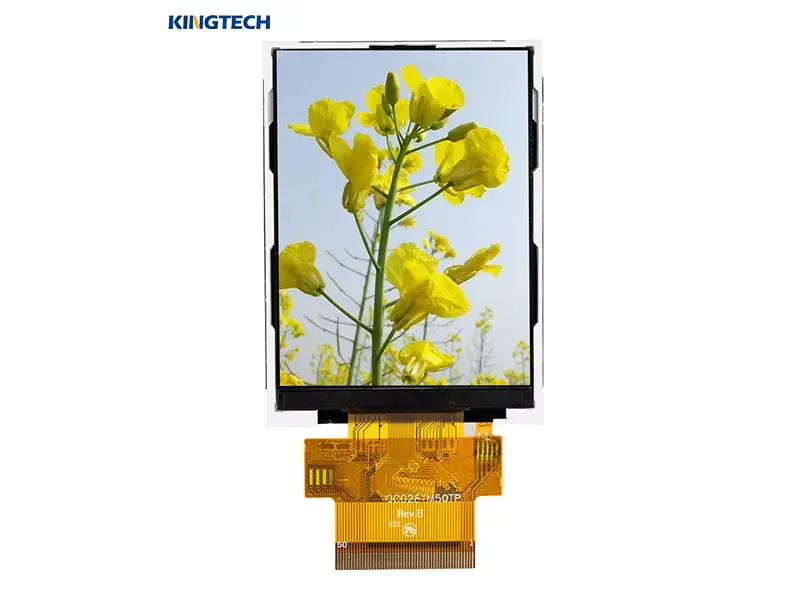

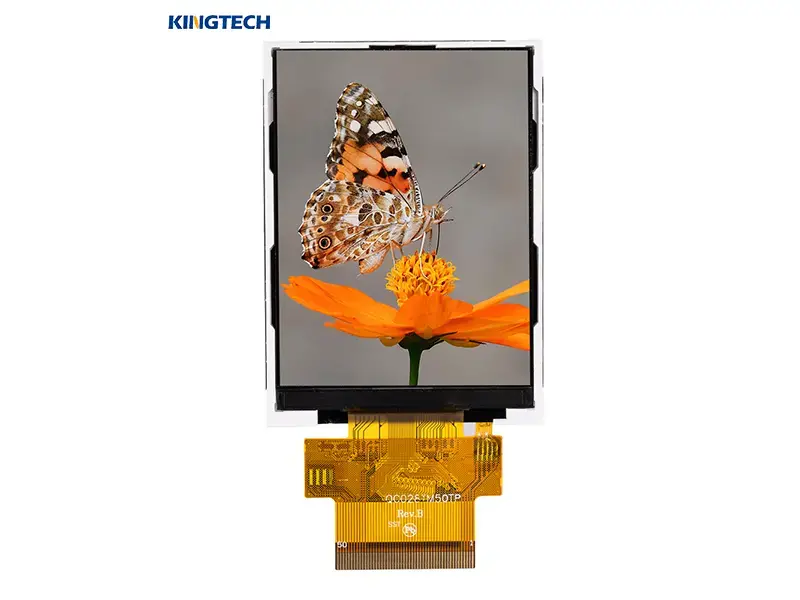

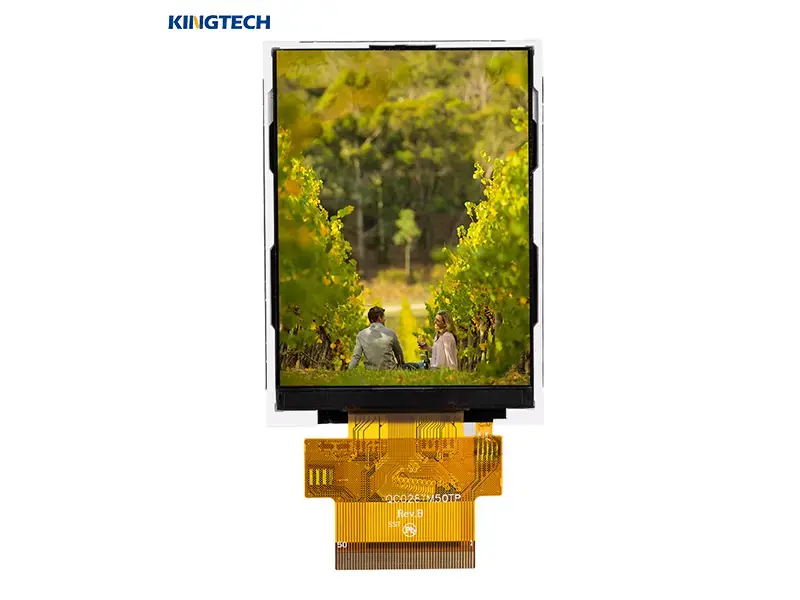

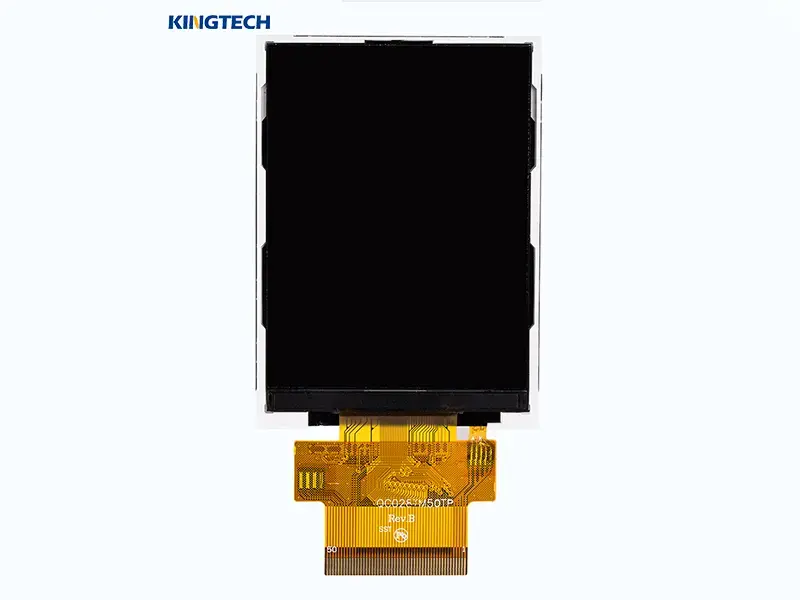

2.8 inch 240×320 IPS TFT LCD display front view

2.8 capacitive touch screen2.8 capacitive touch screen

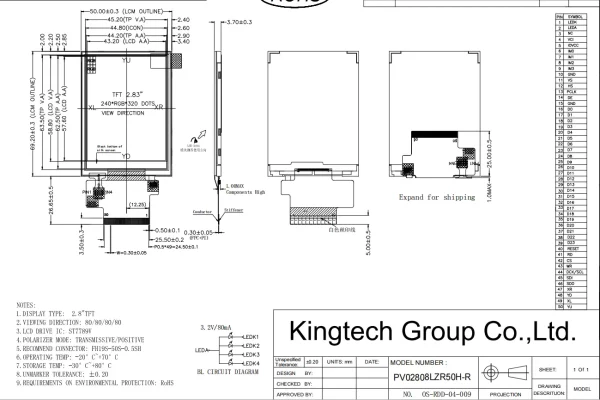

2.8 inch 240×320 IPS TFT LCD display Machine Drawing

New Tab content 3

2.8 inch 240x320 IPS TFT LCD display
