ST7789VI 40 pin 240 x 320 pixels 2 4 lcm

Item2.4 inch 240×320 high brightness LCD display
Model NoPV024002YP40C
Resolution240×320

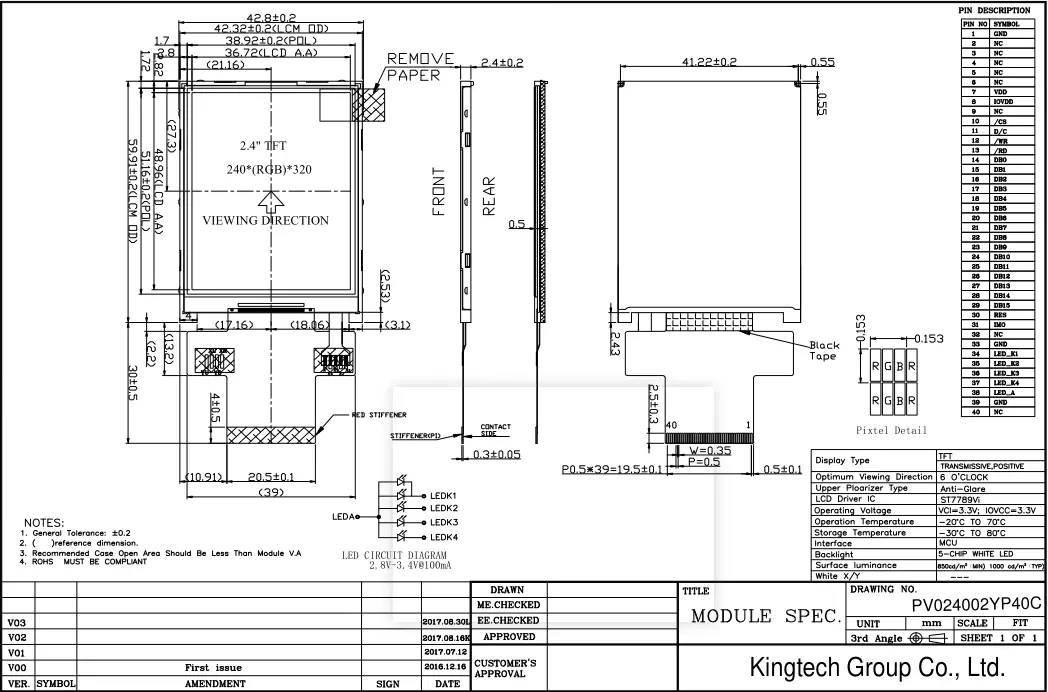

Outline Dimension59.91*42.80*2.40
Active Area(mm)48.96*36.72
InterfaceMCU
Viewing Angle6 O’clock
Brightness1000nits
Driving ICST7789VI
Operating Temperature-20℃~70℃
Storage Temperature-30℃ to +80℃
Touch screenCan custom resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

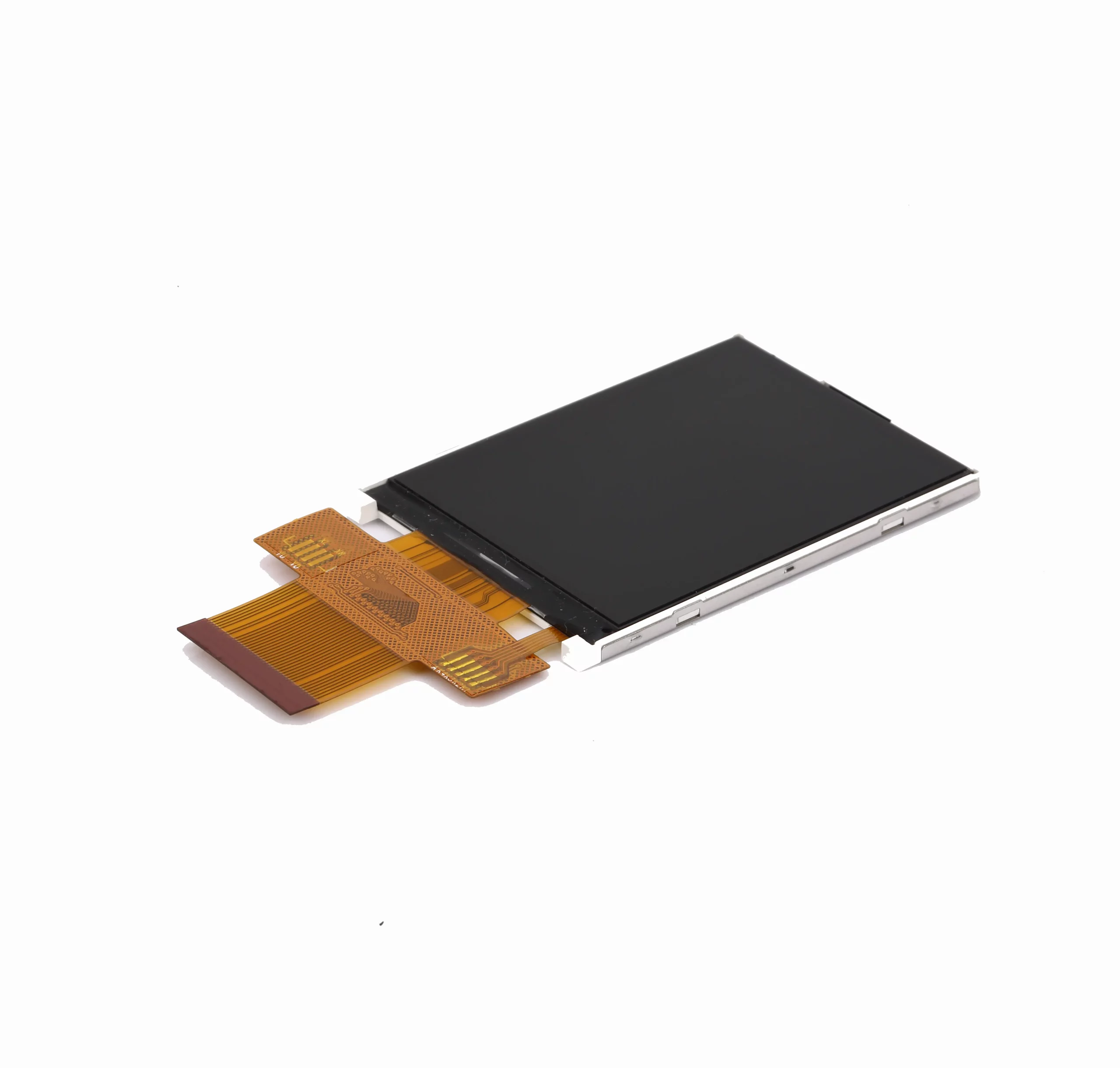

2.4 inch 240×320 QVGA IPS  MPU interface portrait LCD display

1. PV024002YP40C mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X320 resolution QVGA , MCU interface , 6 O’clock/TN viewing angle , ST7789VI driver IC, 1000nits high brightness .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is high brightness can be sunlight readable , it can be well used for both indoor and outdoor .

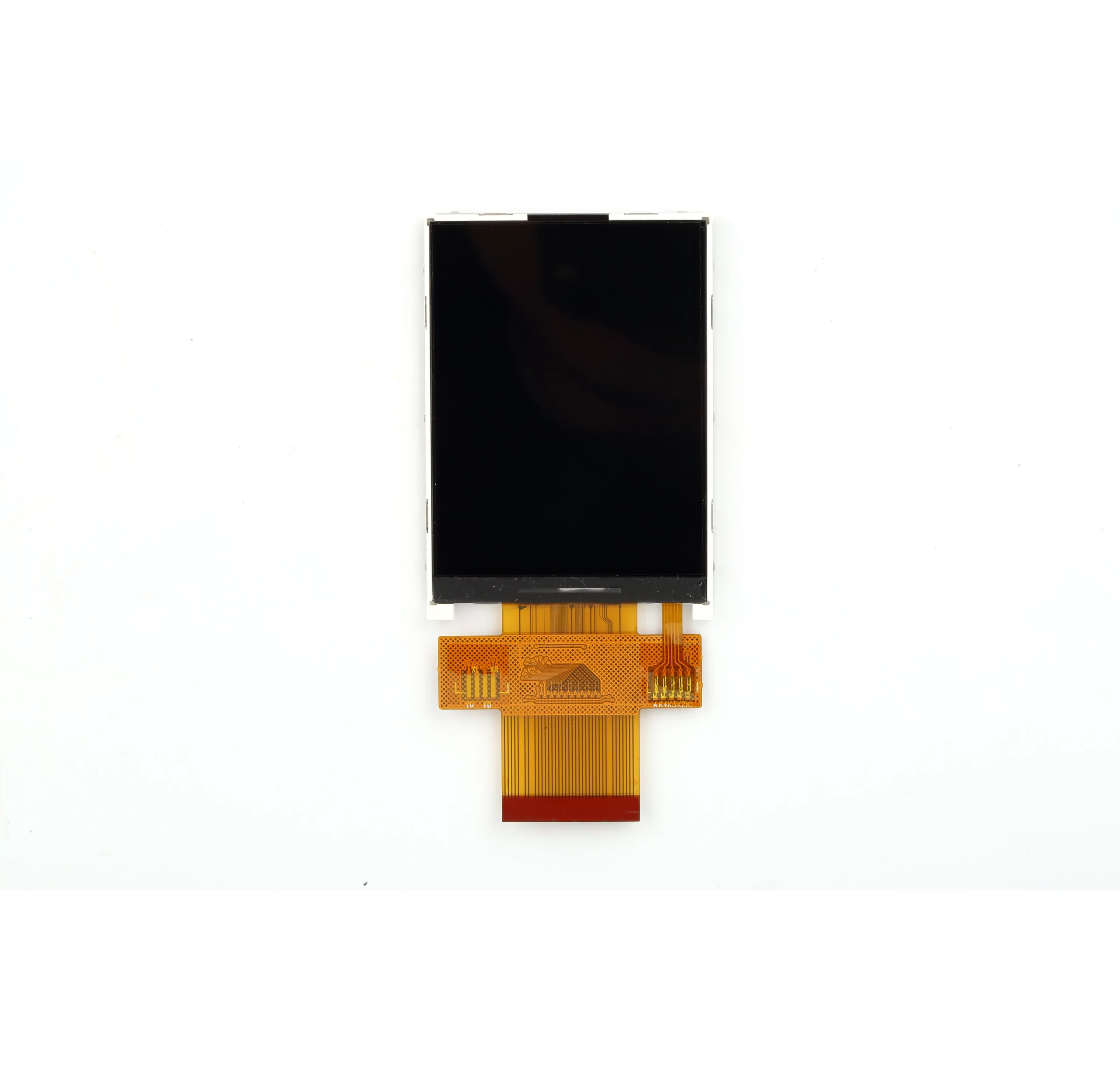

2.4 inch 240×320 screen front view

6 O'clock 240 x 320 pixels

6 O'clock 240 x 320 pixels

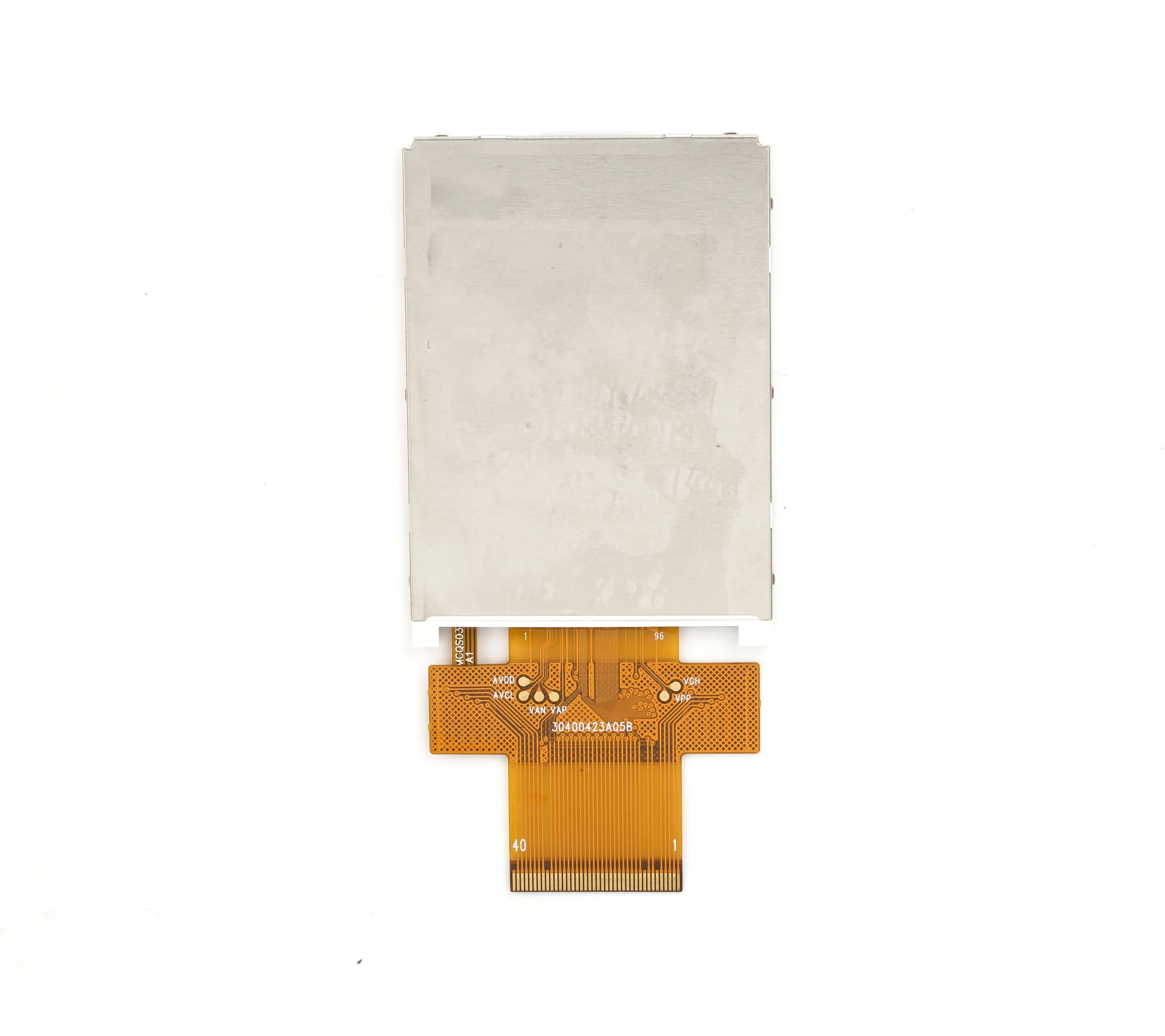

2.4” high brightness screen back view

6 O'clock 240 x 320 pixels
