22 pin 240×320 ips 2.4 inch tft lcd

Item2.4 inch MCU TFT display screen
Model NoPV02413HZ22N
Resolution240×320
Outline Dimension42.72*60.26*2.25
Active Area(mm)36.72*48.96
InterfaceMCU Interface
Viewing AngleAll
Driver ICST7789V
Display ModeTransmissive / Normally Black
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Brightness250nits

For product pricing,customization,or other inquiries:

Share to:

2.4 inch 240×320 QVGA IPS  MPU interface TFT LCD display

1. PV02413HZ22N mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X320 resolution QVGA , MPU interface , IPS viewing angle , ST7789V driver IC, 250nits high brightness .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

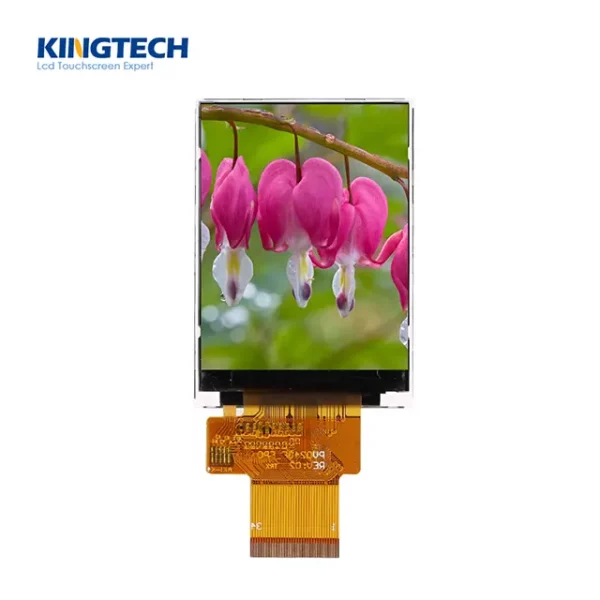

2.4 inch tft lcd display front view

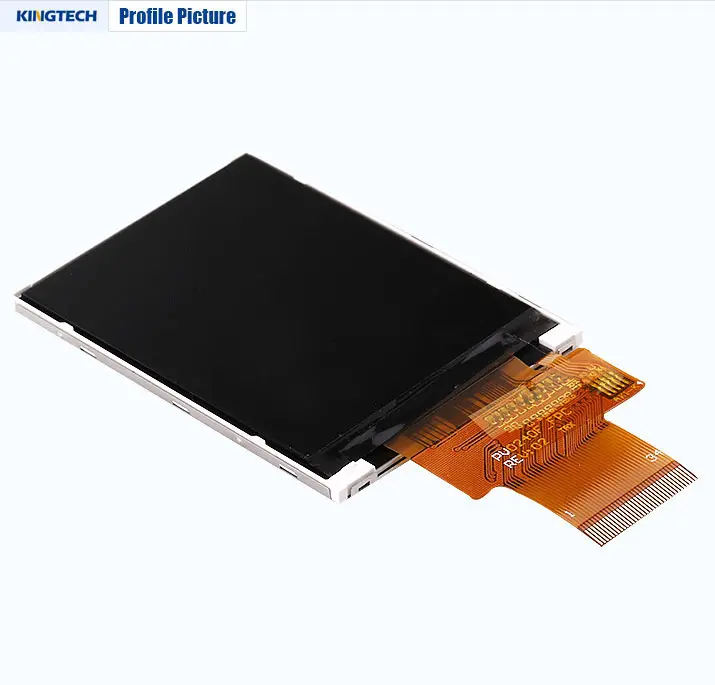

2.4 inch tft lcd module

2.4 inch tft lcd module

2.4 inch tft lcd module

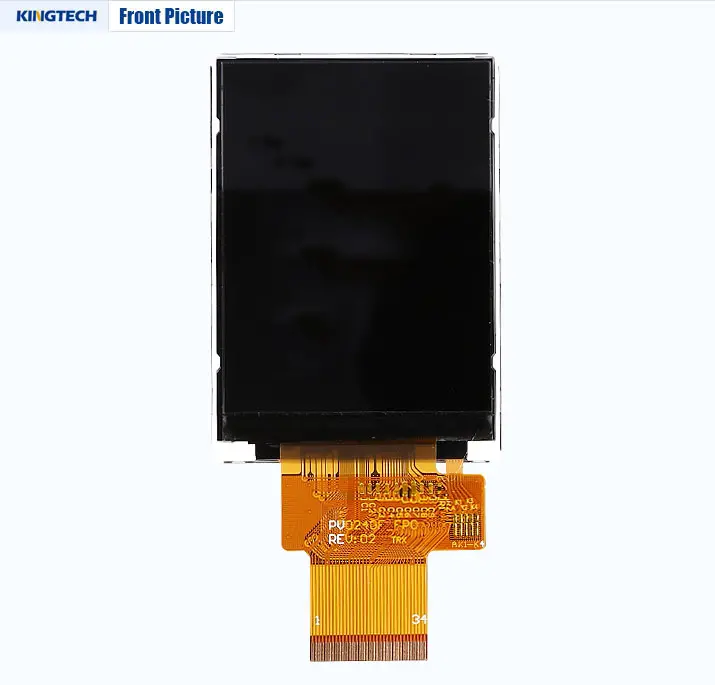

2.4 ” screen display front view

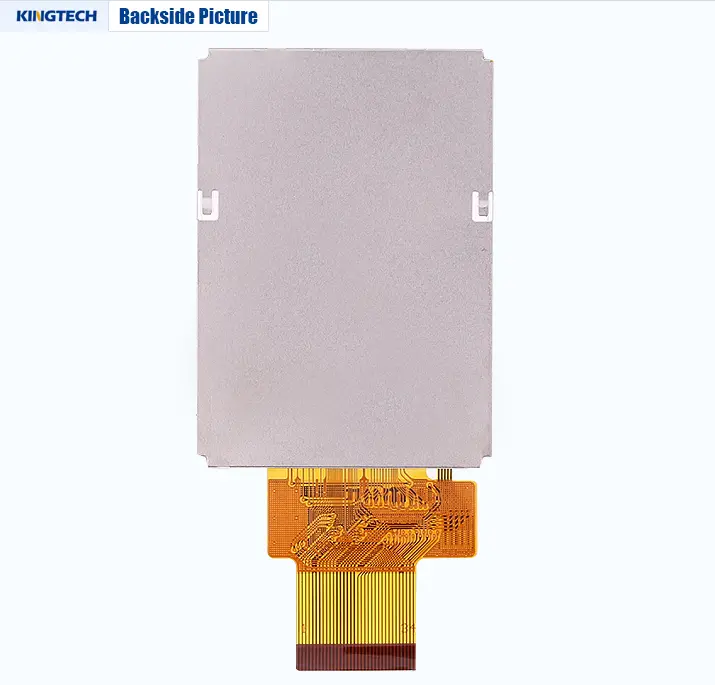

2.4 inch tft lcd module
