Item | 2.5 inch 480×480 circular TFT screen |
Model No | PV024701SY35B |
Resolution | 480×480 |
Outline Dimension | 69.19*71.74*2.45 |
Active Area(mm) | 62.64*62.64 |
Interface | MIPI-DSI Interface |
Viewing Angle | All |
Driver IC | HX8379-C |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -10℃ to +60℃ |
Storage Temperature | -30℃ to +70℃ |
Brightness | 400nits |
2.47 inch 480×480 IPS MIPI-DSI Round TFT LCD display
1. PV024701SY35B mainly application for handheld device , Industrial ,medical equipment .
2. It with 480×480 resolution, MIPI-DSI interface , IPS viewing angle , HX8379-C driver IC, 400nits brightness .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.
2.47” round 480×480 tft lcd front view

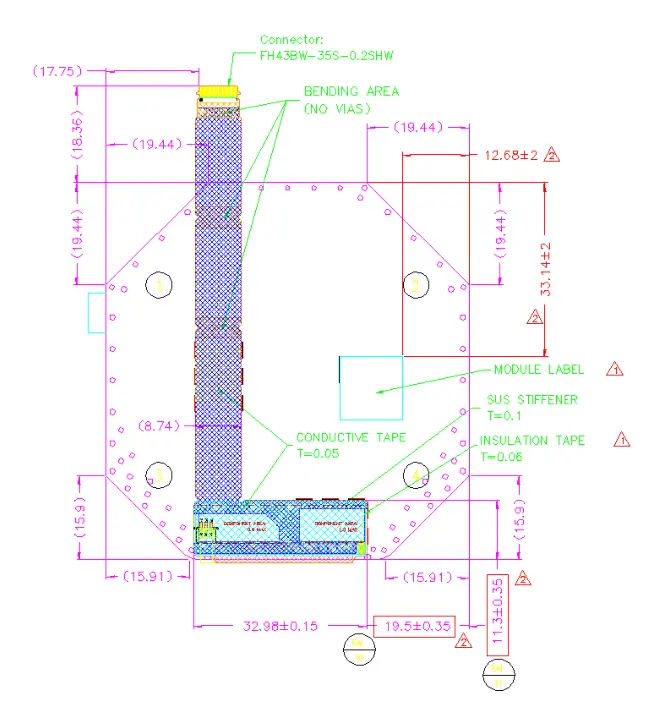

2.5 inch round lcd back view
