2.7 inch bar lcd display 240×960 RGB interface ILI8961 touch screen

Item2.7 inch 240×960 bar TFT display
Model NoPV02701TD40A-R
Resolution240×960
Outline Dimension39.18*68.42*3.65
Active Area(mm)33.06*58.8
InterfaceRGB 18bit Interface
Viewing Angle9 O’clock
Driver ICILI8961
Display ModeTransmissive / Normally Black
Operating Temperature-10℃ to +60℃
Storage Temperature-20℃ to +70℃
Brightness180nits
Touch screenresistive touch screen

For product pricing,customization,or other inquiries:

Share to:

2.7 inch resistive touch panel 240×960 RGB bar display



1. PV02701TD40A-R mainly application for handheld device , Industrial ,medical equipment .
2. It with 240X960 resolution, RGB 18bit interface , 9 O’clock/ TN viewing angle , ILI8961 driver IC, 180nits brightness, with resistive touch screen .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

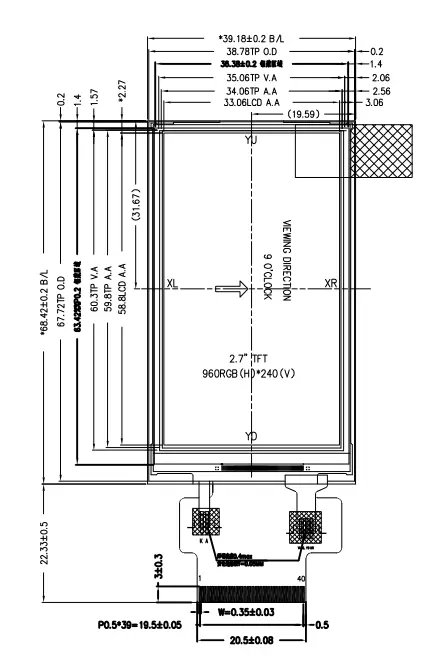

2.7 inch bar display front view

front

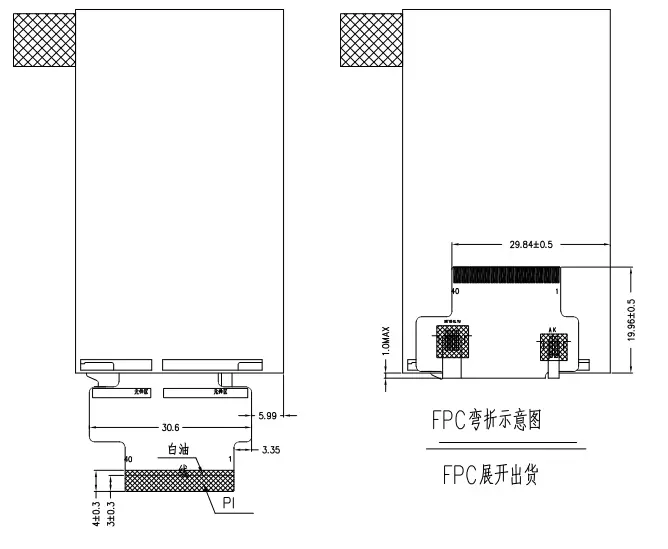

2.7” bar tft display back view

back
