Item | 2.8 inch 240×320 QVGA IPS display |
Model No | PV02808LZR50H |
Resolution | 240×320 |
Outline Dimension | 50.0*69.2*2.5 |
Active Area(mm) | 57.6*43.2 |
Brightness | 250nits |
Viewing Angle | All |
Interface | SPI / RGB / MCU |
Driving IC | ST7789V |
PIN | 50 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | support capacitive touch and resistive touch |

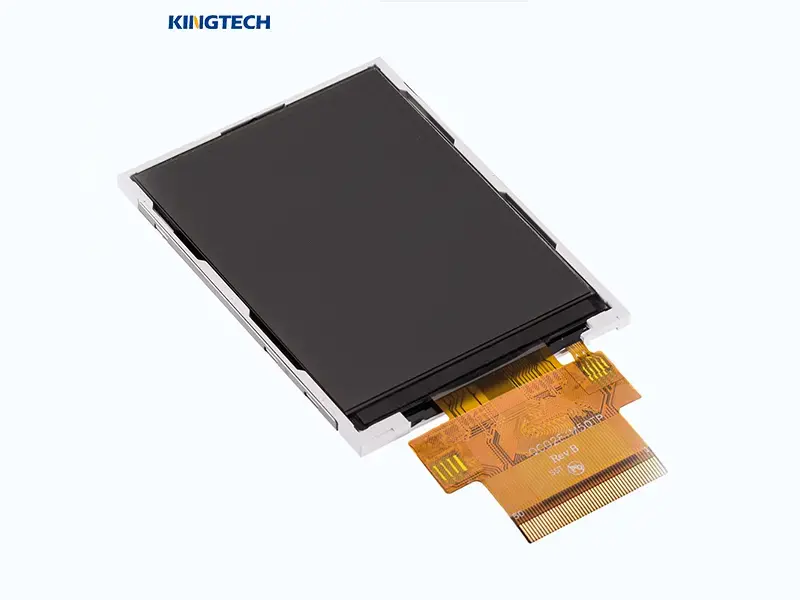

2.8 inch 240×320 resolution QVGA IPS TFT LCD screen
1. PV02808LZR50H mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ST7789V Driver IC, 250nits brightness, IPS/All/Full/Free viewing angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

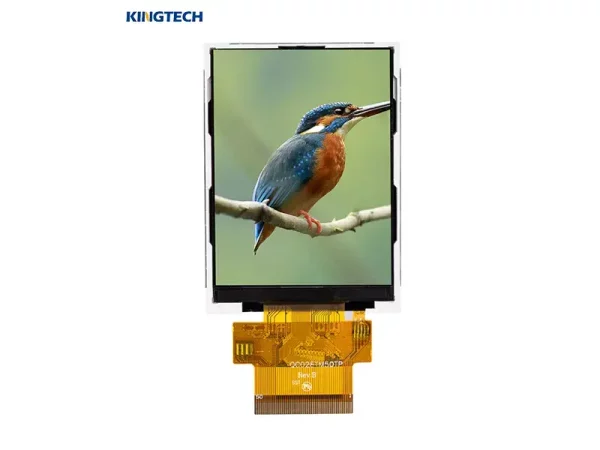

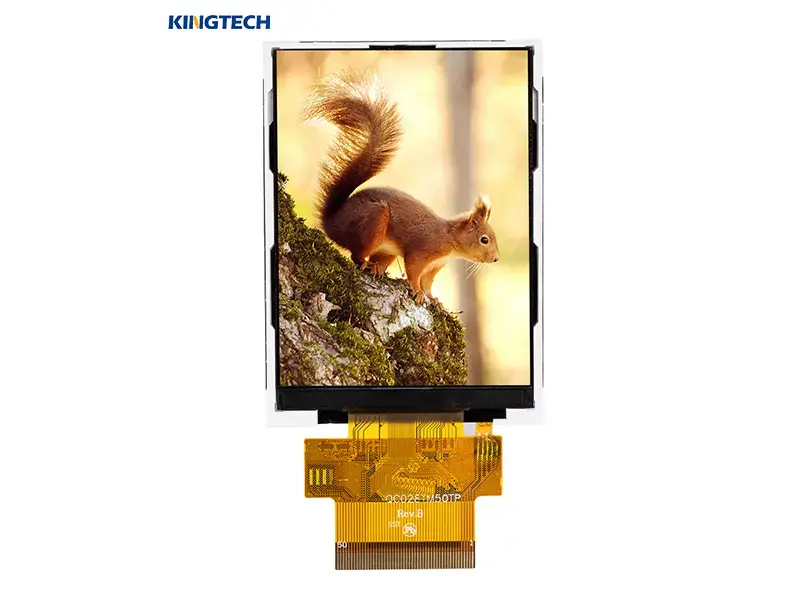

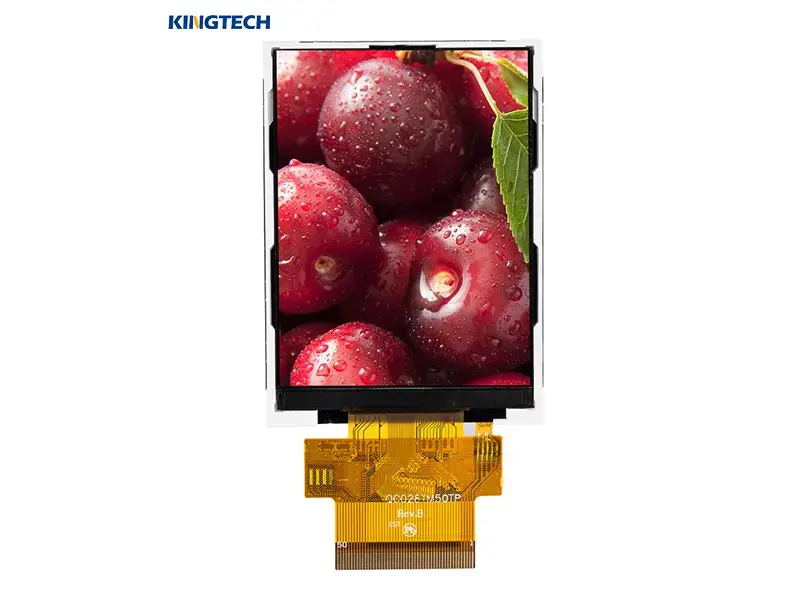

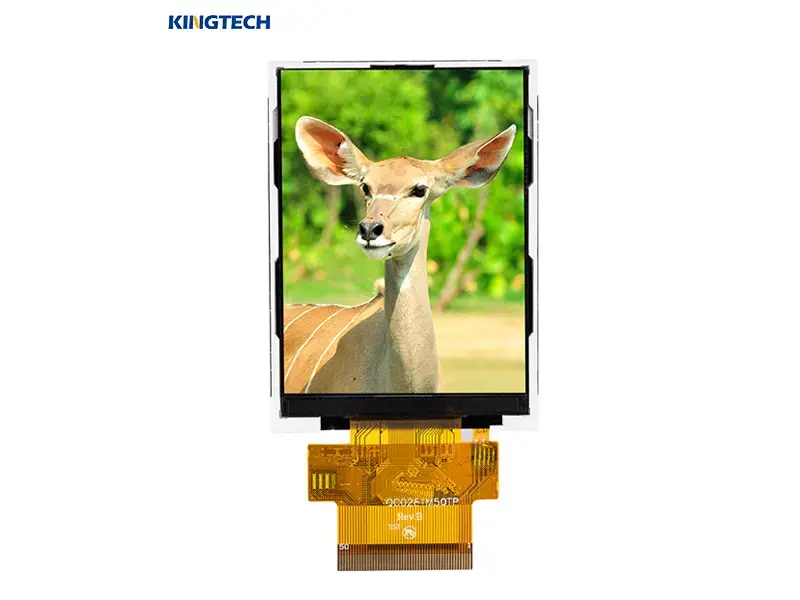

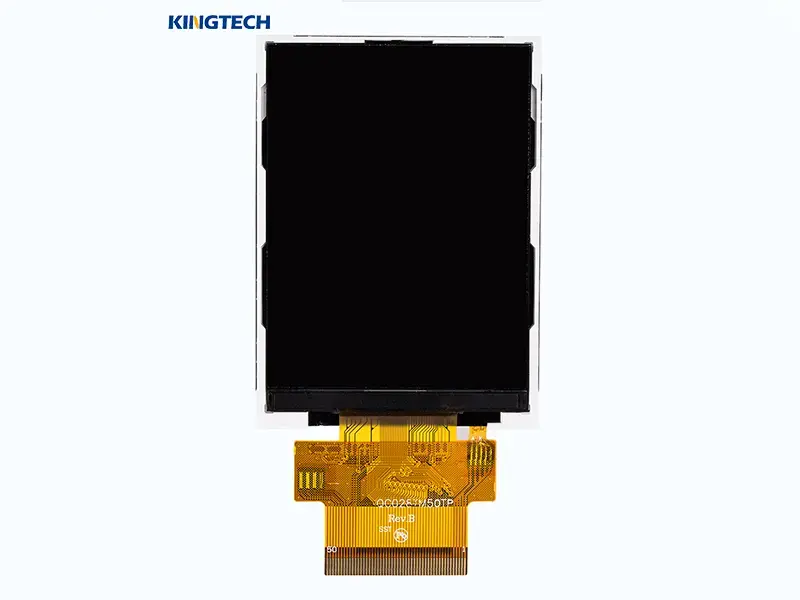

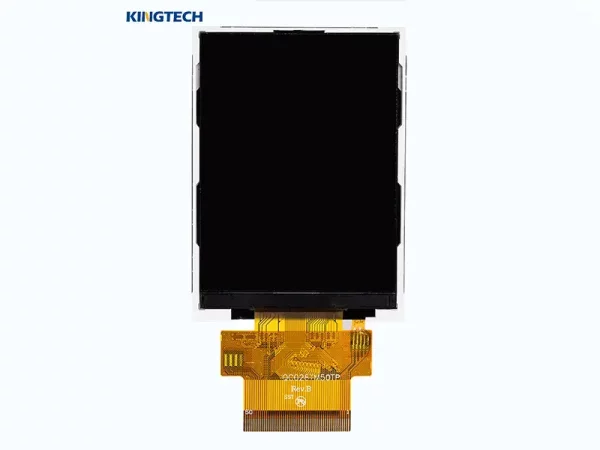

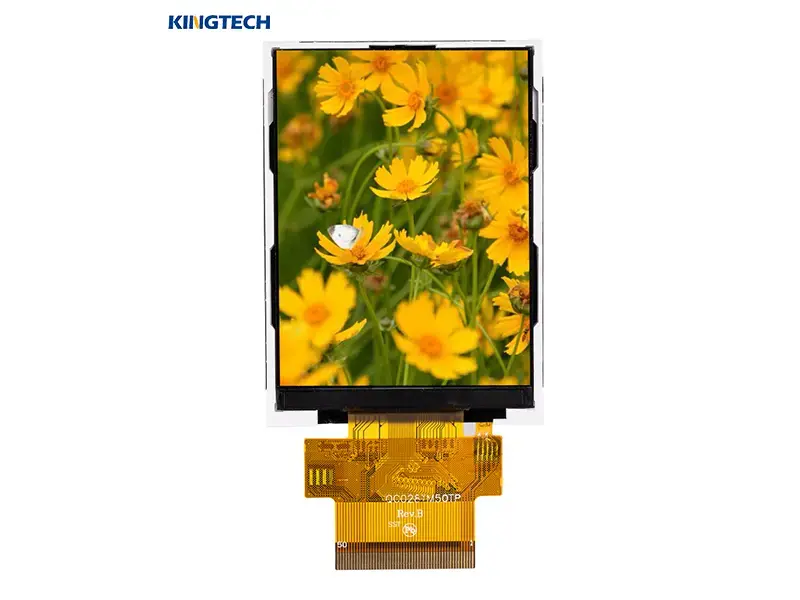

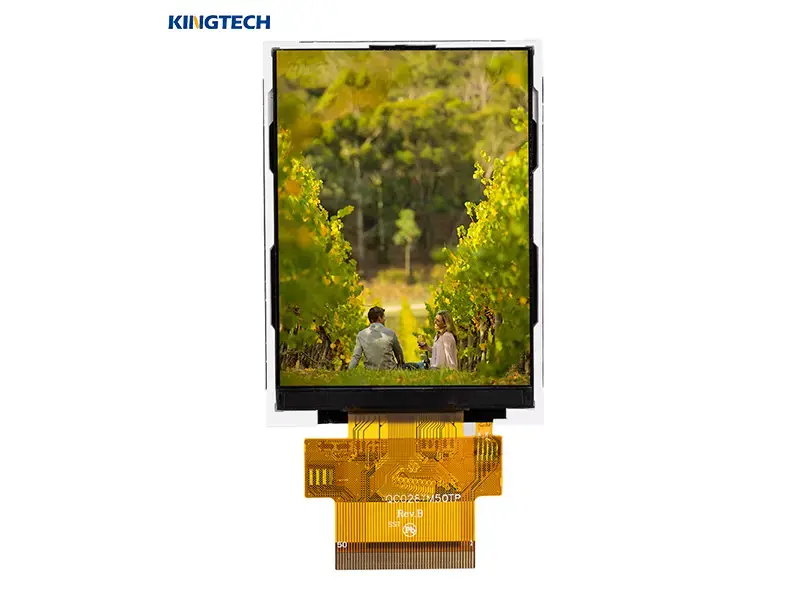

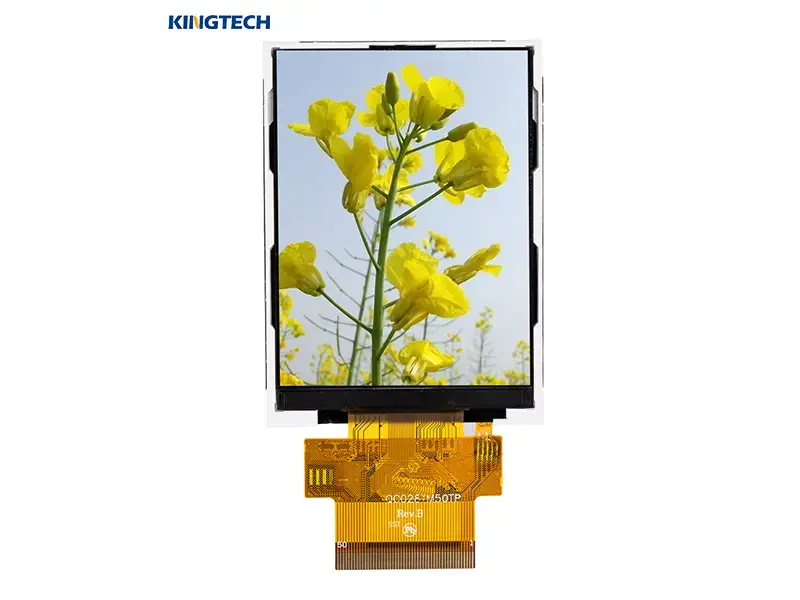

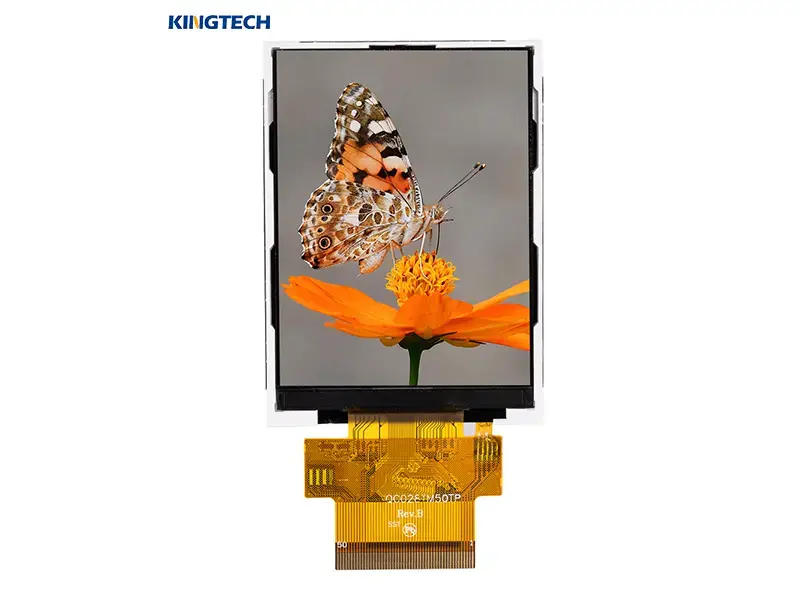

2.8 inch 240×320 IPS TFT LCD display front view

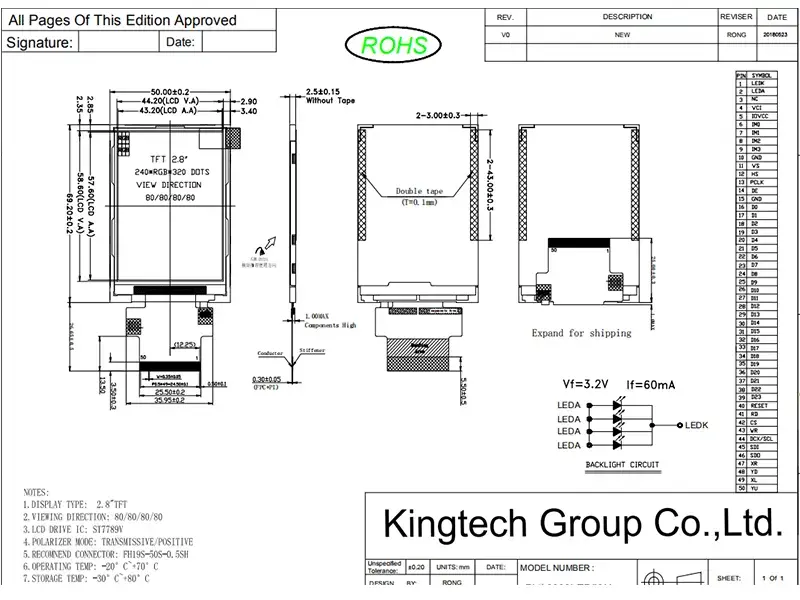

2.8 inch 240×320 IPS TFT LCD display Machine Drawing
