Outdoor sunlight readable ips 1500 nits 2.8 tft

Item2.8inch 480×640 TFT tdouch screen
Model NoPV02818HZ24K-CO
Resolution480(RGB) *640
Outline Dimension53(W) * 72(H)* 3.37 (T) MM
Active Area(mm)43.2(W)*57.6(H)
Viewing AngleAll
Driving ICJD9161Z
Operating Temperature-10 to +60℃
Storage Temperature-20 to +70℃
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

2.8 inch 480×640 IPS view angle MIP interface lcd display
1.PV02818HZ24K-CO mainly application for handheld device , Industrial ,medical equipment .
2.It with 480×640 resolution , MIPI interface , IPS viewing angle ,JD9161Z driver IC .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .



2.8 inch 480×640 resolution TFT LCD display Front View


2.8inch 480x640 TFT tdouch screen

2.8 inch 480×640 resolution TFT LCD display Back View

2.8inch 480x640 TFT tdouch screen

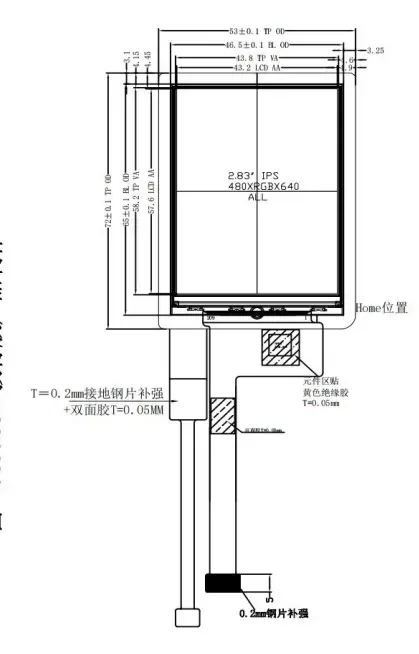

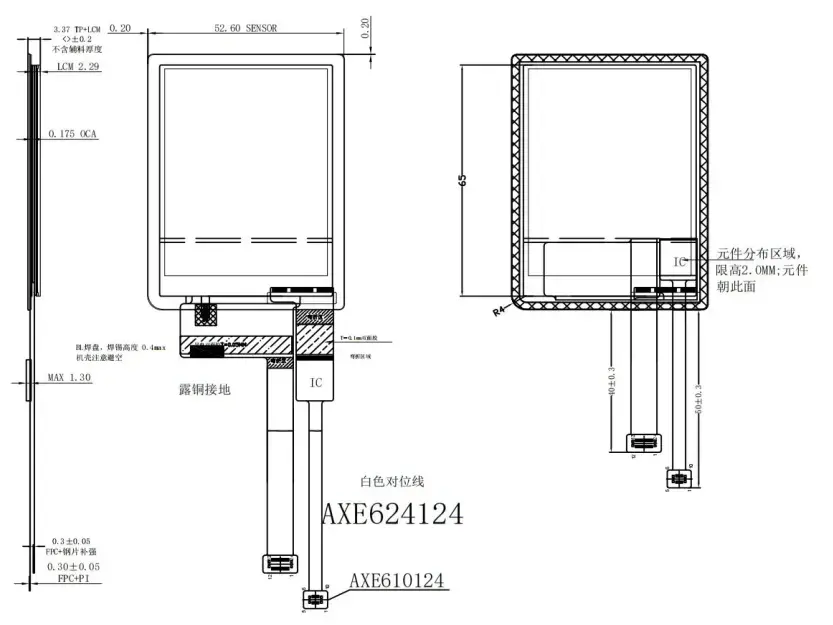

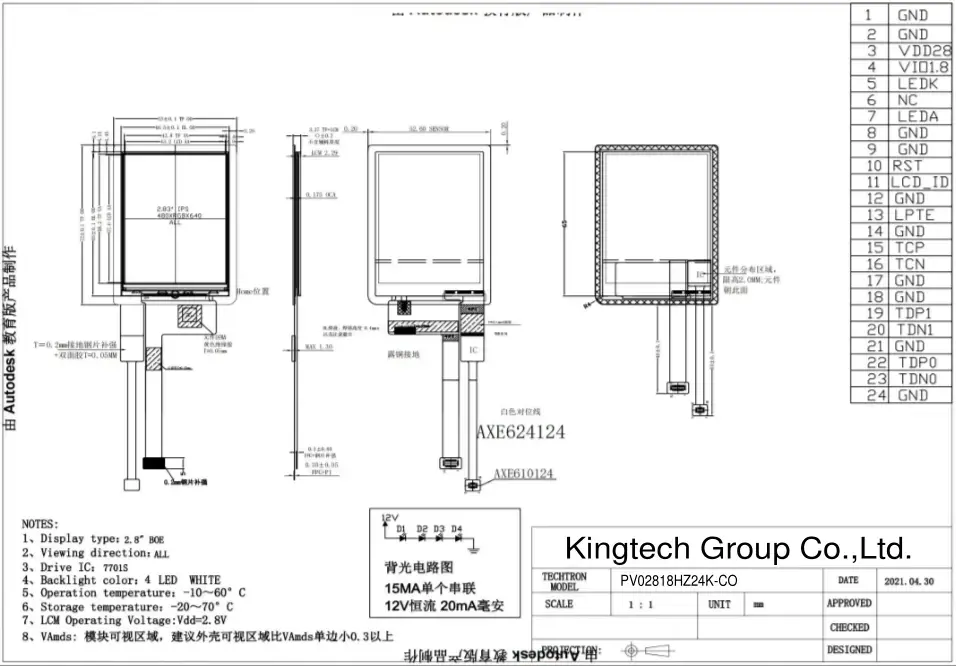

MIPI interface 2.8 inch LCD display Machine Drawing

2.8inch 480x640 TFT tdouch screen
