600 nit mcu 2 8 tft lcd shield

Item 2.8” 600nits brightness LCD display
Model No PV028QV-ITB5001
Resolution 240*320
Outline Dimension 50.00*69.20*2.48
Active Area(mm) 43.20*57.60
Interface MCU Interface
Viewing Angle 6 O’Clock
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Brightness 600nits

For product pricing,customization,or other inquiries:

Share to:

2.8 inch MCU interface 240×320 high brightness TFT LCD display


1. PV028QV-ITB5001 mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ILI9341 Driver IC,  600 nits high brightness,TN/ 6 O’Clock viewing angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

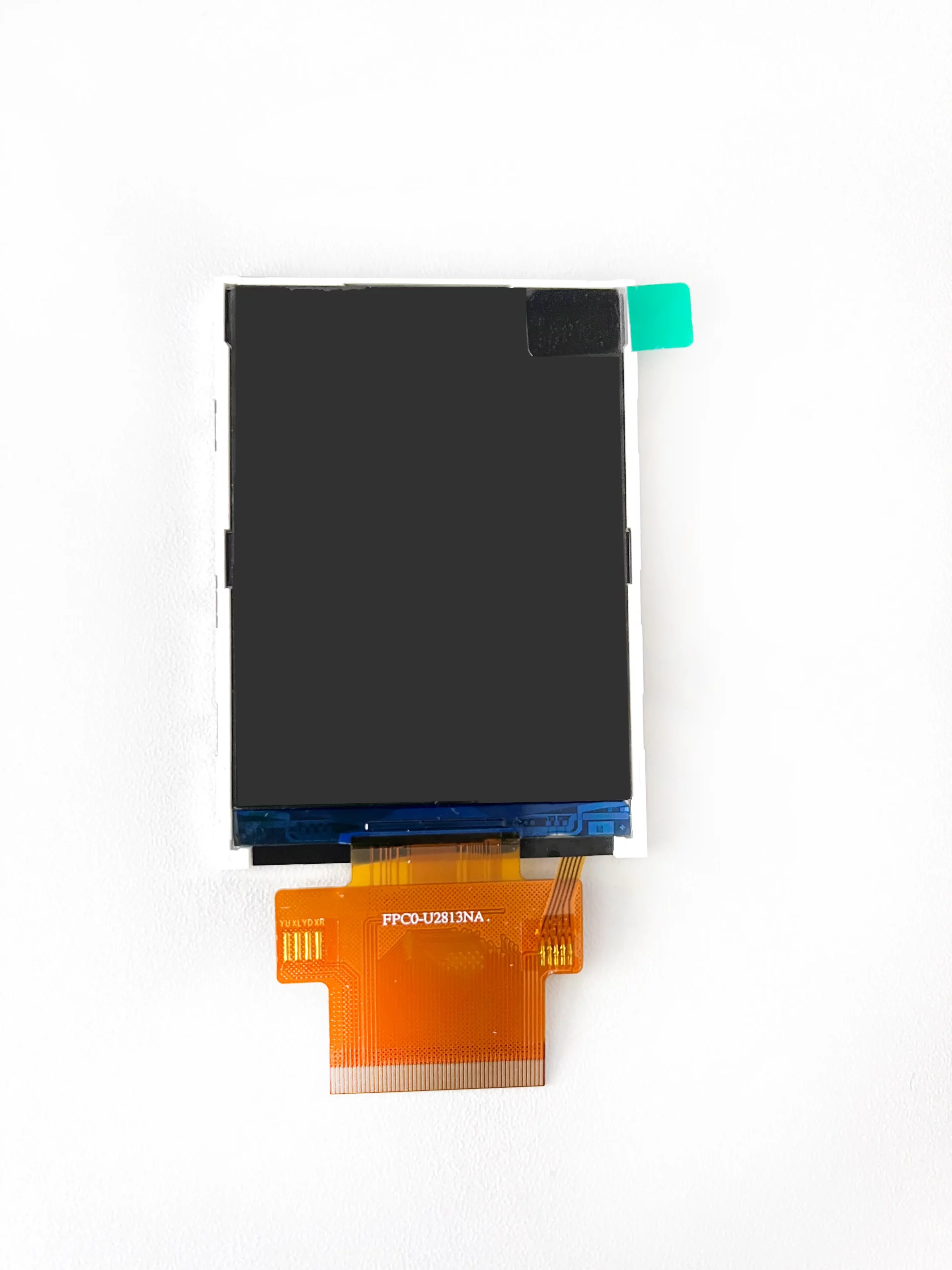

2.8” sunlight readable display screen front view

2.8 inch tft lcd module

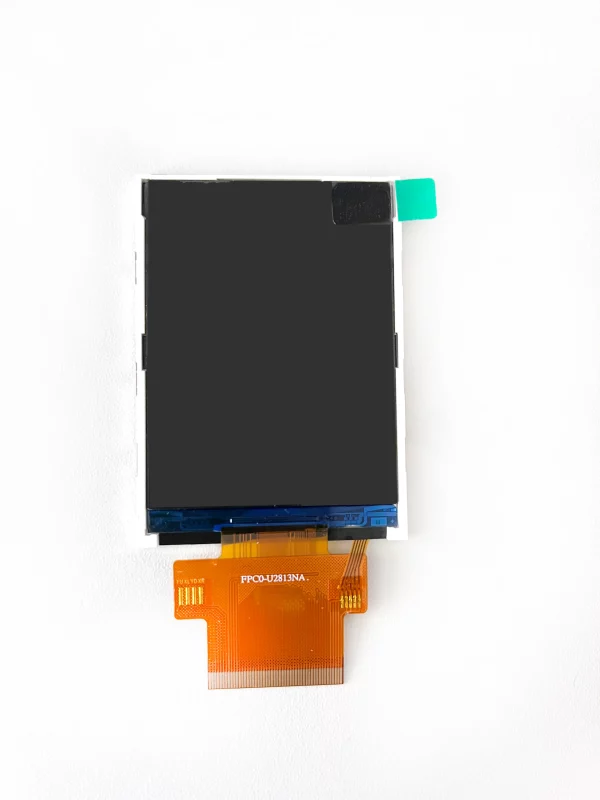

2.8” sunlight readable LCD display front view

2.8 inch tft lcd module
