Item | 2.8 INCH small lcd display |
Model No | PV02816HZ24H |
Resolution | 240×320 |
Outline Dimension | 50*69.2*2.45 |
Active Area(mm) | 43.2*57.45 |
Interface | SPI+MCU Interface |
Viewing Angle | 6 O’clock |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -10℃ to +60℃ |
Storage Temperature | -20℃ to +70℃ |
Brightness | 250nits |
2.8 inch 240×320 Tiny samll LCD display screen
1. PV02816HZ24H mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI + MCU interface, ST7789V Driver IC, 250 nits brightness, TN/ 12 o’ clock viewingd angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

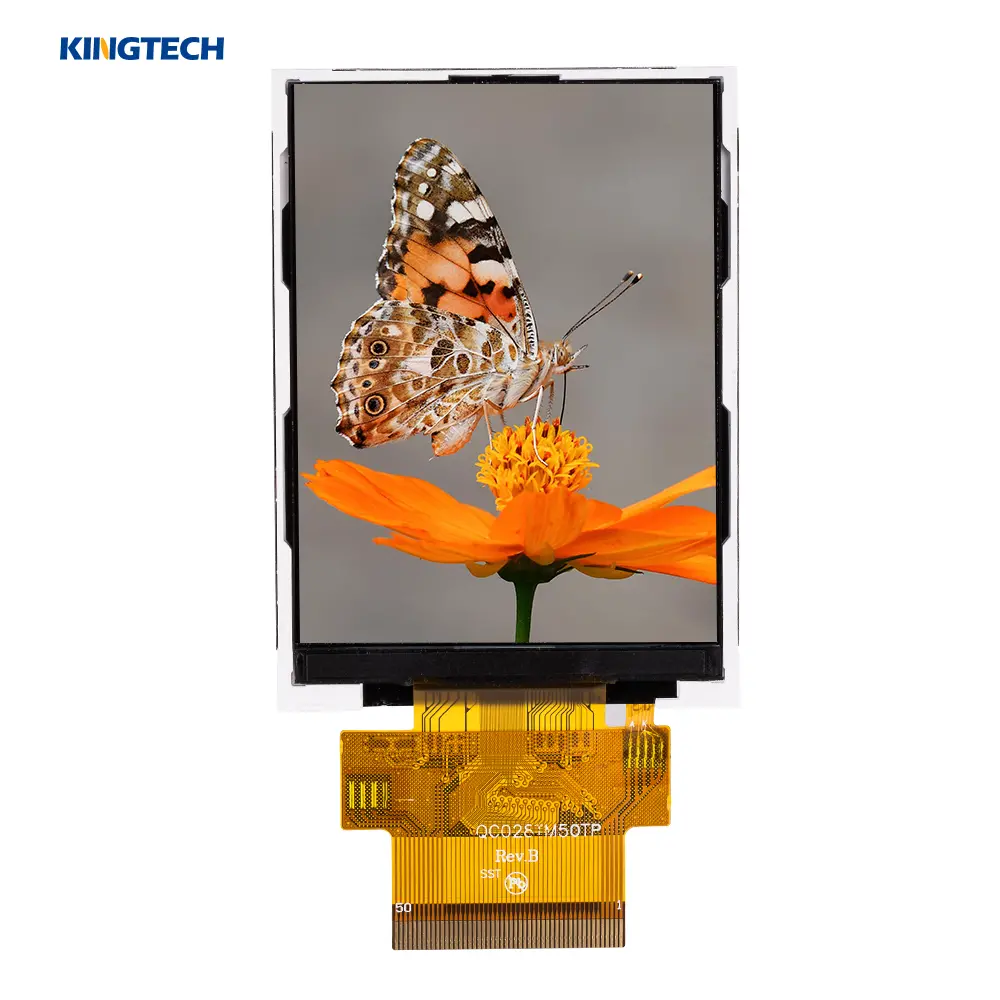

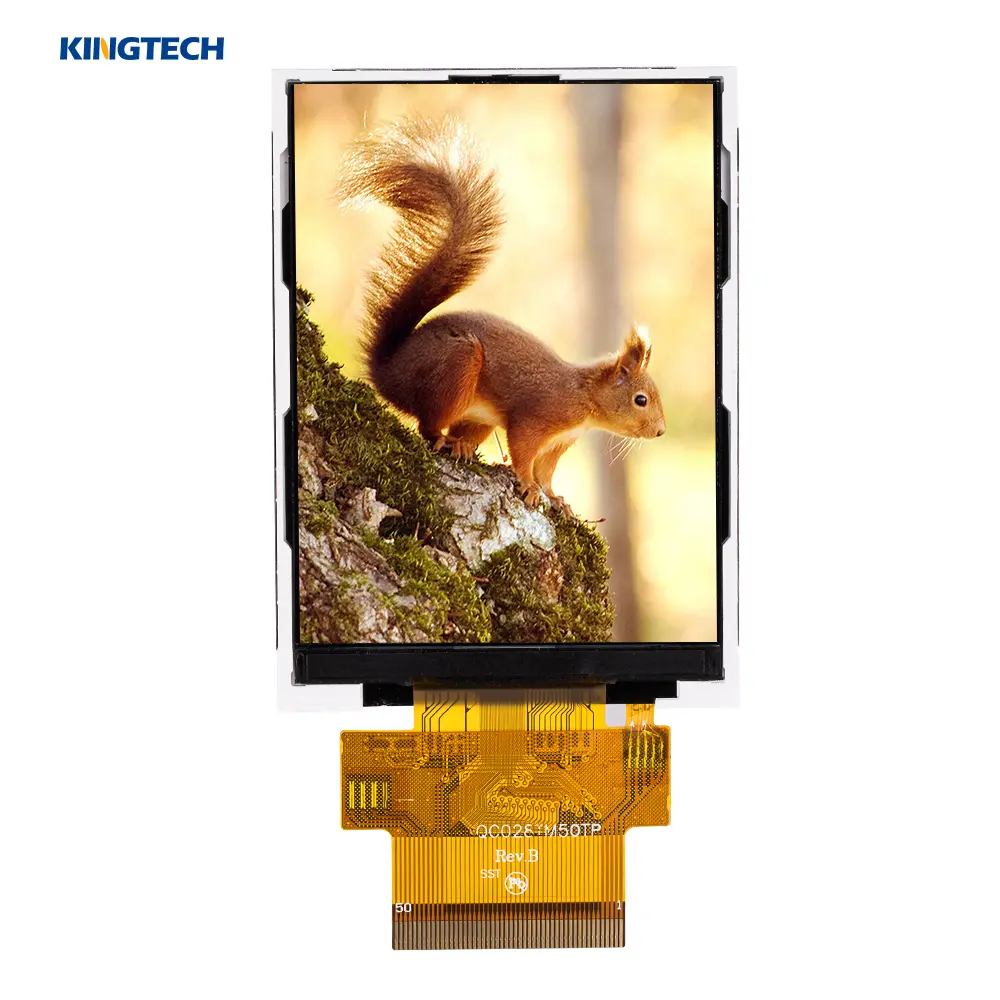

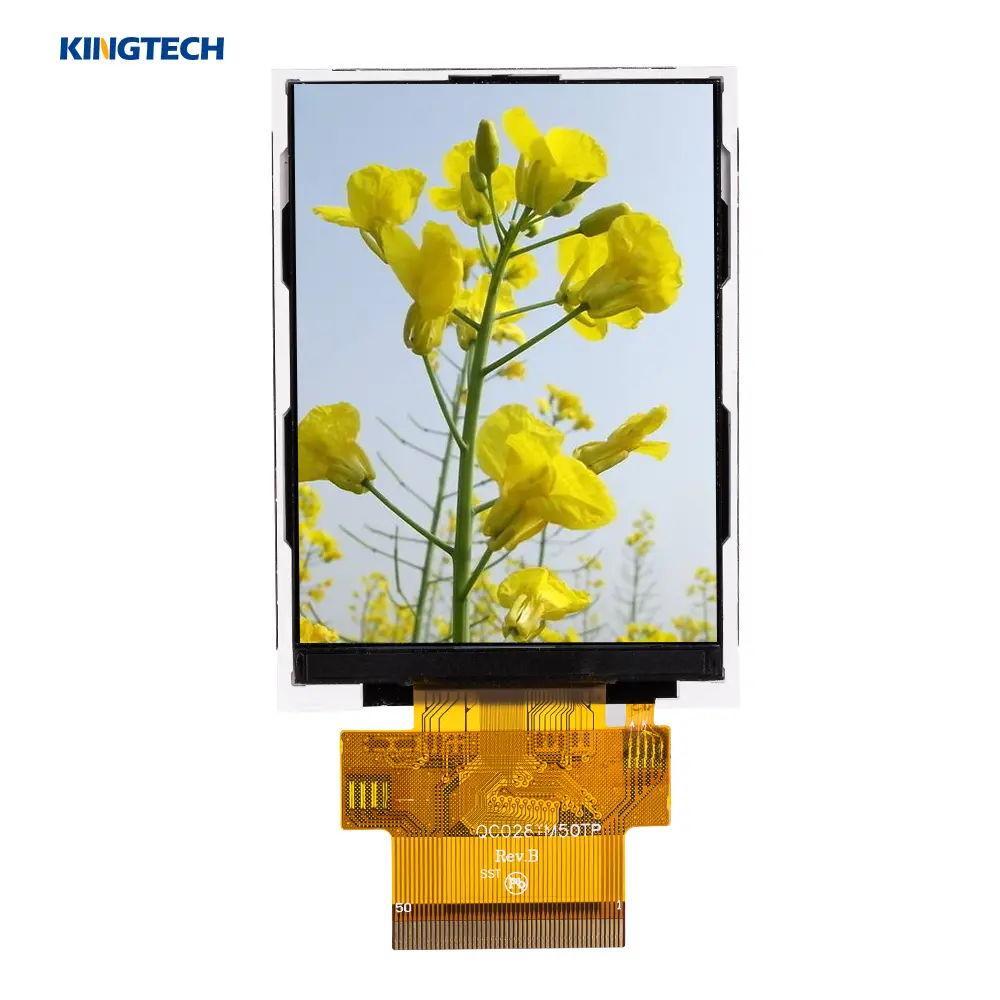

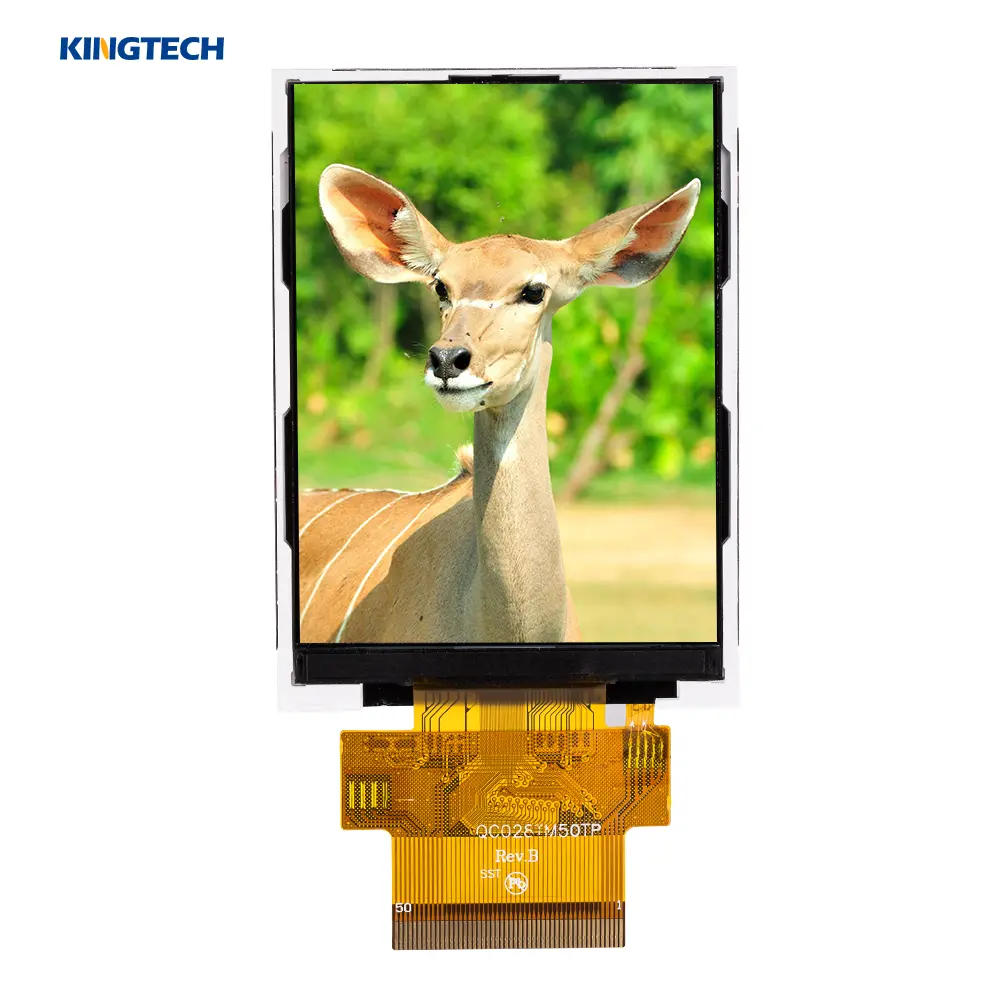

2.8 inch 240×320 tiny screen front view
