50 pin QVGA ips 2 inch capacitive touch screen

Item 2inch rectangle LCD module display
Model NoPV02000PD24B_V01
Resolution 176×220
Outline Dimension 51.30(H)x37.68(W)x2.40(T)
Active Area(mm)39.60(H)x31.68(W)
Interface Standard 8080 system 8 / 16 bit parallel interface (default : 16-bit )
Viewing Angle6 O’clock
Driving IC ILI9225G
Display Mode Transmissive / Normally White
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness180nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

2 inch 176×220 MCU TFT LCD display .

1. PV02000PD24B mainly application for Smart home and wearable devices
2. It with TN/6 O’clock viewing angel , 176×220 resolution , Standard 8080 system 8 / 16 bit parallel interface(default : 16-bit ), ILI9225G Driver IC.
3. It also can custom board and capacitive/resistive touch panel;
4. It is the A grade product , with good quality for the Smart home and wearable devices.

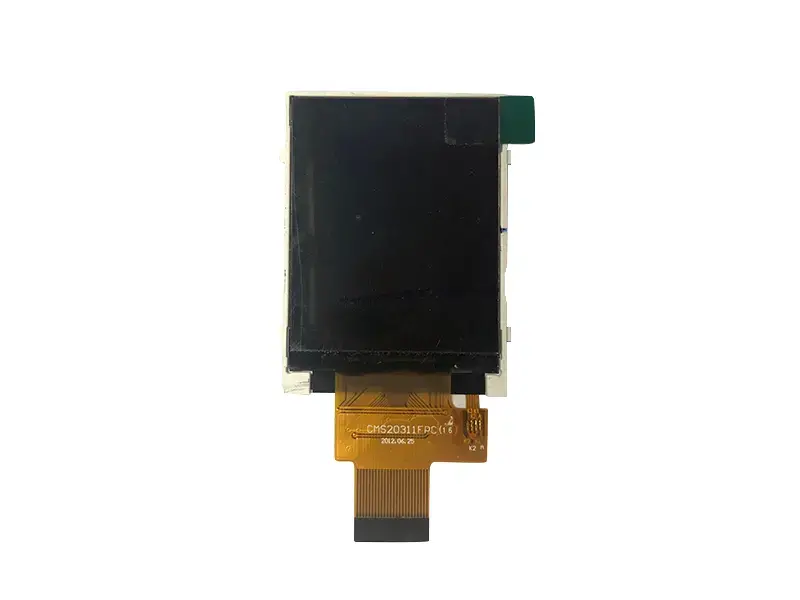

2.0 inch small LCD display front view

2 inch capacitive touch screen

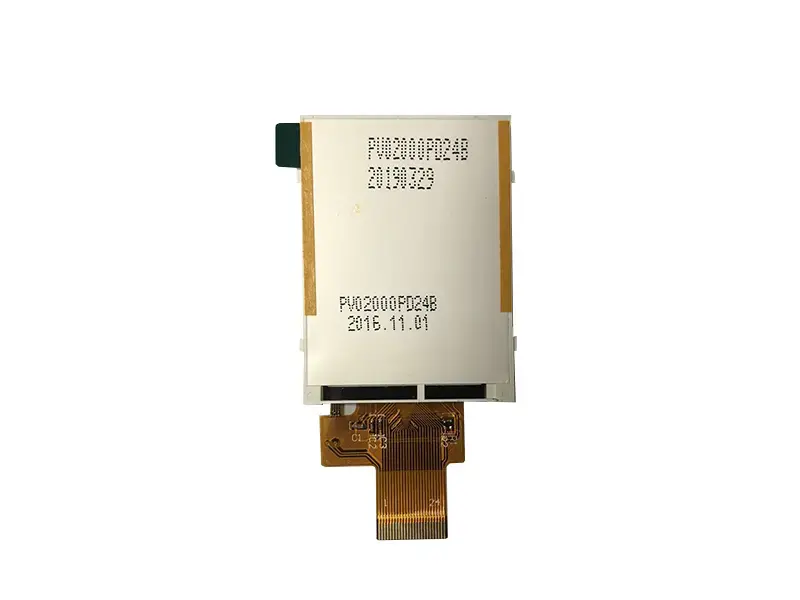

2.0 inch small LCD display back view

2 inch capacitive touch screen

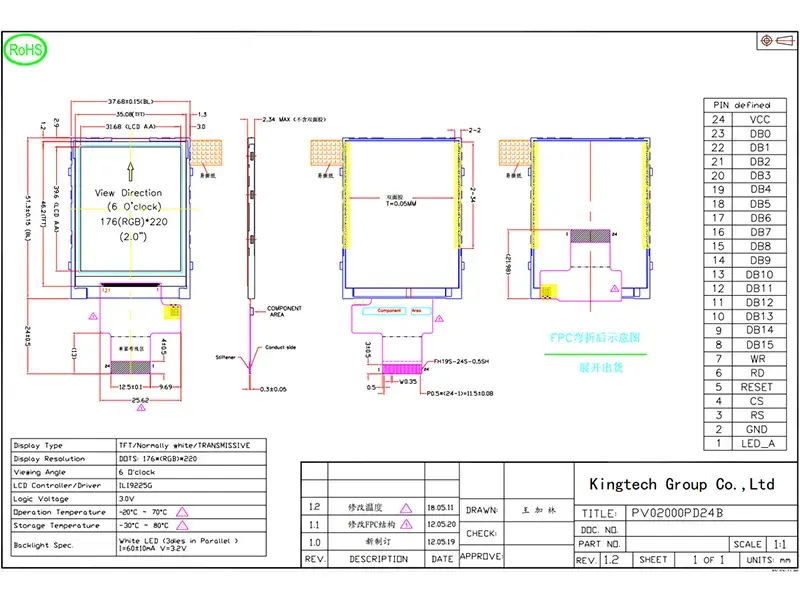

2.0 inch MCU interface LCD display Machine Drawing

LCD MODULE - PV02000PD24B_V01

LCD MODULE - PV02000PD24B_V01
