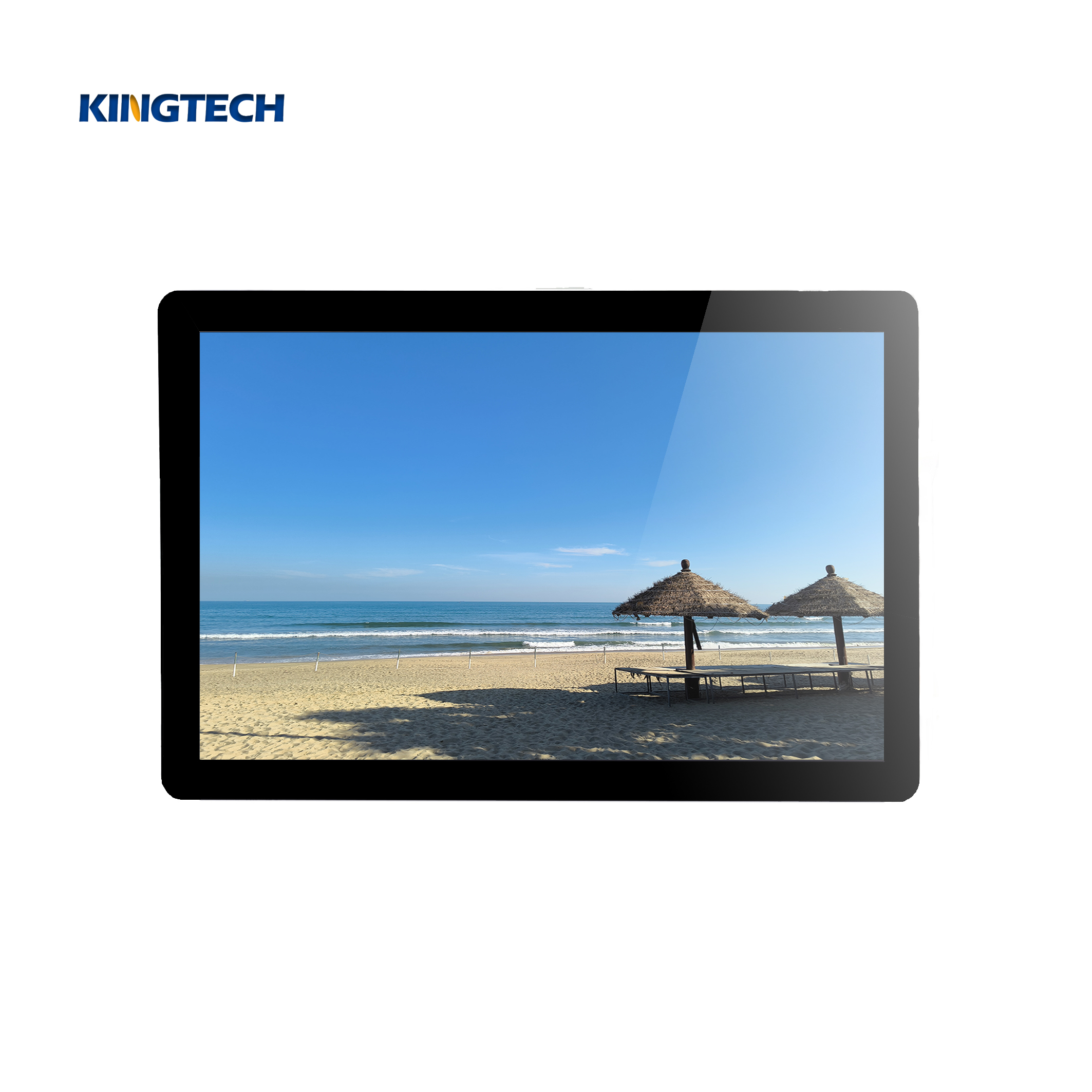

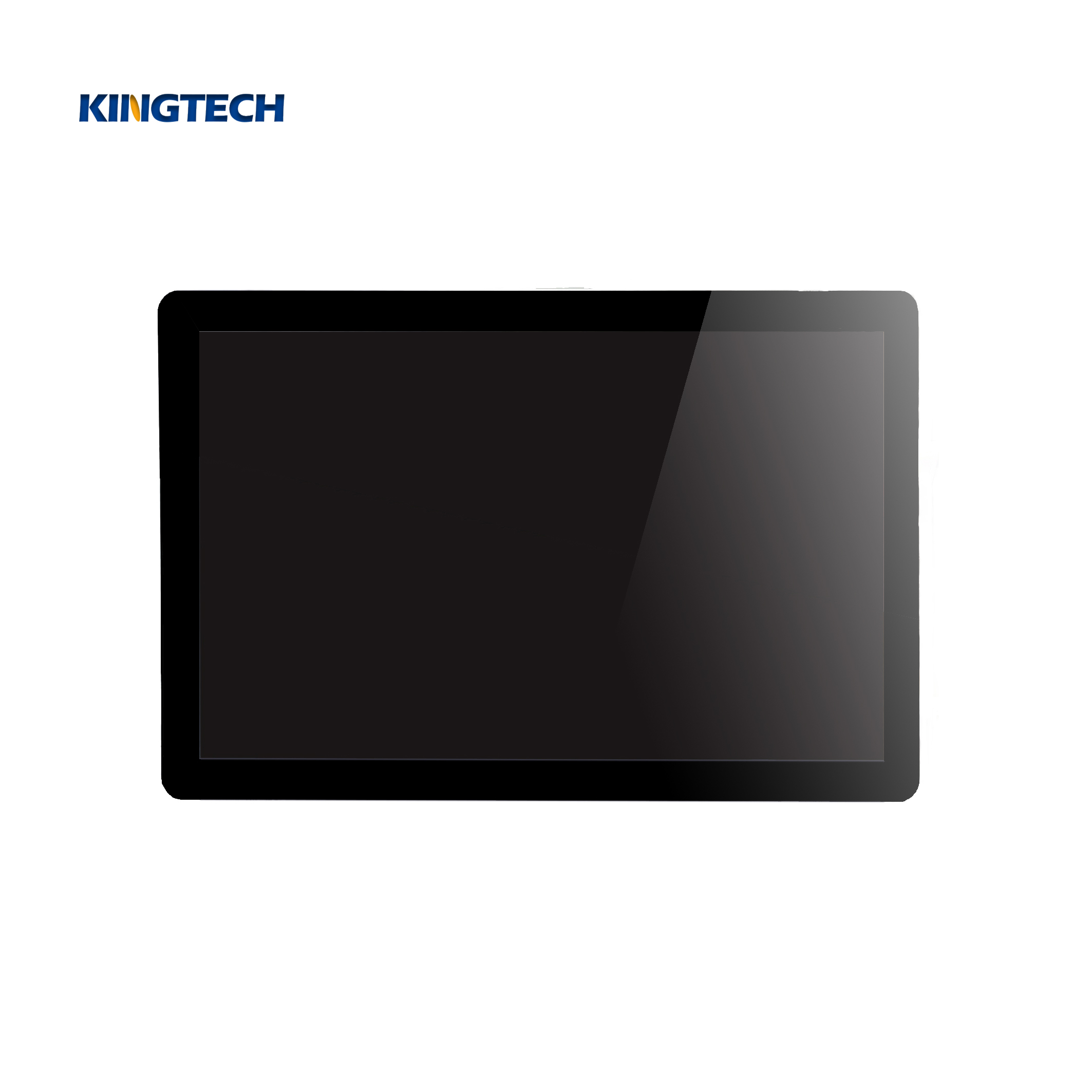

21.5-inch display with capacitive touch panel

Item 21.5inch IPS 1920*1080 TFT display
Model No. PV215003Y0630D
Resolution 1920*1080

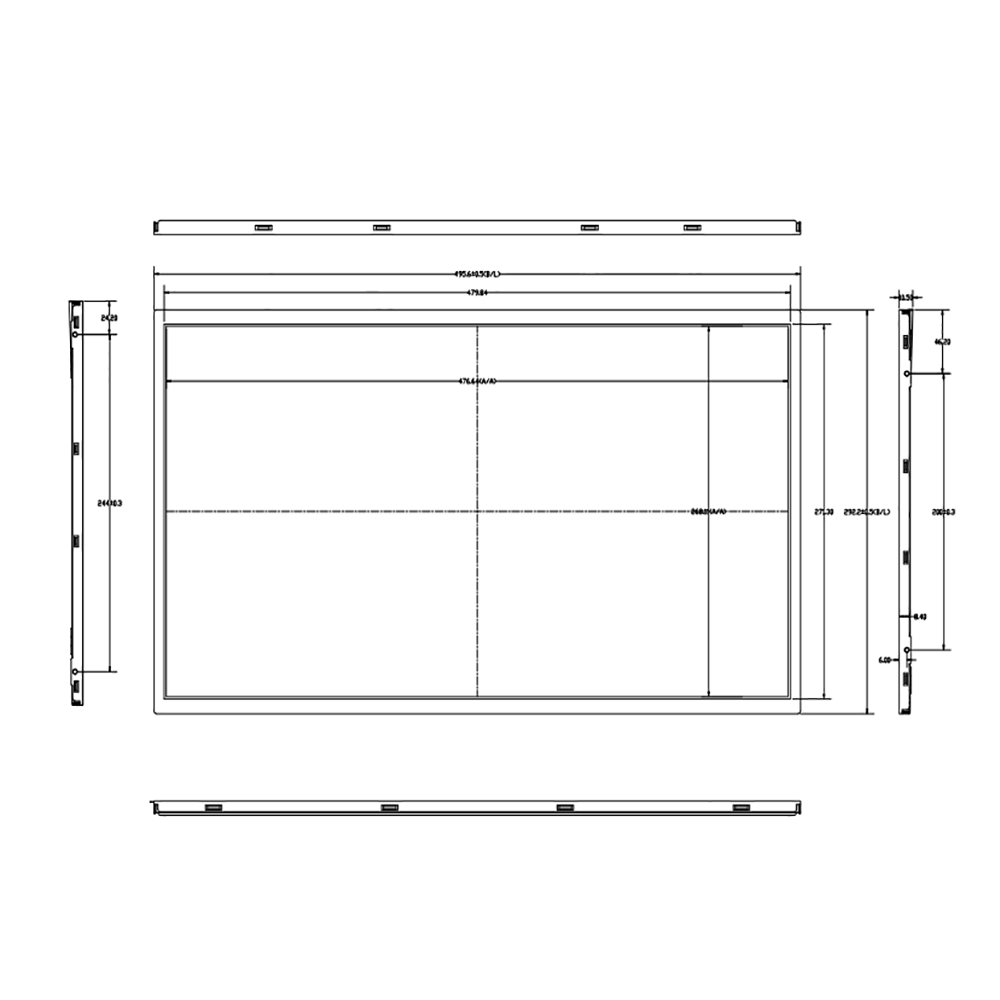

Outline Dimension (mm) 495.6*292.2*10.6
Active Area (mm) 476.64*268.11
Viewing Angle All
Brightness 350nits
Interface LVDS
Backlight /
Driving IC /
PIN No. 30
Operating Temperature 0~50C
Storage Temperature -20~60C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial,

For product pricing,customization,or other inquiries:

Share to:

  1. 21.5 inch TFT display
  2. 1920*1080
  3. Stable supply
  4. IPS/Full/Wide/All viewing angle
  5. LVDS interface
  6. 350nits brightness/Sunlight readable/High brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial
