Item | 5 inch 480×272 tft lcd display |
Model No | PV05001YX40B-R |
Resolution | 480×272 |
Outline Dimension | 120.7(W)x75.8(H)x4.2(T) |
Active Area(mm) | 110.88(W)x62.832(H) |
Interface | 24-bit Parallel RGB |
Viewing Angle | 12 O’clock |
Driving IC | ILI6480 |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 250nits |
Touch screen | Resistive and capacitive touch screen |
5 inch 480×272 resolution RGB interface tft resistive touch
1.PV05001YX40B-R mainly application for Industrial, medical equipment.
2.It with 480×272 resolution , 24-bit Parallel RGB interface, ILI6480 driver IC , 250nits brightness, existing resistive 3.touch panel .
4.It also support HDMI board to support Raspberry PI .
5.It is A grade product , the good quality well use for Industrial ,medical application.

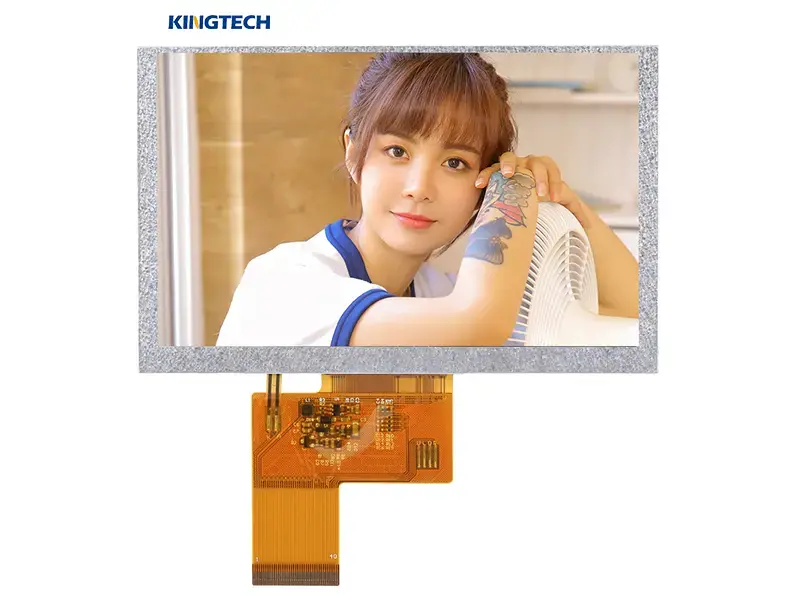

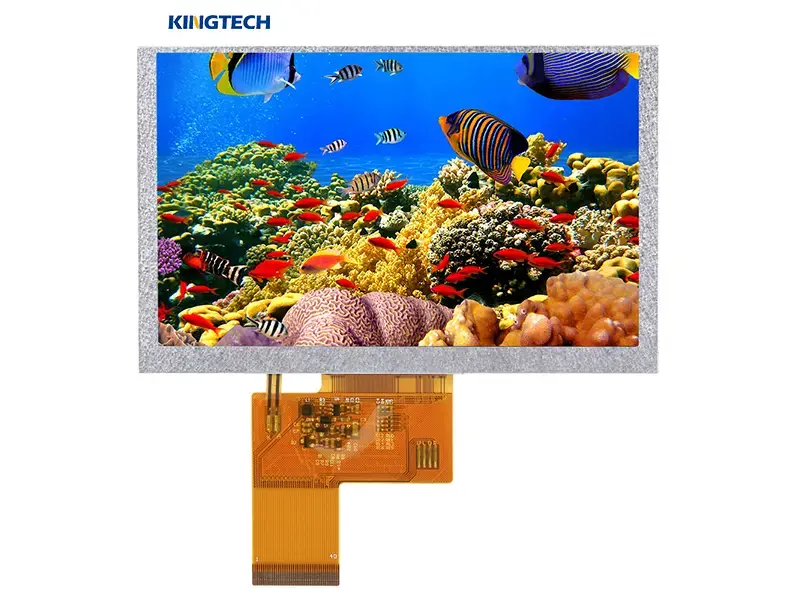

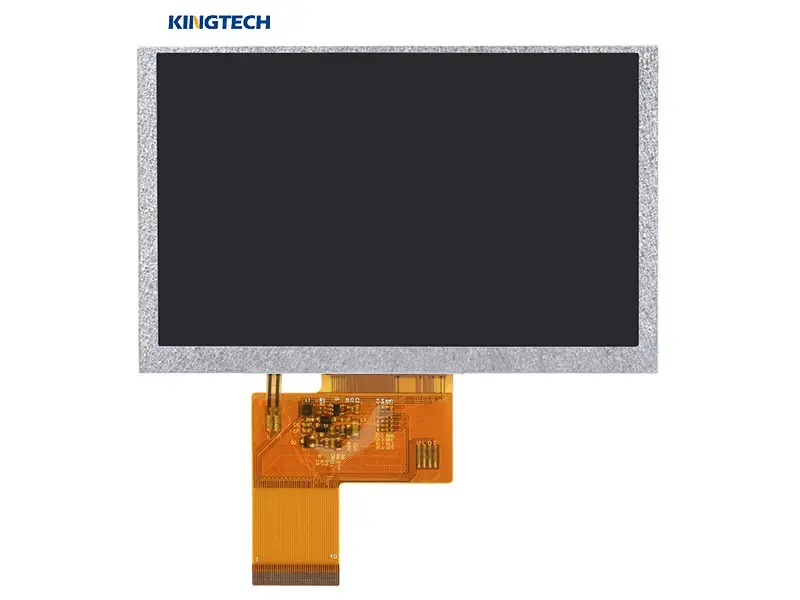

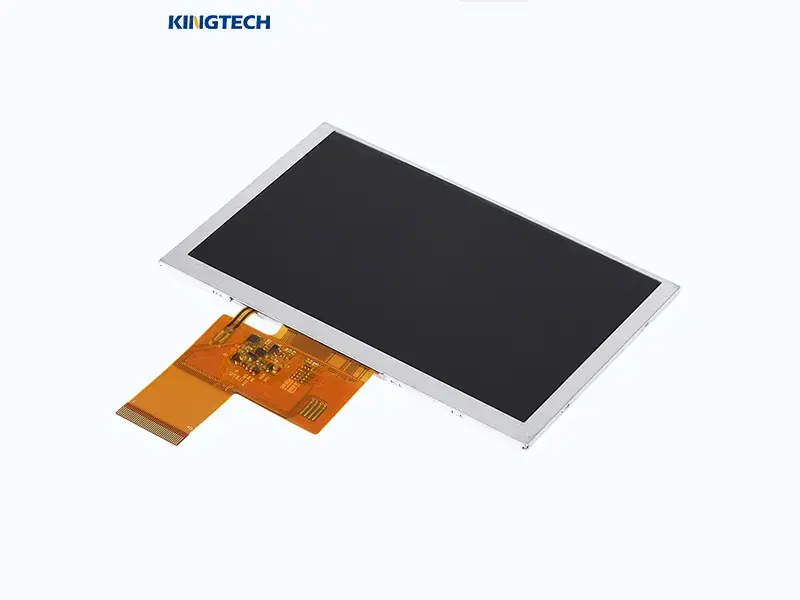

5 inch 480×272 tft lcd display Front view

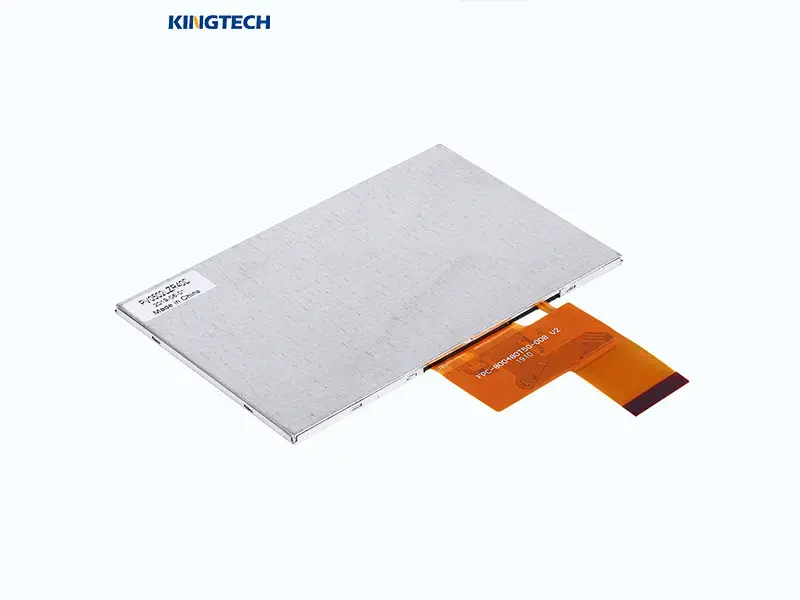

5 inch 480×272 tft lcd display back view
