24 bit rgb 40pin 800×480 5 inch lcd panel

Item5 inch 800×480 TFT LCD display
Model NoPV0502LZR40D
Resolution800×480
Outline Dimension120.7*75.8*2.9
Active Area(mm)108*64.80
Brightness500nits / 1000nits
Viewing Angle12 o’clock
Interface24-bit Parallel RGB
Driving ICILI6122+ILI5960
PIN40
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCan custom capacitive/resistive
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

5 inch 800×480 resolution RGB interface TFT LCD display

1. PV0502LZR40D mainly application for Industrial, medical equipment.
2. It with800x480 resolution , 24-bit Parallel RGB interface ,ILI6122+ILI5960 driver IC , 500nits/1000nits high brightness, existing capacitive touch and resistive panel .
3. It also support HDMI board to support Raspberry PI .
4. It is A grade product , the good quality well use for Industrial ,medical application. An it can be well used for both indoor and outdoor

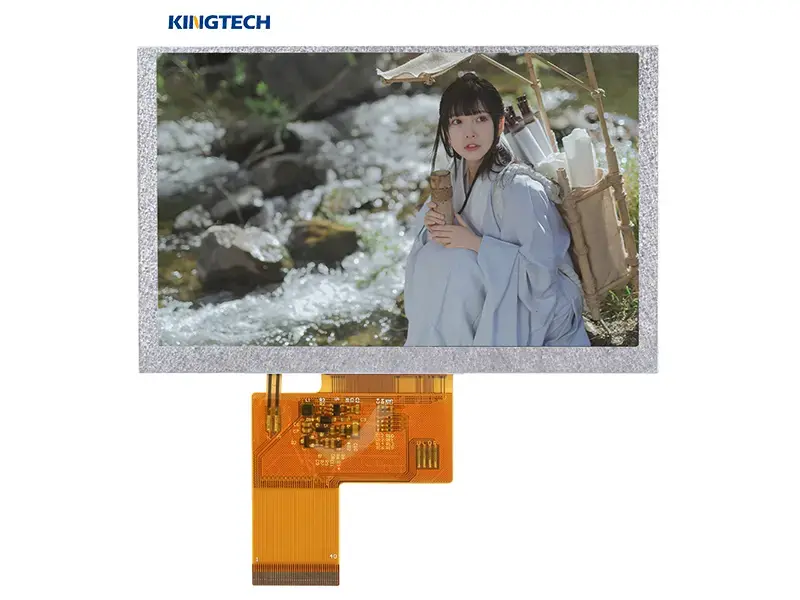

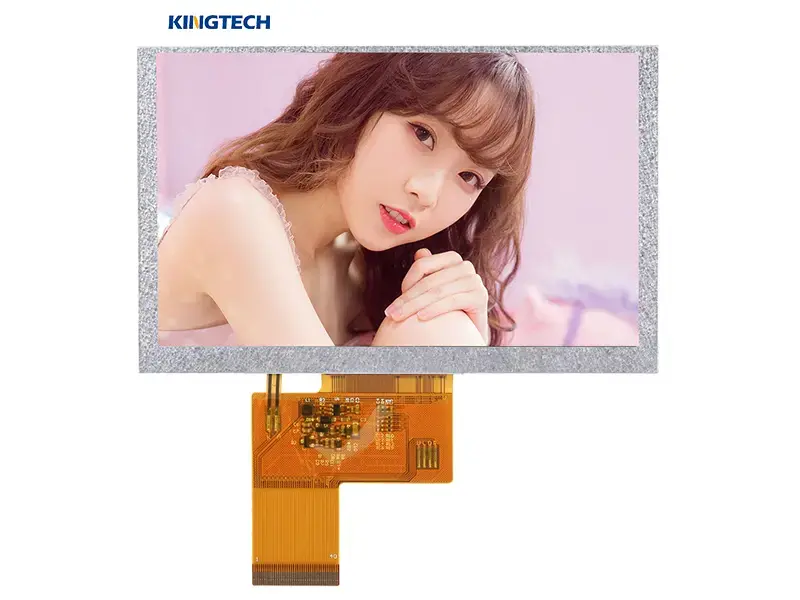

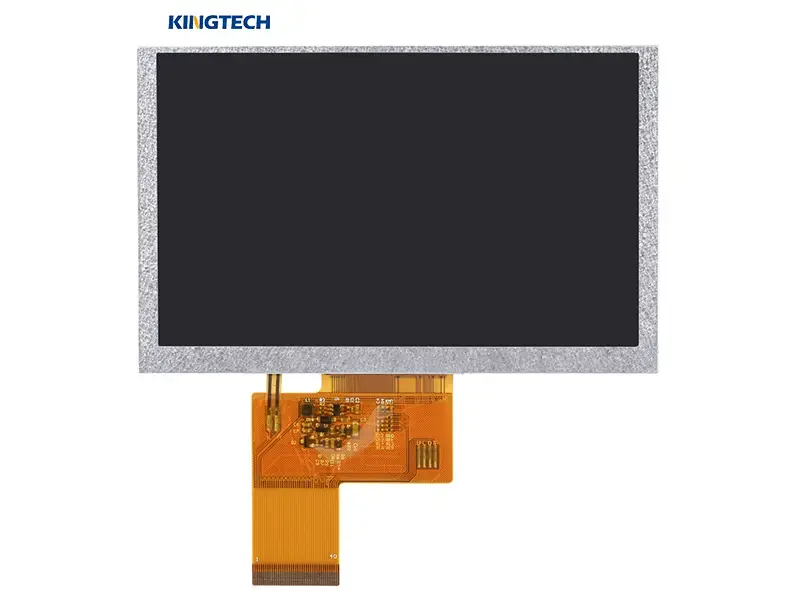

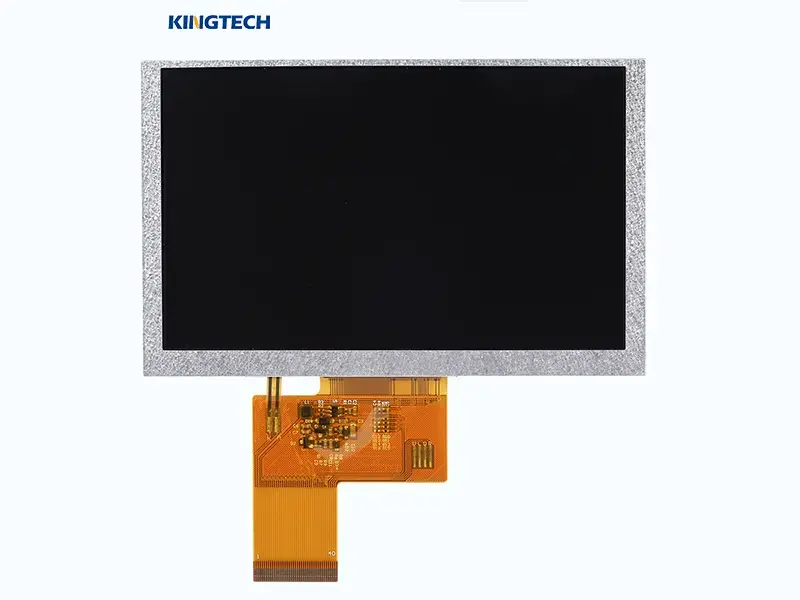

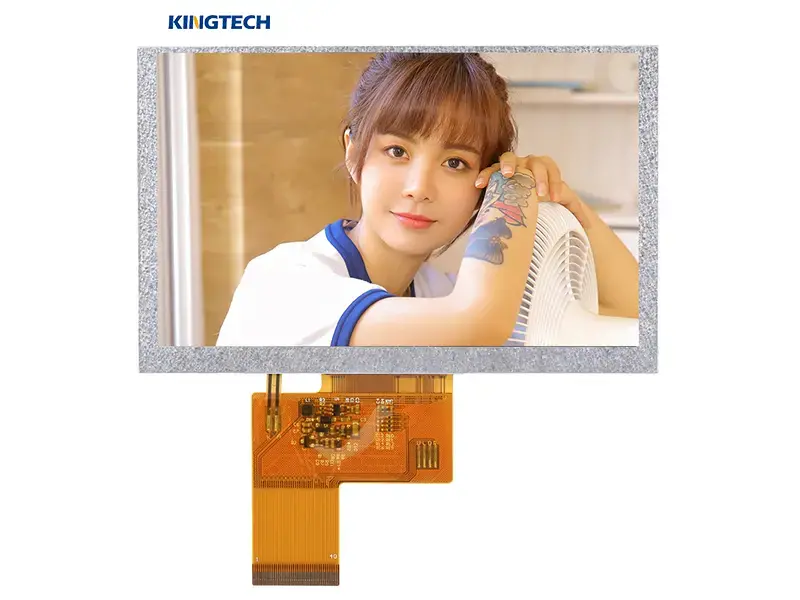

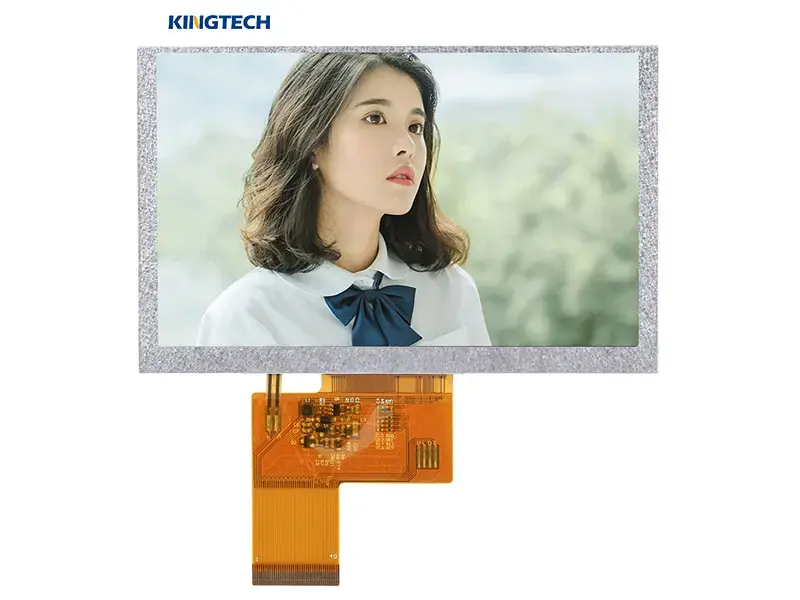

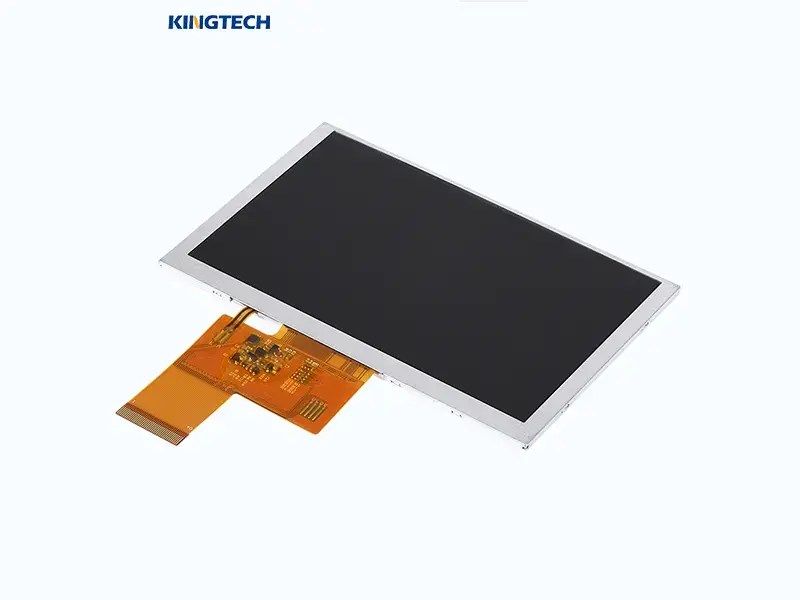

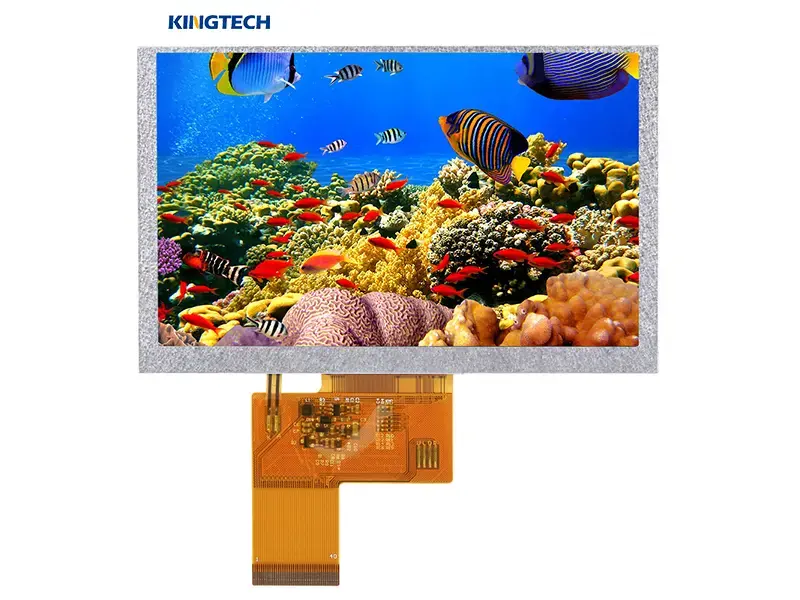

5 inch 800×480 sunlight readable LCD display front view

5 inch tft lcd display5 inch tft lcd display5 inch tft lcd display

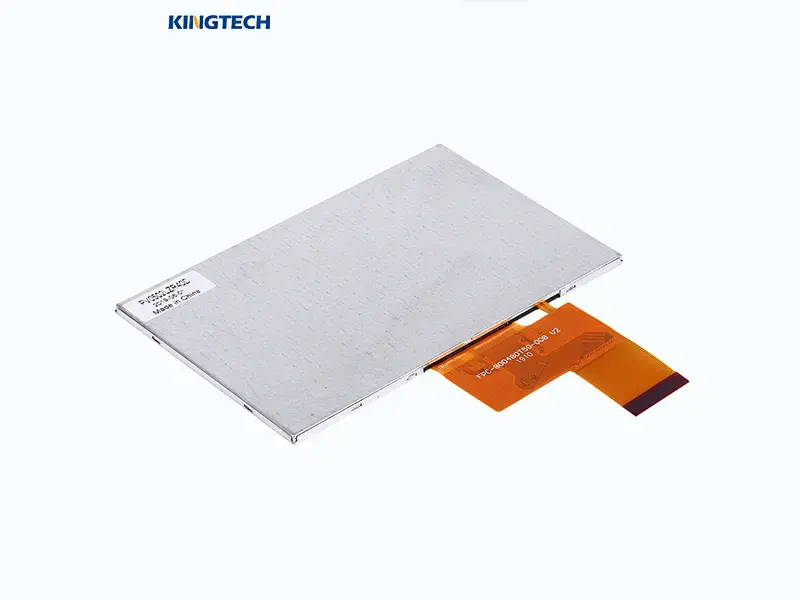

5 inch 800×480 sunlight readable LCD display back view5 inch tft lcd display

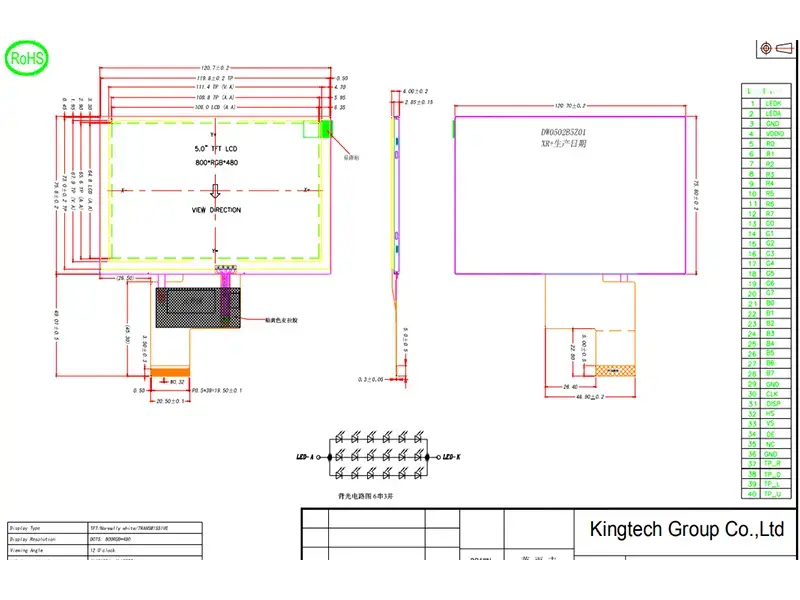

5 inch 800×480 sunlight readable LCD display Machine DrawingWide temperature 5.0 inch 800x480 resolution TFT LCD display
