240×320 capacitive 3.2 tft lcd module touch panel

Item3.2 inch 240×320 QVGA TFT display
Model NoPV03200DX39B
Resolution240×320
Outline Dimension77.6(L)*55.04(W)*2.5(T)
Active Area(mm)64.8 (L)*48.6(W)
Brightness230nits
Viewing Angle6 O’clock
InterfaceMCU 8/16BIT
Driving ICILI9341V
PIN39
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCan custom capacitive/ resistive touch

For product pricing,customization,or other inquiries:

Share to:

3.2 inch 240×320 QVGA small / Tiny TFT LCD display
1. PV03200DX39B  mainly application for  handheld device, medical smart home equipment.
2. It with 240×320 resolution/QVGA, MCU 8/16BIT interface, 6 O’clock viewing angle, 230 brightness, ILI9341V Driving IC .
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device, medical smart home equipment.

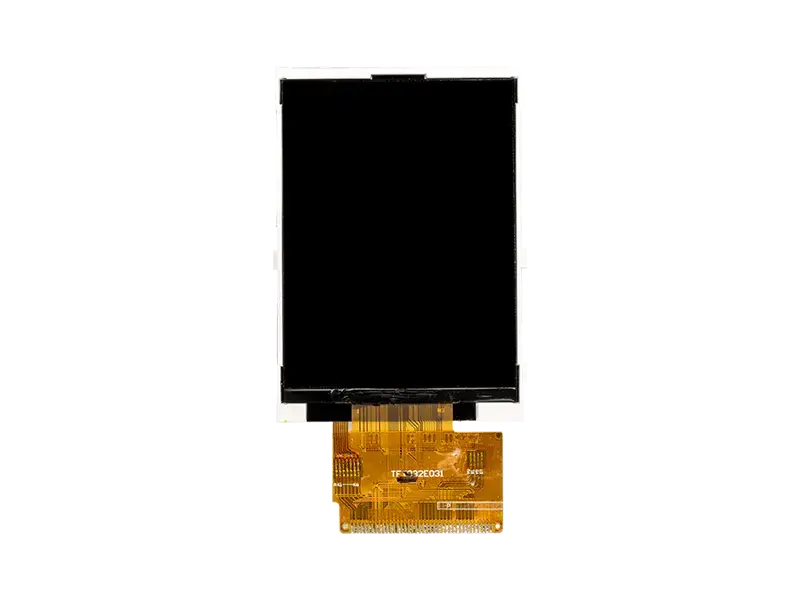

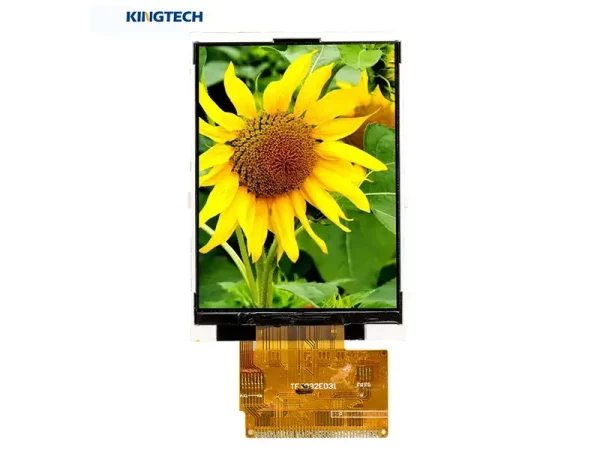

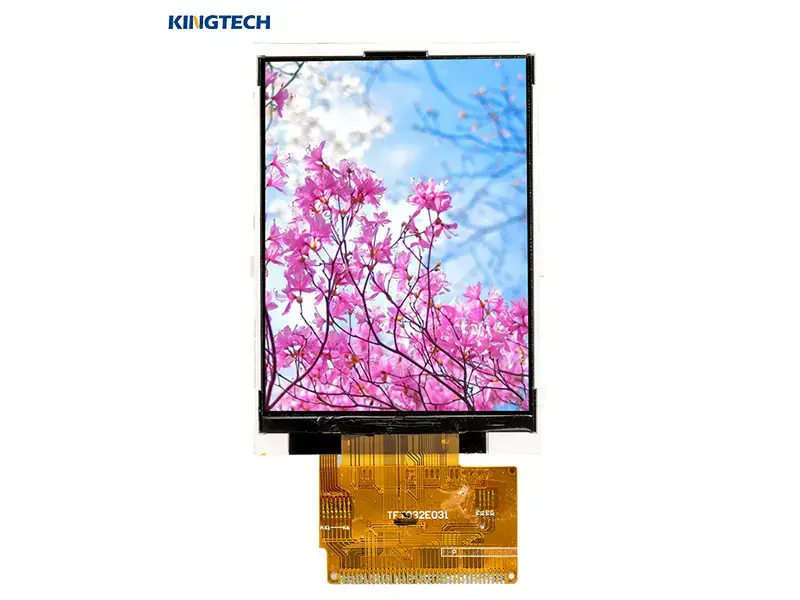

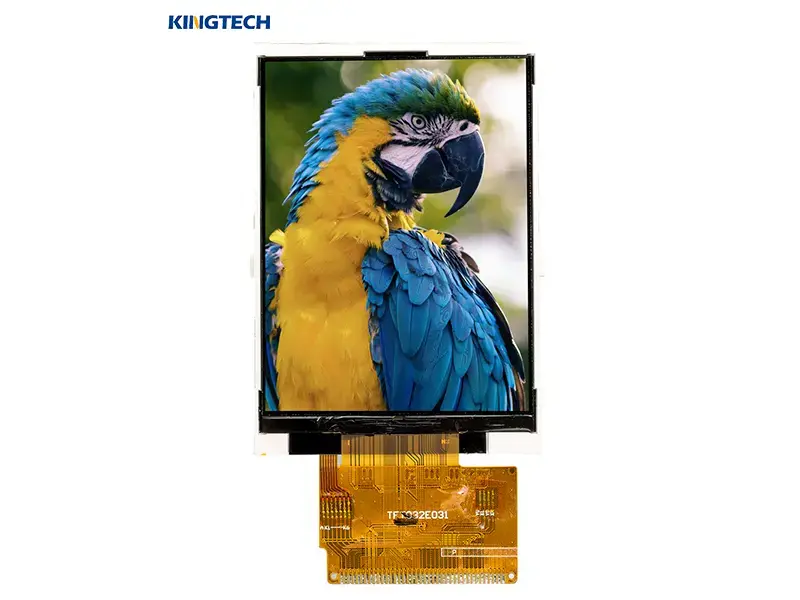

3.2 inch 240×320 Tiny TFT LCD display front view

3.2 inch tft lcd3.2 inch tft lcd

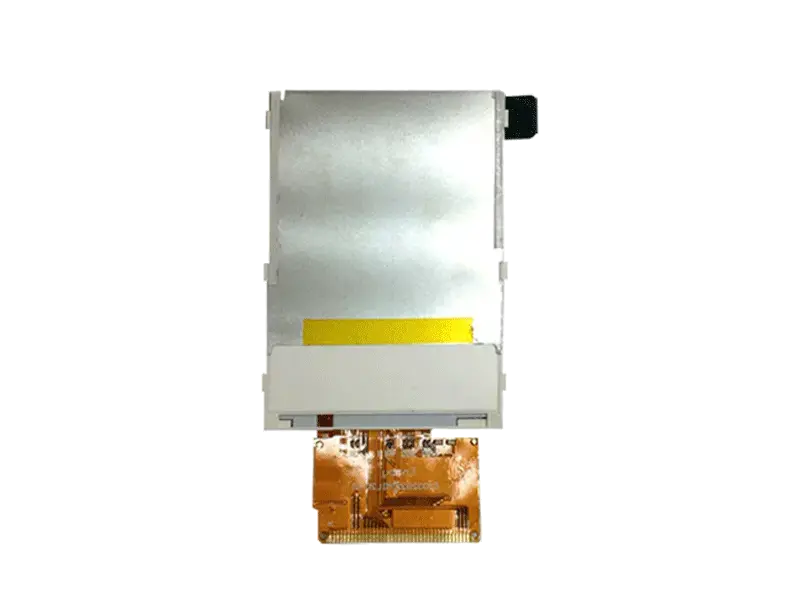

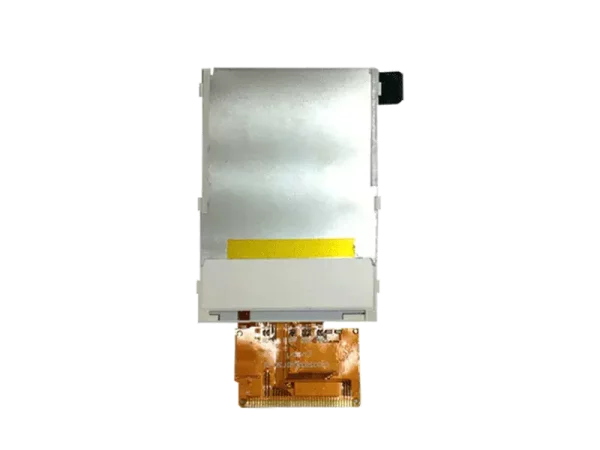

3.2 inch 240×320 Tiny TFT LCD display back view

3.2 inch tft lcd

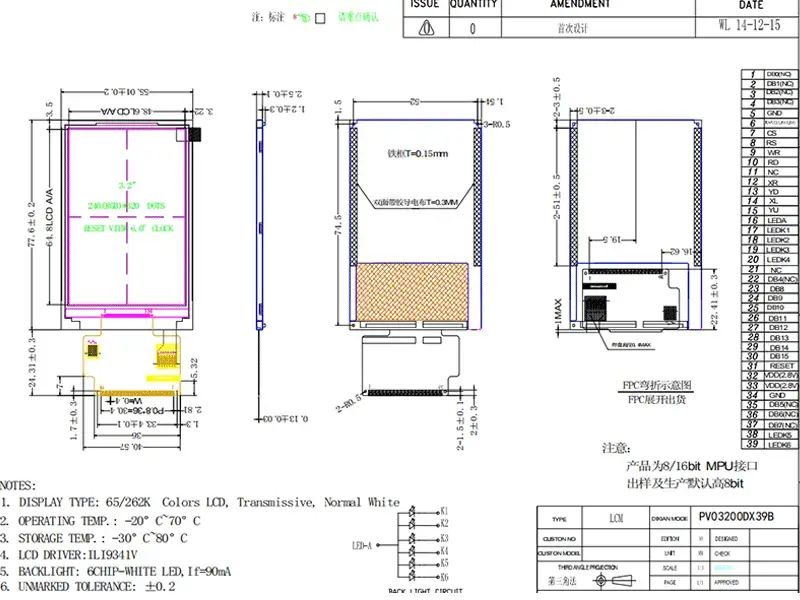

3.2 inch 240×320 Tiny TFT LCD display Machine Drawing3.2-PV03200DX39B

New Tab content 3

3.2-PV03200DX39B
