Item | 4.3 inch 480×272 RGB lcd display |
Model No | PV04300TYD40A-R |
Resolution | 480×272 |
Outline Dimension | 105.5*67.2*4.15 |
Active Area(mm) | 95.04*53.856 |
Brightness | 280nits /1000nits |
Viewing Angle | 12 O’Clock |
Interface | 24 BITS RGB |
Driving IC | HX8257A |
PIN | 40 |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Touch | Capacitive/ resistive touch |
4.3 inch 480×272 resolution RGB interface display with resistive touch
1. PV04300TYD40A-R mainly application for Industrial ,medical equipment .
2. It with 480×272 resolution 200nit /800nits brightness ,RGB interface ,HX8257A driver IC , existing resistive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

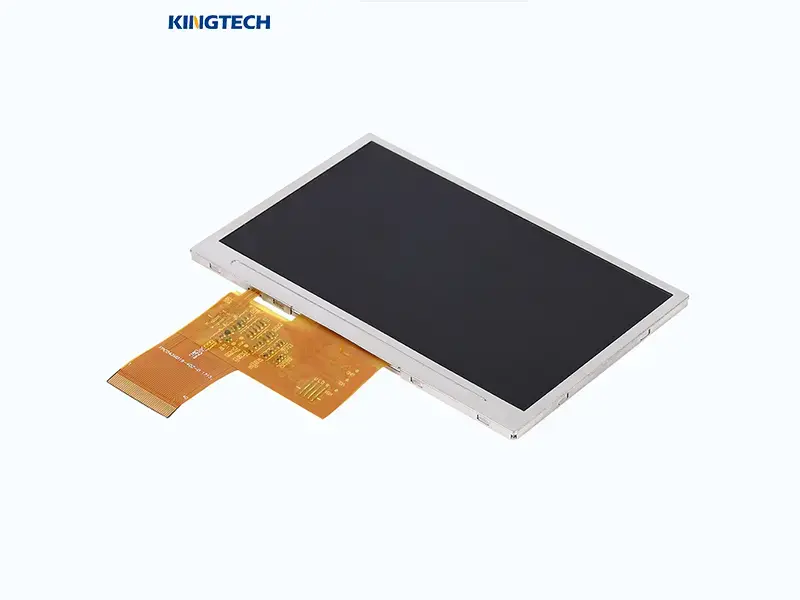

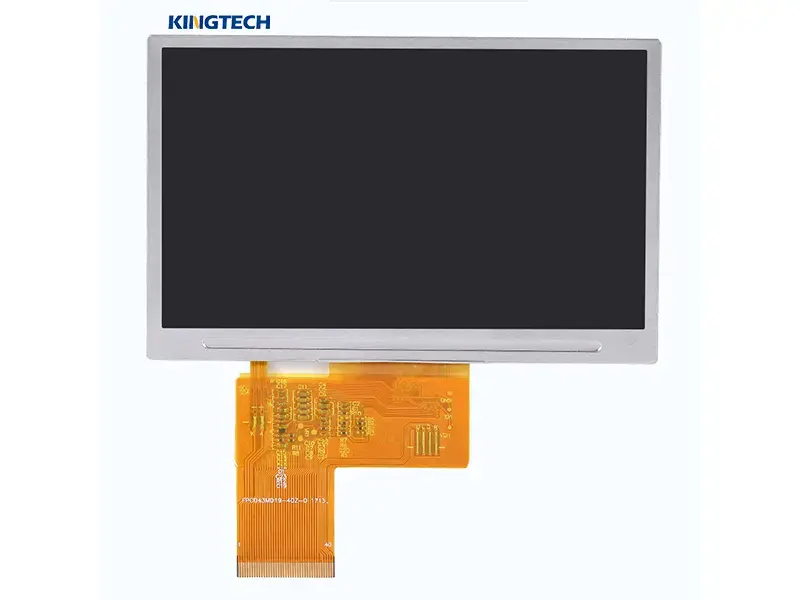

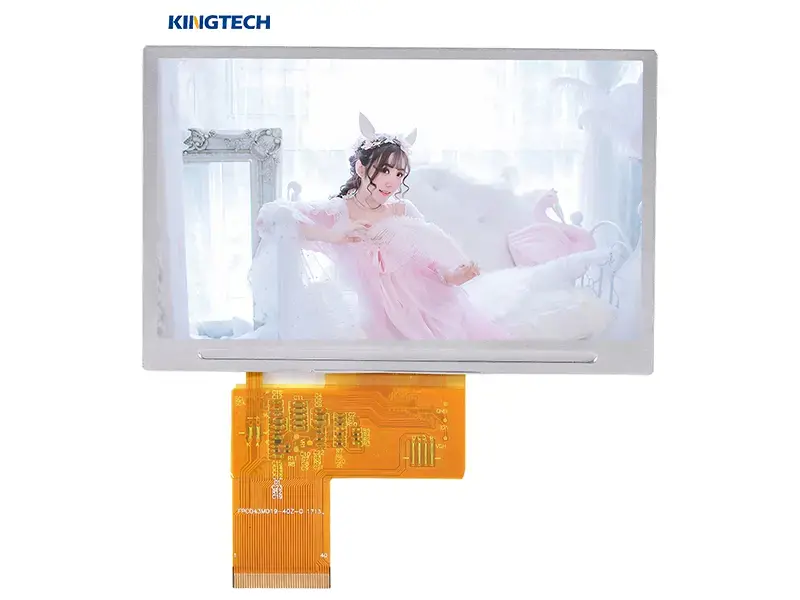

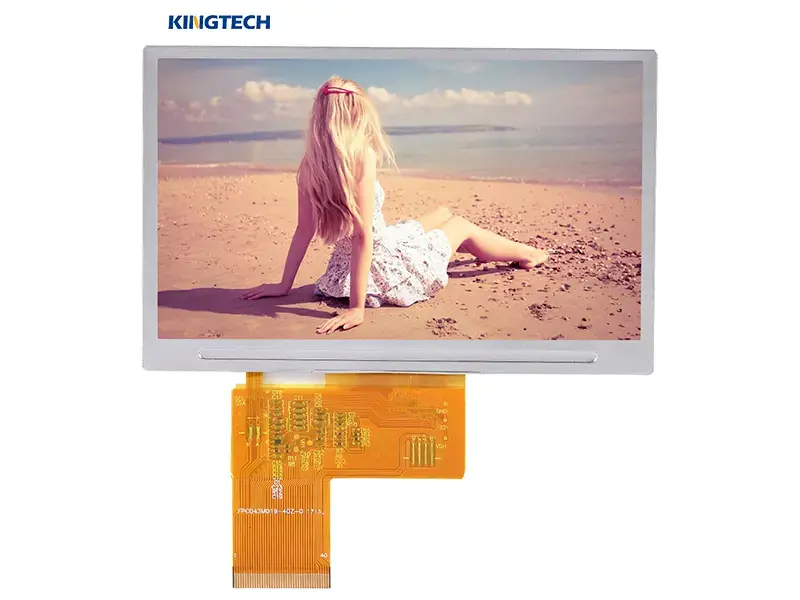

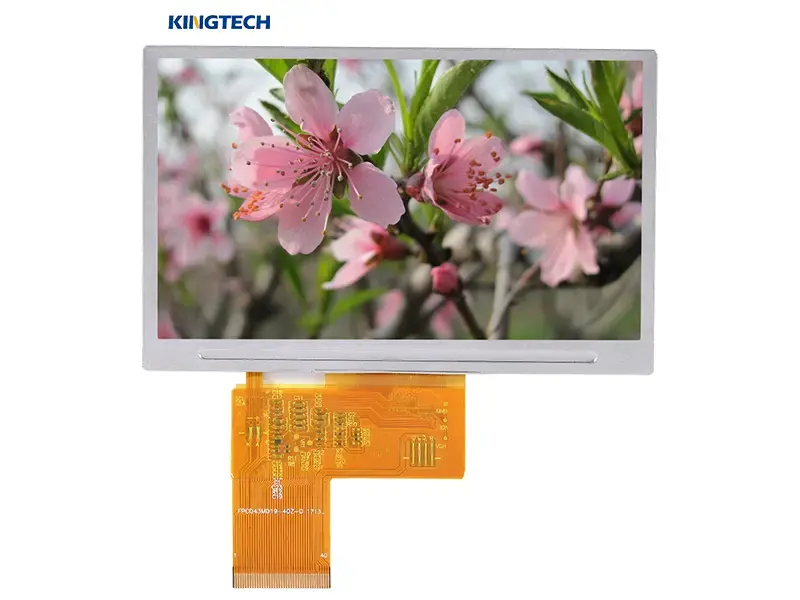

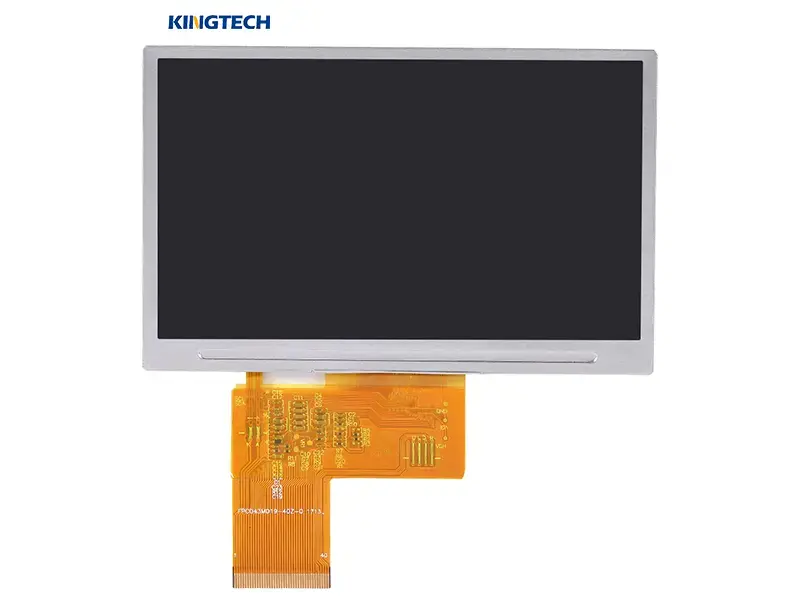

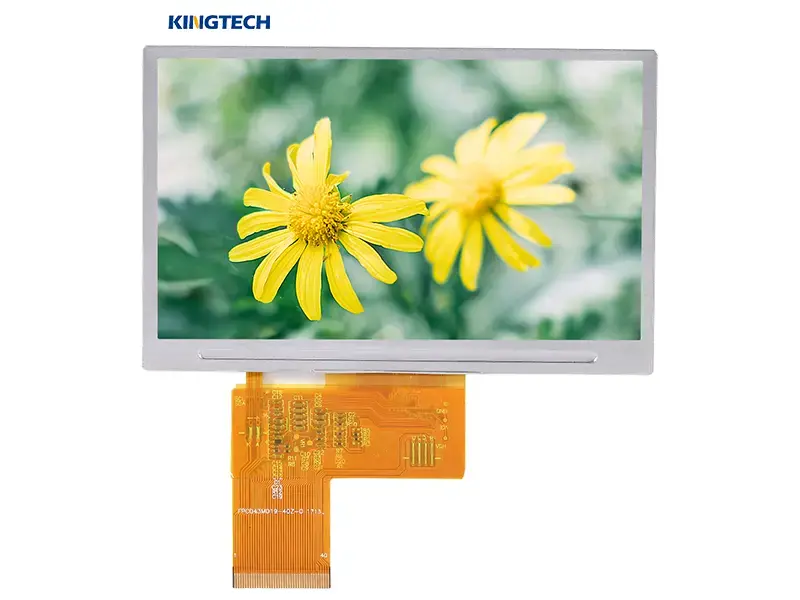

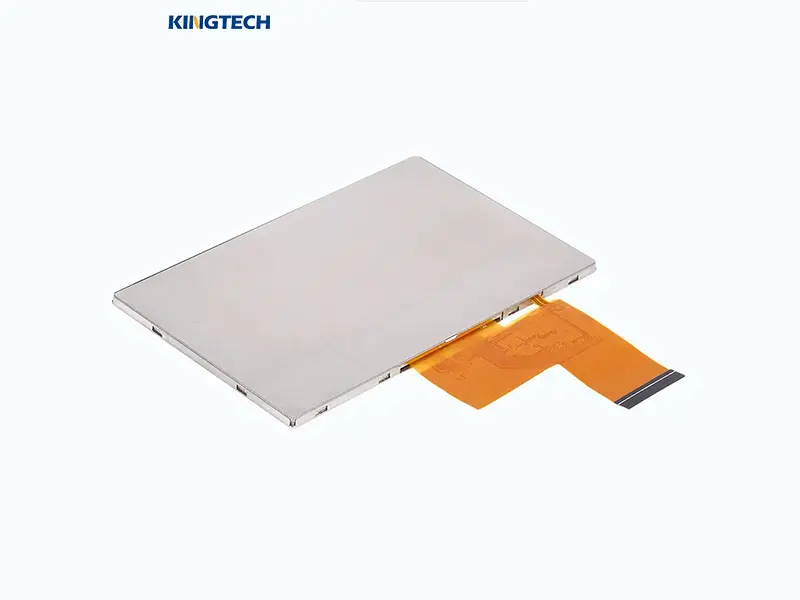

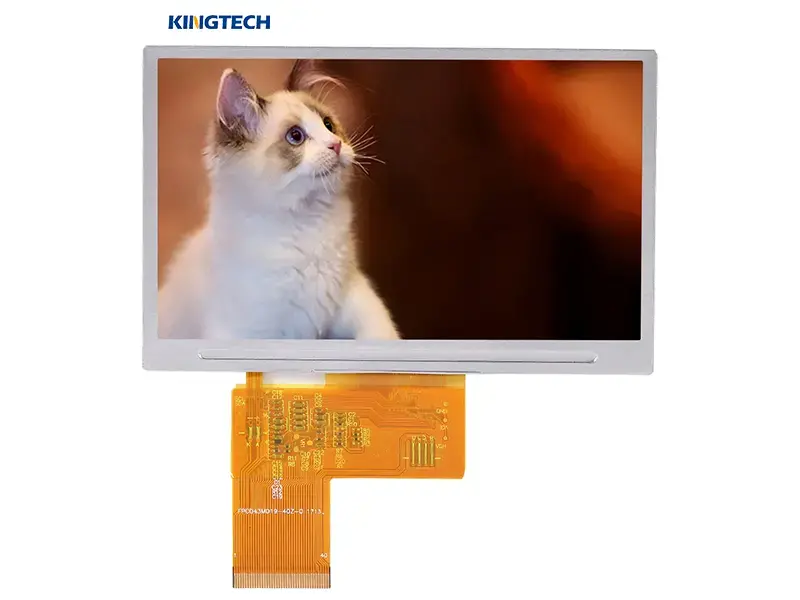

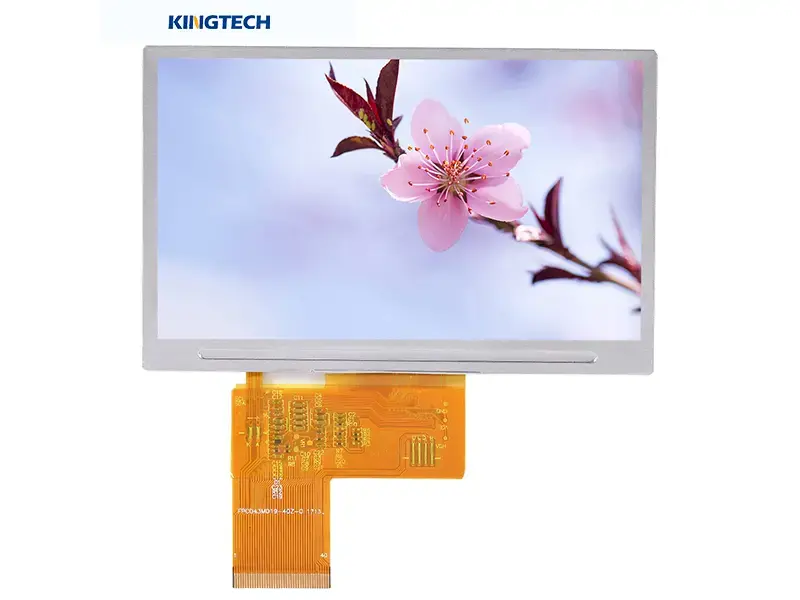

4.3 inch 480×272 800nits brightness lcd display front view 4.3 inch 480×272 800nits brightness lcd display back view

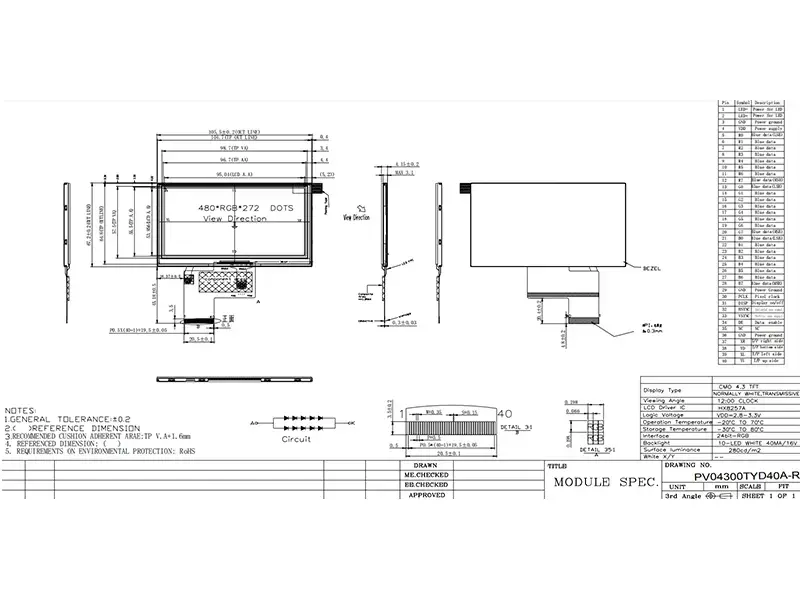

4.3 inch 480×272 800nits brightness lcd display Machine Drawing
