QVGA ST7789 20 pin 3.2 inch tft lcd screen

Item 3.2inch 240*320 LCD display
Model NoPV032005HZ20F
Resolution 240RGB x 320 dots
Outline Dimension 55.04(H ) x77.70(V) x2.46(T)
Active Area(mm)48.60(H) x64.80(V)
Interface MCU 8bit
Viewing Angle12 “O Clock Gray inversion
Driving IC ST7789
Display Mode TFT/TRANSMISSIVE
Operating Temperature -10℃ ~ 60℃
Storage Temperature -20℃ ~ 70℃
Brightness150nits

For product pricing,customization,or other inquiries:

Share to:

3.2 inch 240×320  resolution MCU 8 bits interface ST7789 lcd display
1.PV032005HZ20F mainly application for  Industrial ,medical equipment handheld device .
2.It with 240×3202 resolution ,MCU 8bit interface ,ST7789 driver IC ,
3.It also can custom touch panel and interface, brightness as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

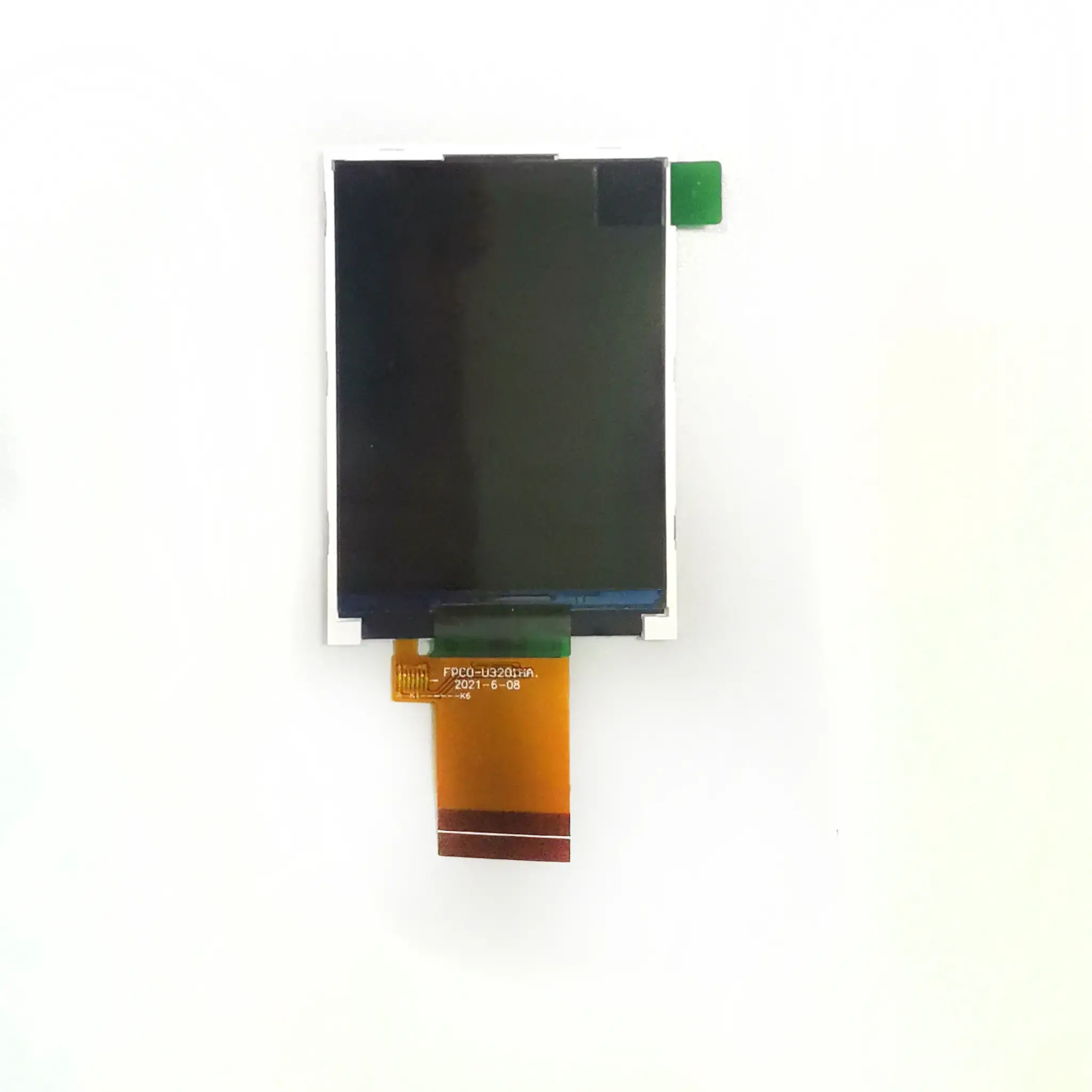

Front view



3.2 inch 240*320 LCD display

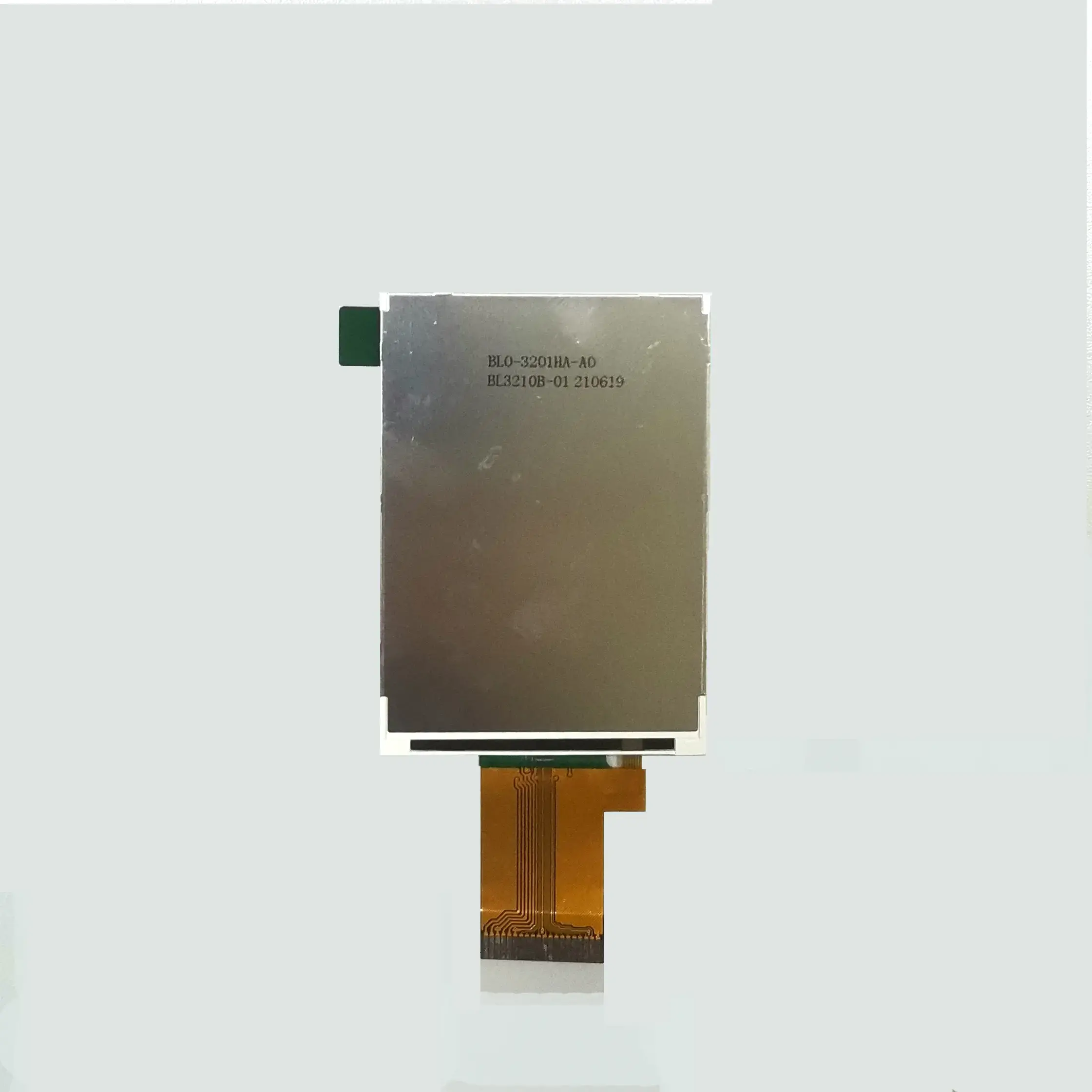

Back view

3.2 inch 240*320 LCD display
