Item | 3.5 inch 320×240 LCD display |
Model No | PV03501TYD54C |
Resolution | 320×240 |
Outline Dimension | 76.90*63.90*3.27 MM |
Active Area(mm) | 70.08*52.56 mm |
Interface | 24BIT RGB+SPI / SPI MCU interface |
Viewing Angle | 12 O’clock |
Driving IC | HX8238D / SSD2119 |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 290nits |
Touch screen | Resistive and capacitive touch screen |
3.5 inch 320×240 resolution RGB/SPI/MCU interface LCD display
1.PV03501TYD54C mainly application for handheld device

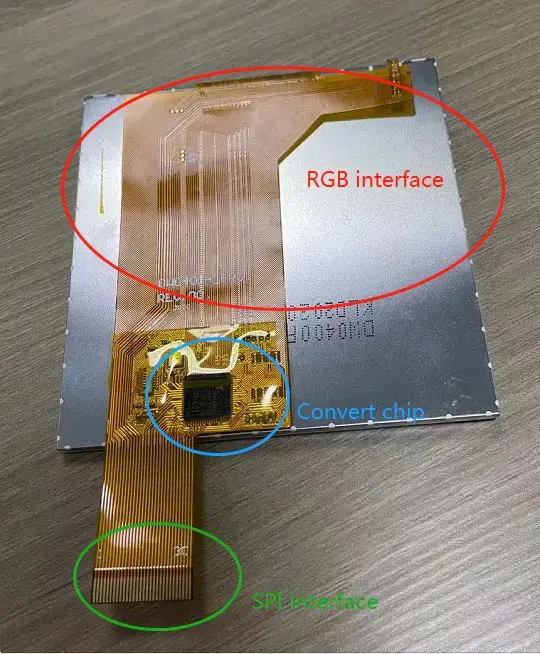

2.It with 320×240 resolution . RGB, SPI and MCU interface , SSD2119 Driver IC.
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ,medical application .

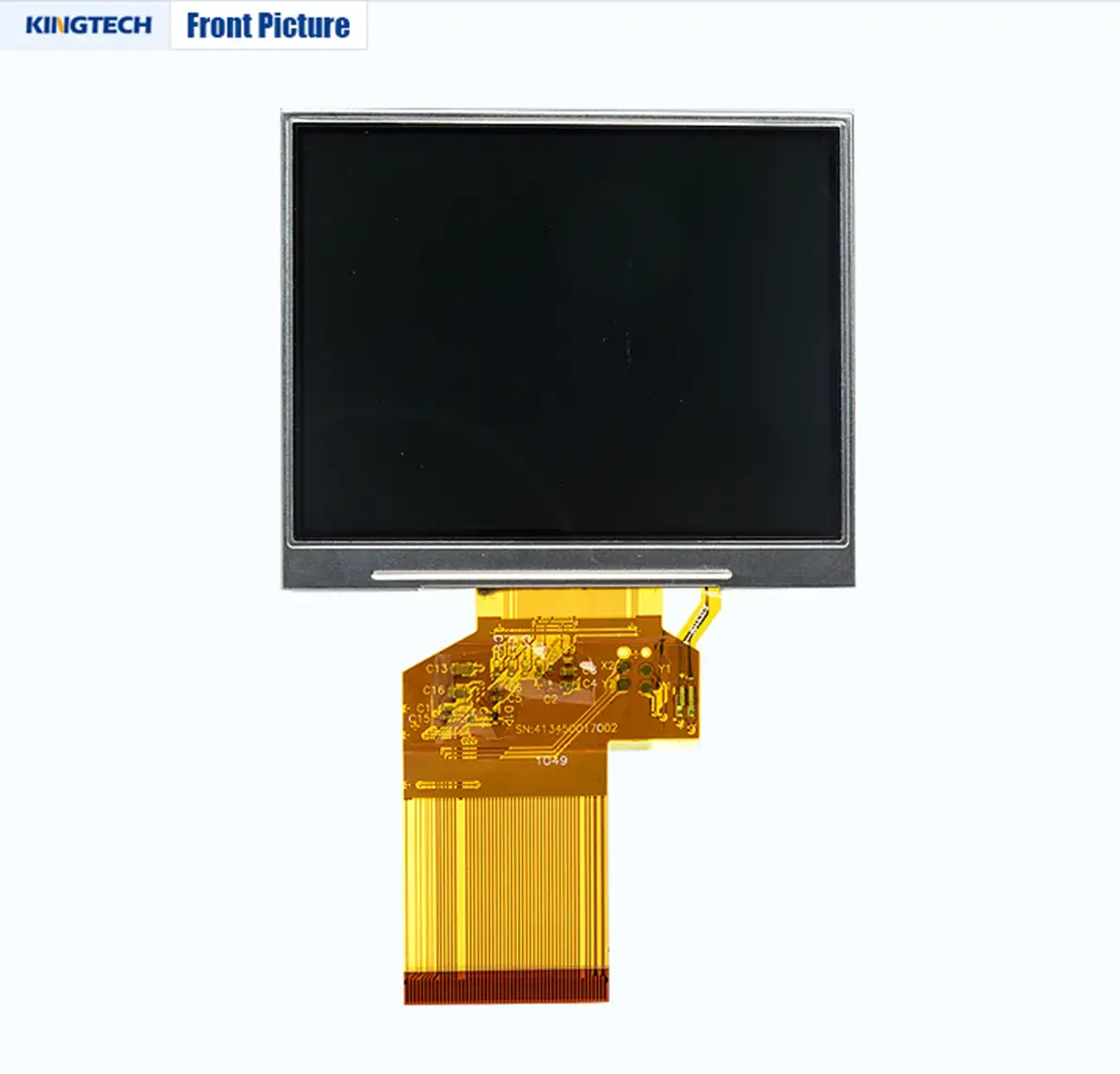

3.5 inch QVGA TFT LCD display Front view

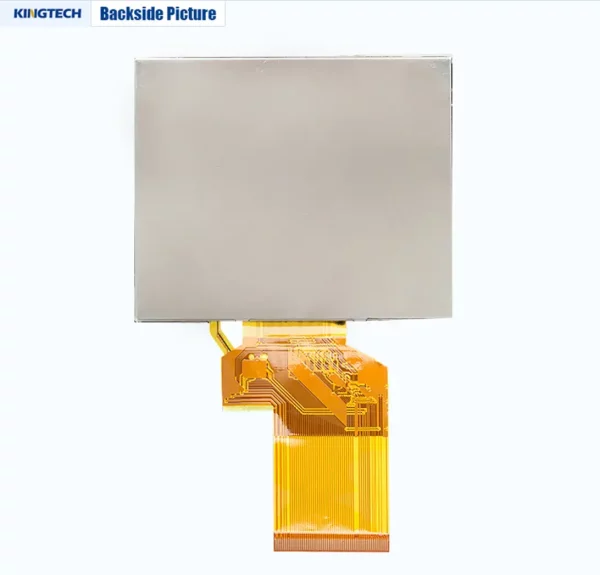

3.5 inch QVGA TFT LCD display Back View

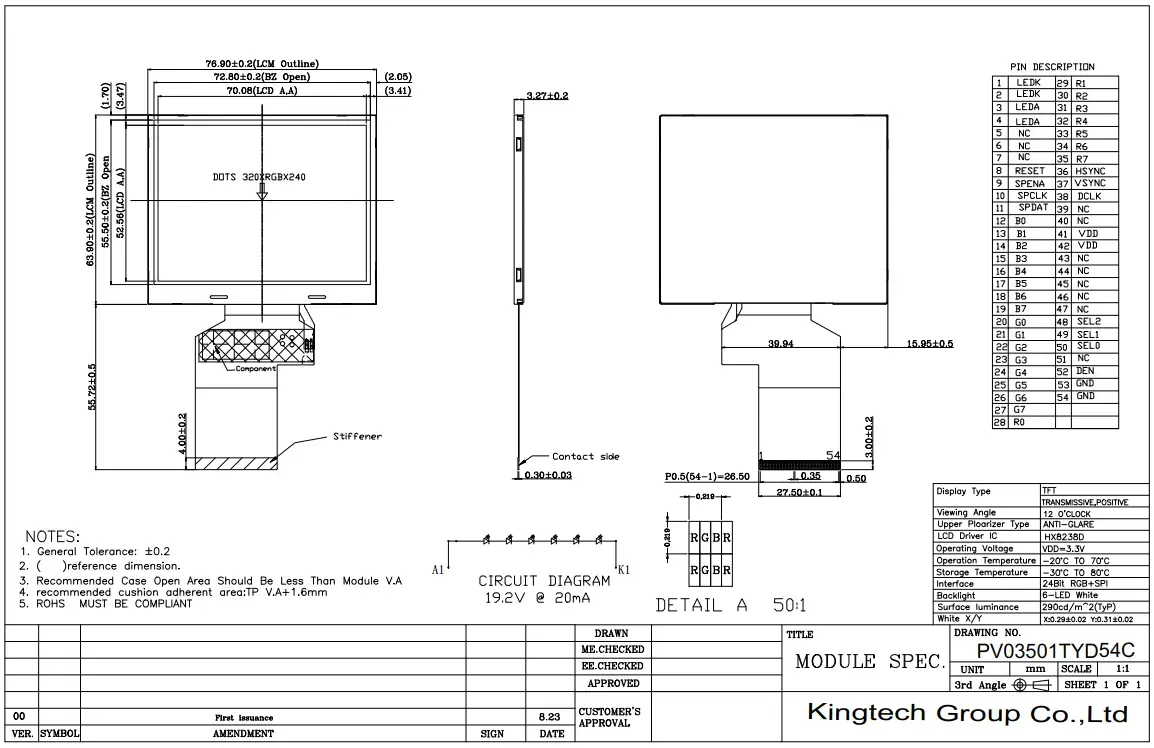

Machine Drawing
