350 nits universal touch screen 3.5inch 320*480 tft lcd

Item 3.5 inch IPS 320×480 LCD screen
Model NoPV035007TD24D-CO
Resolution 320*480
Outline Dimension 57.34*96.95*3.43
Active Area(mm)48.96*73.44
Interface MIPI interface
Viewing AngleAll
Driver ICST7796S
Display Mode Transmissive / Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
Brightness350nits
Touch screenCapacitive touch /Optical bonding

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 480×640 VGA SPI + RGB interface IPS touch screen module

1. PV035007TD24D-COmainly application  handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , IPS all view angle , ILI9488/HX8363A driver IC,MIPI interface, 350nits brightness, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

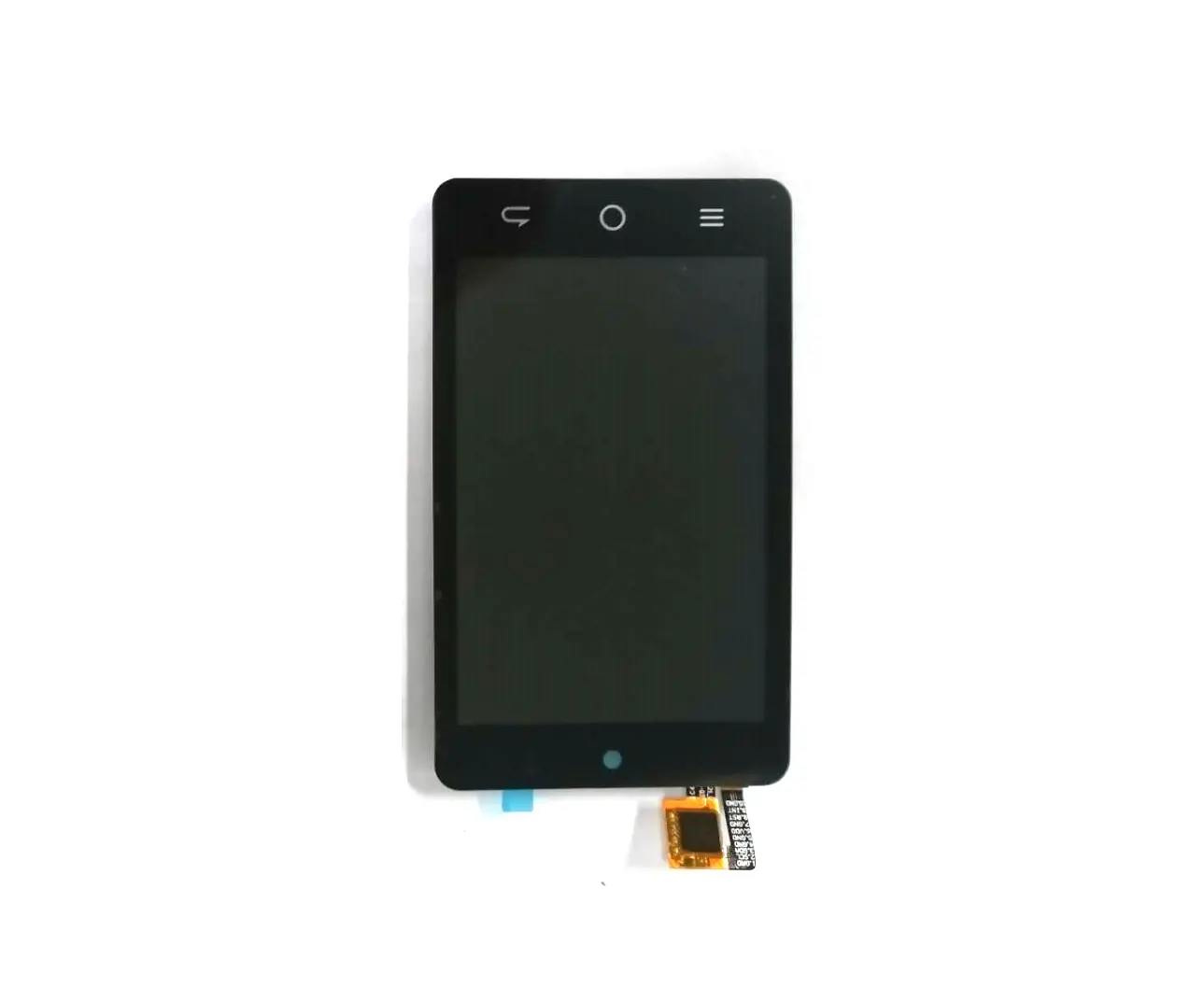

3.5 inch IPS LCD touch module front view

3.5inch 320*480 tft lcd

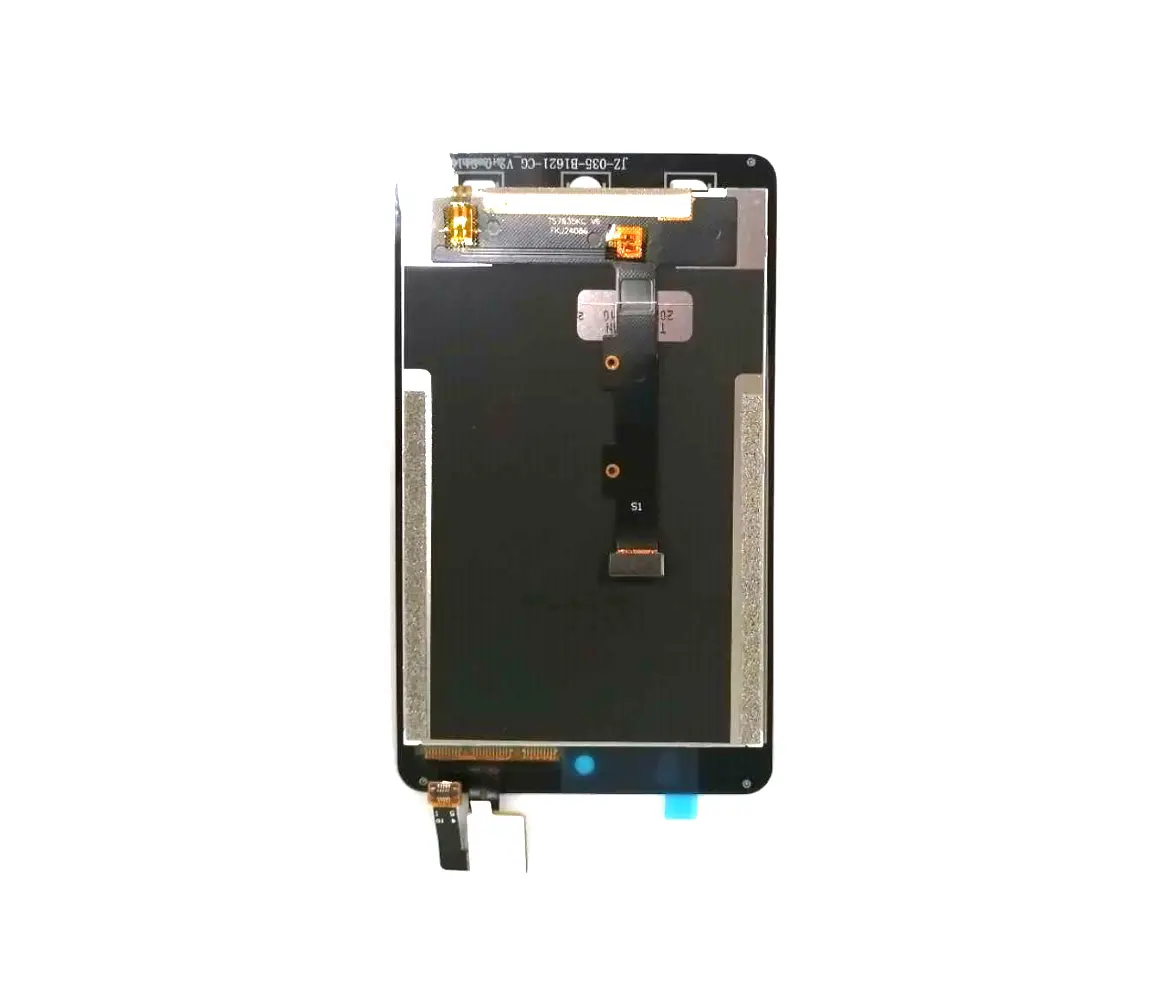

3.5 inch capacitive touch screen back view

3.5inch 320*480 tft lcd
