Capacitive touch ILI9488 320×480 3.5″ lcd tft display

Item 3.5 inch IPS LCD display with CTP
Model No PV035HV-CIA5007-CO
Resolution 320×480

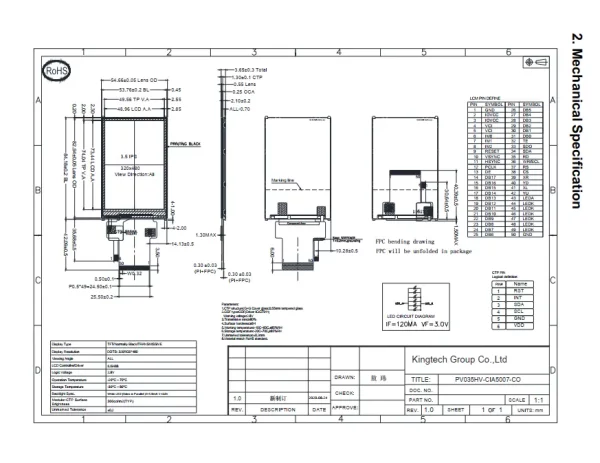

Outline Dimension 54.66*84.18*3.65
Active Area(mm) 48.96*73.44
Interface MCU/SPI+RGB interface
Viewing Angle All
Driver IC ILI9488
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Brightness 300nits
Touch screen Capacitive touch screen/ Optical bonding

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×480 resolution SPI+RGB interface IPS LCD module with capacitive touch screen optical bonding

1. PV035HV-CIA5007-CO mainly application  handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , IPS/ Wide/ Free/ All view angle, 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB, ILI 9488 driver IC , 300 nits brightness, with capacitive touch panel/optical bonding .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

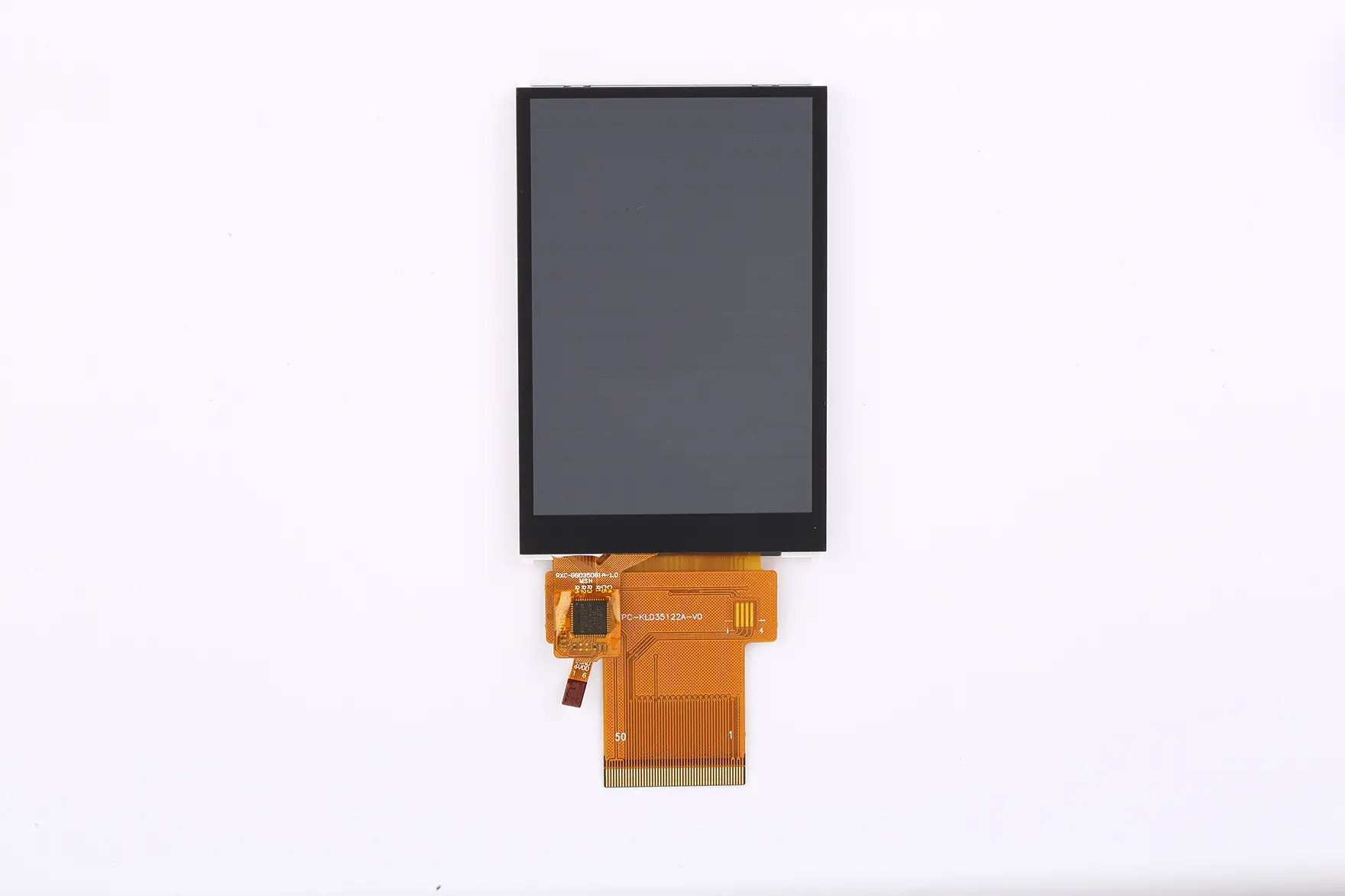

3.5” 320×480 IPS touch screen front view

flcd tft display ront

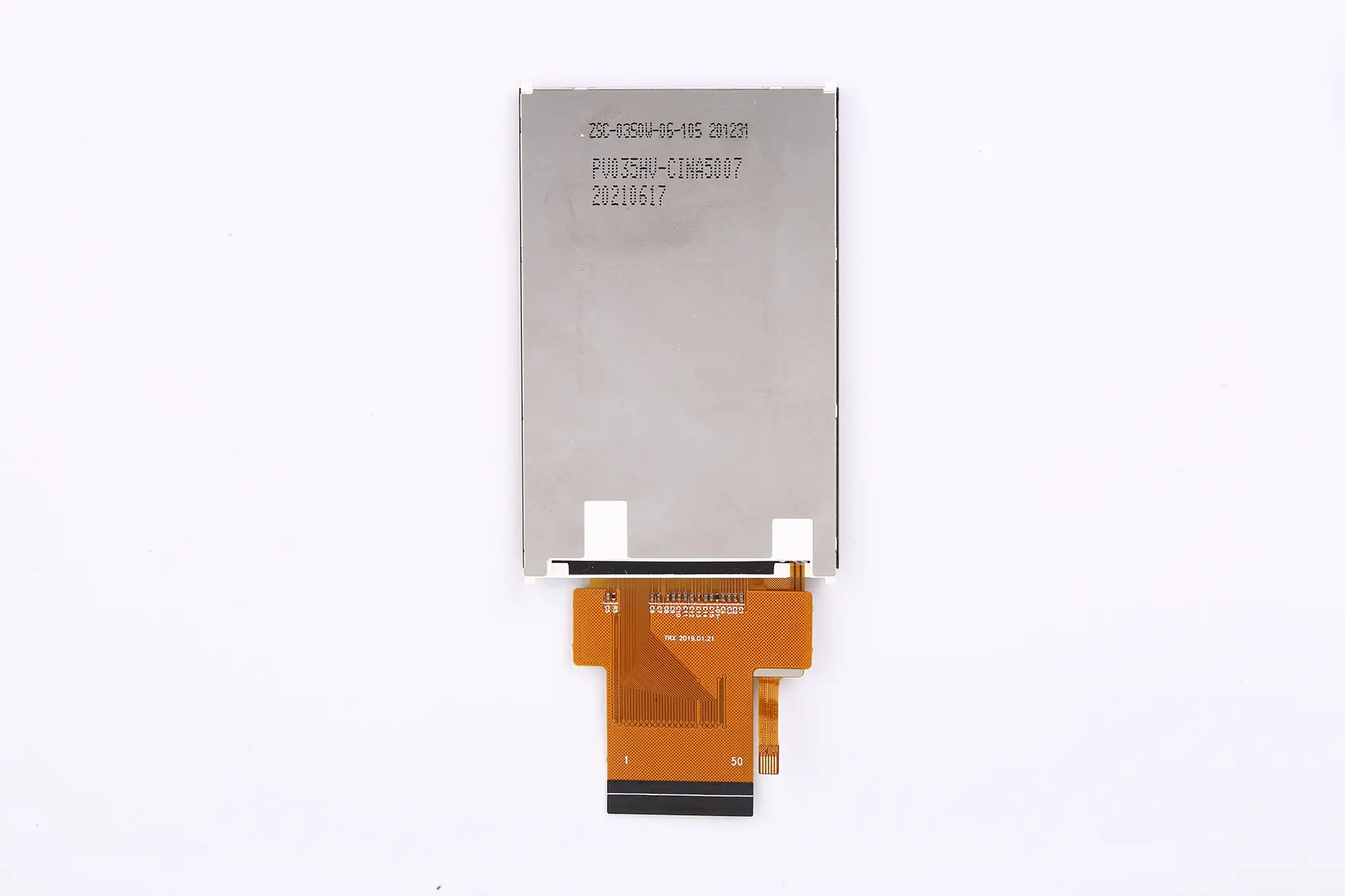

3.5” 320×480 IPS display with capacitie back view

lcd tft display back
